BrewZilla / DigiBoil Pro Sight Glass Distillation / Steam Condenser Lid

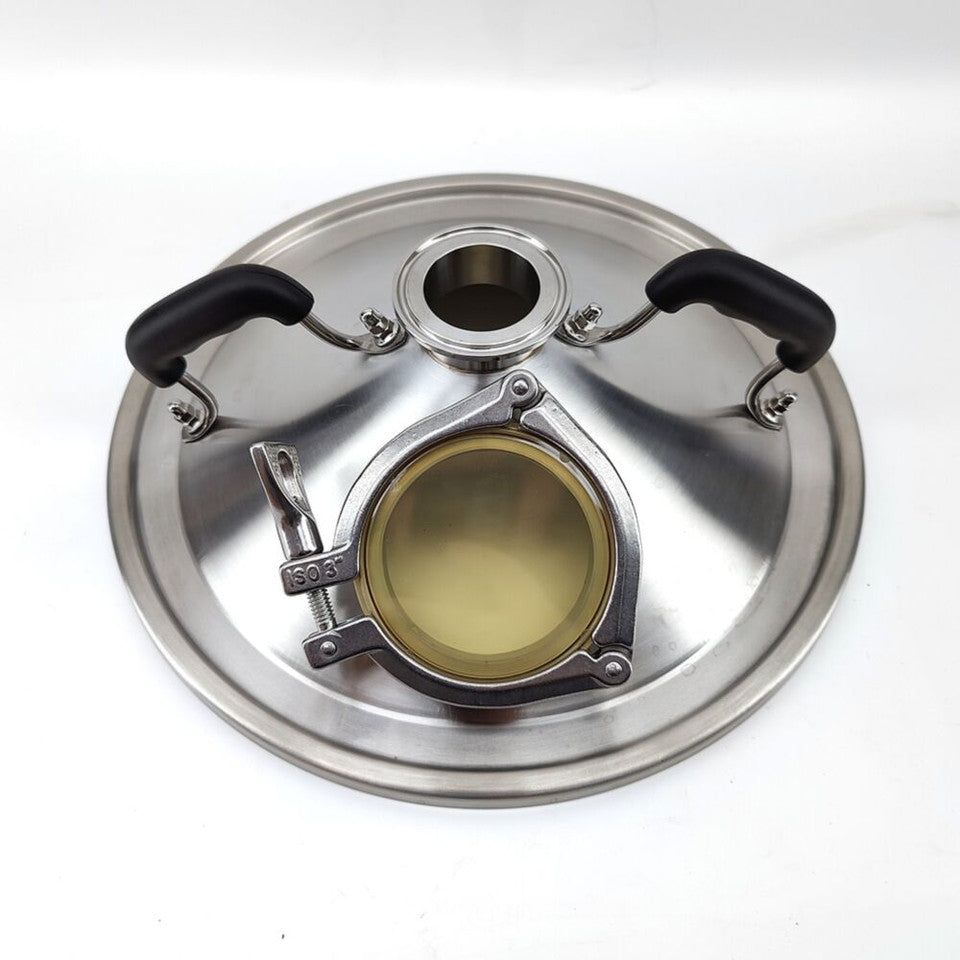

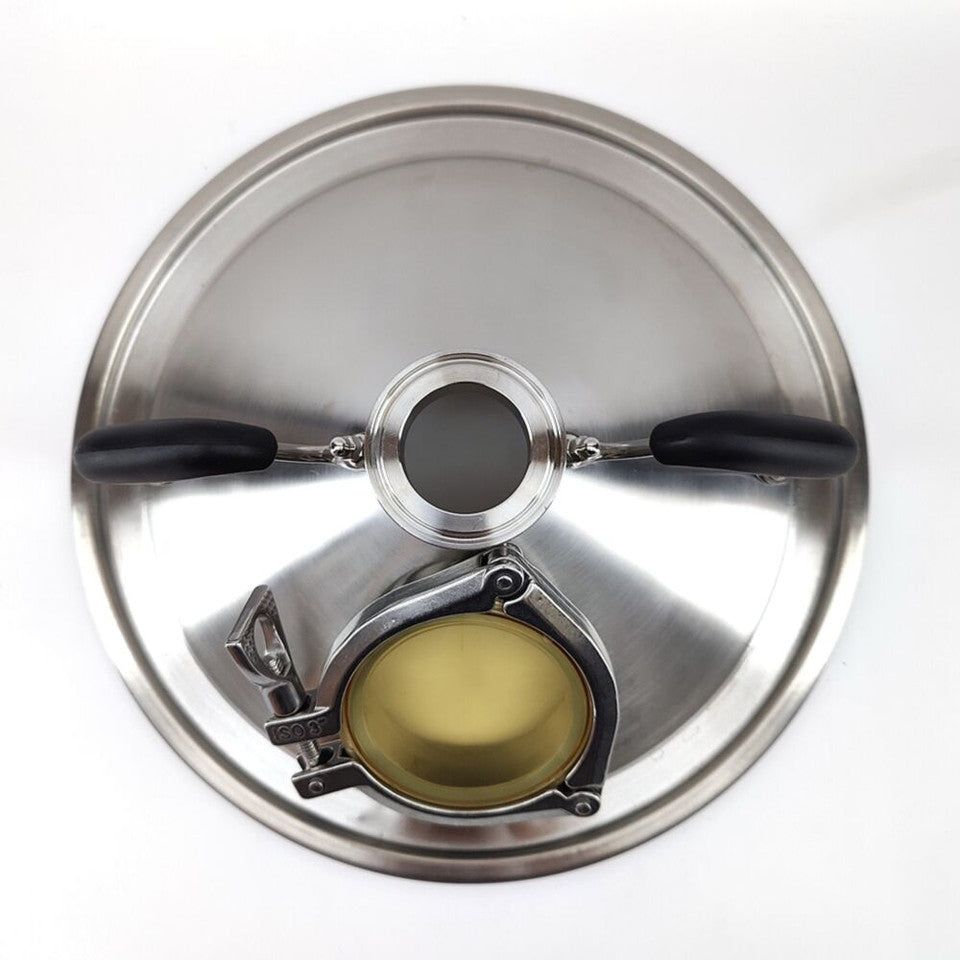

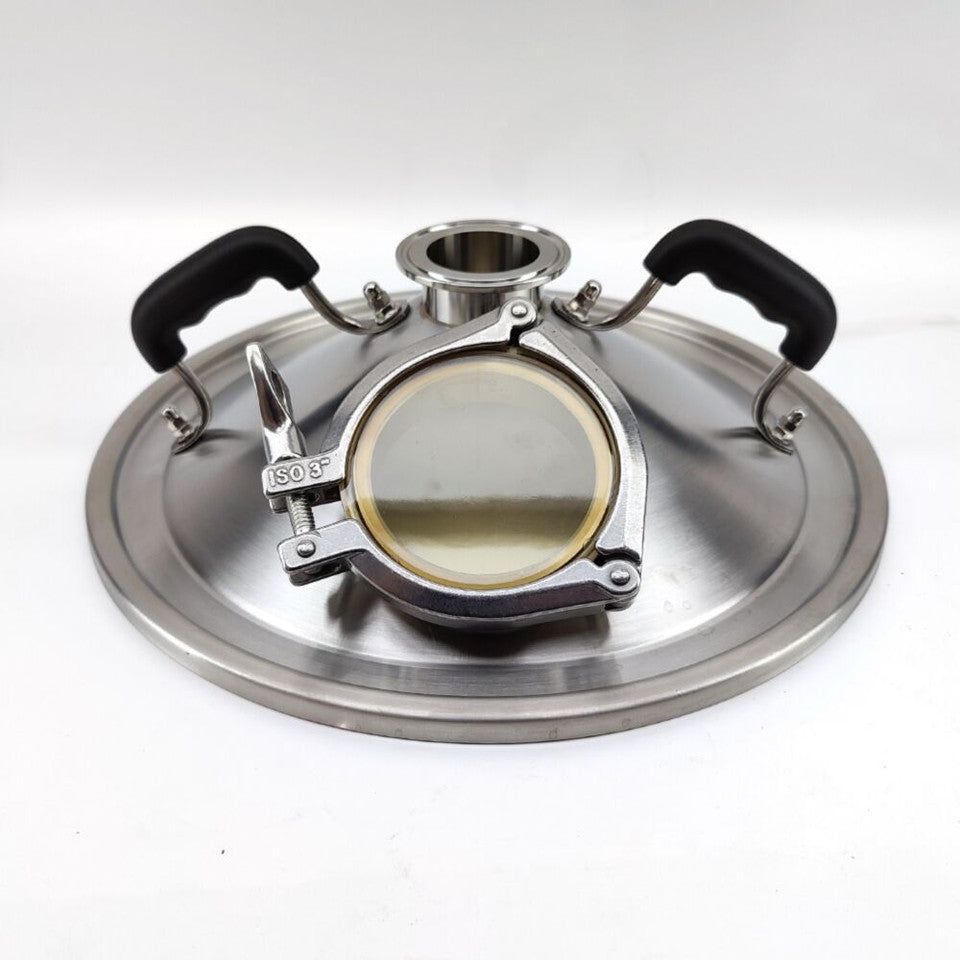

Pro Sight Glass Distillation / Steam Condenser Lid

Suits Gen 4 and Gen 3 BrewZillas, Digiboils and older model Robobrews, for both 35L and 65L models.

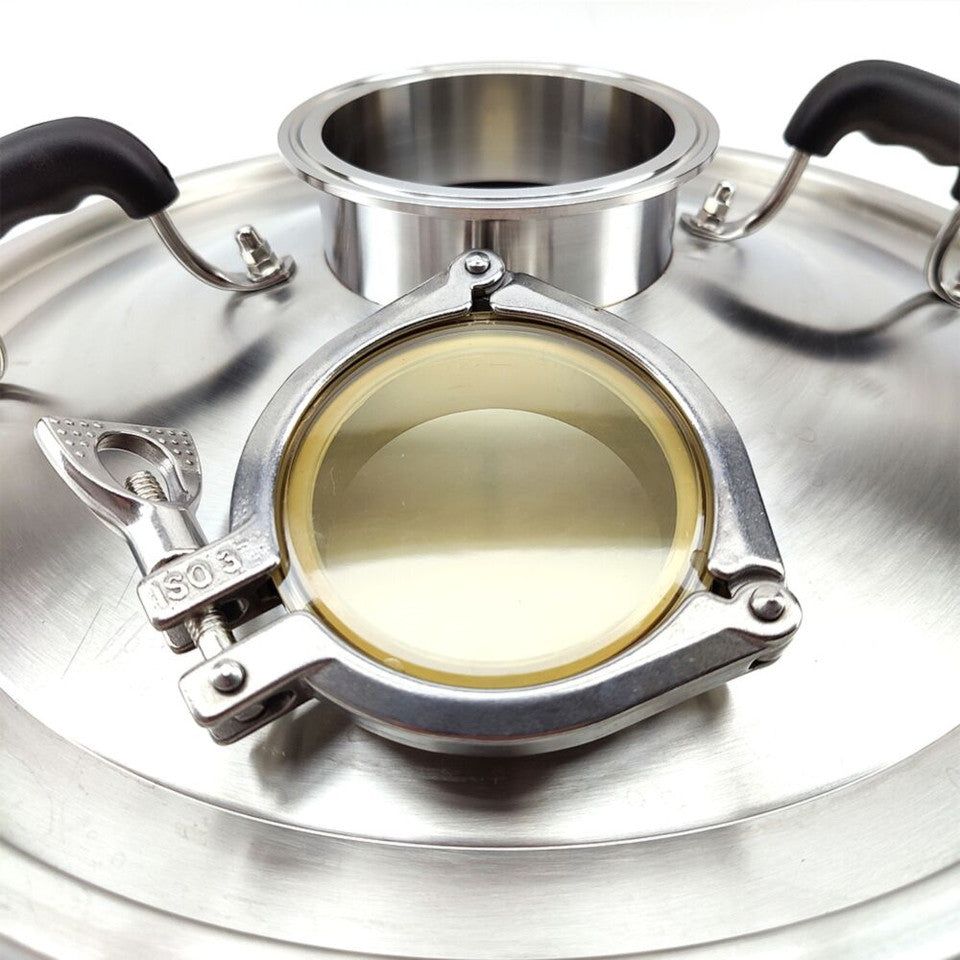

Designed to be extremely sturdy when using heavier stills or off-centre steam condenser units. Now you can watch your wash boil and see if it's foaming or about to puke. If you are brewing beer indoors you may want to use a steam condenser lid set, without having to take off the entire lid to do hop/salt additions, simply remove the 3" Sight Glass and throw in (take care when hot).

PPSU is an excellent choice for components that are exposed to high temperatures (up to 200°C) and corrosive media due to its exceptional chemical resistance. As well as being extremely impact resistant.

We have decided to use this type of plastic because it also has superior thermal and mechanical properties with the added benefit of being transparent. This will allow us to injection mold intricate parts that would have been near impossible to do in stainless steel or lab-grade glass. Because this is a very unique type of plastic, it comes at a much higher cost per kg than other industrial plastics. So much so that it costs more than stainless steel.

Do you want to brew indoors but don't want the roof to get all sticky?

Specifications 35L
- Thicker Silicone O-Ring for a tighter seal
- 2 Inch Tri-clover Top Ferrule Port
- 3 Inch Sight Glass Ferrule

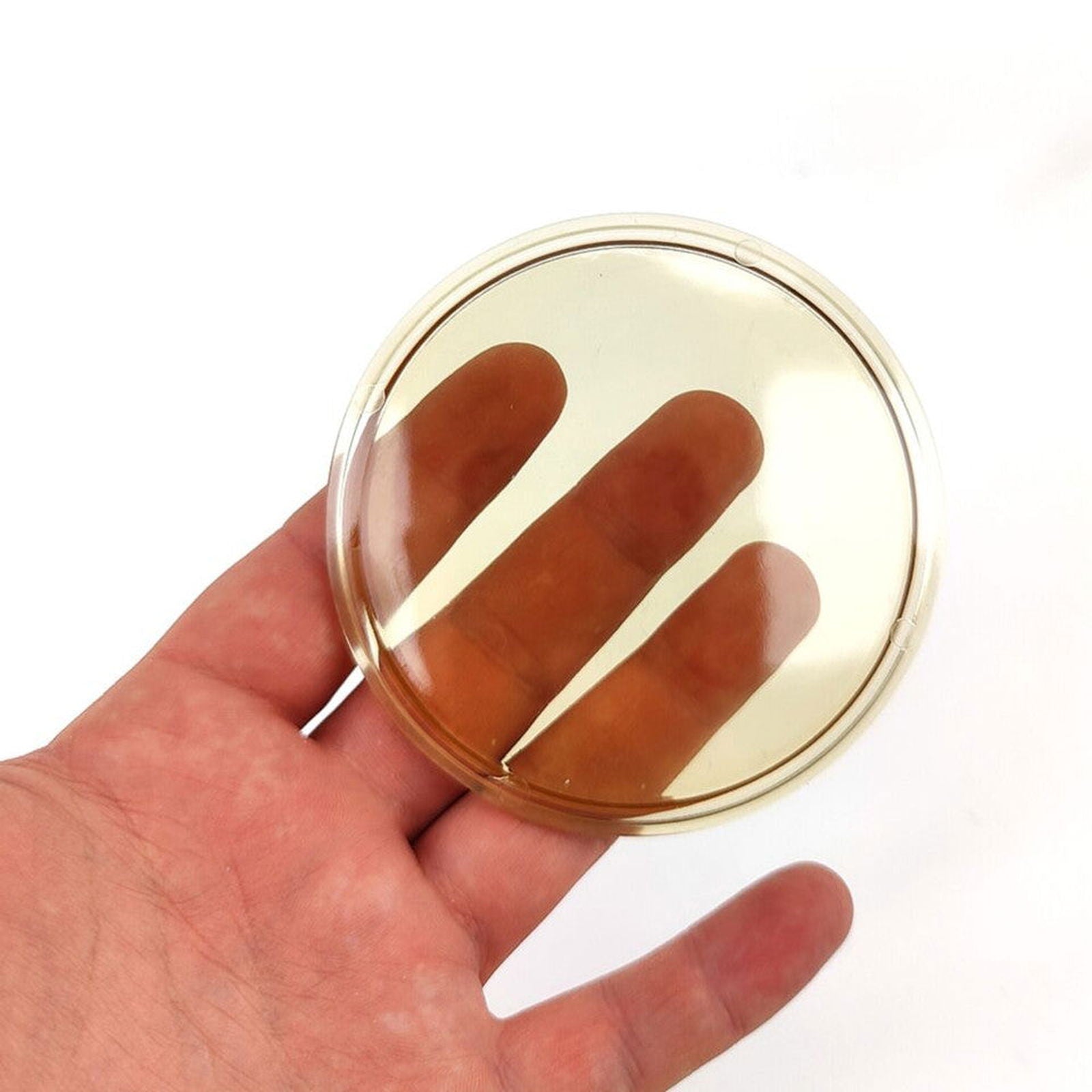

Includes 3 Inch PPSU Sight Glass Disc, 3 Inch Tri-Clover Clamp and 3 Inch Tri-Clover Silicone Seal.

Specifications 65L

- Thicker Silicone O-Ring for a tighter seal
- 4 Inch Tri-clover Top Ferrule Port
- 3 Inch Sight Glass Ferrule
Includes 3 Inch PPSU Sight Glass Disc, 3 Inch Tri-Clover Clamp and 3 Inch Tri-Clover Silicone Seal.

This unit has been designed to be used with the DigiBoil and BrewZilla. We do not have data on other branded boilers if their clamps are suitable to make a complete seal.

From: Kegland
