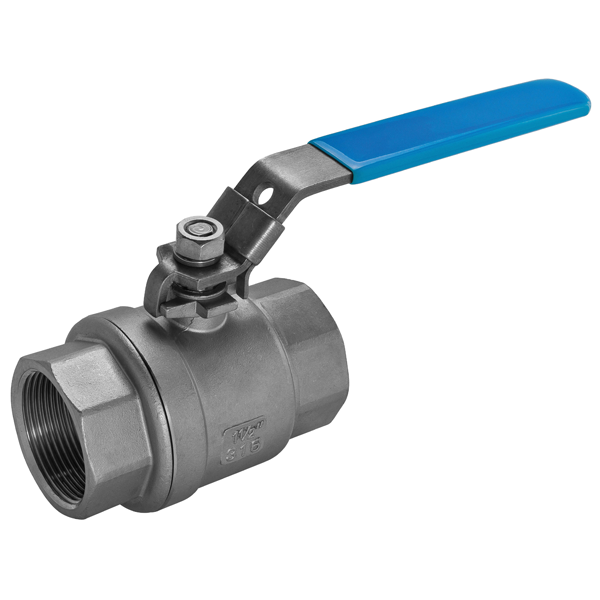

A 2-piece ball valve made from 316 stainless steel

Features

• BSP threaded ends - female
• Maximum pressure 1000PSI / 69Bar W.O.G. (Water, Oil, Gas)
• PTFE seal maximum temperature 200°C
• Full port
• Lockable latch handle

A 316 stainless steel mini ball valve (female - female) with 1/2 inch BSP thread.

Features

• BSP threaded ends
• Reduced port
• Maximum pressure 900PSI / 63Bar
• EPDM seal maximum temperature 120°C

These unique silicone faucet plugs are a universal size so they suit any tap faucet of a diameter 10mm up to 17mm. Perfect for Nukatap and Intertap taps.

The plug is an economical solution for controlling fruit flies, yeast, and bacteria bulidup when the faucet is not in use.

The silicone compound is resistant to caustic and acid-based cleaners as well as high temperature so it is dishwasher safe.

This item also has a dual-use with the BrewZilla Overflow pipe seal for filling the malt pipe with your grain bill.

Features:
- Food grade silicone
- Fits all Nukatap taps, pluto guns, fermenter taps, and many other tap designs

Note: only available in black. Nukatap tap not included.

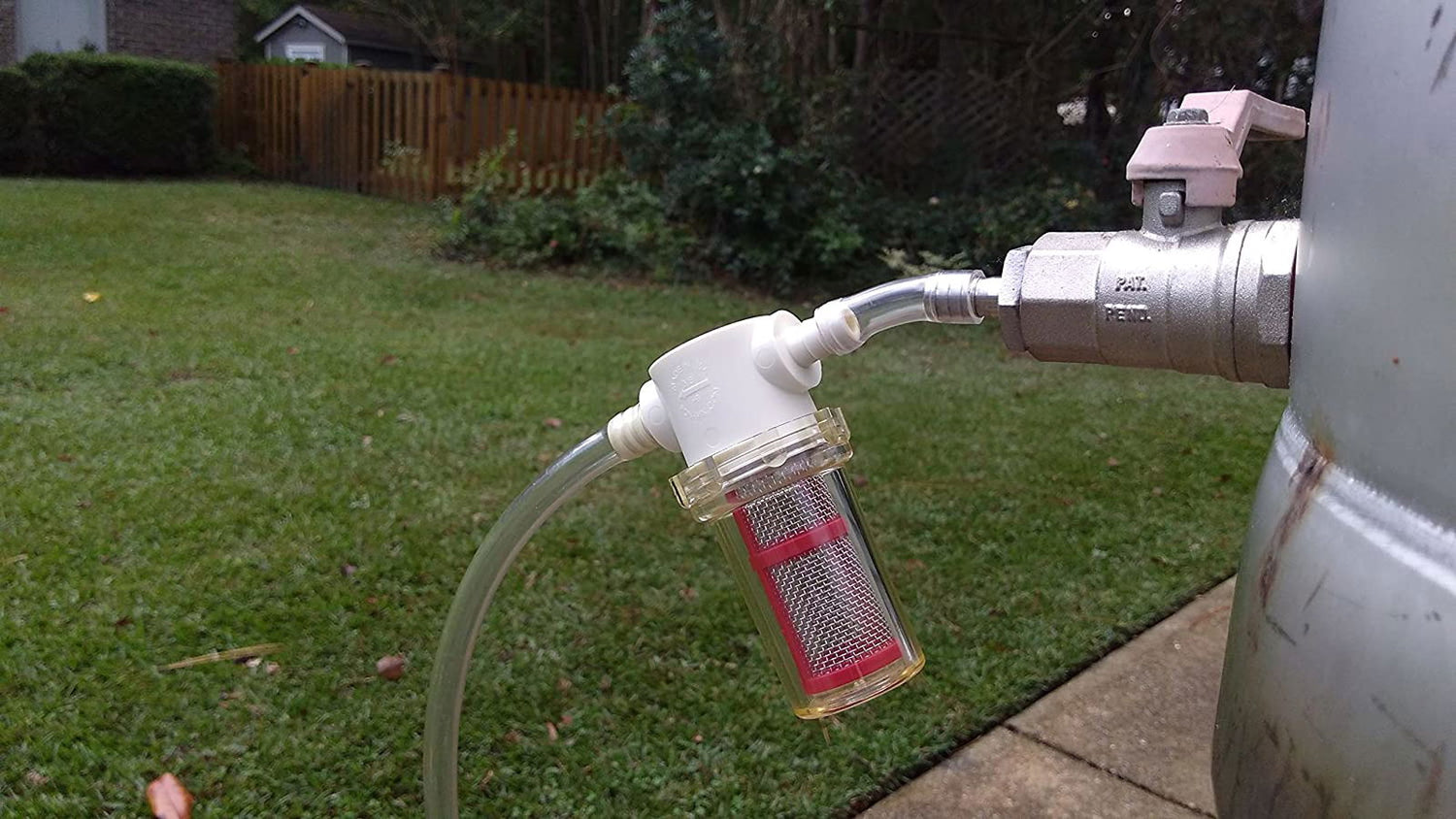

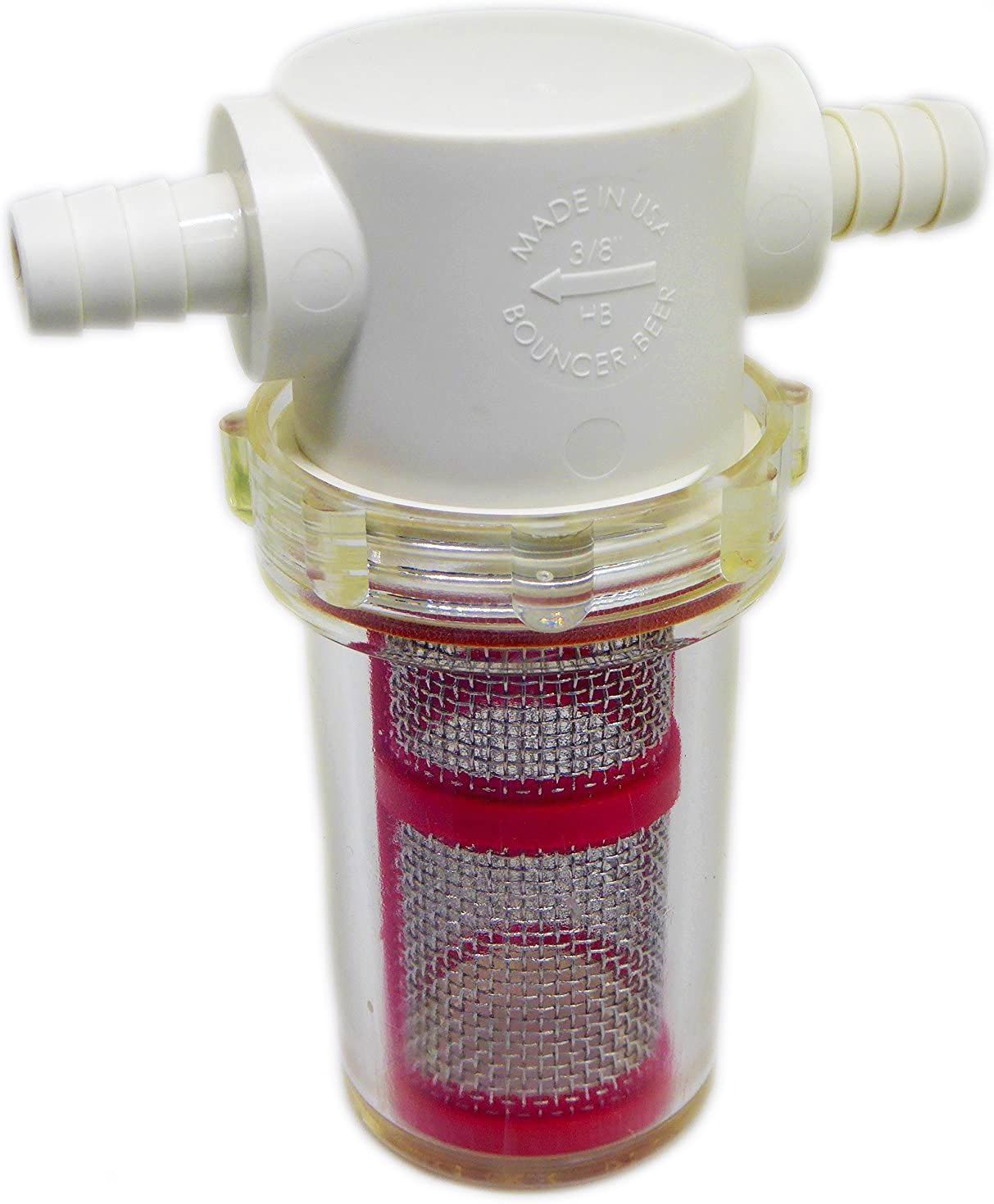

The Bouncer Inline Beer Filter allows you to brew better tasting and clearer beer, with less waste, and without pumps or additives! Simply connect the filter between your fermenter and keg, or between your boil kettle and fermenter.

Perfect for up to 25 L batches.

Key features

• improves the taste and clarity of your beer by filtering trub, krausen, hops, and proteins,

• built to last, use it over and over, custom molded from high quality thermoplastic and T304 stainless steel in the USA, use up to 65℃,

• easy to use and clean, gravity fed so no need to pressurise or pump, fewer parts to clean and sanitise, fits 3/8" inner diameter siphon tubing (standard size),

• doubles as a mini-Randall, simply attach to a growler filler and add fresh flavours into the glass, try citrus peels for a lighter beer, or cracked coffee for a stout.

Specifications

Connectivity: 3/8″ hose barbs

Screen: 915 micron /  20 mesh

Filter Area: 4,974 square mm  /  7.71 square inches

Max Operating temperature: 65C  /  150F

Max Operating pressure: up to 150 psi at 21 C / 70 F

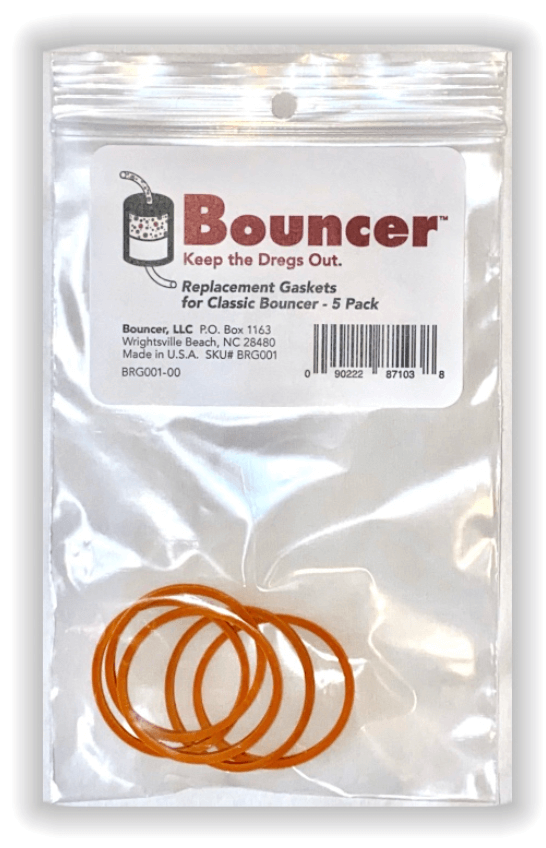

Replacement Gaskets for Bouncer Classic.

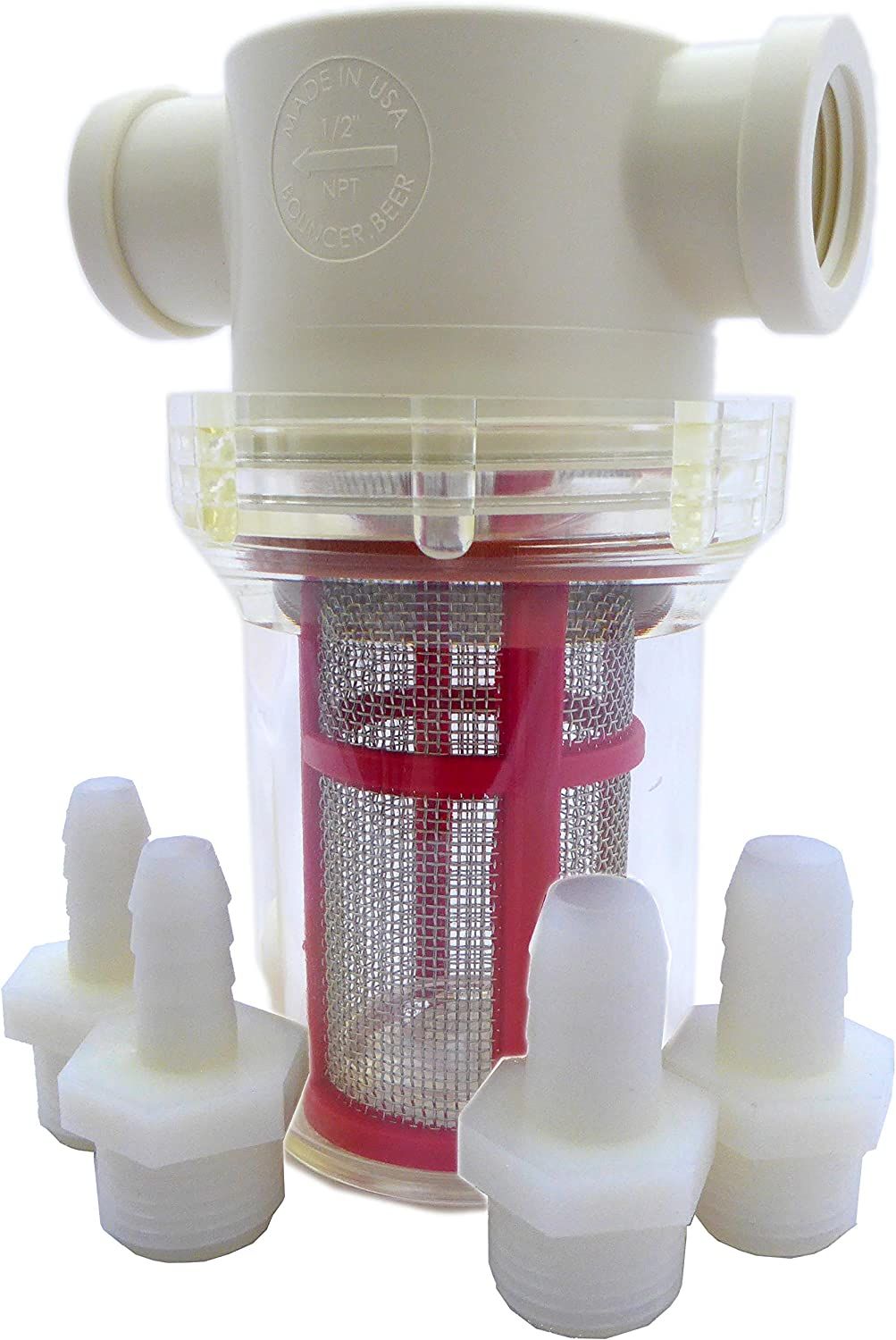

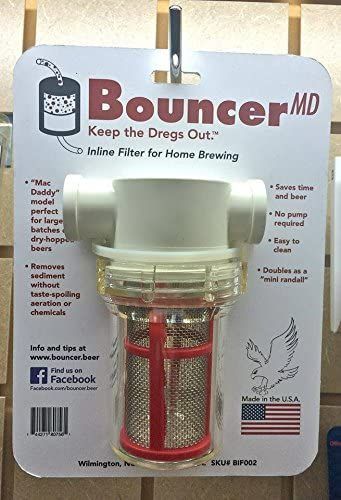

Similar to the Classic Bouncer Inline Beer Filter - but BIGGER. The Mac Daddy Bouncer has 224% more filter surface area, and three times the flow rate of the regular Bouncer.

Key features

• the Bouncer's big brother, with more filter area and a higher flow rate - use on your big hoppy batches,

• improves the taste and clarity of your beer by filtering trub, krausen, hops, and proteins,

• built to last, use it over and over, custom molded from high quality nylon and T304 stainless steel in the USA, use up to 65℃,

• easy to use and clean, gravity fed so no need to pressurise or pump, fewer parts to clean and sanitise, fits 3/8" inner diameter siphon tubing (standard size),

• doubles as a mini-Randall, simply attach to a growler filler and add fresh flavours into the glass, try citrus peels for a lighter beer, or cracked coffee for a stout,

• the Mac Daddy has 1/2" female pipe thread ports to adapt easily to standard 1/2” fittings. Use the included 3/8” or 1/2” hose barb adapters, or add your own quick-connect adapters to fit your set up. Use your Mac Daddy Bouncer out of the brew kettle, out of the fermenter, or out of your serving tap.

Specifications

Connectivity: 1/2″ NPT female,  1/2″ hose barbs,  3/8″ hose barbs

Screen: 915 micron /  20 mesh

Filter Area: 11,161 square mm  /  17.3  square inches

Max Operating temperature: 65C  /  150F

Max Operating pressure: up to 100 psi at 52 C / 125 F

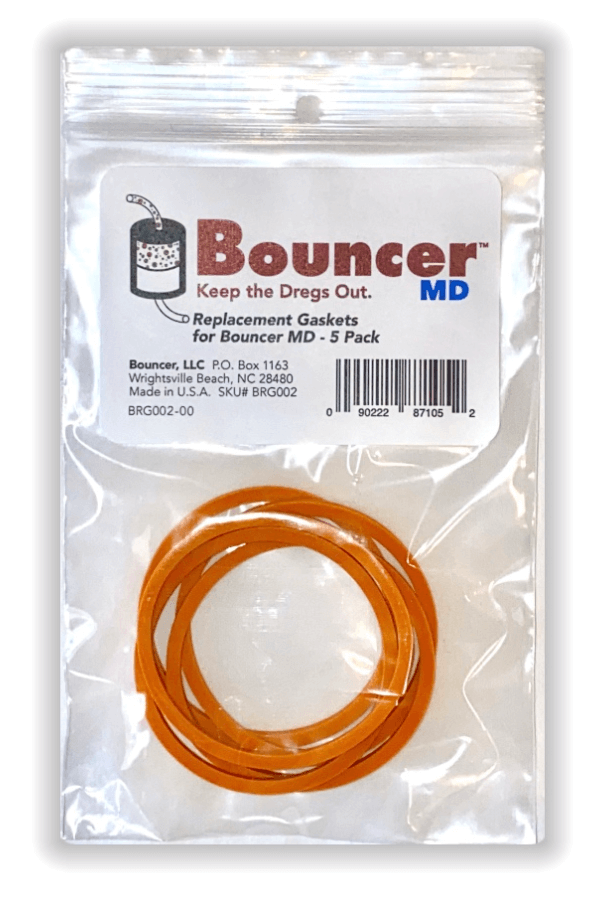

Replacement Gaskets for Bouncer Mac Daddy.

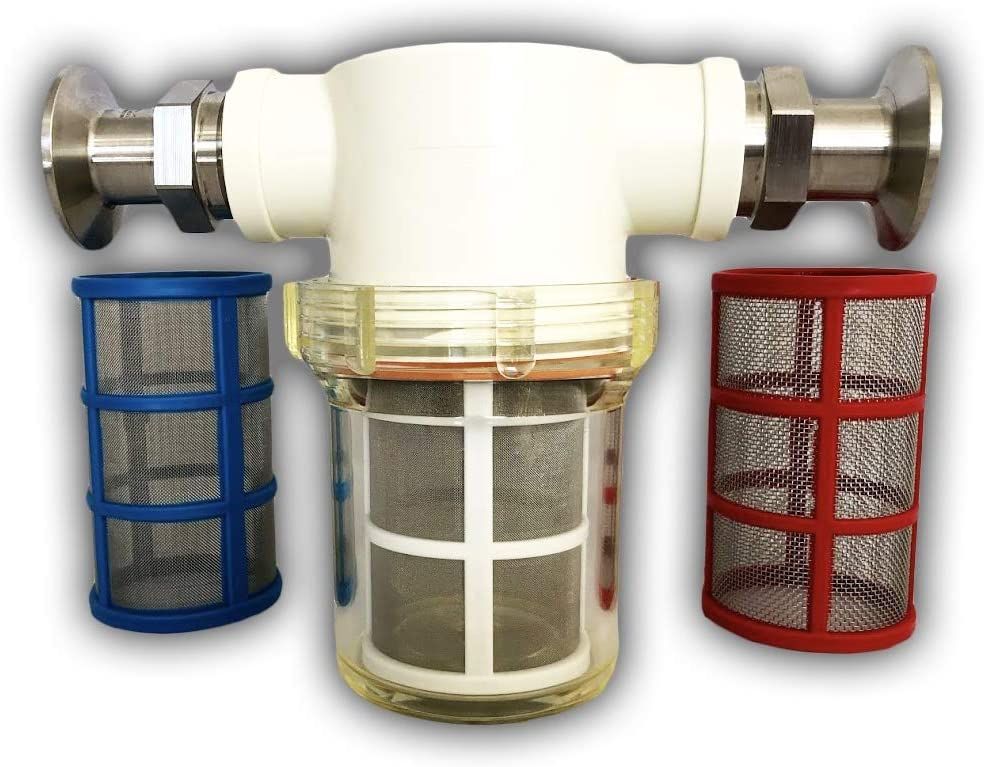

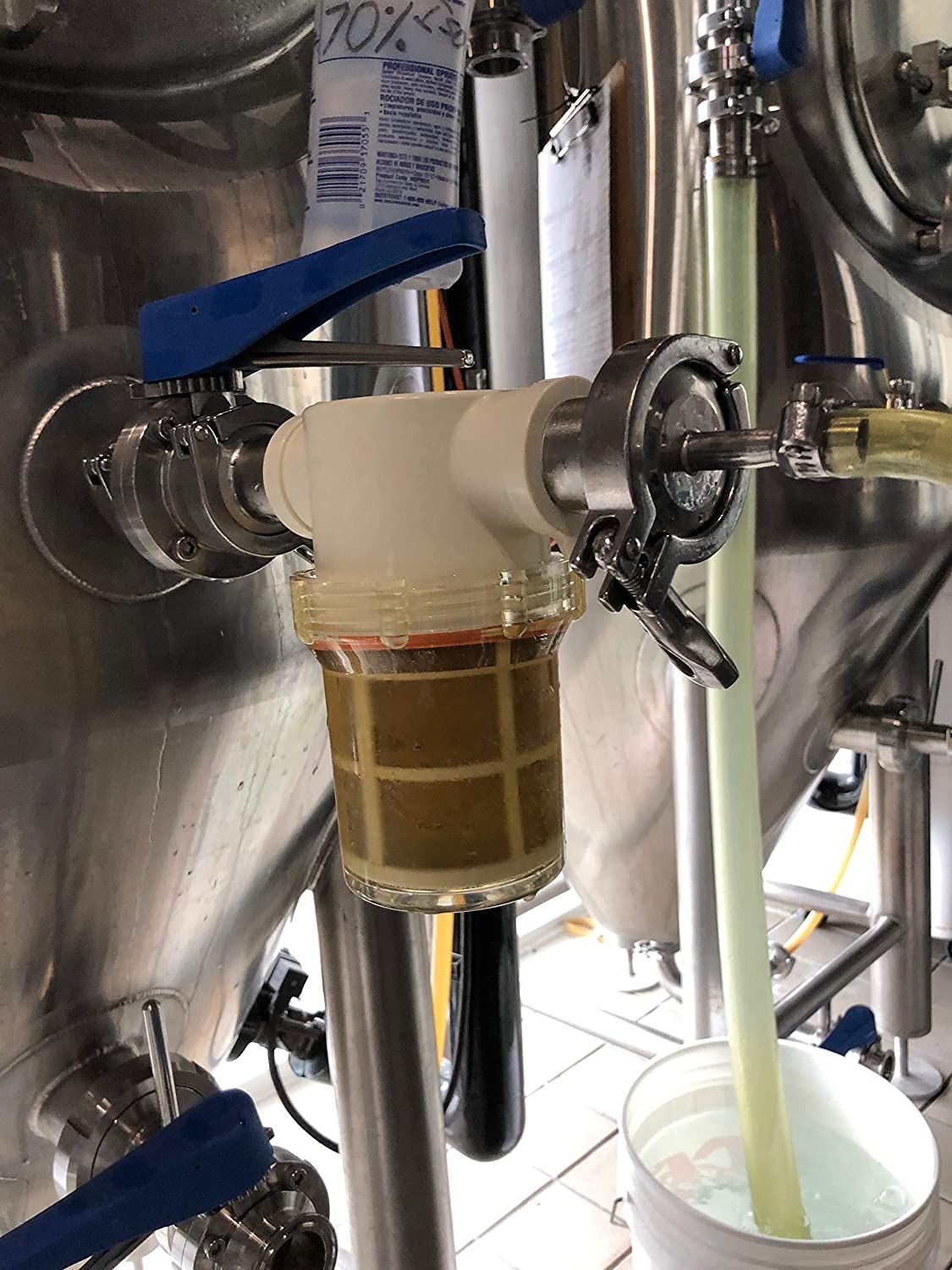

It's the Bouncer Classic and Mac Daddy's big brother, the Bouncer Pro - a pro level inline beer filter. The Pro filters out dry hops, fruit, yeast, etc during transfers or kegging to produce better tasting and clearer beer. Multiple Pros can be easily used in series (coarse then fine screens) or parallel (for faster flow rates). Very easy to clean compared to frame and plate filters. Doubles as an infuser.

The Pro comes with a Red 20 mesh (915 micron), Blue 50 mesh (304 micron), and White 80 mesh (178 micron) screen, stainless steel tri-clamp adaptors, and a roll of pipe thread tape.

Key features

• Pro level inline beer filter

• Filters out dry hops, fruit, yeast, etc during transfers or kegging to produce better tasting and clearer beer

• Multiple units can be easily used in series (coarse then fine screens) or parallel (for faster flow rates)

• Very easy to clean compared to frame and plate filters

• Doubles as an infuser

• improves the taste and clarity of your beer by filtering trub, krausen, hops, and proteins,

• doubles as a mini-Randall, simply attach to a growler filler and add fresh flavours into the glass, try citrus peels for a lighter beer, or cracked coffee for a stout,

Specifications

Connectivity: Stainless steel 1.5 inch tri-clamp and 1″ NPT female

Screens: Red 20 mesh (915 micron), Blue 50 mesh (304 micron), and White 80 mesh (178 micron)

Filter Area: 29.73 square inches (19,181 square mm)

Max operating pressure: up to 150 psi at 21 C / 70 F and 100 psi at 52 C / 125 F

Weight: 1 pound, 8 oz. / .69kg (with try-clamp adaptors and white screen)

Accessories included: Stainless steel tri-clamp adaptors, roll of pipe thread tape, three screens (see above)

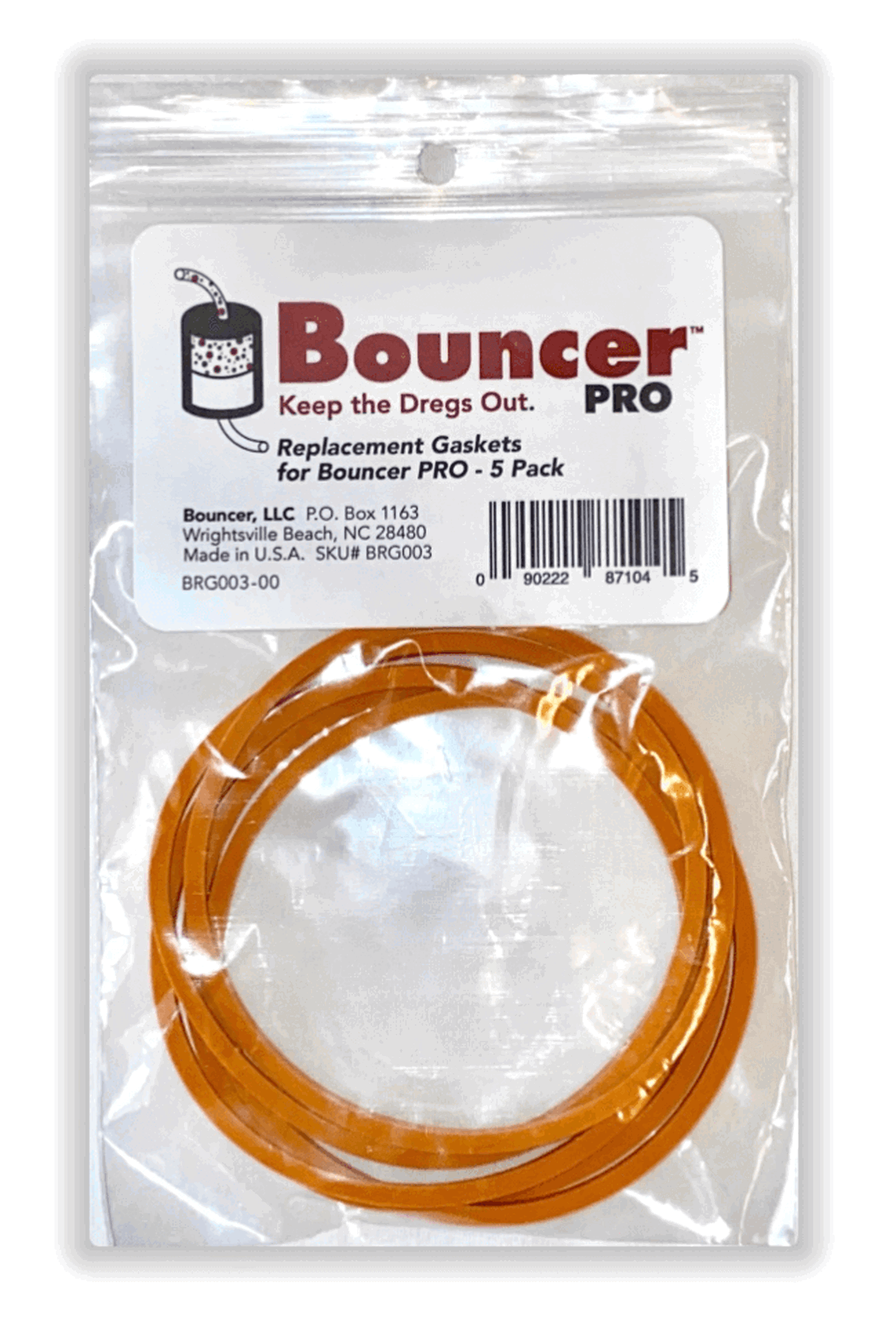

Replacement Gaskets for Bouncer Pro.

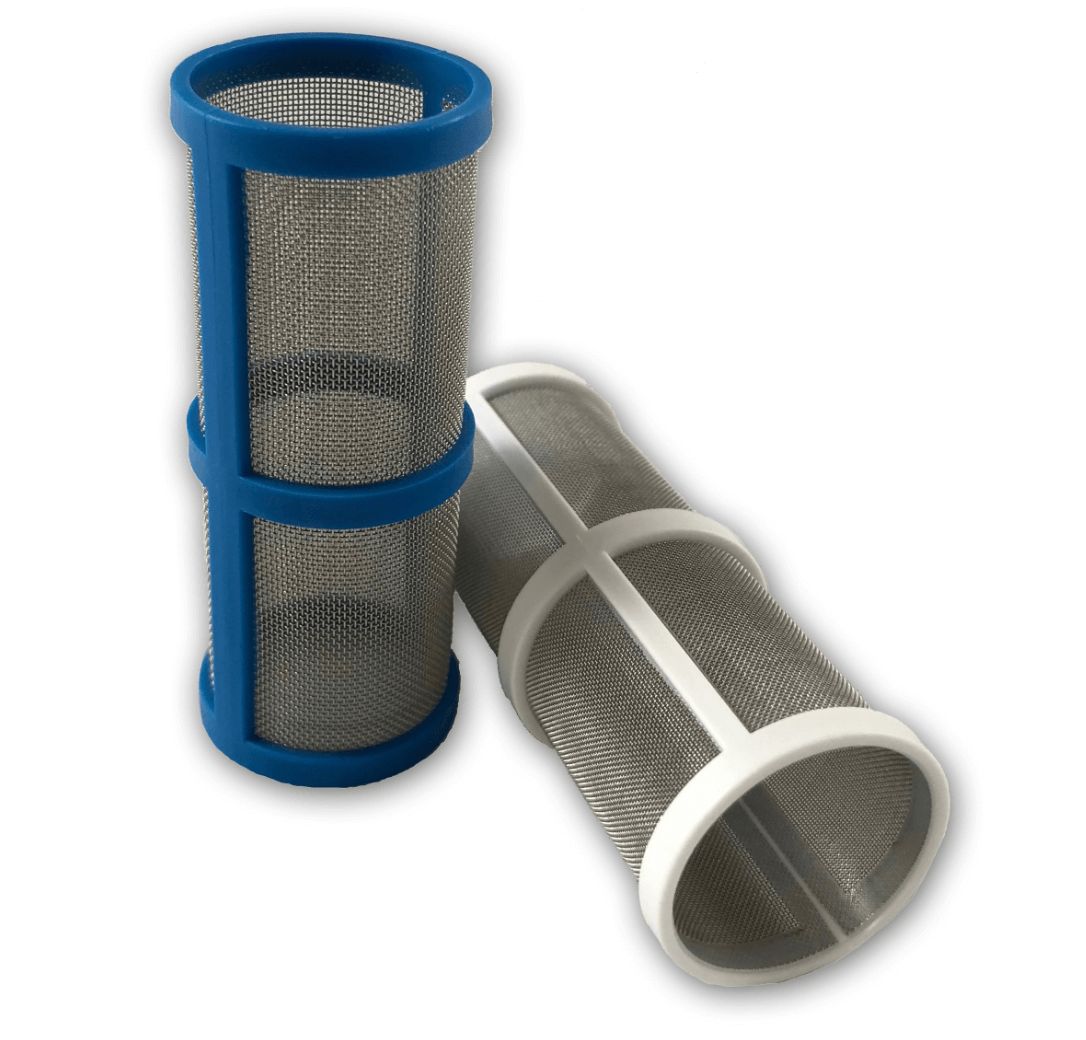

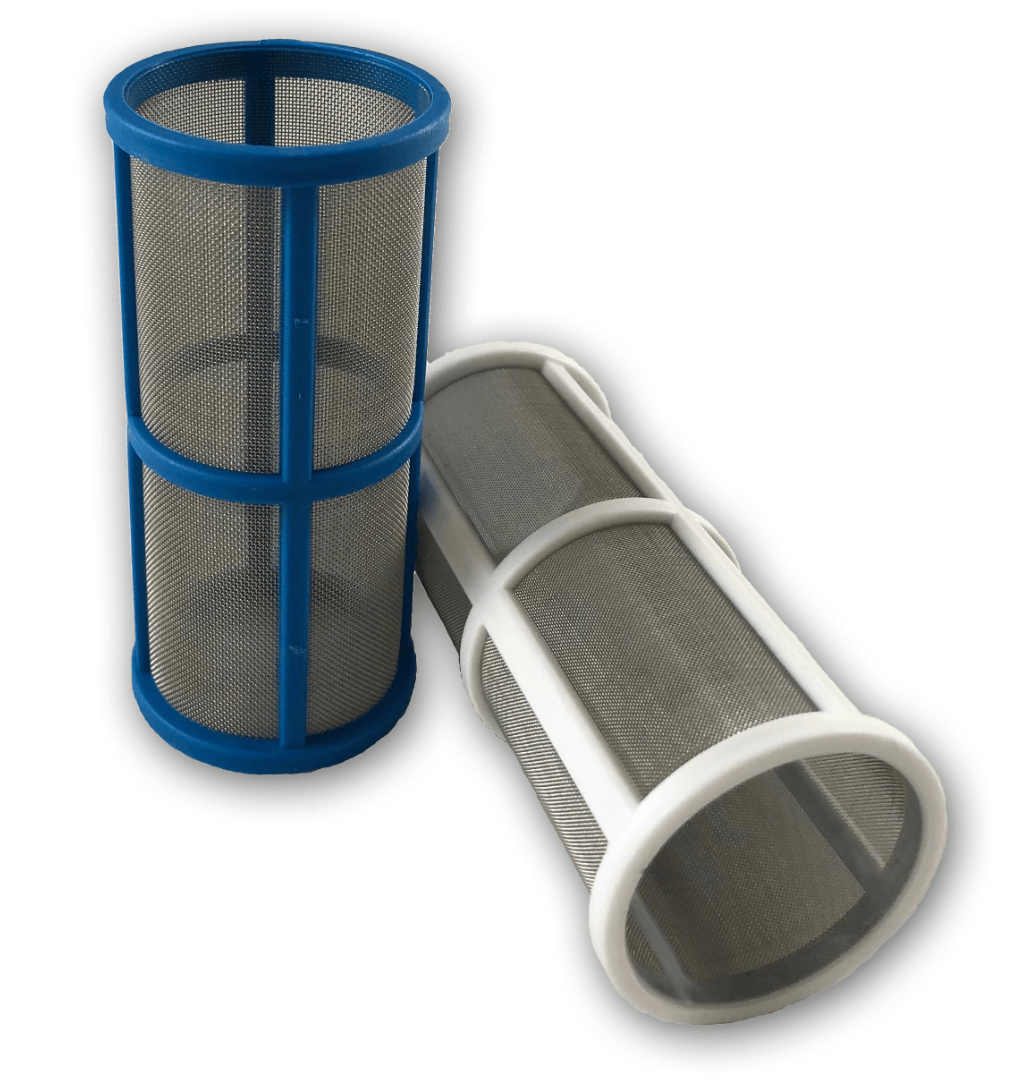

Replacement filter screens for Classic Bouncer Inline Filter.

Contains:

• one blue 50-mesh screen
• one white 80-mesh screen

Replacement filter screens for Mac Daddy Bouncer Inline Filter.

Contains:

• one blue 50-mesh screen
• one white 80-mesh screen

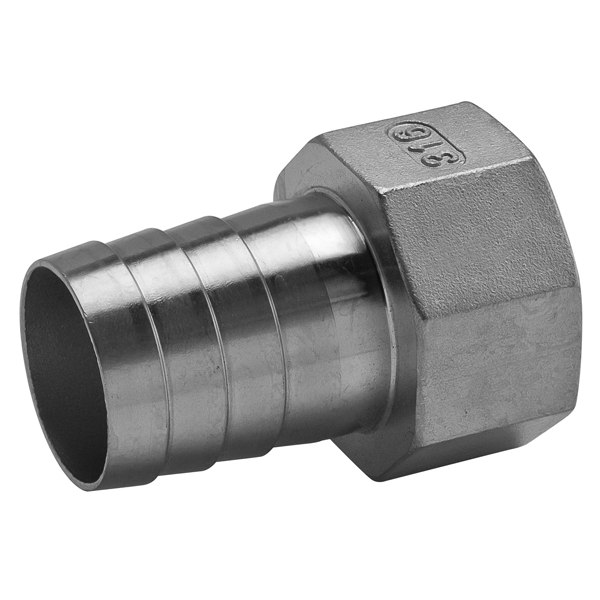

Hose adapters for the Bouncer Filter Mac Daddy.

• Two 3/8″ hose barb adaptors
• Two 1/2″ hose barb adaptors

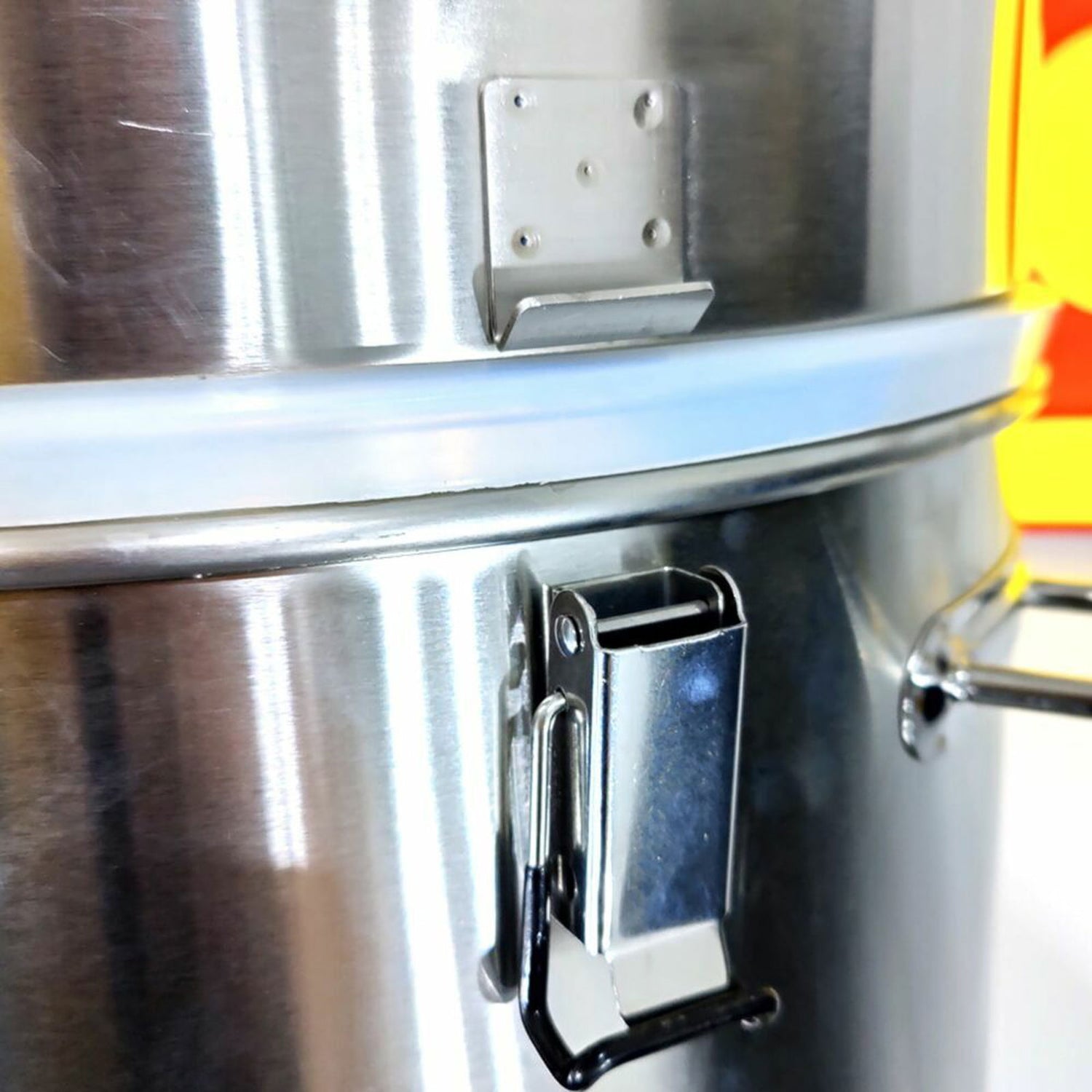

BrewZilla + DigiBoil S.S Adjustable Lid Clamps - Short (4pcs/set).

Get the exact tension you need with your BrewZilla, DigiBoil or even GrainFather with Kegland's Stainless Steel Adjustable Clamp Set. Adjust to your specification.

This set of 4 adjustable stainless steel clamp set suits the 35L and 65L BrewZilla Gen 3 all the way to Gen 4 as well as all 35L and 65L DigiBoils. It also suits the 12L and 24L Boiler Extensions.

How to instructions:

1. You will need a pair of bolt cutters or tin snips to cut the current clamp off. (Please see product photos for optimum cut location)
2. Remove the nut and bolt and thread it through the clamp. Ensure that the grooved part is facing outwards (photo for reference). If you do not have the grooved part facing outwards, the clamp will found on the round lip of the boiler.
3. Loosen the bolts and spin the clamp up or down to adjust the tension. Use the nuts to lock the desired tension. It is always best to start looser than you think, then adjust tighter.

WARNING: Do not use the clamps or adjustable clamps with a glass lid, the clamps are only designed for metal steam condenser or distillation lids.

Please note: All Gen 4 35L, 65L BrewZillas will come with these in the near future as standard. Please check the body of the description/photos to confirm.

From: Kegland

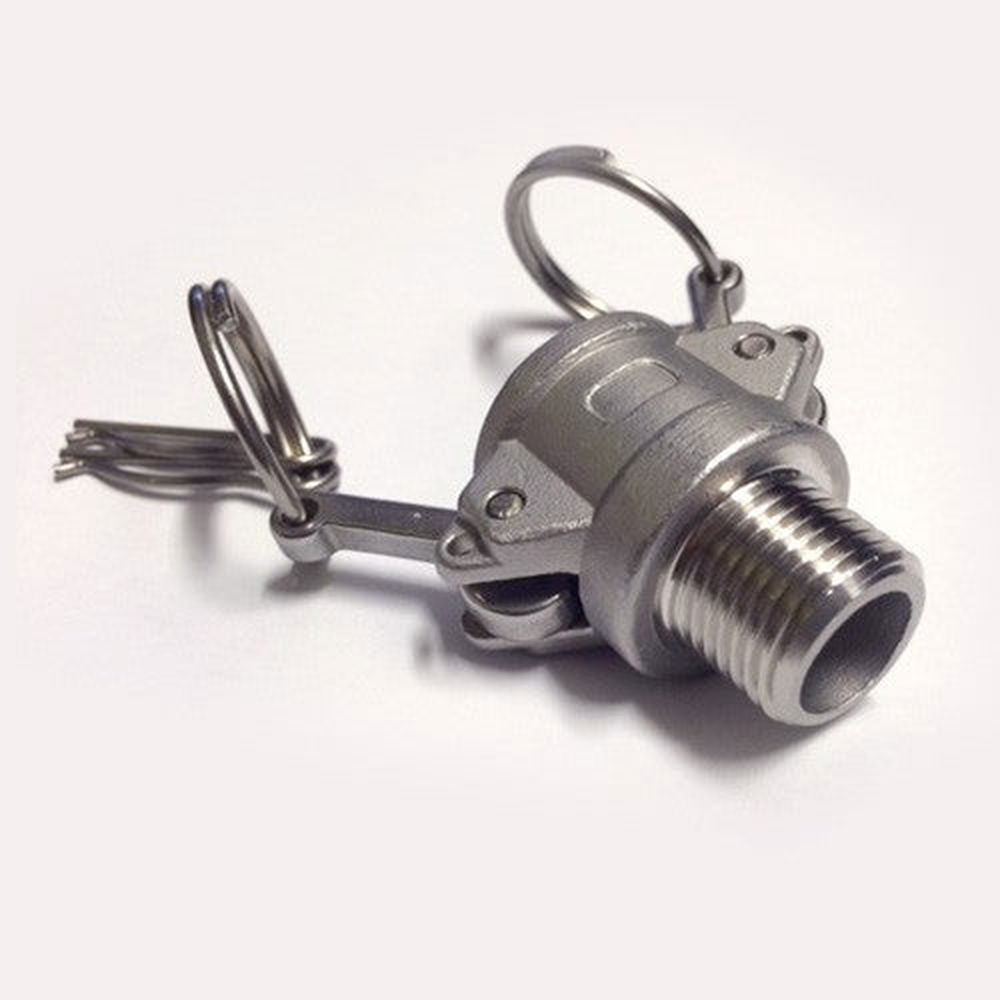

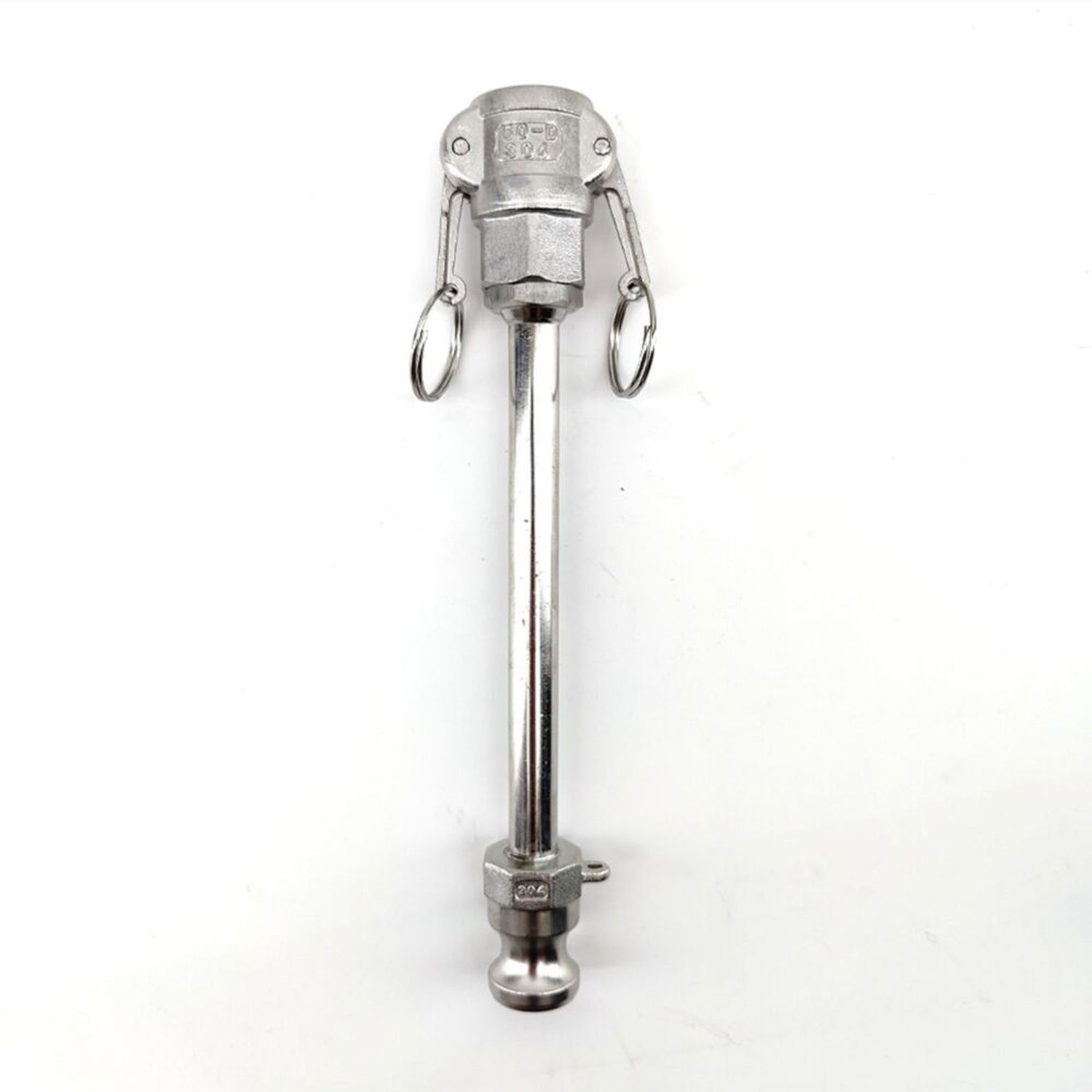

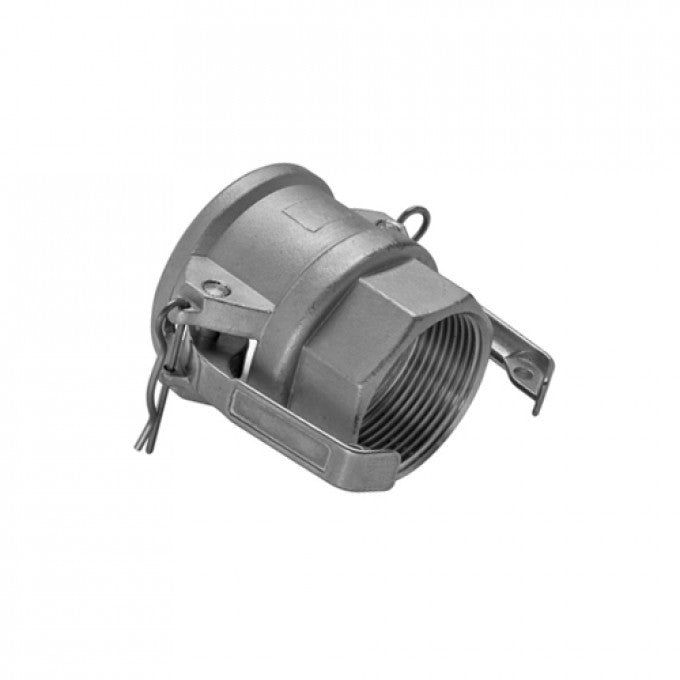

Brewzilla 35L - Recirculation Arm Extender for Boiler Extension | Suits 35L and 65L BrewZilla.

Recirculate with ease with the Male to Female Camlock Extender!

From: Kegland

Pro Sight Glass Distillation / Steam Condenser Lid

Suits Gen 4 and Gen 3 BrewZillas, Digiboils and older model Robobrews, for both 35L and 65L models.

Designed to be extremely sturdy when using heavier stills or off-centre steam condenser units. Now you can watch your wash boil and see if it's foaming or about to puke. If you are brewing beer indoors you may want to use a steam condenser lid set, without having to take off the entire lid to do hop/salt additions, simply remove the 3" Sight Glass and throw in (take care when hot).

PPSU is an excellent choice for components that are exposed to high temperatures (up to 200°C) and corrosive media due to its exceptional chemical resistance. As well as being extremely impact resistant.

We have decided to use this type of plastic because it also has superior thermal and mechanical properties with the added benefit of being transparent. This will allow us to injection mold intricate parts that would have been near impossible to do in stainless steel or lab-grade glass. Because this is a very unique type of plastic, it comes at a much higher cost per kg than other industrial plastics. So much so that it costs more than stainless steel.

Do you want to brew indoors but don't want the roof to get all sticky?

Specifications 35L
- Thicker Silicone O-Ring for a tighter seal
- 2 Inch Tri-clover Top Ferrule Port
- 3 Inch Sight Glass Ferrule
Includes 3 Inch PPSU Sight Glass Disc, 3 Inch Tri-Clover Clamp and 3 Inch Tri-Clover Silicone Seal.

Specifications 65L

- Thicker Silicone O-Ring for a tighter seal
- 4 Inch Tri-clover Top Ferrule Port
- 3 Inch Sight Glass Ferrule
Includes 3 Inch PPSU Sight Glass Disc, 3 Inch Tri-Clover Clamp and 3 Inch Tri-Clover Silicone Seal.

This unit has been designed to be used with the DigiBoil and BrewZilla. We do not have data on other branded boilers if their clamps are suitable to make a complete seal.

From: Kegland

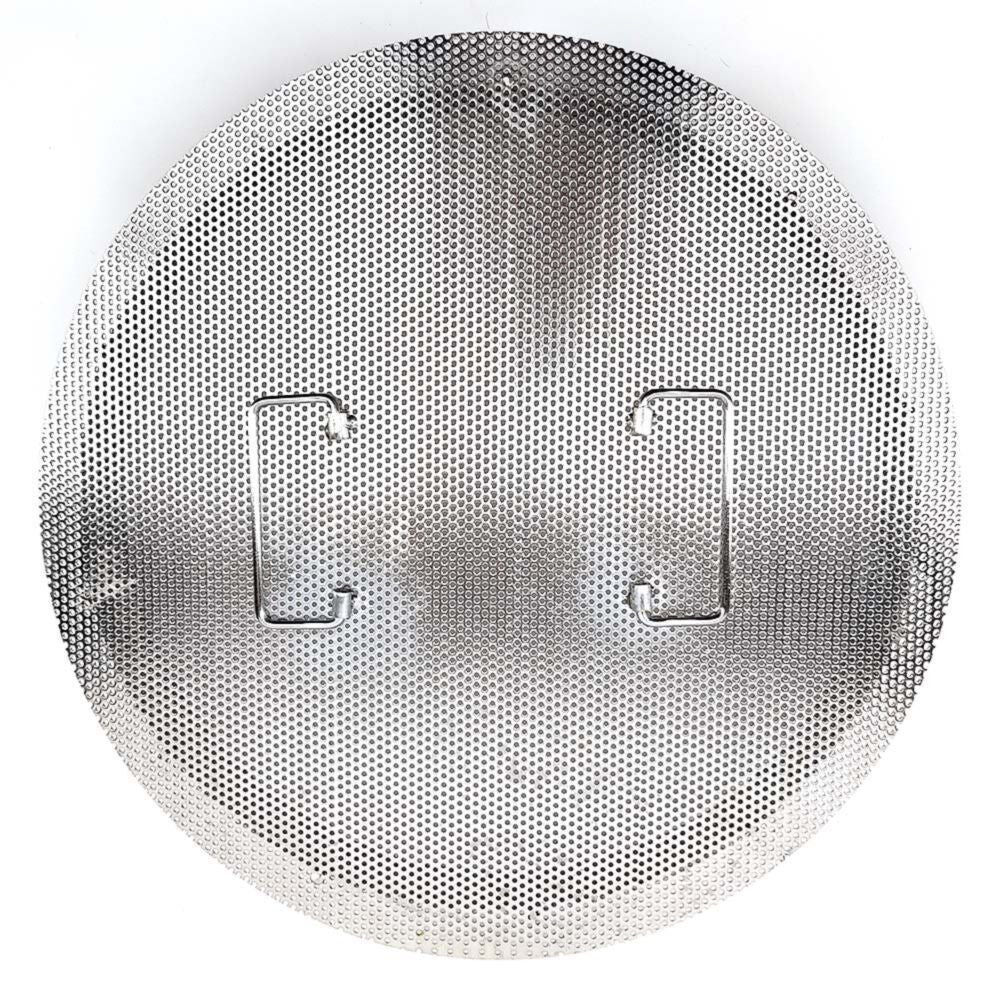

BrewZilla 35L False Bottom (Pump Filter).

This attachment stops particulates from blocking your pump and getting into your beer!
Suitable for the 35L BrewZilla and Digiboil.

Newly designed BrewZilla Reinforced False Bottom which is stronger and has a tighter fit resulting in less trub and hop matter getting past the False Bottom and blocking the pump or getting into your final beer!

It can also be used on the 35L DigiBoil as a false bottom.

Not suitable for the Grainfather G30.

From: Kegland

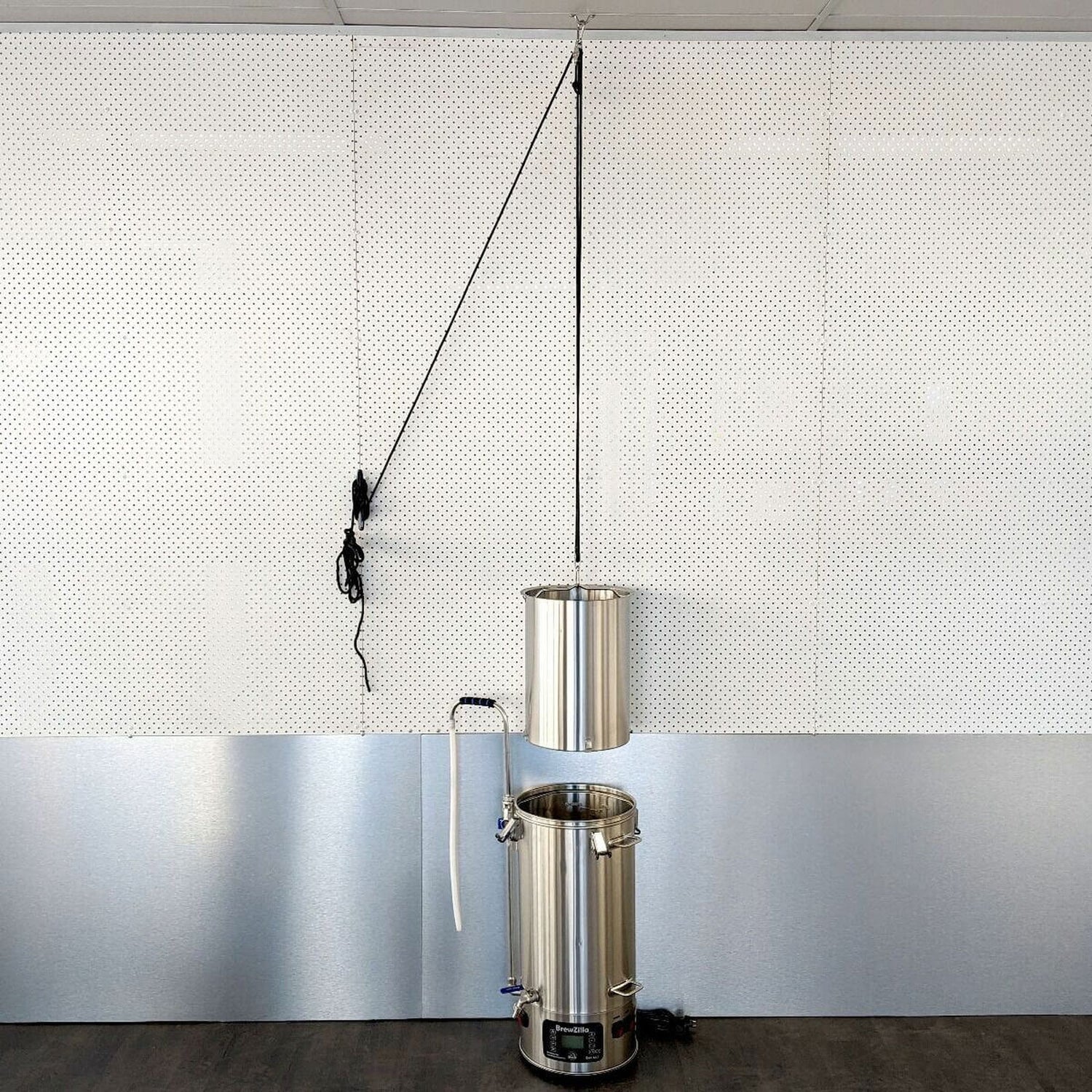

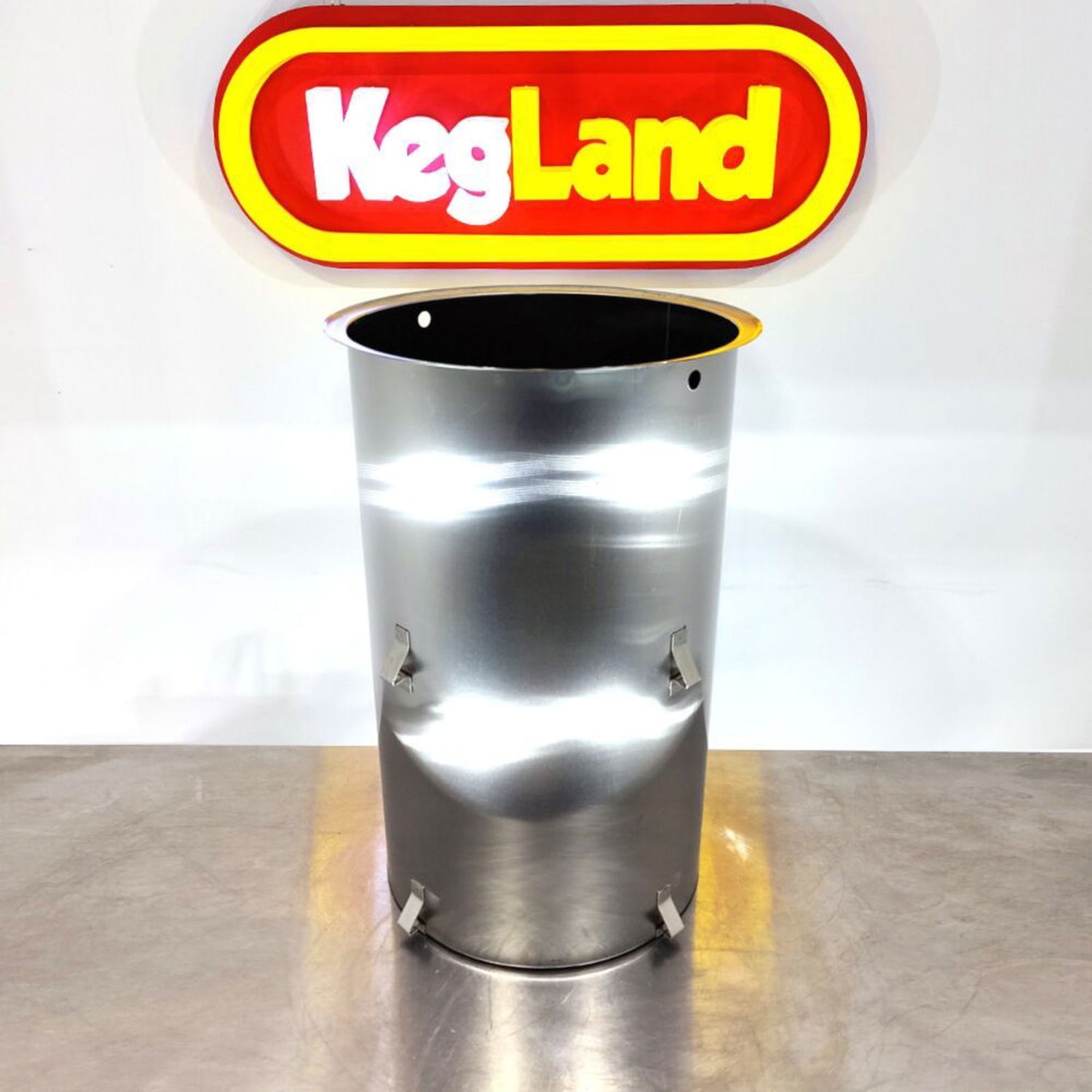

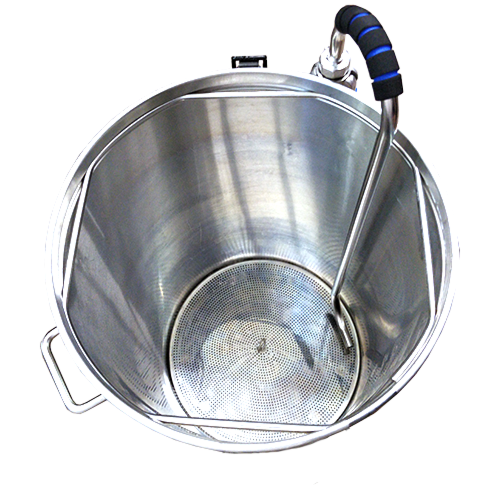

Brewzilla 65L (G3) - Extended Malt Pipe for Boiler Extension (Stainless steel).

This is the upgraded malt pipe for the BrewZilla 65L model when you add the 24L Boiler Extension. It does not come with an extra Halo Support Ring, you will need to either purchase one if you are using a DigiBoil 65L + Extension, or remove the one out of your BrewZilla and place higher.

A new feature of these Extended Malt Pipes is the added feet half way up the malt pipe. These have been added to help those who find it difficult to lift in one motion.

It can also be used on the Digiboil 65L model so you can use a malt pipe with the Digiboil 65L boiler.

Recommended Purchases for Gen 3+ BrewZillas:
Boiler Extension for 65L BrewZilla / DigiBoil

If you are upgrading a DigiBoil you will still need a malt pipe bottom screen and handle.

Dimensions:

• 350mm Diameter
• 600mm High
• Feet are approximately at the 310mm mark

(Dimensions of Standard Malt Pipe for G3: 350mm Diameter x 405mm High)

From: Kegland

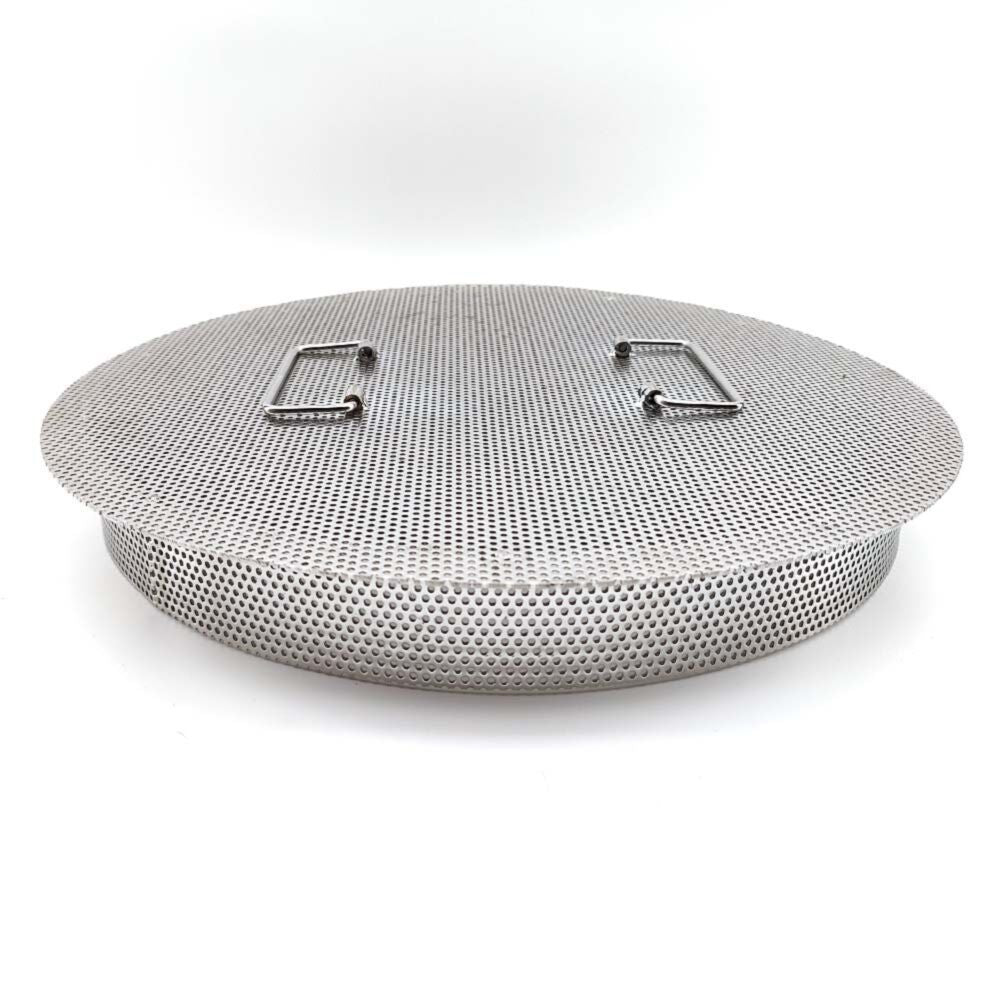

Heavy Duty False Bottom for DigiBoil and BrewZilla - 35L and 65L

Designed exclusively for the 3 Vessel homebrewing market that wants to take full use of a DigiBoil to be used as a Mash Tun/Lauter Vessel. It can also be used on the BrewZilla Gen4 and 3.1.1 units if you wish.

Welded together for maximum strength, unlike two-piece heavy-duty false bottoms on the market. Welded handles for ease and strength. This false bottom is so strong it withstood the weight of 1 x 100kg KegLand Staff member with 1 x 80kg Secondary KegLand Staff member.

35L Dimensions:
295mm Diameter
45mm Height

65L Dimensions:
390mm Diameter
48mm Height

Approximate dead space: 3L

From: Kegland

Brewzilla Boiler Extension - for 35L and 65L units. Also suits Digiboils as well.

Ever wanted to punch out a few more litres of wort with your BrewZilla? Maybe you wanted more strike water for a super sticky batch. Maybe you get boil overs a lot and would like a bit of extra protection. Now theres a solution! The all new BrewZilla boiler extension that allows 12L headroom on a 35L unit and 24L on a 65L.

Turn that a 35L BrewZilla into a 47L behemoth, or the 65L Brewzilla to 89L!

From: Kegland

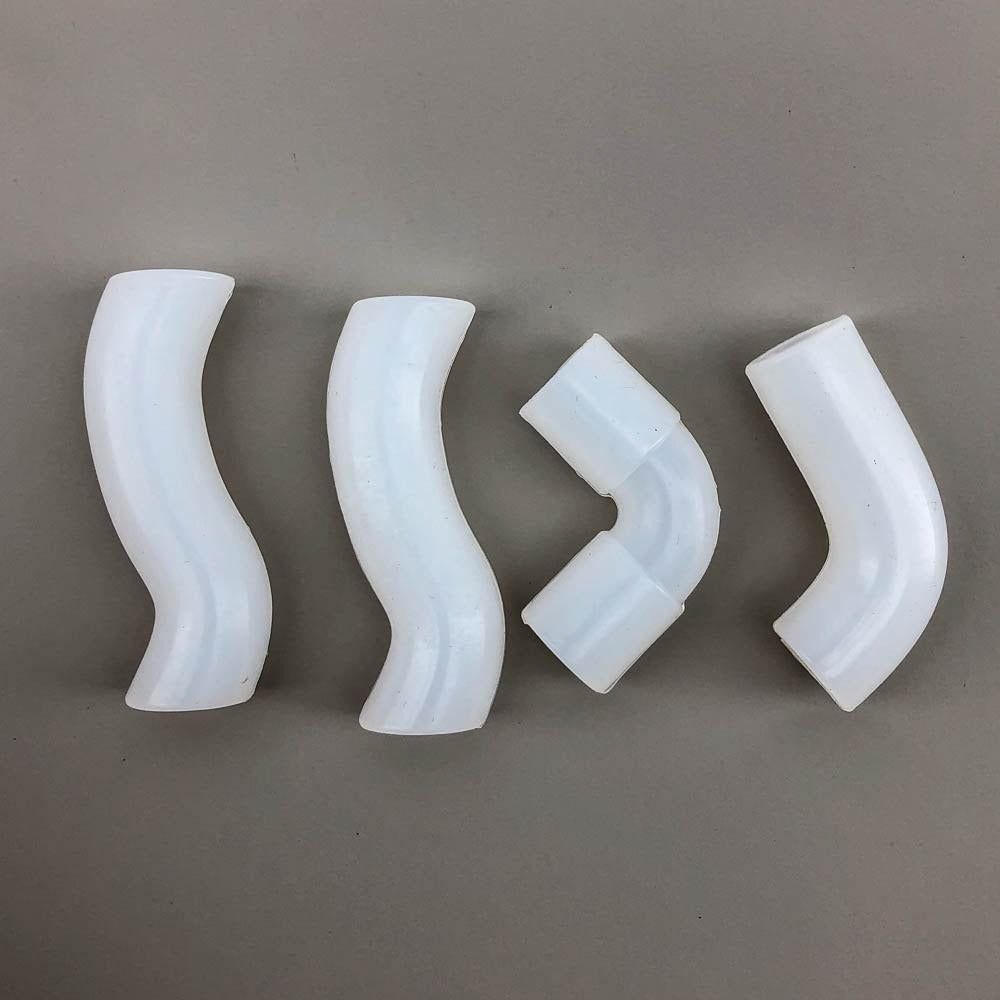

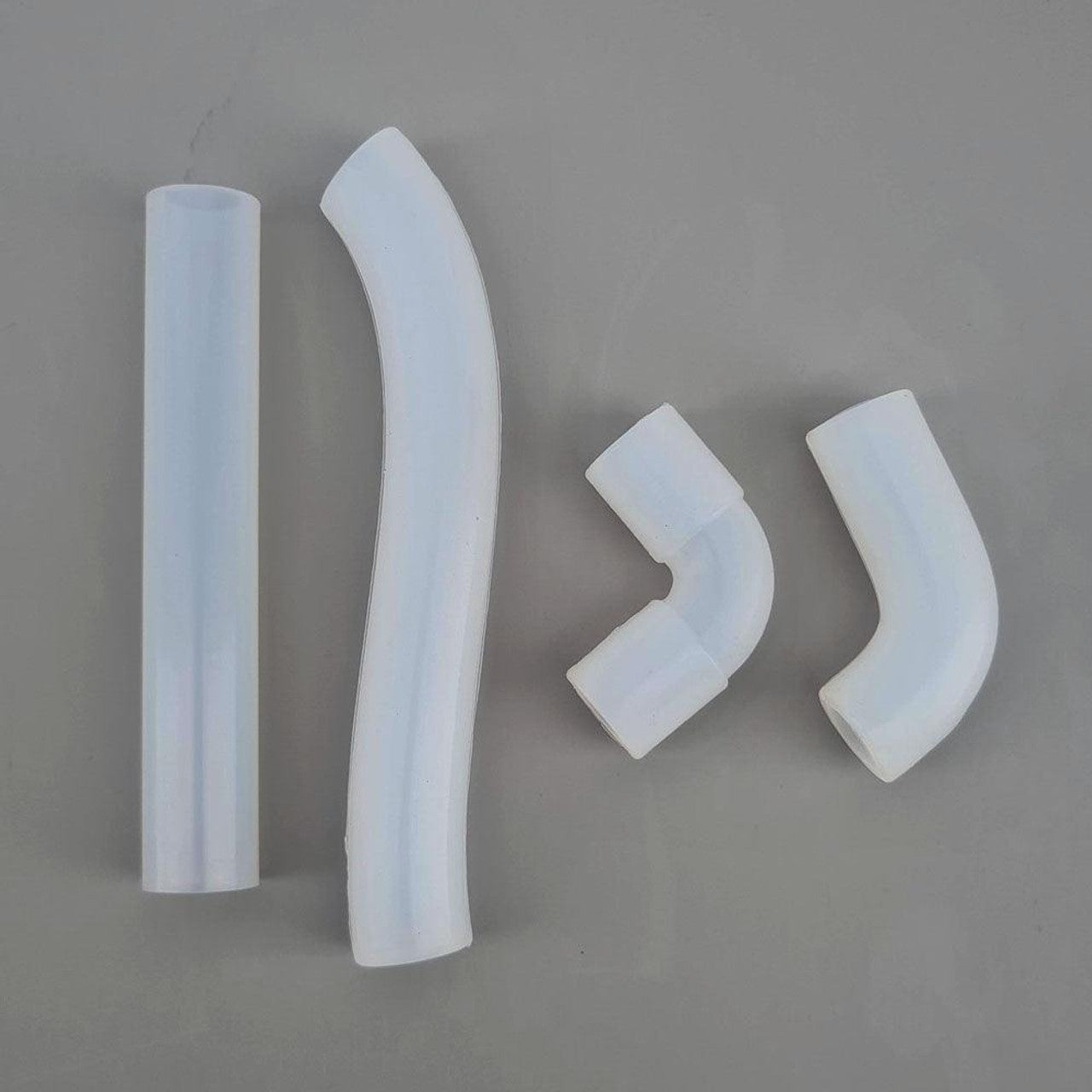

This is a complete replacement silicone tubing kit for the pump and ball valve tubing on a 35L Gen 4 BrewZilla.

Made from food grade silicone and temperature resistant to 180°C.

From: Kegland

This is a complete replacement silicone tubing kit for the pump and ball valve tubing on a 65L Gen 4 BrewZilla.

This is for he 25w pump model - you'll find the 6w pump tubing kit here.

Made from food grade silicone and temperature resistant to 180°C.

From: Kegland

This is a complete replacement silicone tubing kit for the pump and ball valve tubing on a 65L Gen 4 BrewZilla.

This is for he 6w pump model - you'll find the 25w pump tubing kit here.

Made from food grade silicone and temperature resistant to 180°C.

From: Kegland

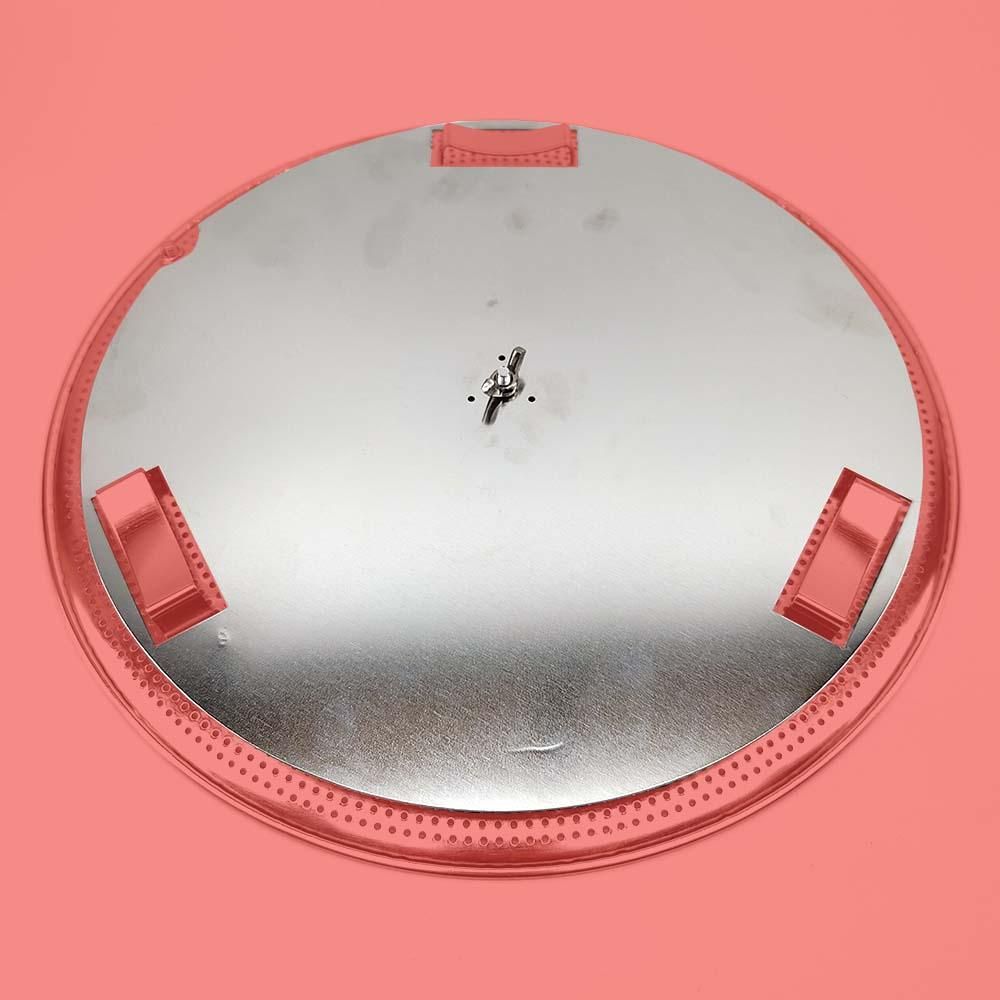

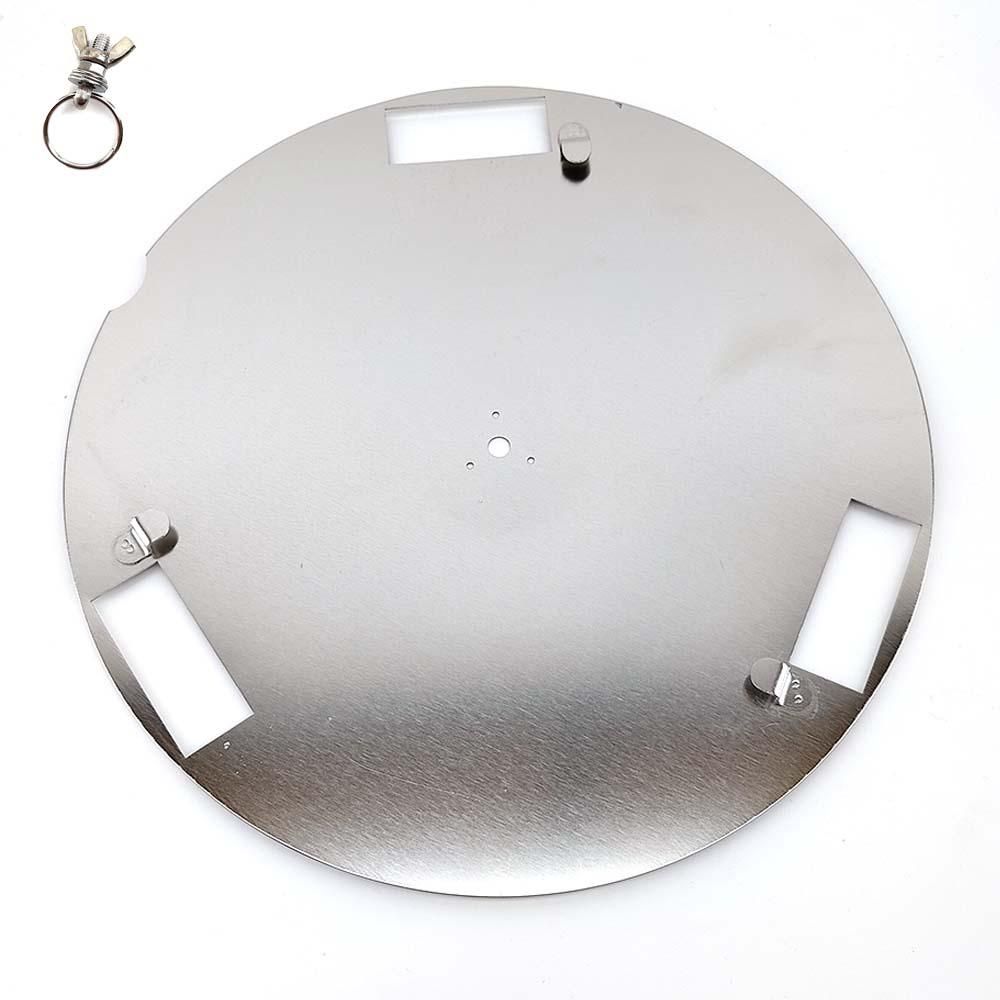

This is an upgrade accessory to the 35L& 65L BrewZilla Generation 4 only.
It is not compatible with any previous generations of BrewZilla, RoboBrew or DigiBoils.

It has been pressed into a slight concave shape to match the curvature of the boiler false bottom of the BrewZilla Gen 4. It also includes a longer eye bolt assembly with a wing nut.

The order of bolt to washer to nuts goes as follows. Eye bolt, washer, false bottom, washer, nut, HED then wing nut. This is so that the eye bolt does not come completely removed when and if you clean underneath the Heat Exchanger Dish.

What does it do?
Due to the concave bottom and central draining hole, the wort being recirculated through the pump will pass through the malt pipe and then down through the boiler false bottom. The wort would normally then follow the path of least resistance, making a b-line for that drainage hole.

The Heat Exchanger Dish forces the recirculating wort up to the edge of the BrewZilla base ensuring it passes over the elements for a longer period. This leads to a more efficient heat exchange with the wort, which can help you on a brew day reach those temperatures much quicker.

From: Kegland

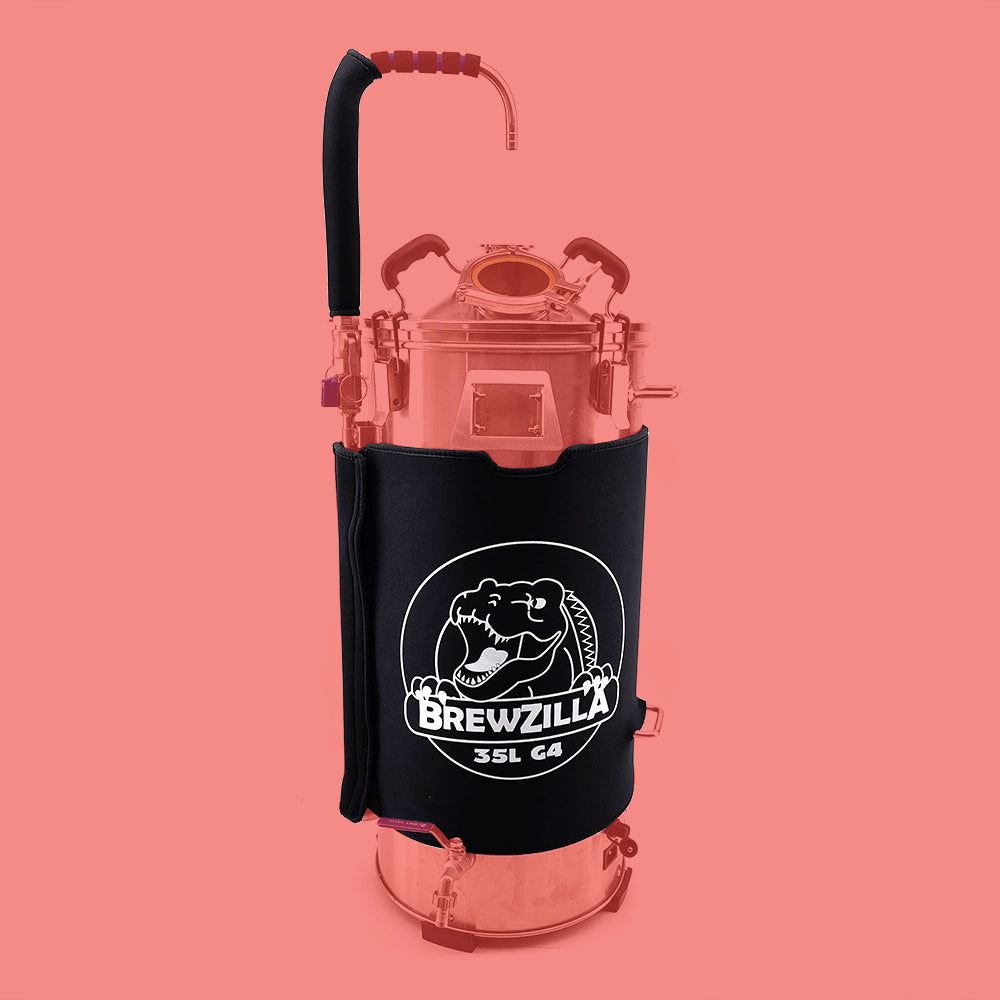

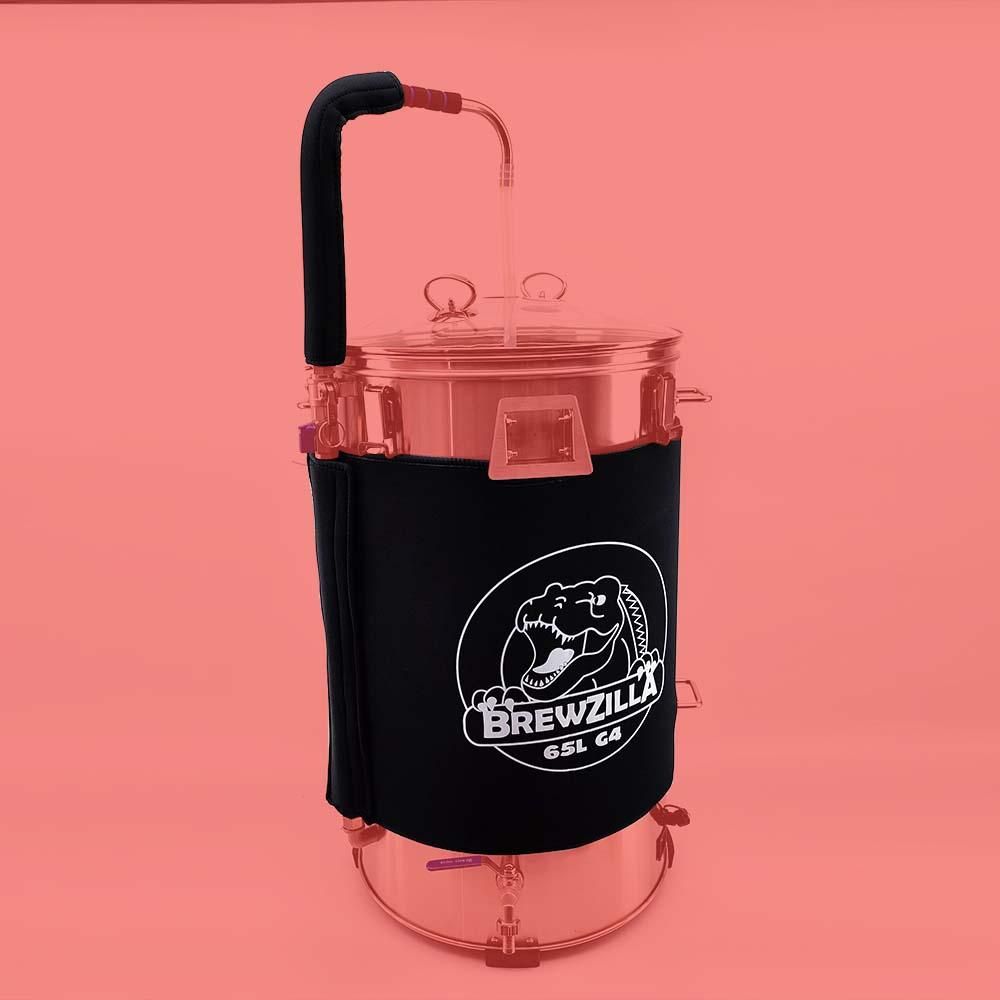

BrewZilla Gen 4 Neoprene Jacket / Parka with Recirculation Arm Cover

New and improved BrewZilla Gen 4 Neoprene Jacket for more stable mash temperatures and heat retention. Now made with 8mm thick neoprene, improved recirculation pipe insulation on both the boiler and the recirculation camlock arm.

If you brew outside where it is cold or windy, the Neoprene Jacket/Parka is a must-buy! Don't lose that heat to the atmosphere!

Available for both 35L and 65L Brewzilla Gen 4 units.

From: Kegland

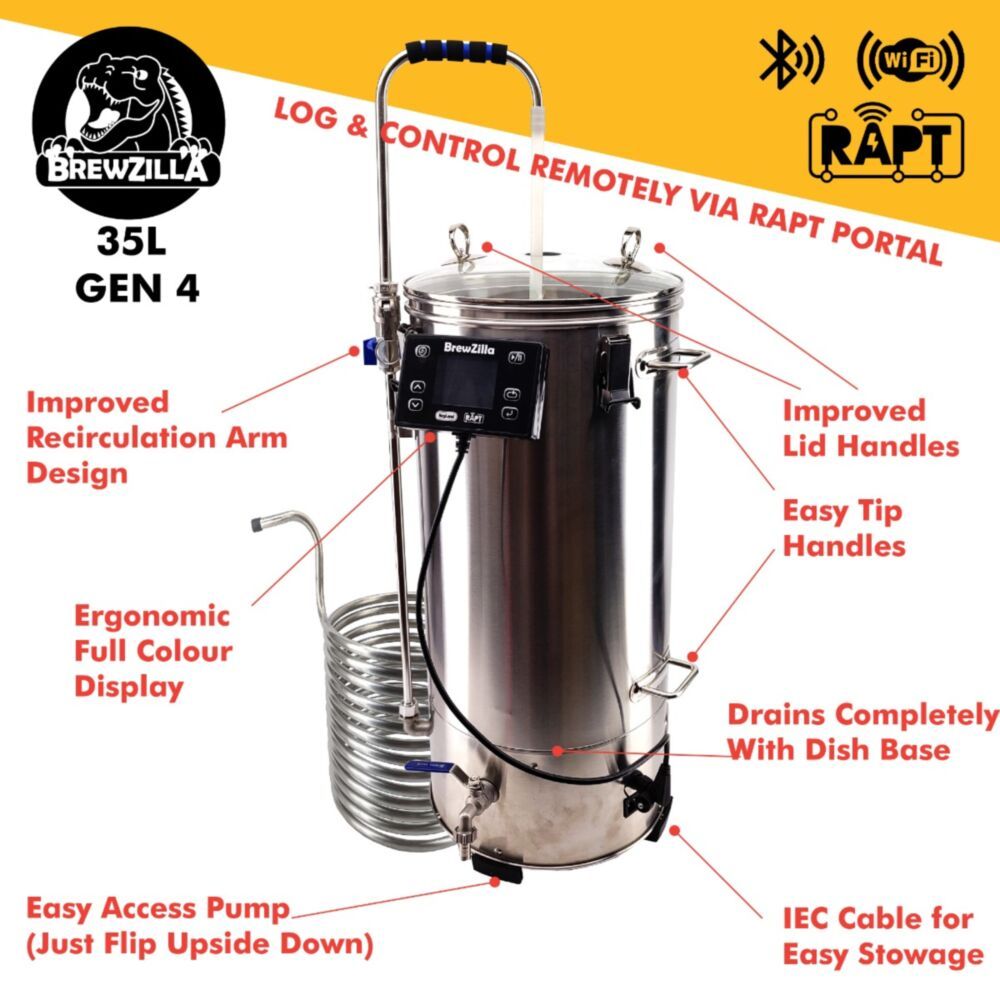

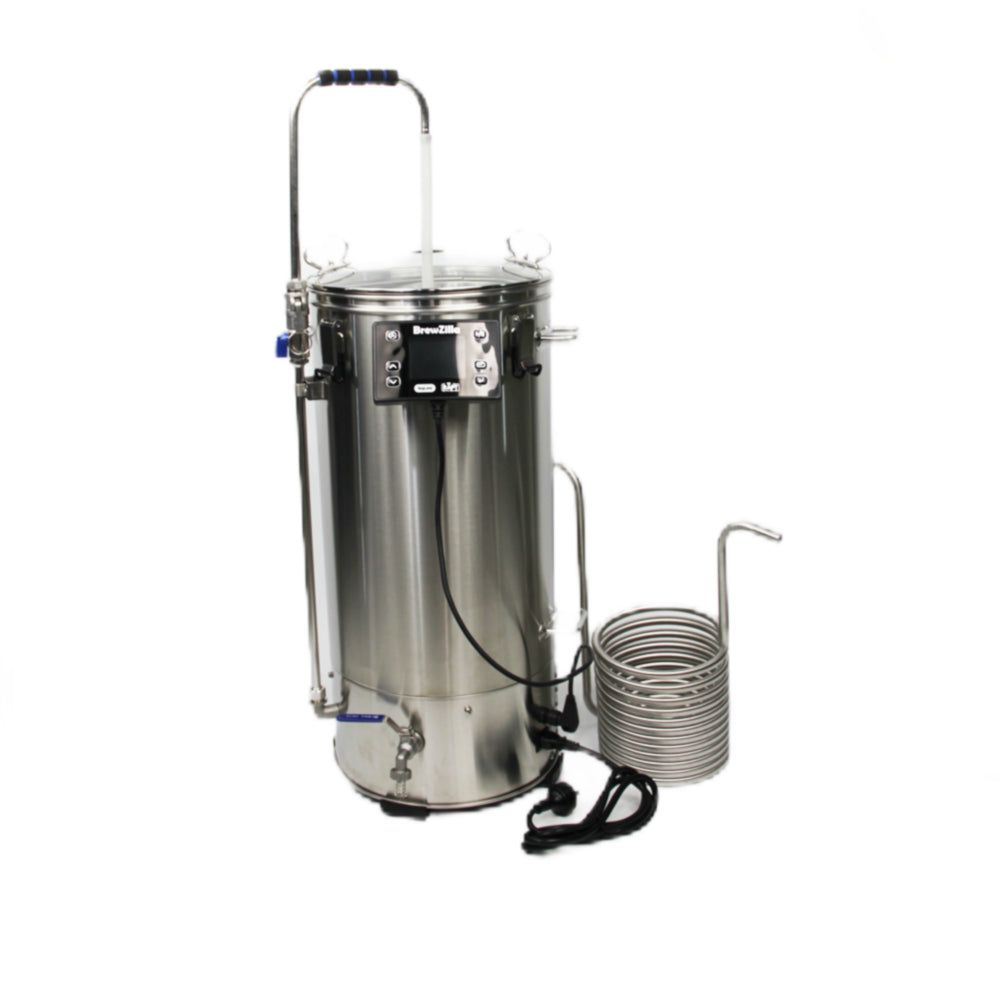

35L BrewZilla Generation 4.1

Wifi / RAPT Integration

The BrewZilla Gen 4.1 is designed to be a compact single vessel all grain home brewing system that can be run off a single 220-240v socket. A complete turnkey system with a delay timing feature and step mash functionality. Built to make batches up to 30L, it is the ideal solution for those who want to take the first step in all-grain brewing while also wanting full control of their batch from start to finish.

The BrewZilla brewery type has been used across the world and won homebrew competitions in every country the brewery has been sold.  It's the most sold single vessel brewery worldwide and can be used for Home Brewing, Distillation, Preserve Canning, Sous Vide Cooking or just as a boiler. Our larger versions can also be used as a portable hot tub!

Some features that differentiate this brewery from other Brewery designs are:

Complete Concave Draining Base
The new base design completely drains out meaning you capture every single bit of wort. No longer do you need to tilt the brewery to extract every last bit of wort.  This also makes it suitable for CIP cleaning using our new Low Volume CIP Spray Rotor.

False Bottom Pump Protection Screen
One of the key features of all the BrewZilla single vessel units is the false bottom protection screen. This screen avoids the need for doing a whirlpool and it filters wort and prevents more than 95% of hops and hot break getting sucked into the pump and thus greatly reduces the blocked pump issues that are often an issue with other brewery designs.

Ultra Low Watt Density
The BrewZilla has significantly lower watt density than other breweries.  The main benefit of lower watt densities are that it enables you to produce lighter colours of beers that would otherwise get some caramelisation.  The ultra low watt density also means you have less chance of boil overs, you get less crud sticking to the element making cleaning easier and ultimately reduces wear and tear on the element meaning even with significant abuse your elements will last way longer.

RAPT/Wifi Connected
The new Gen 4 models are the first BrewZilla that connects to the RAPT Portal (https://app.rapt.io/).  This portal allows you to track, record and monitor your brews online.  This greatly reduces the need for handwritten records of your brew day as it's all done automatically.  The RAPT portal also allows you to see every brew you have done in the past and control the brewery remotely so you can start pre-heating water remotely or simply keep an eye on the brewing process while you do something else.  Get push notifications to your mobile phone of when to add hops or start the boil.

Along with this ease of access and control. The RAPT BrewZilla will also allow you to fully customise your brew day with profiles specifically tuned to your style of brewing or your recipe.

For example you could set up your profile to receive certain alarms or messages when you are required to do something. E.g. Adding grain when the strike temperature is reached. Mash-Out Alarm when you're ready to sparge, Salt / Hop additions when you've reached the boil. As well as hop stand additions or chilling instructions. All of this at the touch of a button that is preprogrammed to what you want to do. No more egg timers, no more phone timers. Everything controlled by the one area.

Bluetooth Gateway Device
KegLand is currently developing various bluetooth devices such as RAPT Bluetooth Thermometer (low energy BLE) other sensors which will be compatible with this brewery.  This brewery is able to receive the BLE beacons and relay this information onto the RAPT portal.  Also by receiving multiple BLE thermometer sensors the Brewery is able to make smarter and more automated decisions on how to control the brewing or distillation process.  For example a BLE thermometer can be placed into your coolant water so you get an alarm if the temperature is too high, a BLE thermometer can be put into the middle of the malt pipe so you can more accurately control elements switching on/off to achieve a core malt pipe temperature etc.

Improved Base Design with Easy Access Pump
The new base design means we have sealed all the electronics on the underside of the brewery into a separate junction box. This has allowed us to omit the bottom cover.  This significant design change means that the pump can be accessed much more easily.  It also means the plumbing can be changed more easily too. For instance you can re-arrange the plumping to the pump to pump into the tap outlet or change this so the tap outlet bypasses the pump.  These changes make it more flexible but also much easier to take apart the pump for cleaning and maintenance if required.

RAPT Controller with Full Colour Screen
The new RAPT controller has an easy to read full colour screen. The controller can also be disconnected easily making wash down easier.  The controller is mounted in a higher position with a tilting frame so you can angle the screen toward you depending on how tall you are.  The new controller module is packed with features and KegLand is consistently updating firmware to include more features.  Firmware updates are quick and painless and with a single click you can upgrade all Gen 4 units to the latest firmware to take advantage of new features and accessories. Forget getting on your knees mid-brew, do it all while standing or sitting next to your BrewZilla. The controller can also activate the pump. Meaning there are no toggle switches anywhere on the BrewZilla Gen 4.1.

IEC Cable for Easy Storage
The new design has a removable IEC cable so you can unplug the cable making it more neat for storage.

Improved Lid Handles
The new lid handles are better designed and made from stainless so they are more robust and more ergonomic to hold especially with wet hands.

Two Stage Oversized Malt Pipe
This new malt pipe design is 30% larger meaning you can mash more grains and either make more beer or make higher gravity beers.  the new malt pipe also has a two stage height adjustment so you hand half lift the malt pipe and set on the supporting halo ring halfway up.  This makes it more ergonomical so you can lift the heavy malt pipe up in two stages but has the second advantage that it makes the brewery more suitable for smaller batches too where raising the malt pipe half way up is preferable.

From: Kegland

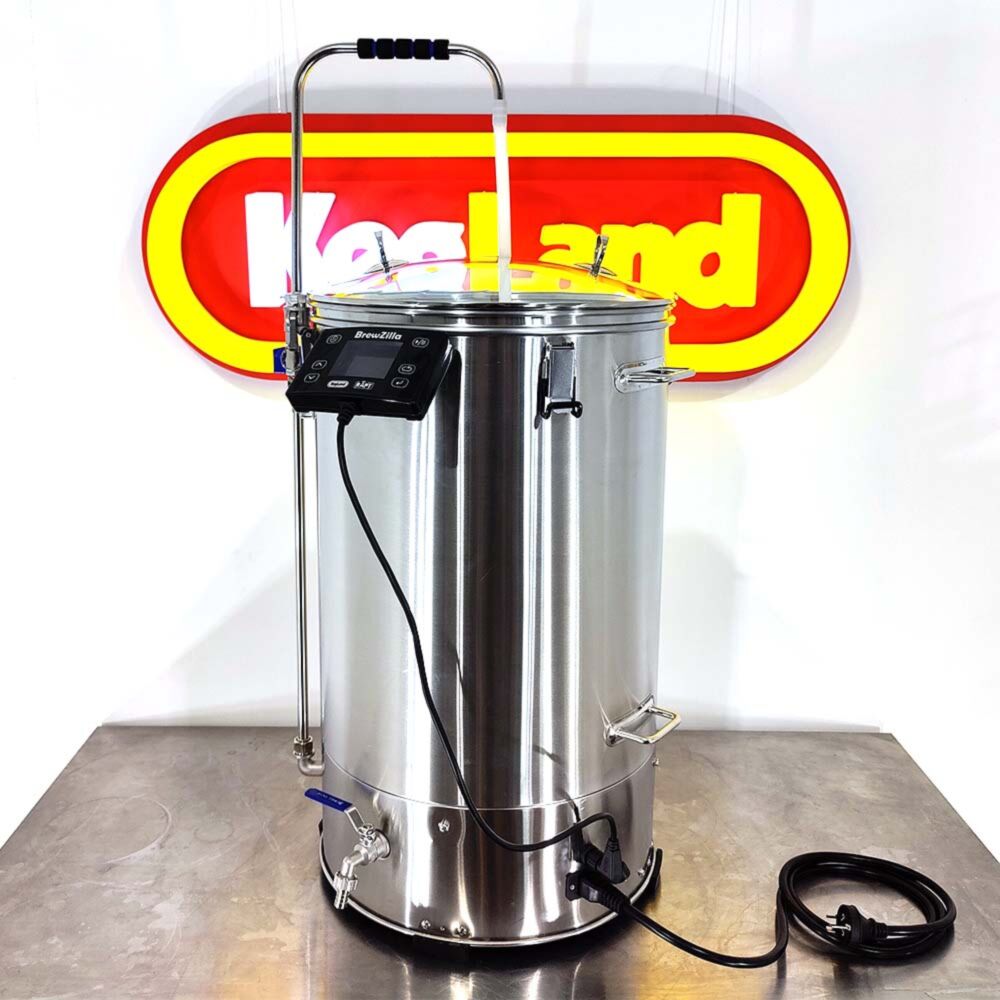

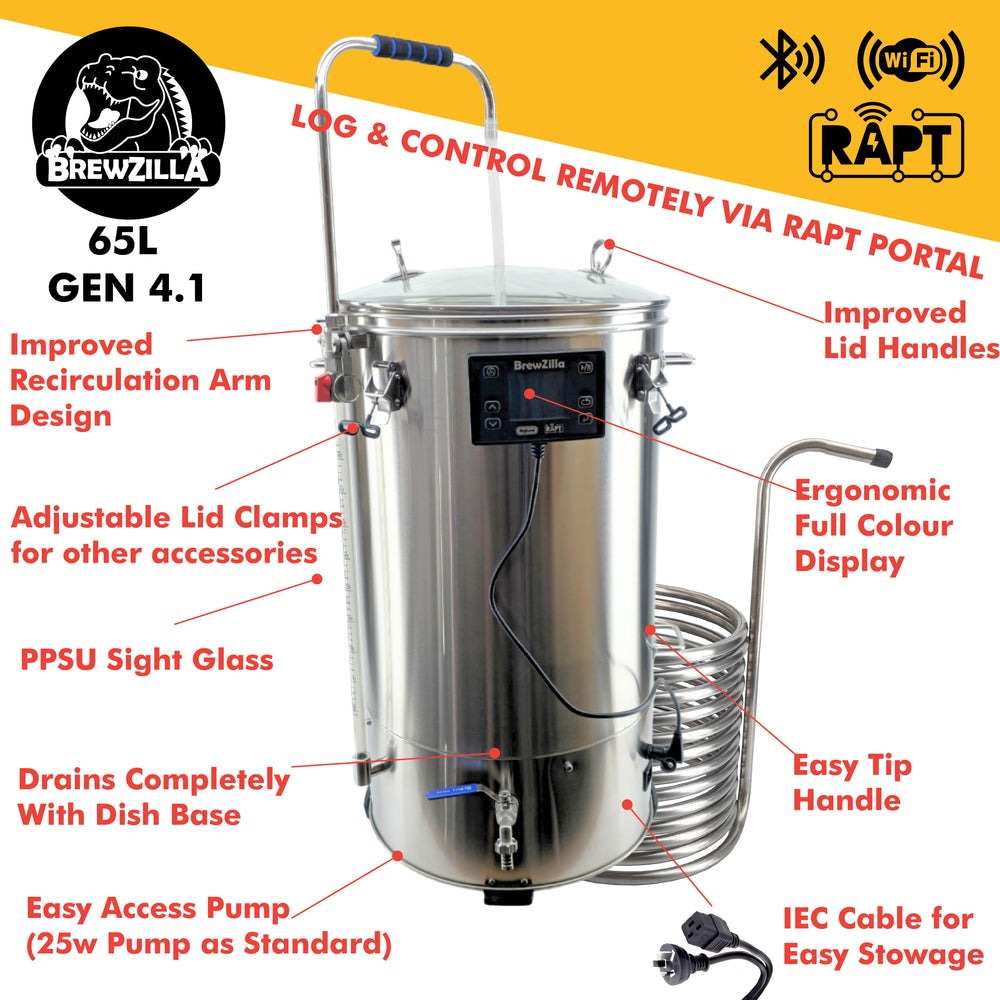

65L BrewZilla Generation 4.1
Wifi / RAPT Integration
With 25w Pump 2000w/1000/500w - 220-240V AC

The BrewZilla Gen 4 is designed to be a compact single vessel, double batch all grain home brewing system that can be run off a 15 amp socket. It is a complete turnkey system with a delay timing feature and step mash functionality. Built to make batches up to 60L, it is the next stepping stone up from the 35L BrewZilla model, being the ideal double batch system for those who want full control of their brew from start to finish.

The BrewZilla brewery type has been used across the world and won homebrew competitions in every country the brewery has been sold.  It's the most sold single vessel brewery worldwide and can be used for Home Brewing, Distillation, Preserve Canning, Sous Vide Cooking or just as a boiler.

Some features that differentiate this brewery from other Brewery designs are:

Complete Concave Draining Base
The new base design completely drains out meaning you capture every single bit of wort. No longer do you need to tilt the brewery to extract every last bit of wort.  This also makes it suitable for CIP cleaning using our new Low Volume CIP Spray Rotor.

False Bottom Pump Protection Screen
One of the key features of all the BrewZilla single vessel units is the false bottom protection screen. This screen avoids the need for doing a whirlpool and it filters wort and prevents more than 95% of hops and hot break getting sucked into the pump and thus greatly reduces the blocked pump issues that are often an issue with other brewery designs.

Ultra Low Watt Density
The BrewZilla has significantly lower watt density than other breweries.  The main benefit of lower watt densities is that it enables you to produce lighter colours of beers that would otherwise get some caramelisation.  The ultra-low watt density also means you have less chance of boilovers, you get less crud sticking to the element making cleaning easier and ultimately reduces wear and tear on the element meaning even with significant abuse your elements will last way longer.

RAPT/Wifi Connected
The new Gen 4 model is the first BrewZilla that connects to the RAPT Portal (https://app.rapt.io/).  This portal allows you to track, record and monitor your brews online.  This greatly reduces the need for handwritten records of your brew day as it's all done automatically.  The RAPT portal also allows you to see every brew you have done in the past and control the brewery remotely so you can start pre-heating water remotely or simply keep an eye on the brewing process while you do something else.  Get push notifications to your mobile phone of when to add hops or start the boil.

Along with this ease of access and control. The RAPT BrewZilla will also allow you to fully customise your brewday with profiles specifically tuned to your style of brewing or your recipe.
For example, you could set up your profile to receive certain alarms or messages when you are required to do something. E.g. Adding grain when the strike temperature is reached. Mash-Out Alarm when you're ready to sparge, Salt / Hop additions when you've reached the boil. As well as hop stand additions or chilling instructions. All of this at the touch of a button that is preprogrammed to what you want to do. No more egg timers, no more phone timers. Everything is controlled by one area.

Bluetooth Gateway Device
KegLand is currently developing various Bluetooth devices such as Bluetooth low energy (BLE) thermometers and other sensors which will be compatible with this brewery.  This brewery is able to receive the BLE beacons and relay this information onto the RAPT portal.  Also by receiving multiple BLE thermometer sensors the Brewery is able to make smater and more automated decisions on how to control the brewing or distillilation process.  For example a BLE thermometer can be placed into your coolant water so you get an alarm if the temperature is too high, a BLE thermometer can be put into the middle of the malt pipe so you can more accurately control elements switching on/off to achieve a core malt pipe temperature etc.

Improved Base Design with Easy Access Pump
The new base design means we have sealed all the electronics on the underside of the brewery into a separate junction box. This has allowed us to omit the bottom cover.  This significant design change means that the pump can be accessed much more easily.  It also means the plumbing can be changed more easily too. For instance, you can re-arrange the plumping to the pump to pump into the tap outlet or change this so the tap outlet bypasses the pump.  These changes make it more flexible but also much easier to take apart the pump for cleaning and maintenance if required.

RAPT Controller with Full Colour Screen
The new RAPT controller has an easy-to-read full colour screen. The controller can also be disconnected easily making wash down easier.  The controller is mounted in a higher position with a tilting frame so you can angle the screen toward you depending on how tall you are.  The new controller module is packed with features and KegLand is consistently updating the firmware to include more features.  Firmware updates are quick and painless and with a single click you can upgrade all Gen 4 units to the latest firmware to take advantage of new features and accessories. Forget getting on your knees mid-brew, do it all while standing or sitting next to your BrewZilla. The controller can also activate the pump. Meaning there are no toggle switches anywhere on the BrewZilla Gen 4.

15amp IEC Cable for Easy Storage
The new design has a removable IEC cable so you can unplug the cable making it neater for storage.

Improved Lid Handles
The new lid handles are better designed and made from stainless so they are more robust and more ergonomic to hold especially with wet hands.

Two Stage Oversized Malt Pipe
This new malt pipe design is 30% larger meaning you can mash more grains and either make more beer or make higher gravity beers.  the new malt pipe also has a two stage height adjustment so you hand half lift the malt pipe and set on the supporting halo ring halfway up.  This makes it more ergonomic so you can lift the heavy malt pipe up in two stages but has the second advantage that it makes the brewery more suitable for smaller batches too where raising the malt pipe halfway up is preferable. The new Gen 4 65L Malt Pipes also have a perforated section at the bottom to aid in sparging/lautering flow speeds.

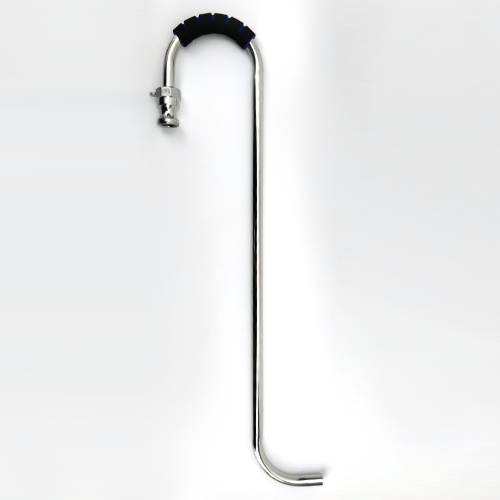

The BrewZilla Whirlpool Arm is a new accessory brought to you by KegLand that suits both the 35L model and 65L. This accessory fits onto the existing recirculation pipe with a Stainless Steel Male Camlock fitting. The magnetic pump will aid in circulating your wort for better hop extraction in the whirlpool stage, as well as help collect the hot break into the center of the false bottom.

Other benefits may include speeding up cooling times when using an immersion chiller due to increased movement of the wort over the cooling coils.

The BrewZilla Whirlpool Arm could also be used on the Grainfather if it has been converted to camlock fittings using the Grainfather Camlock Conversion Kit.

Specifications:
- 304 Stainless Steel
- Fitted Male Camlock fitting
- Soft Safety Grip
- Length 520mm

• BSP Threaded End
• Working Pressure: 150lbs (psi) / 10bar
• Working Temperature: 250°C at 10bar

• BSP Threaded End
• Working Pressure: 150lbs (psi) / 10bar
• Working Temperature: 250°C at 10bar

A: 27.5mm
B: 22mm

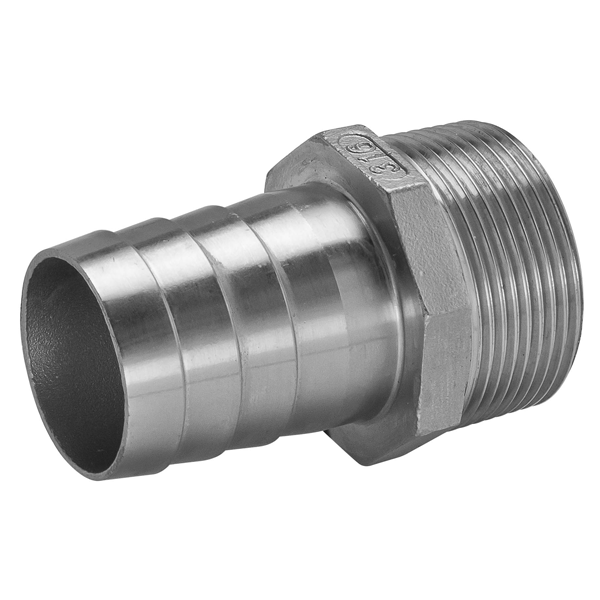

A 1/2 inch (12.7mm) Male Hosetail.

• BSP Threaded End
• Working Pressure: 150lbs (psi) / 10bar
• Working Temperature: 250°C at 10bar
• 316 Stainless Steel

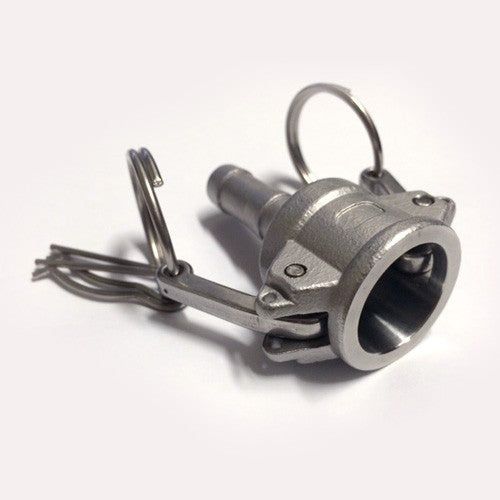

Camlock - Female to 1/2" Female (D Type).

Camlock fittings provide an easy way to make connections between your kettles, chillers, pumps, and other parts of your brewery.

This fitting is a part of the Grainfather Camlock Conversion Kit.

Made from: Stainless Steel 316
