The Create+ 90° Elbow Section is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel 90° Elbow Section integrates into a modular distilling system, redirecting vapour flow.
Key features:
- Connects to 2" tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
INSTRUCTIONS: Insert the 90° Elbow Section into your distilling system, ensuring the silicone gasket is placed in the tri-clamp connection. Secure with a tri-clamp.
CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.
CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.
CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.
DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.
WHATS INCLUDED
- 90° Elbow Section
- 2" Tri-clamp
- 2" Silicone Gasket
SPECIFICATIONS
- Dimensions: H 11.3 cm x W 11.3 cm x D 5.1 cm
- Weight: 0.285 kg
NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.
We recommend external support if:
- Your column & condenser exceeds the above specifications.
- The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
- If the column & condenser is noticeably leaning.
Craft high quality distilled water, hydrosols, and flavoursome spirits by transforming the Create+ Boiler 25 L or Grainfather G30 into an alembic distilling system by adding the Create+ Alembic Copper Dome and condenser. * Unlike a reflux condenser, the Alembic Condenser retains and enhances the flavours and aromas from a wash, making it ideal for crafting spirits like whiskey, bourbon, rum, and gin.
The Alembic Copper Condenser features a 2" tri-clamp connection allowing for it to be connected to 2" tri-clamp accessories, giving you the option to experiment with different setups and attachments for a truly bespoke experience.
The Alembic Condenser is also compatible with the Grainfather Alembic Condenser Attachment Kit and Distilling Lid*, it can convert a G40 or G70 into a Pot Still, making it suitable for distilling larger batches of all-grain spirits.
*Create+ Alembic Copper Dome, Create+ Boiler 25 L, Grainfather G30, and Grainfather Distilling Lid and Attachment Kit sold separately.
Key Features
Specifications
Included in Boil
Craft high quality distilled water, hydrosols, and flavoursome spirits by transforming the Create+ Boiler 25 L or Grainfather G30 into an alembic distilling system by adding the Create+ Alembic Copper Dome and condenser. *
Due to its copper construction and domed shape, when paired with the Alembic Condenser the Alembic Copper Dome captures and enhances the flavours and aromas from a wash, making it ideal for crafting spirits like whiskey, bourbon, rum, and gin. It is able to strip away unwanted compounds and off-flavours, improving distillate quality.
The Alembic Copper Dome comes with a 2" tri-clamp to DN40 Threaded Adapter allowing for it to be connected to 2" tri-clamp accessories, giving you the option to experiment with different setups and attachments for a truly bespoke experience. This adapter can be removed from the dome for use with older model threaded Still Spirits condensers.
The Alembic Copper Condenser features a 2" tri-clamp connection allowing for it to be connected to 2" tri-clamp accessories, giving you the option to experiment with different setups and attachments for a truly bespoke experience.Unlike a reflux condenser, the Alembic Condenser retains and enhances the flavours and aromas from a wash, making it ideal for crafting spirits like whiskey, bourbon, rum, and gin.
Create+ Alembic Copper Dome
Key Features
Specifications
Included in Box
Create+ Alembic Copper Condenser
Key Features
Specifications
Included in Boil
Craft high quality distilled water, hydrosols, and flavoursome spirits by transforming the Create+ Boiler 25 L or Grainfather G30 into an alembic distilling system by adding the Create+ Alembic Copper Dome and condenser. *
Due to its copper construction and domed shape, when paired with the Alembic Condenser the Alembic Copper Dome captures and enhances the flavours and aromas from a wash, making it ideal for crafting spirits like whiskey, bourbon, rum, and gin. It is able to strip away unwanted compounds and off-flavours, improving distillate quality.
The Alembic Copper Dome comes with a 2" tri-clamp to DN40 Threaded Adapter allowing for it to be connected to 2" tri-clamp accessories, giving you the option to experiment with different setups and attachments for a truly bespoke experience. This adapter can be removed from the dome for use with older model threaded Still Spirits condensers.
*Create+ Alembic Copper Condenser, Create+ Boiler 25 L, and Grainfather G30 sold separately.
Key Features
Specifications
Included in Box
Craft high quality distilled water, hydrosols, and flavoursome spirits by transforming the Create+ Boiler 25 L or Grainfather G30 into an alembic distilling system by adding the Create+ Alembic Copper Dome and condenser. *
The Alembic Copper Condenser features a 2" tri-clamp connection and the dome comes with a 2" tri-clamp to DN40 Threaded Adapter for easy connection to 2" tri-clamp accessories. The Sight Glass Botanical Basket can be used as a sight glass to monitor distillation, or the mesh filters can be attached per the instructions to convert the sight glass into a botanical basket. The sight glass will hold up to 150 g (5.2 oz) of botanicals and is suitable for fine botanicals.
Due to its copper construction and domed shape, when paired with the Alembic Condenser the Alembic Copper Dome captures and enhances the flavours and aromas from a wash, making it ideal for crafting spirits like whiskey, bourbon, rum, and gin. It is able to strip away unwanted compounds and off-flavours, improving distillate quality.
The Alembic Copper Dome comes with a 2" tri-clamp to DN40 Threaded Adapter allowing for it to be connected to 2" tri-clamp accessories, giving you the option to experiment with different setups and attachments for a truly bespoke experience. This adapter can be removed from the dome for use with older model threaded Still Spirits condensers.
The Alembic Copper Condenser features a 2" tri-clamp connection allowing for it to be connected to 2" tri-clamp accessories, giving you the option to experiment with different setups and attachments for a truly bespoke experience.Unlike a reflux condenser, the Alembic Condenser retains and enhances the flavours and aromas from a wash, making it ideal for crafting spirits like whiskey, bourbon, rum, and gin.
Create+ Alembic Copper Dome
Key Features
Specifications
Included in Box
Create+ Alembic Copper Condenser
Key Features
Specifications
Included in Boil
Sight Glass Botanical Basket:
• 2" Tri-clamp connection• Constructed with 304 grade stainless steel and borosilicate glass
• Holds up to 150 g ( 5.2 oz) Botanicals
• Compatible with the Create+ range of equipment and accessories
• Compatible with Grainfather G40 & G70 distilling attachment accessories
The Create+ Beeping Alarm Thermometer allows your cstomer to set a high and a low temperature on the thermometer of their Create+ T500 Column & Condenser or Create+ Alembic Condenser. The thermometer will beep to notify them that the high or low temperature has been reached so they can make adjustments to their waterflow or distillation as required.
Product Features:
- Ø5 mm Probe
- High & low temperature alarms
- Celsius & Fahrenheit setting
Compatible with:
- Create + T500 Column & Condenser
- Alembic Copper Condenser
- 2" Straight Tubes
Whats Included
- Create+ Beeping Alarm Thermometer
- 2" Mounting Bracket
- AAA Battery
- Instructions
Specifications
- Display Resolution: 0.1℃ / 0.1°F
- Alarm Resolution: 1℃ / 1°F
- Measuring Range: -50~300℃(-58~572°F)
- Display Accuracy: ±1℃/°F
he Create+ Boiler 25 L is the recommended boiler base for use with the Create+ T500 Column & Condenser and the Create+ Alembic Copper Dome & Condenser. With a maximum capacity of 25 litres, the Boiler 25 L is designed for distillers seeking precise control and versatile functionality. It features dual element control switches to provide more control during distillation. The Boiler 25 L comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so your customers can experiment with different setups and attachments.
Key Features:
- Dual element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W (1600 if using a US/CA unit). When one switch is in the OFF position, it will only consume 1100W (or 1100W/500W if using a US/CA unit) of power.
- Designed in New Zealand
- Boil dry reset
- Thermal cut out fuse
- Waste discharge tap with a stainless-steel ball valve
- Boiler lid with 48 mm opening
- 25 L Boiler capacity
- Connects to 2" tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
WHATS INCLUDED
- Create+ Boiler 25 L
- Create+ Boiler Lid
- 2" Tri-clamp to DN40 Threaded Adapter (includes: Silicon gasket and DN40 Nut)
- Instructions
SPECIFICATIONS
- Capacity: 25 L
- Dimenions: H 64 cm x W 36 cm x D 37 cmWeight: 5.42 kg
- Power: 2200W (1600W for US/CA Units)
- Warranty: 3 years
NOTE: The Boiler is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
The Create+ Multi-Tube Condenser (Shotgun Condenser) is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel condenser integrates into a modular distilling system, cooling vapour by passing it through multiple tubes, efficiently condensing it into liquid.
As a product condenser, the Condenser acts as a compact yet powerful solution for efficient vapour condensation in your distillation setup. With five internal tubes designed to maximise surface area and heat exchange, it rapidly cools vapour into liquid distillate. Constructed from high-quality 304-grade stainless steel and equipped with tri-clamp fittings, it offers both durability and easy integration into any system.
As a reflux condenser/dephlegmator, when mounted vertically at the top of your column, the Condenser performs as a dephlegmator, delivering reflux control for improved separation and purity. It's short 150 mm length and five-tube layout make it ideal for hobbyists and small-scale distillers looking to precisely manage reflux and fine-tune their distillation process.
Key features:
- Works as a product condenser & reflux condenser/dephlegmator
- Connects to 2" tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
NOTE: PTFE/thread tape, hoses and hose clamps are not included.
- To secure the connection we recommend wrapping the thread on both hose barbs with 2-3 revolutions of PTFE/thread tape in the clockwise direction.
- We recommend hoses with an internal diameter (ID) between 6 and 7.9mm (1/4 to 5/16”). For hoses with a smaller ID, applying hot water to the hose end may assist with assembly; for hoses with a larger ID, hose clamps may be required to ensure a secure connection.
WHATS INCLUDED
- 5-Tube Shotgun Condenser
- 2" Tri-clamp
- 2x Hose barbs
- 2" Silicone gasket
SPECIFICATIONS
- Dimensions: H 14.96 cm x W 5.1 cm x D 5.1 cm
- Port thread specification: G1/4" (BSPP 1/4")
- Hose barb specification: R1/4" (BSPT 1/4"), barb diameter 8mm
- Internal tube diameter: 11 mm
- Weight: 0.796 kg
NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.
We recommend external support if:
- Your column & condenser exceeds the above specifications.
- The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
- If the column & condenser is noticeably leaning.
This high-quality sight glass botanical basket set is designed for use with 2” tri-clamp compatible distilling systems. This set can be used as a sight glass to monitor your distillation run or attach the mesh filters as per the instructions to convert the sight glass into a botanical basket. The sight glass will hold up to 150 g (5.2 oz) of botanicals and is suitable for fine botanicals. Compatible with 2” tri-clamp distilling systems, including the Grainfather G40/G70 Distilling Lid T500 Reflux Attachment Kit and Grainfather G40/G70 Distilling Lid T500 Alembic Attachment Kit.
Includes
- 1 x Sight glass botanical basket with 2" tri-clamp ferrules
- 1 x 2” Tri-clamp
- 2 x Mesh filters (size 10)
Instructions:
For use as a botanical basket:
- Attach the sight glass to the lid of your distilling system using one of the mesh filters and the 2” tri-clamp.
- Fill the sight glass with your desired amount of botanicals - up to a maximum of 150 g (5.2 oz).
- Put the second mesh filter on the top of the sight glass.
- Using a 2” tri-clamp connect the top of the sight glass to your condensing set up.
For use as a sight glass: Attach the sight glass to your distilling system (mesh filters are not required).
Cleaning: Clean with warm water and a suitable brewery cleaner. Using a pipe brush, clean away all residual oils on the glass. Disassembly should only be required if heavy soiling around the silicone components exists. Sanitation is not needed in this application.
Note: For use as a column extension with packing material coarse mesh is required to prevent flooding.
Specifications
- Dimensions: 246mm (h) x 100mm (w) x 100mm (d)
- Weight: 1.49 kg
CAUTION: After distillation is complete, the sight glass will be very hot. Allow to cool before handling
The Still Spirits Create+ Sight Glass Botanical Basket, the Create+ Threaded Adapter Set, and a 2" Tri-Clamp bundle allows you to convert your threaded Still Spirits T500 or Alembic condenser to a tri-clamp connection to use the the Create+ Sight Glass Botanical Basket and other 2" tri-clamp accessories with older model condensers.
Sight Glass Botanical Basket Set
This high-quality sight glass botanical basket set is designed for use with 2” tri-clamp compatible distilling systems. This set can be used as a sight glass to monitor your distillation run or attach the mesh filters as per the instructions to convert the sight glass into a botanical basket. The sight glass will hold up to 150 g (5.2 oz) of botanicals and is suitable for fine botanicals. Compatible with 2” tri-clamp distilling systems, including the Grainfather G40/G70 Distilling Lid T500 Reflux Attachment Kit and Grainfather G40/G70 Distilling Lid T500 Alembic Attachment Kit.
Key Features:
- 2" Tri-clamp connectivity
- Sight Glass constructed with 304 grade stainless steel and borosilicate glass
- Sight Glass Holds up to 150 g ( 5.2 oz) Botanicals
- 304 grade stainless steel construction
- High temperature resistant food grade silicone
Threaded Adapter Set comprised of:
- DN40 Nut
- Sieved Gasket
- Silicone Gasket
- 2" Tri-Clamp to DN40 Threaded Adapter
- 2" Tri-Clamp
Create+ Sight Glass Botanical Basket comprised of:
- 1 x Sight glass botanical basket with 2" tri-clamp ferrules
- 1 x 2” Tri-clamp
- 2 x Mesh filters (size 10)
Instructions:
For use as a botanical basket:
- Attach the sight glass to the lid of your distilling system using one of the mesh filters and the 2” tri-clamp.
- Fill the sight glass with your desired amount of botanicals - up to a maximum of 150 g (5.2 oz).
- Put the second mesh filter on the top of the sight glass.
- Using a 2” tri-clamp connect the top of the sight glass to your condensing set up.
For use as a sight glass: Attach the sight glass to your distilling system (mesh filters are not required).
Cleaning: Clean with warm water and a suitable brewery cleaner. Using a pipe brush, clean away all residual oils on the glass. Disassembly should only be required if heavy soiling around the silicone components exists. Sanitation is not needed in this application.
Note: For use as a column extension with packing material coarse mesh is required to prevent flooding.
Specifications
- Dimensions: 246mm (h) x 100mm (w) x 100mm (d)
- Weight: 1.49 kg
CAUTION: After distillation is complete, the sight glass will be very hot. Allow to cool before handling
NOTE: The Threaded Adapter Set is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
Note: The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.

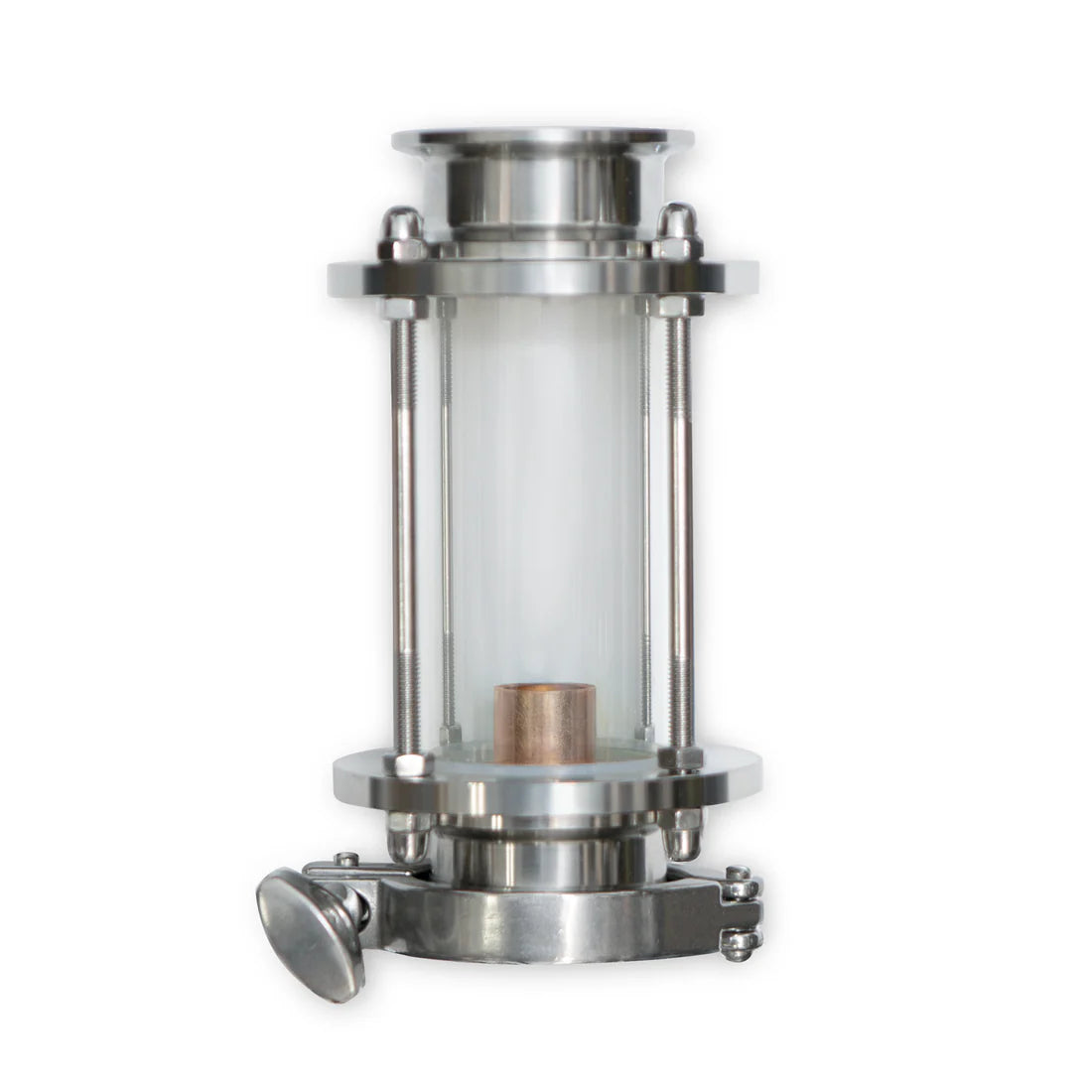

The Create+ Sight Glass Bubble Plate is designed for use with 2” tri-clamp compatible distilling systems. Bubble Plates are designed to promote reflux and provide visual feedback of the distillation process*. Sight Glass made from 304 grade stainless steel and borosilicate glass.
*Results may vary, depending on your individual set-up.
KEY FEATURES
- Connects to 2" tri-clamp distilling accessories
- Copper Bubble Plate with stainless steel guide ramp
- Sight Glass: Borosilicate & 304 grade stainless steel construction
- High temperature resistant food grade silicone
WHATS INCLUDED
- Sight Glass
- Copper Bubble Plate with Silicone Flat Sea
- 2" Tri-clamp
- 2" Silicone Gasket
SPECIFICATIONS
- Dimensions: H 16.7 cm x W 5.1 cm x D 5.1 cm
- Plate WT 1 mm, diameter Ø50.0±0.2. Perforations approx. Ø 2mm.
- Weight: 1.116 kg
NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.
We recommend external support if:
- Your column & condenser exceeds the above specifications.
- The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
- If the column & condenser is noticeably leaning.
The Create+ Straight Section is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel Straight Section extends the column for enhanced reflux or integrates into a modular distilling system.
Key features:
- Connects to 2" tri-clamp distilling accessories
- 304 grade stainless steel construction
- High temperature resistant food grade silicone
INSTRUCTIONS: Insert Straight Section into your distilling system ensuring the silicone gasket is placed in the tri-clamp connection. Secure with a tri-clamp.
CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.
CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.
CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.
WHATS INCLUDED
- Straight Section
- 2" Tri-clamp
- 2" Silicone Gasket
SPECIFICATIONS
- Dimensions: H 30.0 cm x W 5.1 cm x D 5.1 cm
- Weight: 0.583 kg
NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.
We recommend external support if:
- Your column & condenser exceeds the above specifications.
- The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
- If the column & condenser is noticeably leaning.
Key Features
- All-in-one reflux column and condenser
- For intermediate-advanced distilling
- Suitable for distilling water and alcohol
- Designed in New Zealand
- 304 Grade stainless steel
- 2" Tri-clamp connection
- Packed with stainless steel and copper saddles
- Faucet adaptor for ease of cooling water connection
- Ideal for use with the Create+ Boiler 25 L, as well as the Grainfather G30, G40, and G70 Brewing Systems.
Specifications
- Dimensions: H 69 cm x W 8.5 cm x D 16 cm
- Weight: 2.3-2.99 kg
- Warranty: 3 years
- Ease of Use: Intermediate
- Average water use during distillation: You will use approx. 200 L (54 US Gal) per 25 L distillation.*
- Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 6 kg (13.2 lb) of sugar**
- Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**
* When used with the Create+ Water Flow Regulator.
**Per 25 L (6.6 US Gal) Turbo Classic 8 Production pack wash using the Create+ Boiler 25 L and T500 Reflux Condenser.
Whats Included
- Create+ T500 Column & Condenser
- Create+ 2" Tri-Clamp
- Copper and Stainless Steel Saddles (Pre-Packed)
- Digital Thermometer
- 2 x Cooling Water Tues
- Ceramic Boil Enhancers
- Tap Adapter Flow Controller with Kitchen and Garden Tap Adapters
- Instructions
The Create+ T500 Column & Condenser, Boiler & Distillery Kit is the ultimate set-up for producing quality neutral spirits and liqueurs at home.
This kit comes with everything you need to make high-quality spirits at home using the Create+ T500 Column & Condenser. This system is also suitable for distilled water and hydrosols.
The Create+ T500 Column & Condenser features a 2" tri-clamp connection, allowing for it to be connected to 2" tri-clamp accessories, so your customers have the option to experiment with different setups and attachments. The T500 Boiler features two power switches. When both switches are on, the element will be supplied full power of 2200W for 220V units, or 1600W for 120V units. You can lower this to 1100W by switching one of the two switches off (220V unit) or by switching off the 500W switch (120V unit).
Features (For full list of features, see individual product pages):
• All-in-one reflux column and condenser + boiler
• 2" Tri-clamp connection on Column & Condenser
• For intermediate-advanced distilling
• Suitable for distilling water and alcohol
• Designed in New Zealand
• 304 Grade stainless steel construction
• Connects to 2" tri-clamp distilling accessories
• Dual boiler element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W. When one switch is in the OFF position, it will only consume 1100W of power.
• 25 L Boiler capacity.
• Ingredients and equipment to make a wash and flavour distillate.
Note: This product includes a Still Spirits Create+ Threaded Adapter Set and 2" Tri-clamp inside the Still Spirits Boiler 25 L box. They are for use with tri-clamp connection condensers and are not required for condensers with a threaded connection.
Whats Included
- Create+ T500 Column & Condenser (threaded connection)
- T500 Boiler 25 L
- 6 kg Turbo Production Pack
- 30 L Plastic Fermenter complete with Tap, Sediment Reducer, Airlock, Grommet and Stick On Thermometer
- EZ Filter
- 5 L Measuring Jug/Collector
- 50 cm Stirring Spoon
- Hydrometer
- Classic Spirit Flavourings (3)
- Icon Liqueurs Spirit Flavourings (2)
Note: This product includes a Still Spirits Create+ Threaded Adapter Set and 2" Tri-clamp inside the Still Spirits Boiler 25 L box. They are for use with tri-clamp connection condensers and are not required for condensers with a threaded connection.
Engineered for simplicity and efficiency, the Create+ T500 Column & Condenser and Create + Boiler 25 L bundle provides a high-performance reflux distilling system that produces exceptionally clean distillate.
Its 2" tri-clamp connection allows for it to be connected to 2" tri-clamp accessories, so your customers have the option to experiment with different setups and attachments. The T500 features a cutting-edge design that incorporates pre-packed copper and stainless-steel saddles. This innovative amalgamation ensures optimal vapour reflux, facilitating the production of superior-quality distillate. Ideal for both novice and experienced distillers, the T500 redefines convenience in home distillation, delivering unmatched results with a seamless blend of form and function.
With a maximum capacity of 25 litres, the Boiler 25 L features dual element control switches, providing more control during distillation. It comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so your customers can experiment with different setups and attachments.
Features (For full list of features, see individual product pages):
• All-in-one reflux column and condenser + boiler
• 2" Tri-clamp connection on Column & Condenser
• For intermediate-advanced distilling
• Suitable for distilling water and alcohol
• Designed in New Zealand
• 304 Grade stainless steel construction
• Connects to 2" tri-clamp distilling accessories
• Dual boiler element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W. When one switch is in the OFF position, it will only consume 1100W of power.
• 25 L Boiler capacity
Note: This product includes a Still Spirits Create+ Threaded Adapter Set and 2" Tri-clamp inside the Still Spirits Boiler 25 L box. They are for use with tri-clamp connection condensers and are not required for condensers with a threaded connection.
Whats Included
- Create+ T500 Column & Condenser
- Create+ Boiler 25 L
Note: This product includes a Still Spirits Create+ Threaded Adapter Set and 2" Tri-clamp inside the Still Spirits Boiler 25 L box. They are for use with tri-clamp connection condensers and are not required for condensers with a threaded connection.
Specifications
Boiler
- Capacity: 25 L
- Dimenions: H 64 cm x W 36 cm x D 37 cm
- Weight: 5.42 kg
- Power: 2200W (1600W for US/CA Units)
- Warranty: 3 years
NOTE: The Boiler is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
T500 Column & Condenser:
- Dimensions: H 69 cm x W 8.5 cm x D 16 cm
- Weight: 2.3-2.99 kg
- Warranty: 3 years
- Ease of Use: Intermediate
- Average water use during distillation: You will use approx. 200 L (54 US Gal) per 25 L distillation.*
- Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 6 kg (13.2 lb) of sugar**
- Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**
* When used with the Create+ Water Flow Regulator.
**Per 25 L (6.6 US Gal) Turbo Classic 8 Production pack wash using the Create+ Boiler 25 L and T500 Reflux Condenser.
Engineered for modularity and performance, the T500 Pro is an all-in-one reflux column and condenser designed to streamline the distillation process while delivering exceptional results. This innovative unit combines advanced functionality with unmatched convenience, eliminating the need for separate components. Its integrated design features a pre-packed column with both copper and stainless steel saddles, optimising vapour reflux and elevating the quality of your distillate.
Constructed from the highest quality materials, the T500 Pro is crafted with precision using T2-grade copper for the column and cold finger coil, complemented by durable stainless steel tri-clamp ferrules. The use of copper in the spirit path enhances the distillation process by reducing unwanted compounds, ensuring a cleaner, smoother finish. Food-grade, high-temperature silicone seals are included for use in the tri-clamp connections.
The T500 Pro features a thermowell at the top of the column for accurate vapour temperature monitoring, a beeping alarm thermometer with adjustable high and low temperature alerts, and robust 2” tri-clamp fittings for a secure, modular setup. The detachable product condenser and removable cold finger cooling coil offer added versatility, while improved water efficiency saves up to 30% compared to the original T500, depending on usage.
Ideal for producing clean, neutral alcohol, the T500 Pro delivers exceptional clarity and purity in every run. It can reach up to 93% ABV and recover up to 95% of the alcohol from your wash—producing a neutral spirit that’s ideal for vodka or as a base for flavourings, gins, and other botanical spirits. The T500 Pro is perfect for distilling water, thanks to the combined performance of copper and stainless steel saddles, which aid in the effective removal of impurities.
The T500 Pro is compatible with the Create+ Boiler 25 L and the Grainfather G30, G40, and G70 Brewing Systems, making it a powerful and flexible addition to any distiller’s setup.
Key Features
- All-in-one reflux column and condenser
- Suitable for distilling water and alcohol
- Constructed from high-quality T2-grade copper with stainless steel tri-clamp ferrules
- Designed in New Zealand
- Pre-packed with copper (105 g) and stainless steel saddles (485 g)
- 2" tri-clamp connections
- Integrated thermowell in the column head for accurate vapour temperature readings
- Beeping alarm thermometer with adjustable high/low temperature alerts
- Removable cold finger cooling coil and detachable product condenser
- No plastic components in the spirit path
- Food-grade silicone seals
- Saves up to 30% water compared to the original T500 (depending on usage)
- Compatible with Create+ Boiler 25 L, and Grainfather G30, G40, and G70 Brewing Systems
Specifications
- Dimensions: H 67.7 cm x W 12.1 cm x D 10.8 cm
- Weight: 2.63 kg
- Warranty: 3 years
- Ease of Use: Intermediate
- Average water use during distillation: You will use approx. 140 L (37 US Gal) per 25 L distillation.*
- Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 8 kg (17.6 lb) of sugar**
- Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**
- When used with the Create+ Water Flow Regulator.
**Per 25 L (6.6 US Gal) Turbo Classic 8 Production pack wash using the Create+ Boiler 25 L and T500 Pro Column & Condenser.
Whats Included
- Create+ T500 Pro Column & Condenser
- 2 x Create+ 2" Tri-Clamps
- Copper and Stainless Steel Saddles (Pre-Packed)
- Create+ Beeping Alarm Thermometer with 2" Mounting Bracket
- 2x Cooling Water Tubes
- Ceramic Boil Enhancers
- Tap Adapter Flow Controller with Kitchen and Garden Tap Adapters
- Instructions
Engineered for modularity and performance, the T500 Pro is an all-in-one reflux column and condenser designed to streamline the distillation process while delivering exceptional results. This innovative unit combines advanced functionality with unmatched convenience, eliminating the need for separate components. Its integrated design features a pre-packed column with both copper and stainless steel saddles, optimising vapour reflux and elevating the quality of your distillate.
With a maximum capacity of 25 litres, the Boiler 25 L features dual element control switches, providing more control during distillation. It comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so your customers can experiment with different setups and attachments.
Ideal for producing clean, neutral alcohol, this duo delivers exceptional clarity and purity in every run. It can reach up to 93% ABV and recover up to 95% of the alcohol from your wash—producing a neutral spirit that’s ideal for vodka or as a base for flavourings, gins, and other botanical spirits. The T500 Pro is perfect for distilling water, thanks to the combined performance of copper and stainless steel saddles, which aid in the effective removal of impurities.
Features (For full list of features, see individual product pages):
• All-in-one reflux column and condenser constructed from high-quality T2-grade copper with stainless steel tri-clamp ferrules
• Suitable for distilling water and alcohol
• Saves up to 30% water compared to the original T500 (depending on usage)
• Dual boiler element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W. When one switch is in the OFF position, it will only consume 1100W of power.
• 25 L Boiler capacity
• Designed in New Zealand
Note: This product includes a Still Spirits Create+ Threaded Adapter Set and 2" Tri-clamp inside the Still Spirits Boiler 25 L box. They are for use with tri-clamp connection condensers and are not required for condensers with a threaded connection.
Whats Included
- Create+ T500 Pro Column & Condenser
- T500 Boiler 25 L
Note: This product includes a Still Spirits Create+ Threaded Adapter Set and 2" Tri-clamp inside the Still Spirits Boiler 25 L box. They are for use with tri-clamp connection condensers and are not required for condensers with a threaded connection.
Specifications
Boiler
- Capacity: 25 L
- Dimenions: H 64 cm x W 36 cm x D 37 cm
- Weight: 5.42 kg
- Power: 2200W (1600W for US/CA Units)
- Warranty: 3 years
NOTE: The Boiler is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
Pro Column & Condenser
- Dimensions: H 67.7 cm x W 12.1 cm x D 10.8 cm
- Weight: 2.63 kg
- Warranty: 3 years
- Ease of Use: Intermediate
- Average water use during distillation: You will use approx. 140 L (37 US Gal) per 25 L distillation.*
- Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 8 kg (17.6 lb) of sugar**
- Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**
- When used with the Create+ Water Flow Regulator.
**Per 25 L (6.6 US Gal) Turbo Classic 8 Production pack wash using the Create+ Boiler 25 L and T500 Pro Column & Condenser.
The Create+ Thermowell 90° Elbow Section is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel 90° elbow section with a thermowell integrates into a modular distilling system, redirecting vapour flow while enabling temperature monitoring.
Key features:
- Connects to 2" tri-clamp distilling accessories
- Integrated thermowell
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
INSTRUCTIONS: Insert 90° Elbow Section into your distilling system ensuring the silicone gasket is placed in the tri-clamp connection. Secure with a tri-clamp. Secure your thermometer's sensor probe in the thermowell by using the provided plastic and silicone sleeves and the stainless steel nut. If not using a probe, seal off the thermowell using the provided stainless steel cap and O-ring.
CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.
CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.
CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.
WHATS INCLUDED
- Thermowell 90° Elbow Section
- 2" Tri-clamp
- 2" Silicone Gasket
- Black O-ring Gasket
- Thermowell Stainless Steel Cap
SPECIFICATIONS
- Dimensions: H 11.3 cm x W 11.3 cm x D 5.1 cm
- Thermowell compatible with Ø5 to 6mm probes
- Weight: 0.297 kg
NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.
We recommend external support if:
- Your column & condenser exceeds the above specifications.
- The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
- If the column & condenser is noticeably leaning.
The Still Spirits Create+ Threaded Adapter Set converts a DN40 (or 1 ½ " BSPP) threaded connection to a 2" tri-clamp connection. The Threaded Adapter Set allows your customers to convert their existing Still Spirits Alembic or T500 distilling setups to connect to 2" tri-clamp accessories.
Key Features:
- Convert from DN40 (or 1 ½ " BSPP) threaded connection to 2" tri-clamp connection.
- Connect to 2" tri-clamp distilling accessories
- 304 grade stainless steel construction
- High temperature resistant food grade silicone
Whats Included
- DN40 Nut
- Sieved Gasket
- Silicone Gasket
- 2" Tri-Clamp to DN40 Threaded Adapter
Specifications
Packaging Dimensions: 80mm x 80mm x 65mm
Weight: ~400g Approx.
NOTE: The Threaded Adapter Set is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
Note: The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.
The Still Spirits Create+ Threaded Adapter Set with 2" tri-clamp converts a DN40 (or 1 ½ " BSPP) threaded connection to a 2" tri-clamp connection. The Threaded Adapter Set allows your customers to convert their existing Still Spirits Alembic or T500 distilling setups to connect to 2" tri-clamp accessories.
Key Features:
- Convert from DN40 (or 1 ½ " BSPP) threaded connection to 2" tri-clamp connection.
- Connect to 2" tri-clamp distilling accessories
- 304 grade stainless steel construction
- High temperature resistant food grade silicone
Whats Included
- DN40 Nut
- Sieved Gasket
- Silicone Gasket
- 2" Tri-Clamp to DN40 Threaded Adapter
- 2" Tri-Clamp
Specifications
Packaging Dimensions: 80mm x 80mm x 65mm
Weight: ~400g Approx.
NOTE: The Threaded Adapter Set is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
Note: The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.
Still Spirits Boiler with Still Spirits CREATE+ Alembic Dome and Condenser (tri-clamp).
Unlike reflux stills that are engineered to strip flavour to produce clean, neutral spirits, the large copper surface area of this pot still enables it to carry over the distinct flavours and aromas of a wash into the final product, creating a full-flavoured spirit. This makes it ideal for creating flavoursome spirits like whiskey, bourbon, rum, and gin. This set up is also suitable for distilling water and hydrosols.
This T500 Boiler features two power switches. When both switches are on, the element will be supplied full power of 2200W for 220V units, or 1600W for 120V units. You can lower this to 1100W by switching one of the two switches off (220V unit) or by switching off the 500W switch (120V unit). This can be extremely useful when distilling dark spirits such as Whiskey, Rum and Bourbon as you are able to now control the amount of power and have a gentler boil for your final spirit runs.
Features:
- For intermediate-advanced distilling
- Dome and Condenser made from Copper with tri clamp connections
- Designed in New Zealand
- 25 L boiler capacity
- Boil dry reset
- Thermal cut out fuse
- Waste discharge tap
Note: This product includes a Still Spirits Create+ Threaded Adapter Set and 2" Tri-clamp inside the Still Spirits Boiler 25 L box. They are for use with tri-clamp connection condensers and are not required for condensers with a threaded connection.
Whats Included
- SS Create+ Alembic Copper Condenser
- SS Create+ Alembic Copper Dome
- Still Spirits T500 Boiler 25L (NZ/AU)
- Create+ Threaded Adapter Set & 2" Tri-clamp
Specifications
T500 Copper Dome & Alembic Condenser
• Dimensions: H 50 cm x W 18 cm x D 7 cm
• Weight: 1.18 kg
• Warranty: 3 years
T500 Boiler
• Dimensions: H 64 cm x W 36 cm x D 37 cm
• Weight: 5.42 kg
• Power: 2200W (1600W for US/CA Units)
• Warranty: 3 years
• Yield: 3.5-7 L of 40% ABV alcohol per 25 L wash
• Purity: Distills at 70% ABV before diluting to 40% ABV (80 US proof)
The Create+ Vented Collection Cup is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel Vented Collection Cup integrates into a modular distilling system, facilitating the secure connection of distillate collection tubing while allowing safe venting of pressure during the distillation process.
Key features:
- Connects to 2" tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
INSTRUCTIONS: Insert Collection Cup into your distilling system, ensure the vent weld is at least horizontal so that distillate flows out of the barbed tube, place a silicone gasket in the tri-clamp connection and secure with a tri-clamp.
CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.
CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.
CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.
WHATS INCLUDED
- Vented Collection Cup with Ø10 mm Barbed Tube and Vent Port
- 2" Tri-clamp
- 2" Silicone Gasket
SPECIFICATIONS
- Dimensions: H 11.3 cm x W 7.1 cm x D 5.1 cm
- Vent port/tube Ø12 mm
- Barbed tube Ø10 mm
- Weight: 0.170 kg
NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.
We recommend external support if:
- Your column & condenser exceeds the above specifications.
- The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
- If the column & condenser is noticeably leaning.
The Create+ Voltage Controller allows for better control of cuts during a spirit run. Reducing the heat input using the voltage controller will allow for a slower controlled distillation; this makes it easier to distinguish between heads, hearts and tails. Especially useful during pot distillation or vapour infusion spirit runs.
It also allows for the ability to then increase heat input as the distillate output slows towards the end of a run. This is especially useful towards the end of a pot distillation run during the ‘tails’ of a spirit run.
Designed for use with the Create+ Boiler 25 L. Electrical Safety Certified for use in New Zealand and Australia.
Specification
- Power rating: 2400W
- Plug rating: 250V AC, 10A
- Socket rating: 250V AC, 10A
- Max output current rating: 10A
- Product rated supply voltage : 220 - 240V AC
- Rated supply frequency: 50/60 Hz
- Size: 150 x 160 x 90 mm (approx.)
- Weight: 800 g
- Warranty: 12 months
The Create+ Water Flow Regulator is designed for use with reflux distilling systems like the T500, this regulator ensures a steady, controlled water flow for consistent, high-quality results. It features an easy tap connection, built-in water pump, float valve to prevent overflow, and an adjustable flow control handle for precise operation and push fit connections to make connecting the hosing a breeze..
- Compatible with the T500 & similar cooling management reflux systems
- Ergonomic flow controller for easy adjustments
- Stable water flow for high quality distillate
- Built in pump to supply water to your system
- A float valve to regulate water capacity
- Reservoir to store up to 1 L of water
- Reliable push-fit connections
Whats Included
- Create+ Water Flow Regulator with pump
- Flow Control Handle
- Inlet Hose
- Push-fit Connection
- Push-fit to Thread Adapter (for use with Tap Adapters provided with T500)
- Power Cable and Adapter
- Instructions
Specifications
- This Water Flow Regulator can be used with any still that requires less than 1.8 L per min of cooling water
- 3 year warranty
