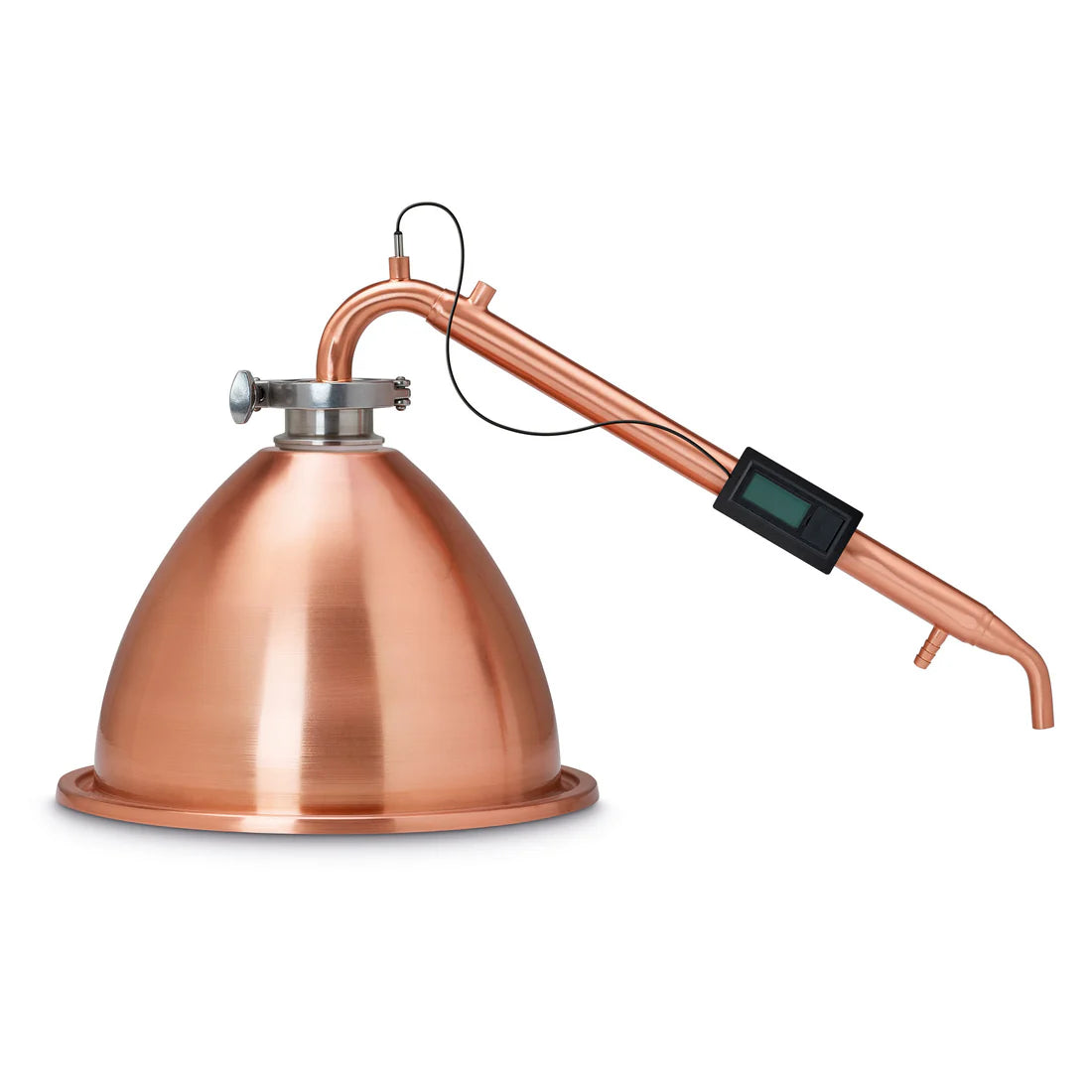

Still Spirits Create+ Alembic Copper Dome & Condenser Tri-Clover

Craft high quality distilled water, hydrosols, and flavoursome spirits by transforming the Create+ Boiler 25 L or Grainfather G30 into an alembic distilling system by adding the Create+ Alembic Copper Dome and condenser. *

Due to its copper construction and domed shape, when paired with the Alembic Condenser the Alembic Copper Dome captures and enhances the flavours and aromas from a wash, making it ideal for crafting spirits like whiskey, bourbon, rum, and gin. It is able to strip away unwanted compounds and off-flavours, improving distillate quality.

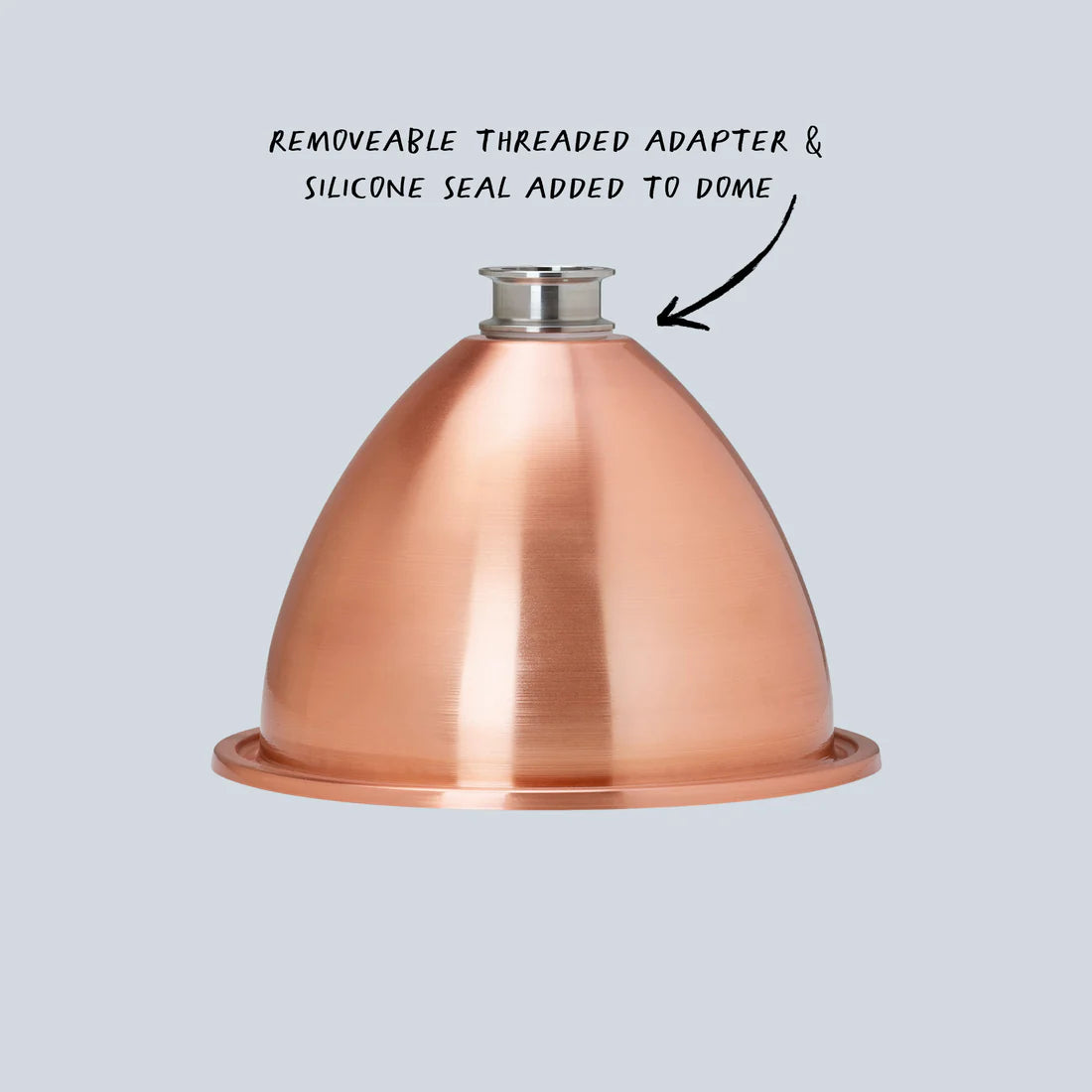

The Alembic Copper Dome comes with a 2" tri-clamp to DN40 Threaded Adapter allowing for it to be connected to 2" tri-clamp accessories, giving you the option to experiment with different setups and attachments for a truly bespoke experience. This adapter can be removed from the dome for use with older model threaded Still Spirits condensers.

The Alembic Copper Condenser features a 2" tri-clamp connection allowing for it to be connected to 2" tri-clamp accessories, giving you the option to experiment with different setups and attachments for a truly bespoke experience.Unlike a reflux condenser, the Alembic Condenser retains and enhances the flavours and aromas from a wash, making it ideal for crafting spirits like whiskey, bourbon, rum, and gin.

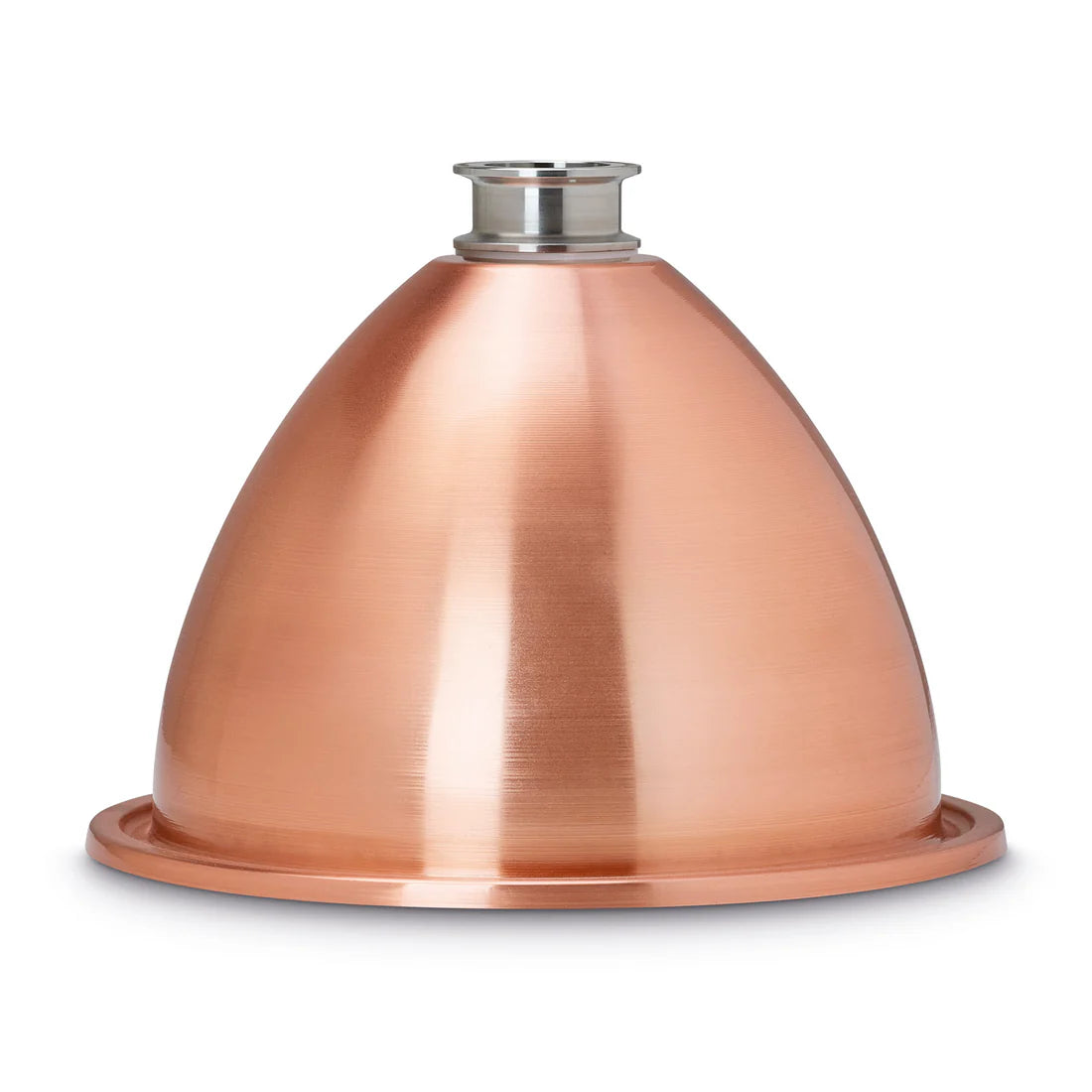

Create+ Alembic Copper Dome

Key Features

• For intermediate-advanced distilling
• Made from Copper
• Designed in New Zealand
• Connects to 2" tri-clamp distilling accessories
• Suitable for distilling water, hydrosols, and flavourful spirits
• Warranty Period: 3 Years

Specifications

• Ease of Use: Intermediate to advanced
• Average water use during distillation: You will use approx. 150 L (39 US Gal) per hour.*
• Approx Yield: 3.5-7 L (0.9-1.8 US Gal) of 40% ABV alcohol*
• Purity: Distills at up to 70% ABV (140 US proof)*

* Per 25 L wash (varies based on wash ingredients/volume) using the Create+ Boiler 25 L and Create+ Alembic Condenser.

Included in Box

• Create+ Alembic Copper Dome
• 2" Tri-Clamp to DN40 Threaded Adapter (includes silicone gasket and DN40 Nut)
• Instructions

Instructions

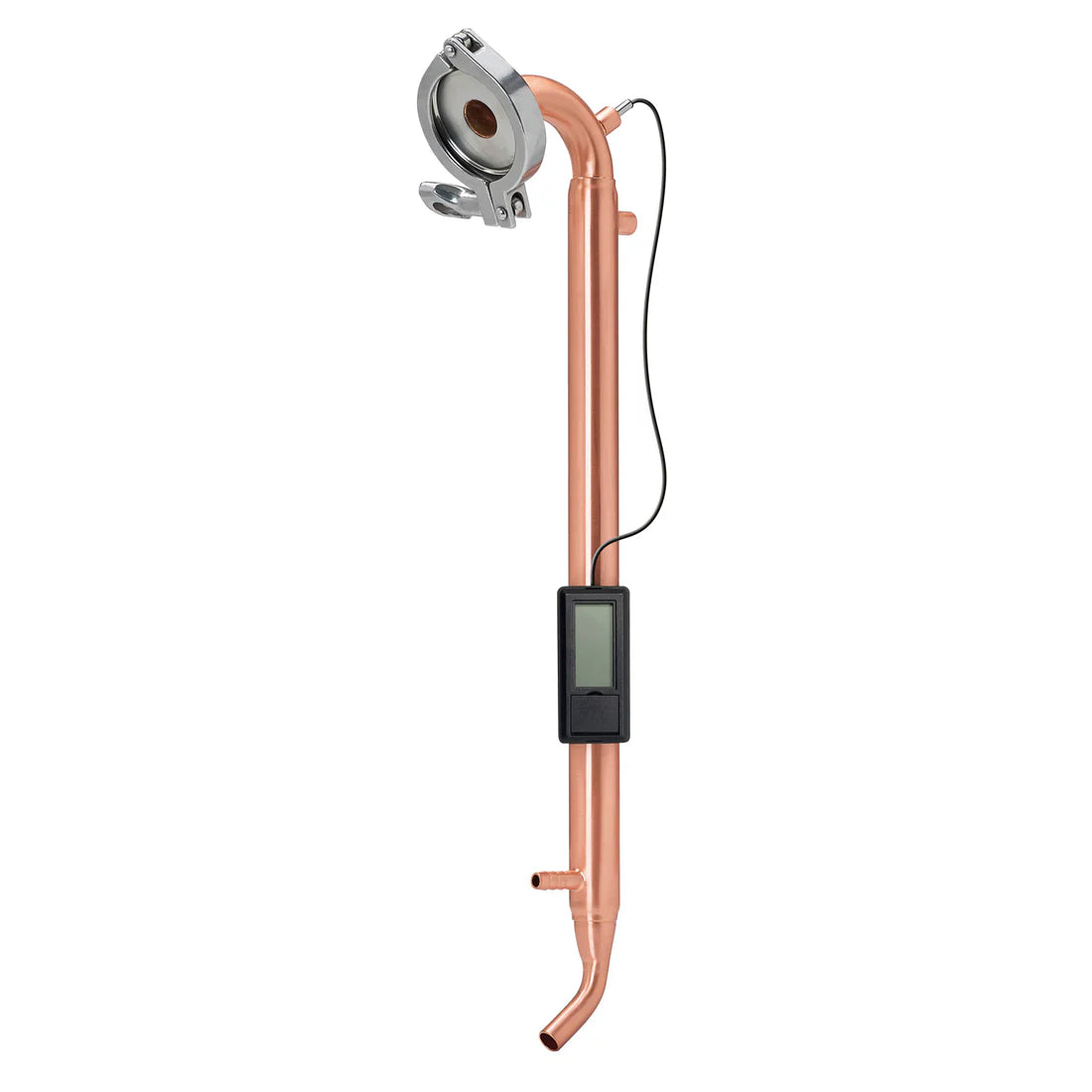

Create+ Alembic Copper Condenser

• For intermediate-advanced distilling
• Made from Copper
• Designed in New Zealand
• Connects to 2" tri-clamp distilling accessories
• Suitable for distilling water, hydrosols, and flavourful spirits
• Kitchen, laundry and garden tap adapters for ease of cooling water connection
• Warranty Period: 3 Years

Specifications

• Ease of Use: Intermediate to advanced
• Average water use during distillation: You will use approx. 150 L (39 US Gal) per hour.*
• Approx Yield: 3.5-7 L (0.9-1.8 US Gal) of 40% ABV alcohol*
• Purity: Distills at up to 70% ABV (140 US proof)*

* Per 25 L (6.6 US Gal) wash (varies based on wash ingredients/volume) using the Create+ Boiler 25 L and Create+ Alembic Copper Dome.

Included in Boil

• Create+ Alembic Copper Condenser
• Create+ 2" Tri-Clamp (includes silicone gasket)
• Digital Thermometer with mounting bracket
• 2 x Cooling Water Tubes
• Silicone Distillate Tube
• Kitchen, Garden and Laundry Tap Adapters
• Instructions

Instructions
