Removable cold finger cooling coil and detachable product condenser.

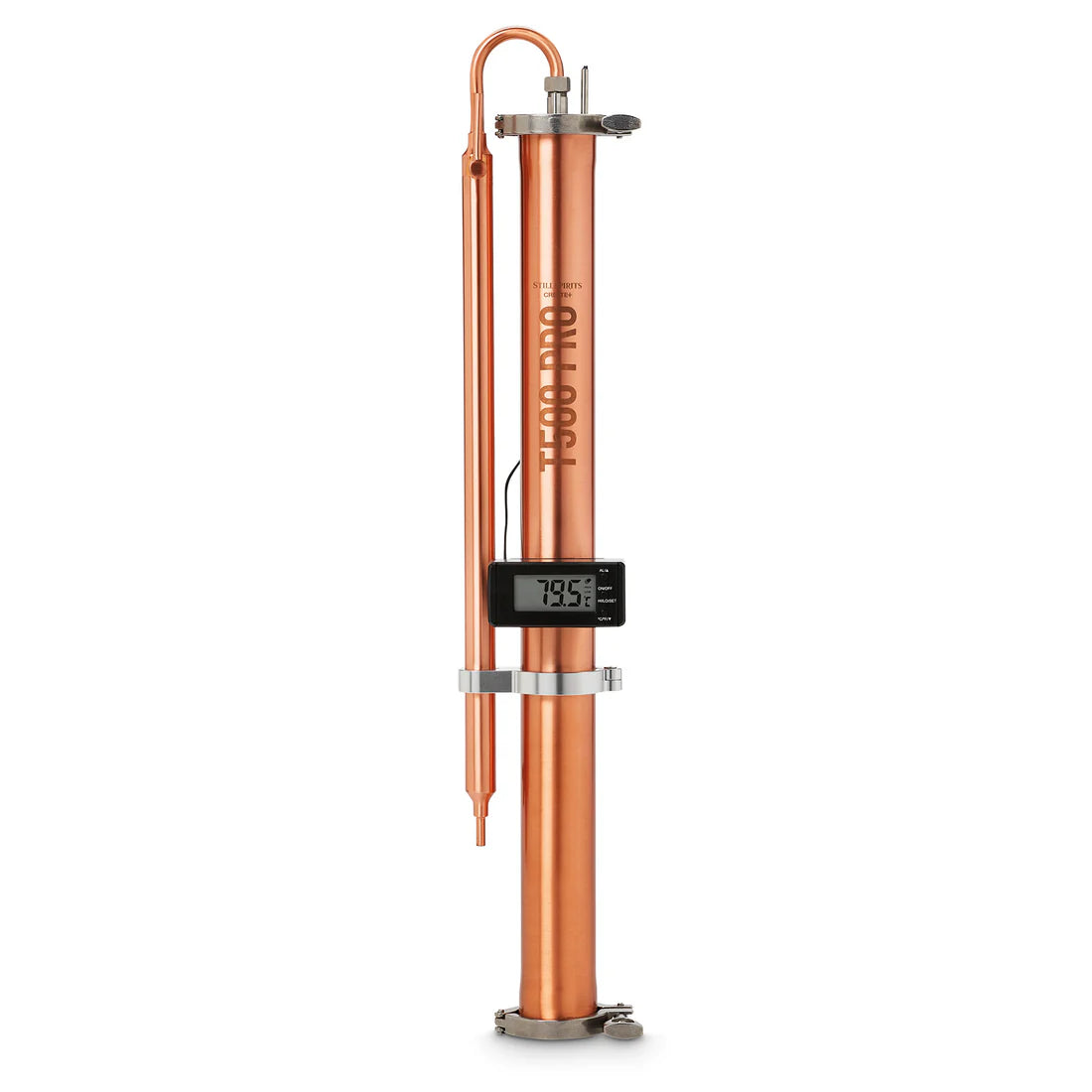

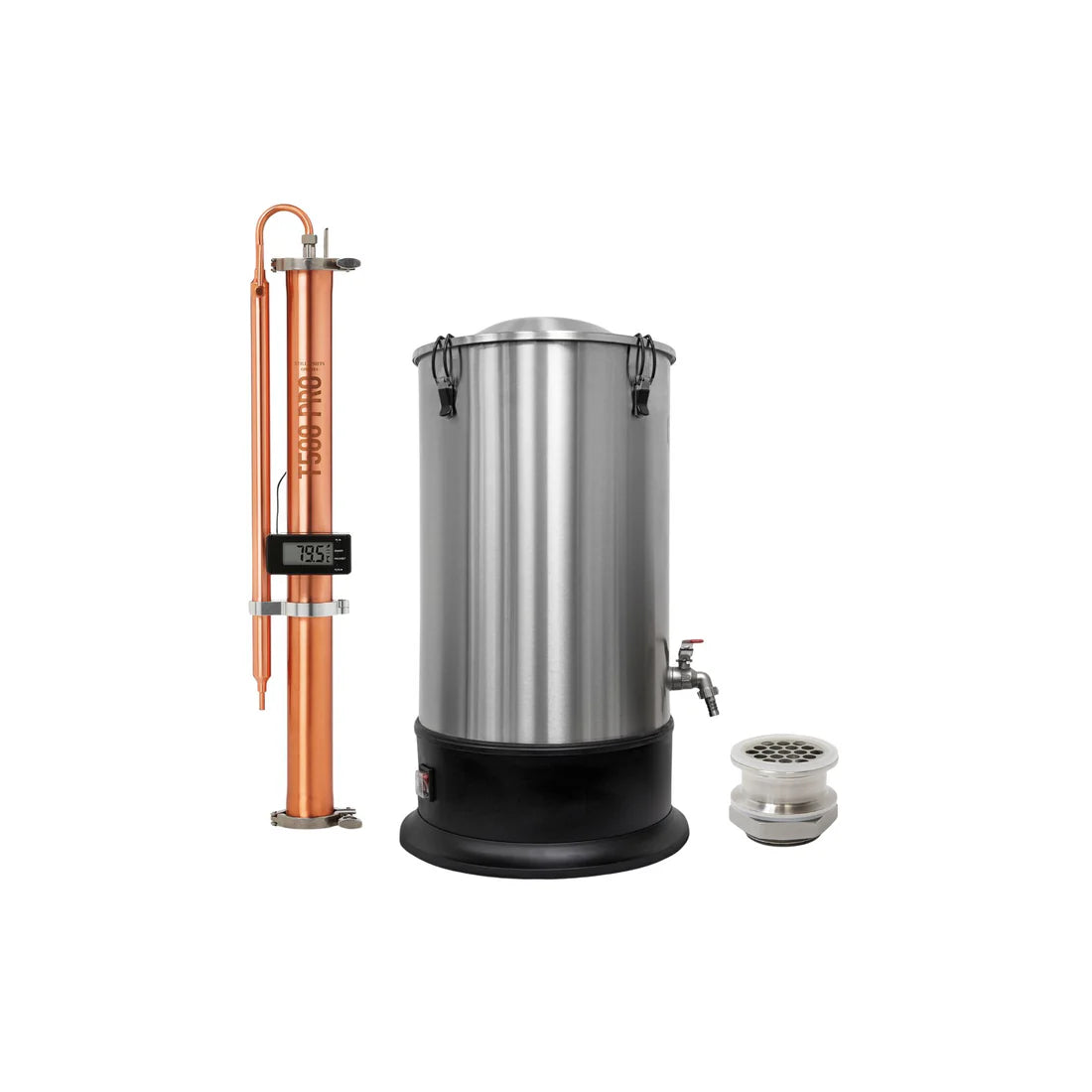

Engineered for modularity and performance, the T500 Pro is an all-in-one reflux column and condenser designed to streamline the distillation process while delivering exceptional results. This innovative unit combines advanced functionality with unmatched convenience, eliminating the need for separate components. Its integrated design features a pre-packed column with both copper and stainless steel saddles, optimising vapour reflux and elevating the quality of your distillate.

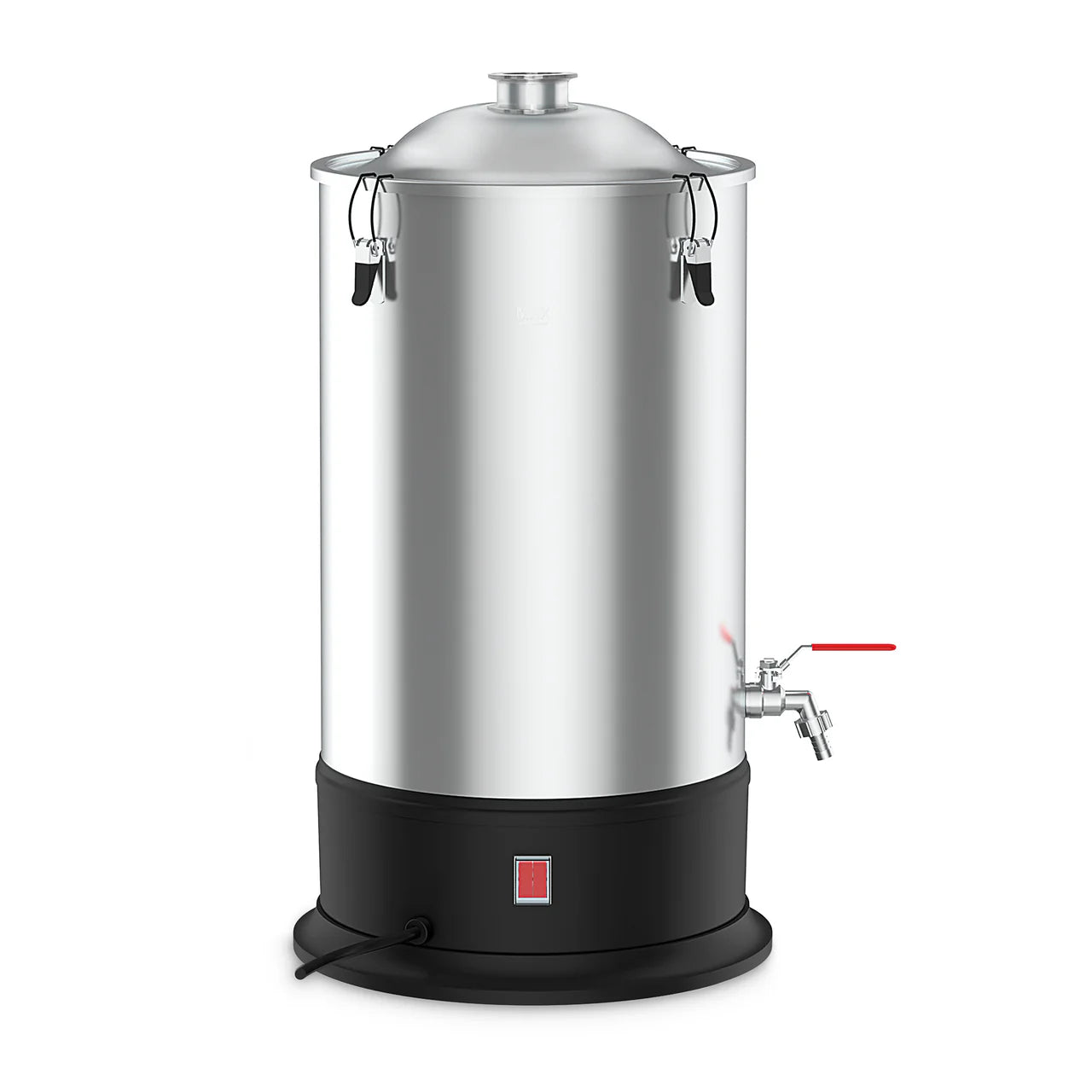

With a maximum capacity of 25 litres, the Boiler 25 L features dual element control switches, providing more control during distillation. It comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so your customers can experiment with different setups and attachments.
Ideal for producing clean, neutral alcohol, this duo delivers exceptional clarity and purity in every run. It can reach up to 93% ABV and recover up to 95% of the alcohol from your wash—producing a neutral spirit that’s ideal for vodka or as a base for flavourings, gins, and other botanical spirits. The T500 Pro is perfect for distilling water, thanks to the combined performance of copper and stainless steel saddles, which aid in the effective removal of impurities.
Features (For full list of features, see individual product pages):
• All-in-one reflux column and condenser constructed from high-quality T2-grade copper with stainless steel tri-clamp ferrules
• Suitable for distilling water and alcohol
• Saves up to 30% water compared to the original T500 (depending on usage)
• Dual boiler element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W. When one switch is in the OFF position, it will only consume 1100W of power.
• 25 L Boiler capacity
• Designed in New Zealand
Note: This product includes a Still Spirits Create+ Threaded Adapter Set and 2" Tri-clamp inside the Still Spirits Boiler 25 L box. They are for use with tri-clamp connection condensers and are not required for condensers with a threaded connection.
Note: This product includes a Still Spirits Create+ Threaded Adapter Set and 2" Tri-clamp inside the Still Spirits Boiler 25 L box. They are for use with tri-clamp connection condensers and are not required for condensers with a threaded connection.
Boiler
NOTE: The Boiler is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
Pro Column & Condenser

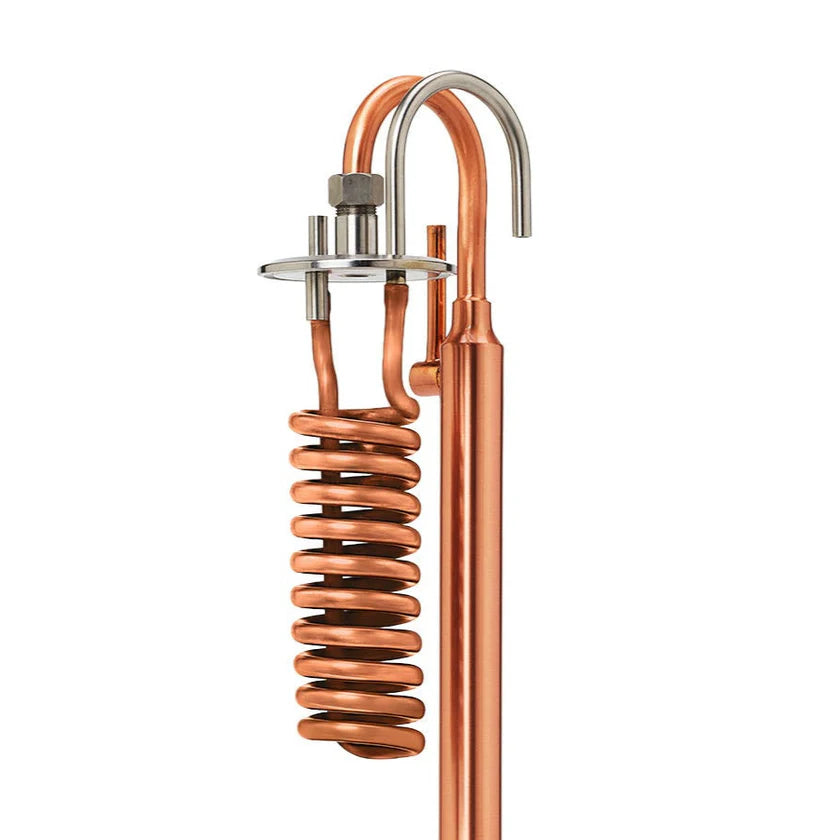

Removable cold finger cooling coil and detachable product condenser.

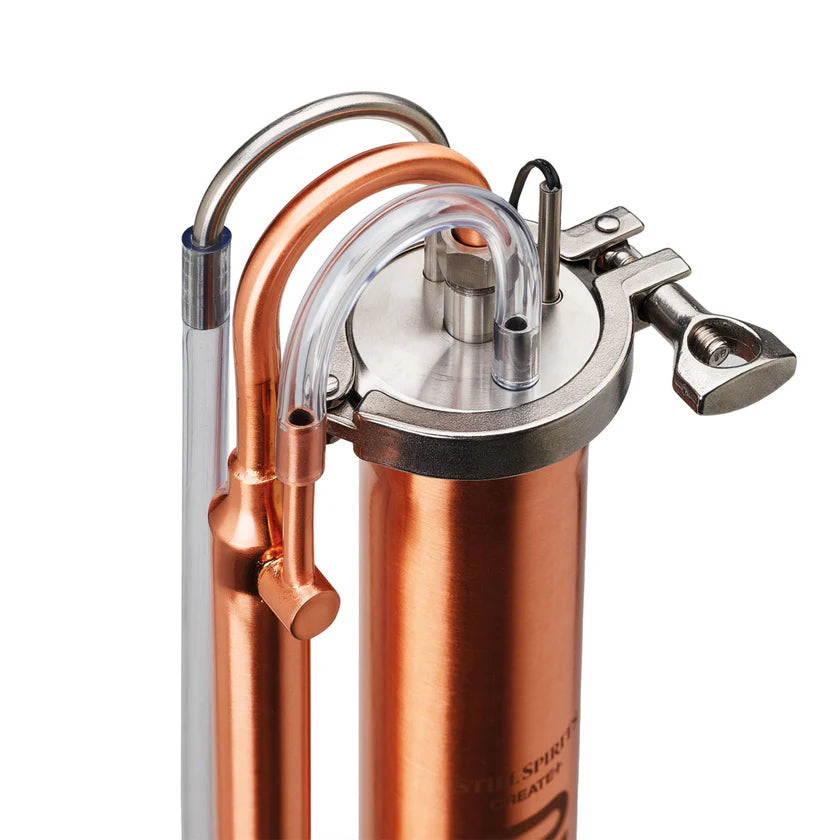

Integrated thermowell for accurate vapour temperature readings.

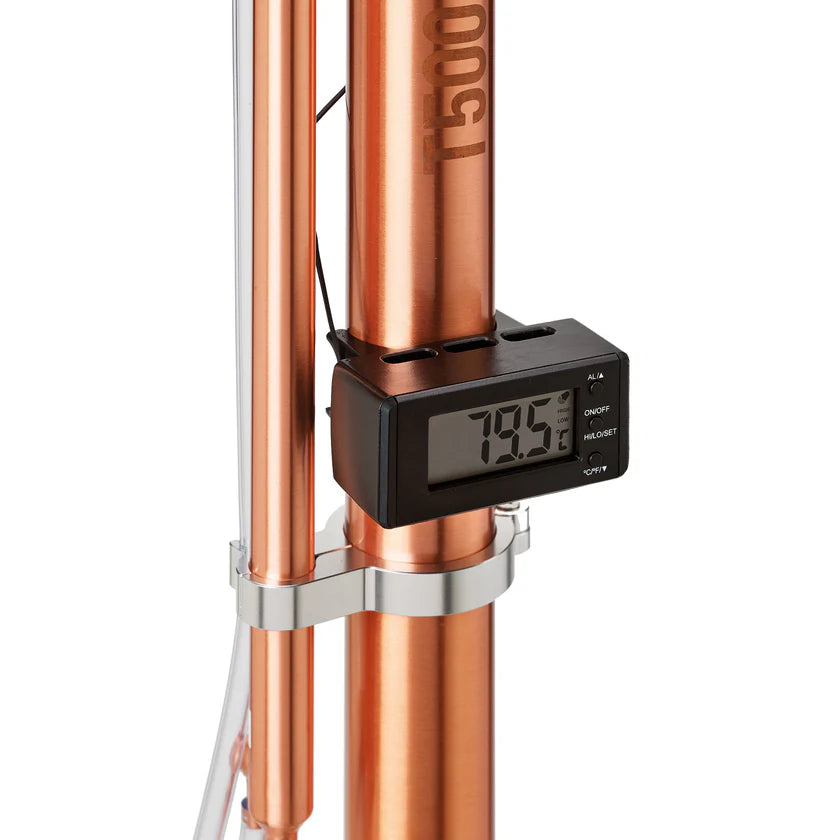

Beeping alarm thermometer with adjustable high/low temperature alerts.
