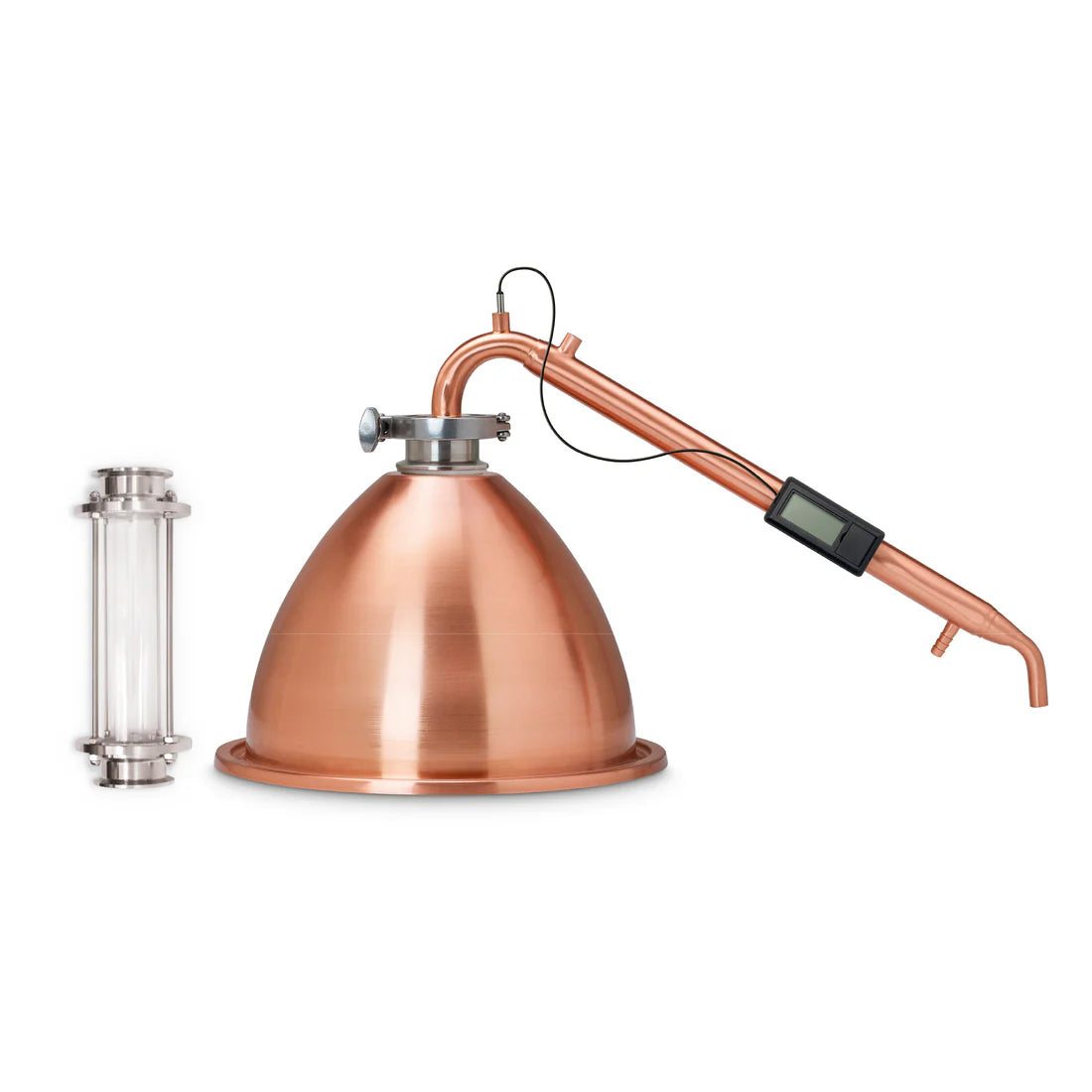

Still Spirits Create+ Alembic Copper Dome, Condenser, & Botaincial Basket Tri-Clover

Craft high quality distilled water, hydrosols, and flavoursome spirits by transforming the Create+ Boiler 25 L or Grainfather G30 into an alembic distilling system by adding the Create+ Alembic Copper Dome and condenser. *

The Alembic Copper Condenser features a 2" tri-clamp connection and the dome comes with a 2" tri-clamp to DN40 Threaded Adapter for easy connection to 2" tri-clamp accessories. The Sight Glass Botanical Basket can be used as a sight glass to monitor distillation, or the mesh filters can be attached per the instructions to convert the sight glass into a botanical basket. The sight glass will hold up to 150 g (5.2 oz) of botanicals and is suitable for fine botanicals.

Due to its copper construction and domed shape, when paired with the Alembic Condenser the Alembic Copper Dome captures and enhances the flavours and aromas from a wash, making it ideal for crafting spirits like whiskey, bourbon, rum, and gin. It is able to strip away unwanted compounds and off-flavours, improving distillate quality.

The Alembic Copper Dome comes with a 2" tri-clamp to DN40 Threaded Adapter allowing for it to be connected to 2" tri-clamp accessories, giving you the option to experiment with different setups and attachments for a truly bespoke experience. This adapter can be removed from the dome for use with older model threaded Still Spirits condensers.

The Alembic Copper Condenser features a 2" tri-clamp connection allowing for it to be connected to 2" tri-clamp accessories, giving you the option to experiment with different setups and attachments for a truly bespoke experience.Unlike a reflux condenser, the Alembic Condenser retains and enhances the flavours and aromas from a wash, making it ideal for crafting spirits like whiskey, bourbon, rum, and gin.

Create+ Alembic Copper Dome

Key Features

• For intermediate-advanced distilling
• Made from Copper
• Designed in New Zealand
• Connects to 2" tri-clamp distilling accessories
• Suitable for distilling water, hydrosols, and flavourful spirits
• Warranty Period: 3 Years

Specifications

• Ease of Use: Intermediate to advanced
• Average water use during distillation: You will use approx. 150 L (39 US Gal) per hour.*
• Approx Yield: 3.5-7 L (0.9-1.8 US Gal) of 40% ABV alcohol*
• Purity: Distills at up to 70% ABV (140 US proof)*

* Per 25 L wash (varies based on wash ingredients/volume) using the Create+ Boiler 25 L and Create+ Alembic Condenser.

Included in Box

• Create+ Alembic Copper Dome
• 2" Tri-Clamp to DN40 Threaded Adapter (includes silicone gasket and DN40 Nut)
• Instructions

Instructions

Create+ Alembic Copper Condenser

• For intermediate-advanced distilling
• Made from Copper
• Designed in New Zealand
• Connects to 2" tri-clamp distilling accessories
• Suitable for distilling water, hydrosols, and flavourful spirits
• Kitchen, laundry and garden tap adapters for ease of cooling water connection
• Warranty Period: 3 Years

Specifications

• Ease of Use: Intermediate to advanced
• Average water use during distillation: You will use approx. 150 L (39 US Gal) per hour.*
• Approx Yield: 3.5-7 L (0.9-1.8 US Gal) of 40% ABV alcohol*
• Purity: Distills at up to 70% ABV (140 US proof)*

* Per 25 L (6.6 US Gal) wash (varies based on wash ingredients/volume) using the Create+ Boiler 25 L and Create+ Alembic Copper Dome.

Included in Boil

• Create+ Alembic Copper Condenser
• Create+ 2" Tri-Clamp (includes silicone gasket)
• Digital Thermometer with mounting bracket
• 2 x Cooling Water Tubes
• Silicone Distillate Tube
• Kitchen, Garden and Laundry Tap Adapters
• Instructions

Instructions

Sight Glass Botanical Basket:

• 2" Tri-clamp connection• Constructed with 304 grade stainless steel and borosilicate glass

• Holds up to 150 g ( 5.2 oz) Botanicals

• Compatible with the Create+ range of equipment and accessories

• Compatible with Grainfather G40 & G70 distilling attachment accessories
