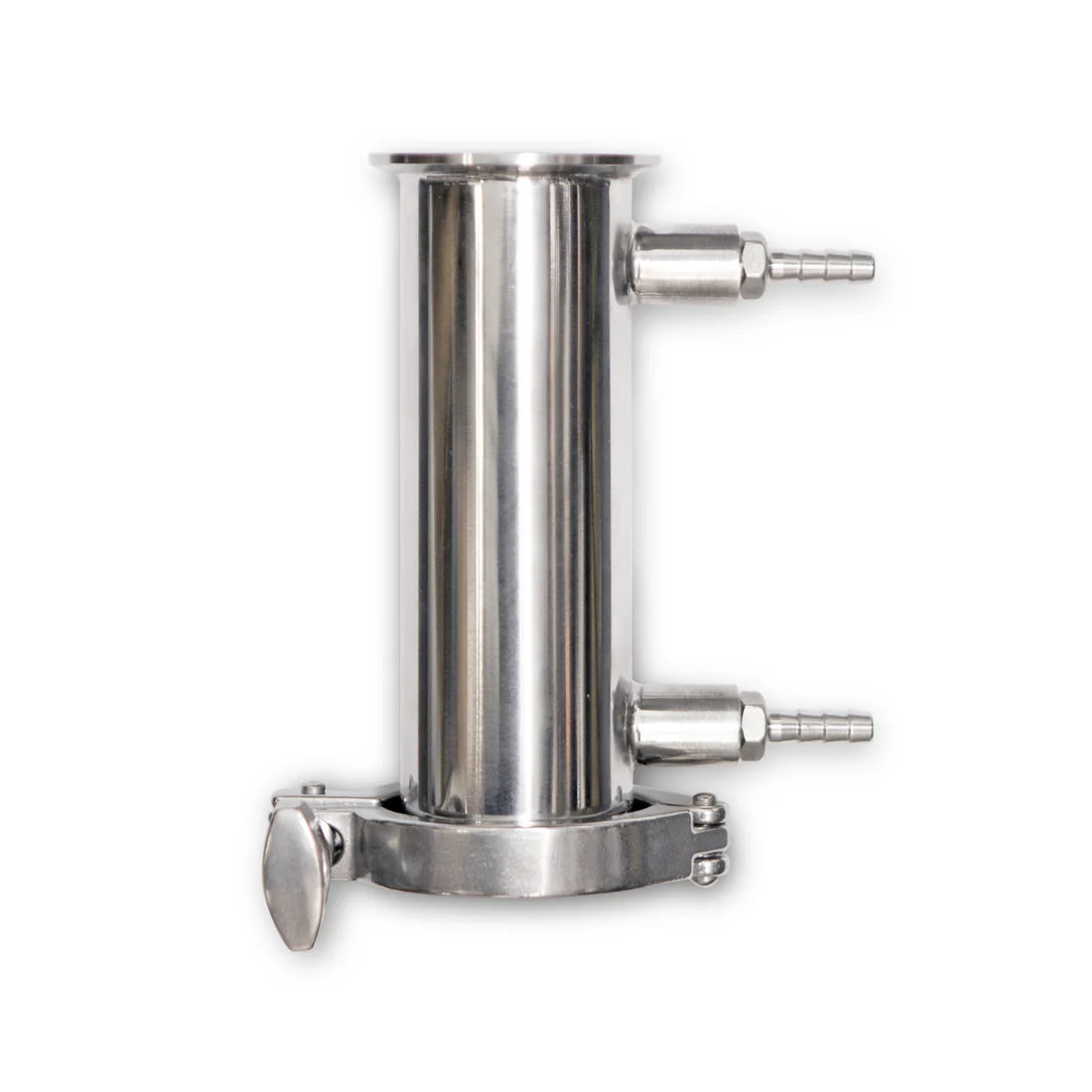

Still Spirits Create+ Multi-Tube (Shotgun) Condenser
$168.99
Unit price perThe Create+ Multi-Tube Condenser (Shotgun Condenser) is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel condenser integrates into a modular distilling system, cooling vapour by passing it through multiple tubes, efficiently condensing it into liquid.
As a product condenser, the Condenser acts as a compact yet powerful solution for efficient vapour condensation in your distillation setup. With five internal tubes designed to maximise surface area and heat exchange, it rapidly cools vapour into liquid distillate. Constructed from high-quality 304-grade stainless steel and equipped with tri-clamp fittings, it offers both durability and easy integration into any system.
As a reflux condenser/dephlegmator, when mounted vertically at the top of your column, the Condenser performs as a dephlegmator, delivering reflux control for improved separation and purity. It's short 150 mm length and five-tube layout make it ideal for hobbyists and small-scale distillers looking to precisely manage reflux and fine-tune their distillation process.
Key features:
- Works as a product condenser & reflux condenser/dephlegmator
- Connects to 2" tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
NOTE: PTFE/thread tape, hoses and hose clamps are not included.
- To secure the connection we recommend wrapping the thread on both hose barbs with 2-3 revolutions of PTFE/thread tape in the clockwise direction.
- We recommend hoses with an internal diameter (ID) between 6 and 7.9mm (1/4 to 5/16”). For hoses with a smaller ID, applying hot water to the hose end may assist with assembly; for hoses with a larger ID, hose clamps may be required to ensure a secure connection.
WHATS INCLUDED
- 5-Tube Shotgun Condenser
- 2" Tri-clamp
- 2x Hose barbs
- 2" Silicone gasket
SPECIFICATIONS
- Dimensions: H 14.96 cm x W 5.1 cm x D 5.1 cm
- Port thread specification: G1/4" (BSPP 1/4")
- Hose barb specification: R1/4" (BSPT 1/4"), barb diameter 8mm
- Internal tube diameter: 11 mm
- Weight: 0.796 kg
NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.
We recommend external support if:
- Your column & condenser exceeds the above specifications.
- The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
- If the column & condenser is noticeably leaning.
