Still Spirits CREATE+ Boiler 25 L
$349.00
Unit price perhe Create+ Boiler 25 L is the recommended boiler base for use with the Create+ T500 Column & Condenser and the Create+ Alembic Copper Dome & Condenser. With a maximum capacity of 25 litres, the Boiler 25 L is designed for distillers seeking precise control and versatile functionality. It features dual element control switches to provide more control during distillation. The Boiler 25 L comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so your customers can experiment with different setups and attachments.
Key Features:
- Dual element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W (1600 if using a US/CA unit). When one switch is in the OFF position, it will only consume 1100W (or 1100W/500W if using a US/CA unit) of power.
- Designed in New Zealand
- Boil dry reset
- Thermal cut out fuse
- Waste discharge tap with a stainless-steel ball valve
- Boiler lid with 48 mm opening
- 25 L Boiler capacity
- Connects to 2" tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
WHATS INCLUDED
- Create+ Boiler 25 L
- Create+ Boiler Lid

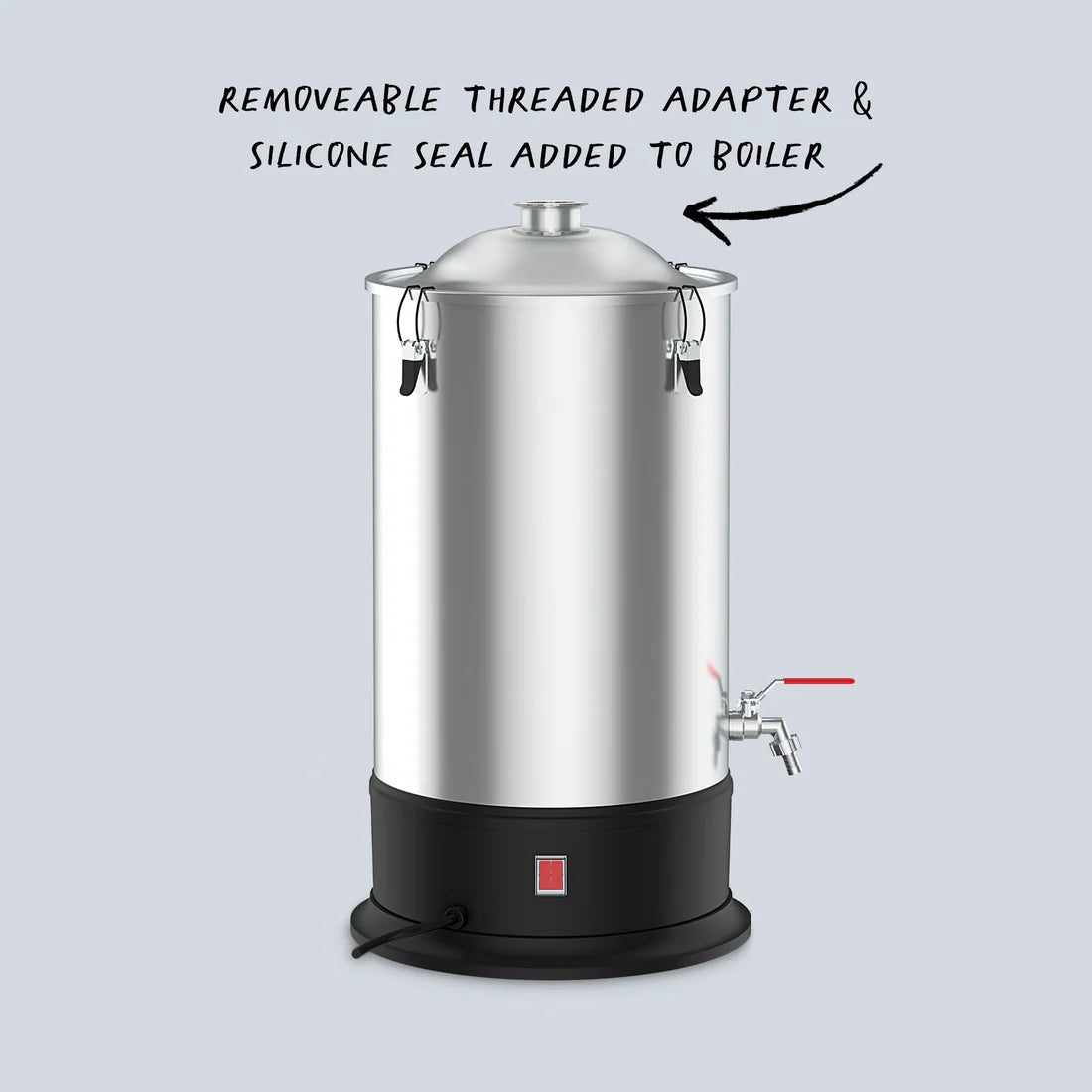

- 2" Tri-clamp to DN40 Threaded Adapter (includes: Silicon gasket and DN40 Nut)
- Instructions
SPECIFICATIONS
- Capacity: 25 L
- Dimenions: H 64 cm x W 36 cm x D 37 cmWeight: 5.42 kg
- Power: 2200W (1600W for US/CA Units)
- Warranty: 3 years
NOTE: The Boiler is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
Instructions
Still Spirits CREATE+ Boiler 25 L
$349.00
Unit price perPay with
Your transaction is protected with advanced security measures to keep your information confidential
Still Spirits CREATE+ Boiler 25 L
he Create+ Boiler 25 L is the recommended boiler base for use with the Create+ T500 Column & Condenser and the Create+ Alembic Copper Dome & Condenser. With a maximum capacity of 25 litres, the Boiler 25 L is designed for distillers seeking precise control and versatile functionality. It features dual element control switches to provide more control during distillation. The Boiler 25 L comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so your customers can experiment with different setups and attachments.
Key Features:
- Dual element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W (1600 if using a US/CA unit). When one switch is in the OFF position, it will only consume 1100W (or 1100W/500W if using a US/CA unit) of power.
- Designed in New Zealand
- Boil dry reset
- Thermal cut out fuse
- Waste discharge tap with a stainless-steel ball valve
- Boiler lid with 48 mm opening
- 25 L Boiler capacity
- Connects to 2" tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
WHATS INCLUDED
- Create+ Boiler 25 L
- Create+ Boiler Lid
- 2" Tri-clamp to DN40 Threaded Adapter (includes: Silicon gasket and DN40 Nut)
- Instructions
SPECIFICATIONS
- Capacity: 25 L
- Dimenions: H 64 cm x W 36 cm x D 37 cmWeight: 5.42 kg
- Power: 2200W (1600W for US/CA Units)
- Warranty: 3 years
NOTE: The Boiler is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
Instructions
Removable cold finger cooling coil and detachable product condenser.
Integrated thermowell for accurate vapour temperature readings.
Beeping alarm thermometer with adjustable high/low temperature alerts.
CREATE+ Equipment Range
The CREATE+, high-quality modular equipment seamlessly connects with tri-clamp precision. From construction to production, CREATE+, hands you the reins, it's your creation, your masterpiece. With CREATE+, flexibility isn't just a feature; it's your playground. Keep it simple or orchestrate a complex setup, the power is in your hands.
