This high-quality sight glass botanical basket set is designed for use with 2” tri-clamp compatible distilling systems. This set can be used as a sight glass to monitor your distillation run or attach the mesh filters as per the instructions to convert the sight glass into a botanical basket. The sight glass will hold up to 150 g (5.2 oz) of botanicals and is suitable for fine botanicals. Compatible with 2” tri-clamp distilling systems, including the Grainfather G40/G70 Distilling Lid T500 Reflux Attachment Kit and Grainfather G40/G70 Distilling Lid T500 Alembic Attachment Kit.

Includes

• 1 x Sight glass botanical basket with 2" tri-clamp ferrules
• 1 x 2” Tri-clamp
• 2 x Mesh filters (size 10)

Instructions:

For use as a botanical basket:

1. Attach the sight glass to the lid of your distilling system using one of the mesh filters and the 2” tri-clamp.
2. Fill the sight glass with your desired amount of botanicals - up to a maximum of 150 g (5.2 oz).
3. Put the second mesh filter on the top of the sight glass.
4. Using a 2” tri-clamp connect the top of the sight glass to your condensing set up.

For use as a sight glass: Attach the sight glass to your distilling system (mesh filters are not required).

Cleaning: Clean with warm water and a suitable brewery cleaner. Using a pipe brush, clean away all residual oils on the glass. Disassembly should only be required if heavy soiling around the silicone components exists. Sanitation is not needed in this application.

Note: For use as a column extension with packing material coarse mesh is required to prevent flooding.

Specifications

• Dimensions: 246mm (h) x 100mm (w) x 100mm (d)
• Weight: 1.49 kg

CAUTION: After distillation is complete, the sight glass will be very hot. Allow to cool before handling

The Still Spirits Create+ Sight Glass Botanical Basket, the Create+ Threaded Adapter Set, and a 2" Tri-Clamp bundle allows you to convert your threaded Still Spirits T500 or Alembic condenser to a tri-clamp connection to use the the Create+ Sight Glass Botanical Basket and other 2" tri-clamp accessories with older model condensers.

Sight Glass Botanical Basket Set

This high-quality sight glass botanical basket set is designed for use with 2” tri-clamp compatible distilling systems. This set can be used as a sight glass to monitor your distillation run or attach the mesh filters as per the instructions to convert the sight glass into a botanical basket. The sight glass will hold up to 150 g (5.2 oz) of botanicals and is suitable for fine botanicals. Compatible with 2” tri-clamp distilling systems, including the Grainfather G40/G70 Distilling Lid T500 Reflux Attachment Kit and Grainfather G40/G70 Distilling Lid T500 Alembic Attachment Kit.

Key Features:

• 2" Tri-clamp connectivity
• Sight Glass constructed with 304 grade stainless steel and borosilicate glass
• Sight Glass Holds up to 150 g ( 5.2 oz) Botanicals
• 304 grade stainless steel construction
• High temperature resistant food grade silicone

Threaded Adapter Set comprised of:

• DN40 Nut
• Sieved Gasket
• Silicone Gasket
• 2" Tri-Clamp to DN40 Threaded Adapter
• 2" Tri-Clamp

Create+ Sight Glass Botanical Basket comprised of:

• 1 x Sight glass botanical basket with 2" tri-clamp ferrules
• 1 x 2” Tri-clamp
• 2 x Mesh filters (size 10)

Instructions:

For use as a botanical basket:

1. Attach the sight glass to the lid of your distilling system using one of the mesh filters and the 2” tri-clamp.
2. Fill the sight glass with your desired amount of botanicals - up to a maximum of 150 g (5.2 oz).
3. Put the second mesh filter on the top of the sight glass.
4. Using a 2” tri-clamp connect the top of the sight glass to your condensing set up.

For use as a sight glass: Attach the sight glass to your distilling system (mesh filters are not required).

Cleaning: Clean with warm water and a suitable brewery cleaner. Using a pipe brush, clean away all residual oils on the glass. Disassembly should only be required if heavy soiling around the silicone components exists. Sanitation is not needed in this application.

Note: For use as a column extension with packing material coarse mesh is required to prevent flooding.

Specifications

• Dimensions: 246mm (h) x 100mm (w) x 100mm (d)
• Weight: 1.49 kg

CAUTION: After distillation is complete, the sight glass will be very hot. Allow to cool before handling

NOTE: The Threaded Adapter Set is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:

A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.

A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.

Note: The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.

The Create+ Sight Glass Bubble Plate is designed for use with 2” tri-clamp compatible distilling systems. Bubble Plates are designed to promote reflux and provide visual feedback of the distillation process*. Sight Glass made from 304 grade stainless steel and borosilicate glass.

*Results may vary, depending on your individual set-up.

INSTRUCTIONS

KEY FEATURES

• Connects to 2" tri-clamp distilling accessories
• Copper Bubble Plate with stainless steel guide ramp
• Sight Glass: Borosilicate & 304 grade stainless steel construction
• High temperature resistant food grade silicone

WHATS INCLUDED

• Sight Glass
• Copper Bubble Plate with Silicone Flat Sea
• 2" Tri-clamp
• 2" Silicone Gasket

SPECIFICATIONS

• Dimensions: H 16.7 cm x W 5.1 cm x D 5.1 cm
• Plate WT 1 mm, diameter Ø50.0±0.2. Perforations approx. Ø 2mm.
• Weight: 1.116 kg

NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:

• A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
• A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.

We recommend external support if:

• Your column & condenser exceeds the above specifications.
• The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
• If the column & condenser is noticeably leaning.

The Create+ Straight Section is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel Straight Section extends the column for enhanced reflux or integrates into a modular distilling system.

Key features:

• Connects to 2" tri-clamp distilling accessories
• 304 grade stainless steel construction
• High temperature resistant food grade silicone

INSTRUCTIONS: Insert Straight Section into your distilling system ensuring the silicone gasket is placed in the tri-clamp connection. Secure with a tri-clamp.

CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.

CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.

CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.

WHATS INCLUDED

• Straight Section
• 2" Tri-clamp
• 2" Silicone Gasket

SPECIFICATIONS

• Dimensions: H 30.0 cm x W 5.1 cm x D 5.1 cm
• Weight: 0.583 kg

NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:

• A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
• A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.

We recommend external support if:

• Your column & condenser exceeds the above specifications.
• The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
• If the column & condenser is noticeably leaning.

Key Features

• All-in-one reflux column and condenser
• For intermediate-advanced distilling
• Suitable for distilling water and alcohol
• Designed in New Zealand
• 304 Grade stainless steel
• 2" Tri-clamp connection

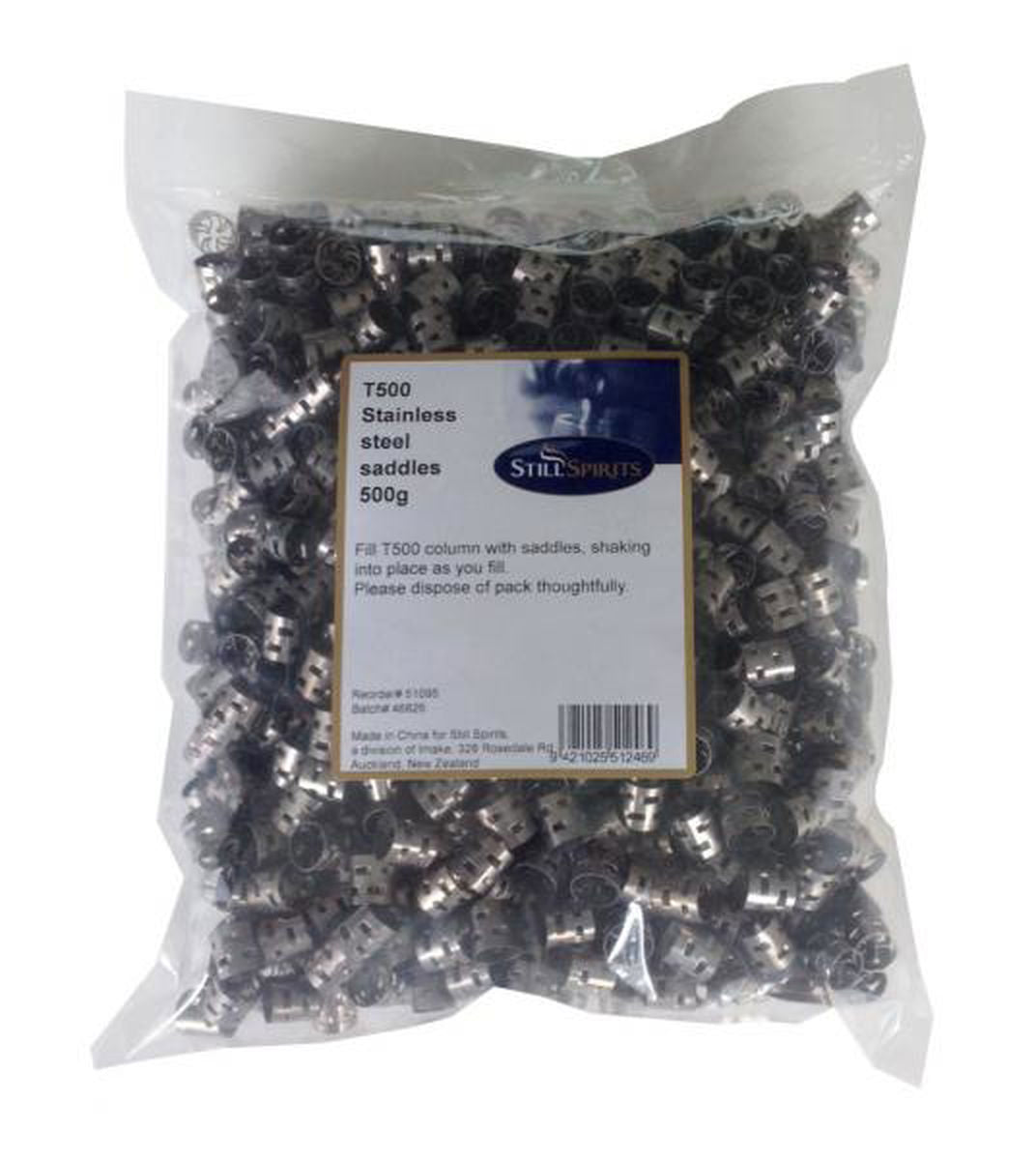

• Packed with stainless steel and copper saddles
• Faucet adaptor for ease of cooling water connection
• Ideal for use with the Create+ Boiler 25 L, as well as the Grainfather G30, G40, and G70 Brewing Systems.

Specifications

• Dimensions: H 69 cm x W 8.5 cm x D 16 cm
• Weight: 2.3-2.99 kg
• Warranty: 3 years
• Ease of Use: Intermediate
• Average water use during distillation: You will use approx. 200 L (54 US Gal) per 25 L distillation.*
• Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 6 kg (13.2 lb) of sugar**
• Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**
  * When used with the Create+ Water Flow Regulator.

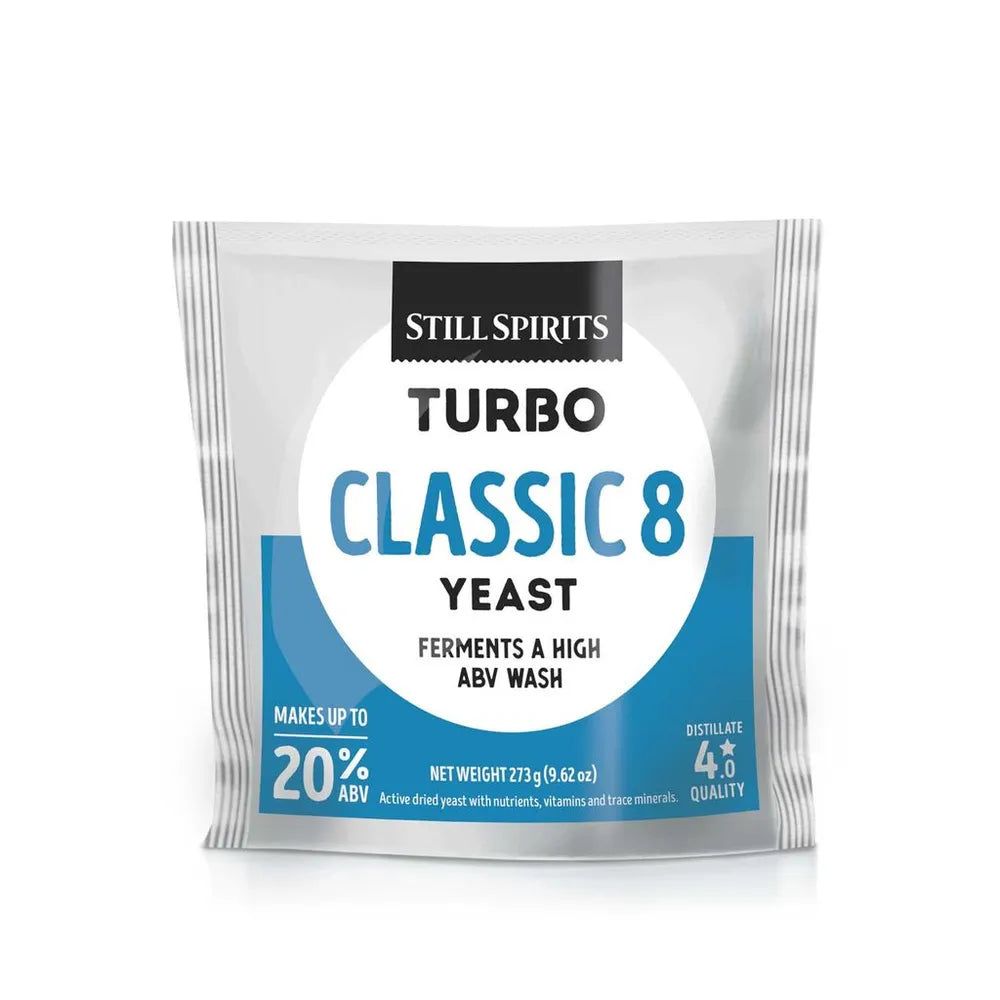

  **Per 25 L (6.6 US Gal) Turbo Classic 8 Production pack wash using the Create+ Boiler 25 L and T500 Reflux Condenser.

Whats Included

• Create+ T500 Column & Condenser
• Create+ 2" Tri-Clamp

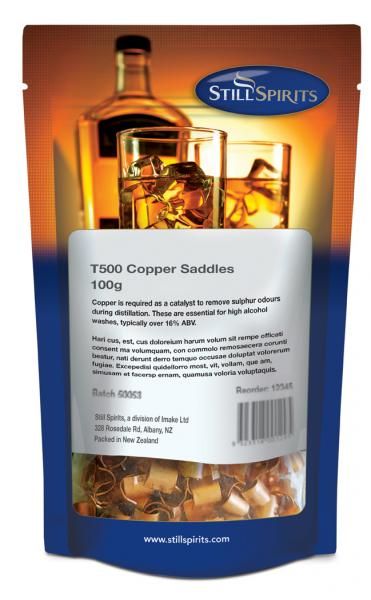

• Copper and Stainless Steel Saddles (Pre-Packed)

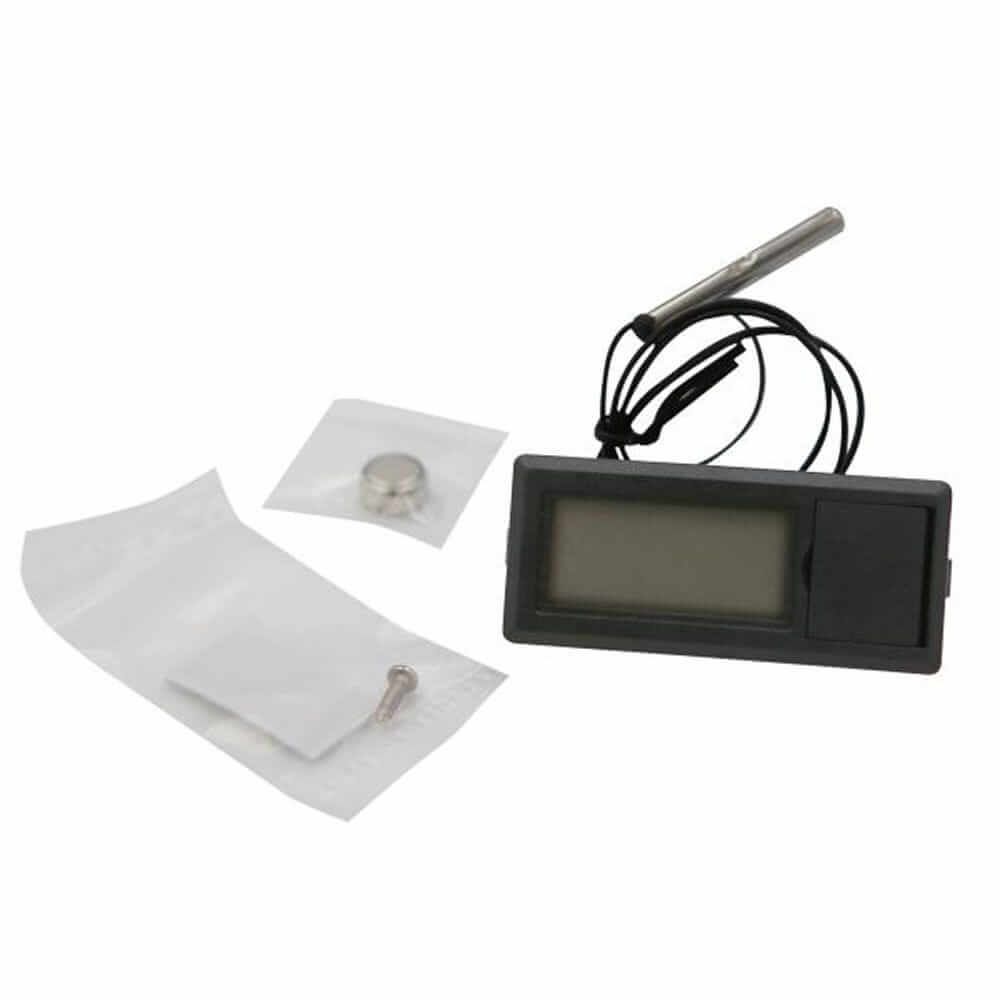

• Digital Thermometer
• 2 x Cooling Water Tues
• Ceramic Boil Enhancers
• Tap Adapter Flow Controller with Kitchen and Garden Tap Adapters
• Instructions

Instructions

The Create+ Thermowell 90° Elbow Section is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel 90° elbow section with a thermowell integrates into a modular distilling system, redirecting vapour flow while enabling temperature monitoring.

Key features:

• Connects to 2" tri-clamp distilling accessories
• Integrated thermowell
• 304 grade sainless steel construction
• High temperature resistent food grade silicone

INSTRUCTIONS: Insert 90° Elbow Section into your distilling system ensuring the silicone gasket is placed in the tri-clamp connection. Secure with a tri-clamp. Secure your thermometer's sensor probe in the thermowell by using the provided plastic and silicone sleeves and the stainless steel nut. If not using a probe, seal off the thermowell using the provided stainless steel cap and O-ring.

CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.

CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.

CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.

WHATS INCLUDED

• Thermowell 90° Elbow Section
• 2" Tri-clamp
• 2" Silicone Gasket
• Black O-ring Gasket
• Thermowell Stainless Steel Cap

SPECIFICATIONS

• Dimensions: H 11.3 cm x W 11.3 cm x D 5.1 cm
• Thermowell compatible with Ø5 to 6mm probes
• Weight: 0.297 kg

NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:

• A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
• A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.

We recommend external support if:

• Your column & condenser exceeds the above specifications.
• The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
• If the column & condenser is noticeably leaning.

Still Spirits Boiler with Still Spirits CREATE+ Alembic Dome and Condenser (tri-clamp).

Unlike reflux stills that are engineered to strip flavour to produce clean, neutral spirits, the large copper surface area of this pot still enables it to carry over the distinct flavours and aromas of a wash into the final product, creating a full-flavoured spirit. This makes it ideal for creating flavoursome spirits like whiskey, bourbon, rum, and gin. This set up is also suitable for distilling water and hydrosols.

This T500 Boiler features two power switches. When both switches are on, the element will be supplied full power of 2200W for 220V units, or 1600W for 120V units. You can lower this to 1100W by switching one of the two switches off (220V unit) or by switching off the 500W switch (120V unit). This can be extremely useful when distilling dark spirits such as Whiskey, Rum and Bourbon as you are able to now control the amount of power and have a gentler boil for your final spirit runs.

Features:

• For intermediate-advanced distilling
• Dome and Condenser made from Copper with tri clamp connections
• Designed in New Zealand
• 25 L boiler capacity
• Boil dry reset
• Thermal cut out fuse
• Waste discharge tap

Note: This product includes a Still Spirits Create+ Threaded Adapter Set and 2" Tri-clamp inside the Still Spirits Boiler 25 L box. They are for use with tri-clamp connection condensers and are not required for condensers with a threaded connection.

Whats Included

• SS Create+ Alembic Copper Condenser
• SS Create+ Alembic Copper Dome
• Still Spirits T500 Boiler 25L (NZ/AU)
• Create+ Threaded Adapter Set & 2" Tri-clamp

Specifications

T500 Copper Dome & Alembic Condenser

• Dimensions: H 50 cm x W 18 cm x D 7 cm
• Weight: 1.18 kg
• Warranty: 3 years

T500 Boiler

• Dimensions: H 64 cm x W 36 cm x D 37 cm
• Weight: 5.42 kg
• Power: 2200W (1600W for US/CA Units)
• Warranty: 3 years

• Yield: 3.5-7 L of 40% ABV alcohol per 25 L wash
• Purity: Distills at 70% ABV before diluting to 40% ABV (80 US proof)

The Create+ Vented Collection Cup is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel Vented Collection Cup integrates into a modular distilling system, facilitating the secure connection of distillate collection tubing while allowing safe venting of pressure during the distillation process.

Key features:

• Connects to 2" tri-clamp distilling accessories
• 304 grade sainless steel construction
• High temperature resistent food grade silicone

INSTRUCTIONS: Insert Collection Cup into your distilling system, ensure the vent weld is at least horizontal so that distillate flows out of the barbed tube, place a silicone gasket in the tri-clamp connection and secure with a tri-clamp.

CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.

CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.

CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.

WHATS INCLUDED

• Vented Collection Cup with Ø10 mm Barbed Tube and Vent Port
• 2" Tri-clamp
• 2" Silicone Gasket

SPECIFICATIONS

• Dimensions: H 11.3 cm x W 7.1 cm x D 5.1 cm
• Vent port/tube Ø12 mm
• Barbed tube Ø10 mm
• Weight: 0.170 kg

NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:

• A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
• A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.

We recommend external support if:

• Your column & condenser exceeds the above specifications.
• The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
• If the column & condenser is noticeably leaning.

A cartridge carbon filter. Fast, clean and easy to use. Specifically designed for the maximum purification of alcohol or water.The EZ Filter is the latest development in alcohol filtration. It uses a specially formulated solid activated carbon cartridge to remove unwanted flavours from distilled alcohol.

Due to the compressed nature of the cartridges the alcohol is forced past a vast amount of active pores so filtration is assured. The Carbon Cartridges are best suited to quick filtration of alcohol from stills producing alcohol above 80% abv as well as spirit produced from triple Distilled Turbo from any still.

This filter combines the research done on the Still Spirits Turbo Yeasts with the latest development on carbon purifying of distilled alcohol. The EZ Filter system uses the unique EZ Filter Carbon Cartridge, constructed from a specially formulated blend of carbons designed to deliver maximum performance.

The system kit contains upper 10L reservoir, filter unit, filter cartridge, lower 10L reservoir unit, outlet.

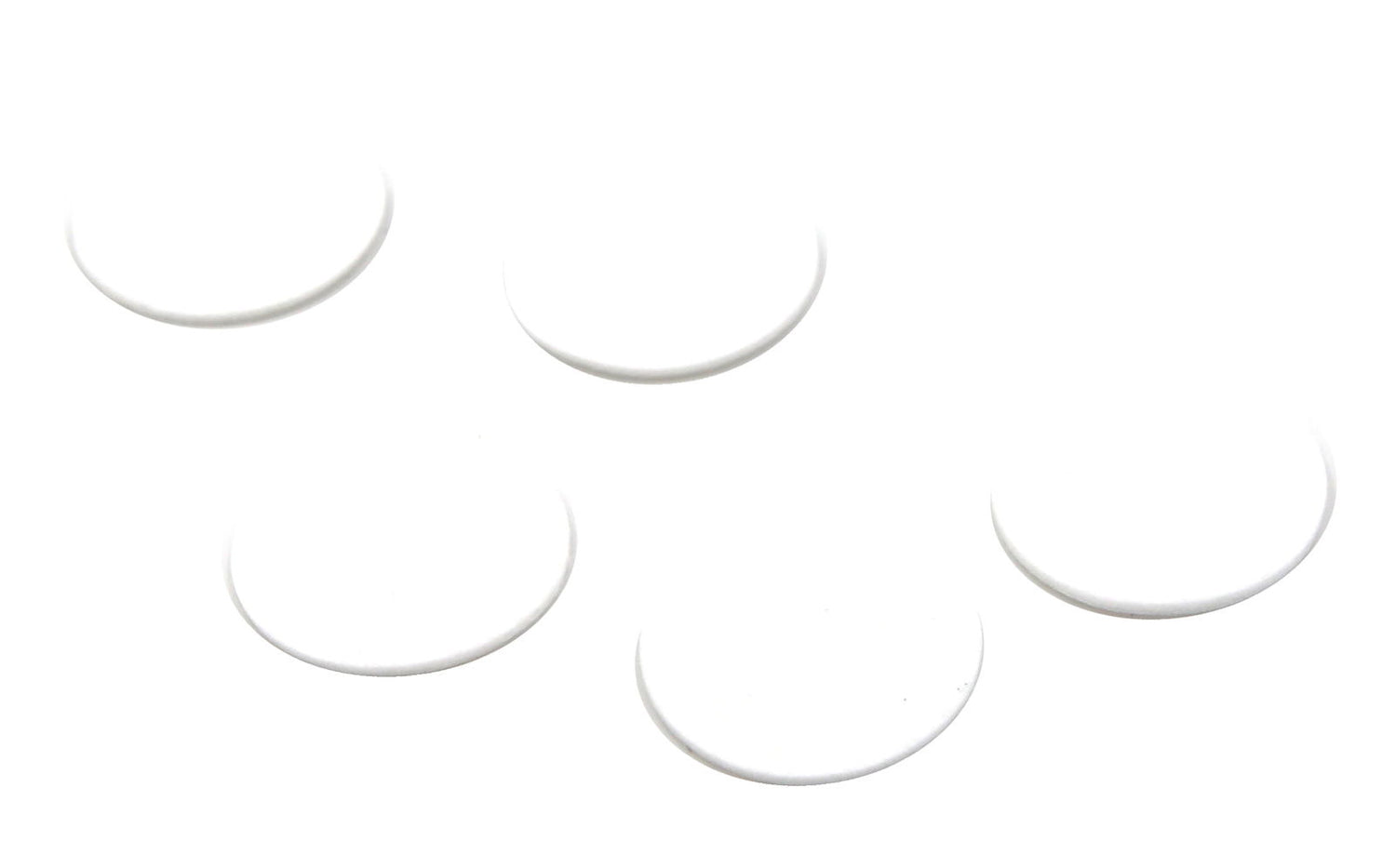

Used in the EZ filter. Use one at each end of the filter cartridge. Replace when washer no longer maintains their normal thickness. Made from Spirit Resistant  Polyethylene so it will not taint the spirit.

The EZ Filter Carbon Cartridge is a single-use compressed carbon cartridge designed for use with the EZ Filter System and EZ In-Line Filter.

Fast, clean and easy to use and capable of processing 8 L (8 US qt)of 50% ABV spirit or 300L of water at a time. Its porous design allows the spirit or water to pass through with unwanted flavours or aromas being adsorbed by the activated carbon.

Key Features

• Carbon filtration cartridge
• Designed for purification of water or alcohol

Specifications

• Each cartridge is suitable for one batch of alcohol from a 25 L (6.6 US Gal) still or 300 L (79.3 US Gal) of water.

Filtering or polishing of your spirit can be necessary to obtain a purer and odour-free spirit.

The Filter Pro is a vertical (gravity-fed) filter and is the latest release from Still Spirits. The Filter Pro will process up to 8 L of spirit at a time using 500 g of Still Spirits Activated Finishing Carbon! With easy-to-use tri-clamps, flow control and a removable door and wall mount, polishing your spirit is no longer a chore!

KEY FEATURES

• Made from 304 grade stainless steel.
• Filters 8 L of spirit at a time.
• Fits up to 500 g of loose Still Spirits Activated Finishing Carbon to remove unwanted flavours from distilled spirit.

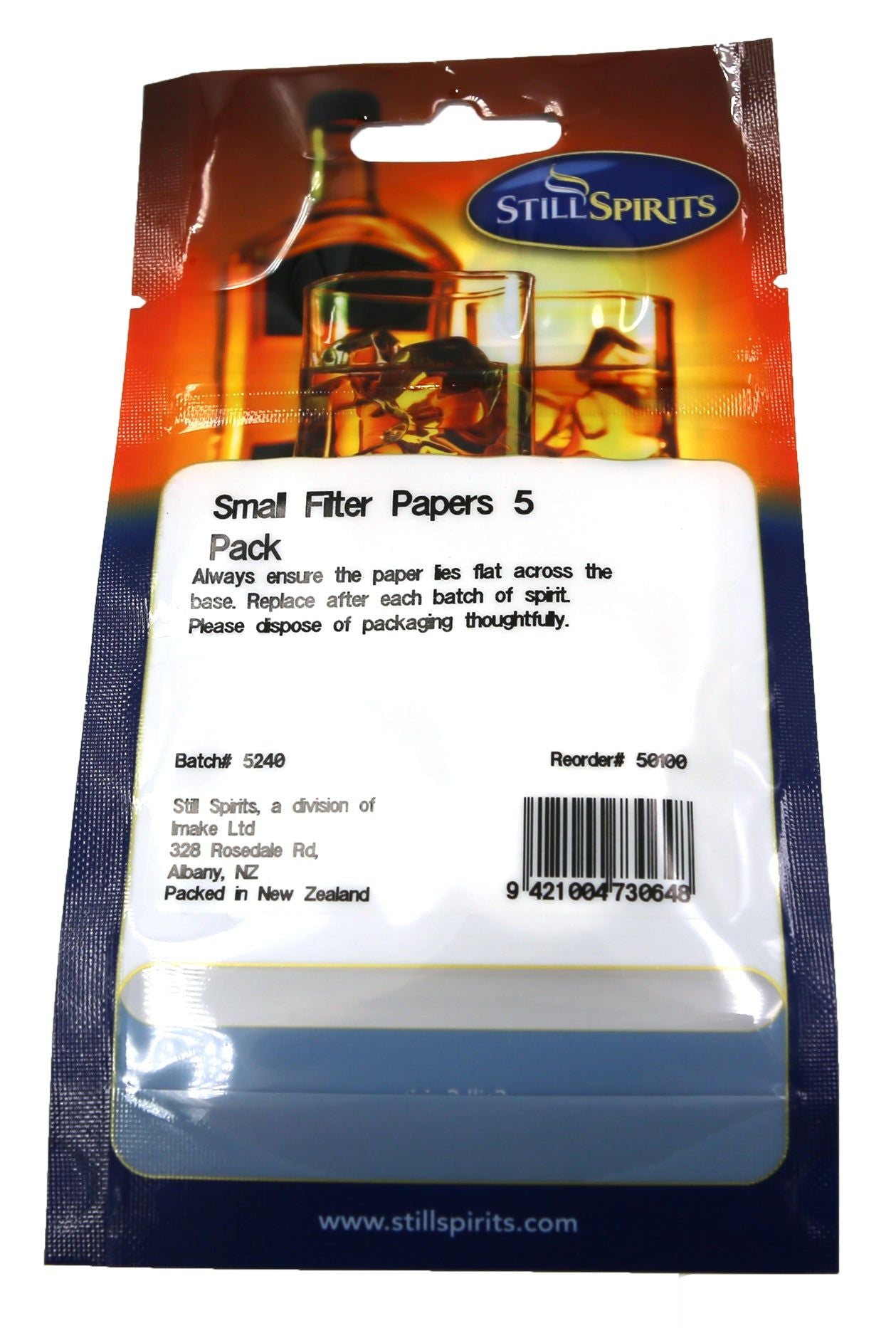

• Additional filter papers included to prevent dust and carbon particles.
• Long stainless-steel shaft ensures maximum contact time with the carbon.
• Filter where you want with the removable door & wall mount.
• Easy to connect tri-clamps & adjustable flow-control.

INCLUDED IN THE BOX:

Hopper, Hopper Lid, Wall-mounted bracket, Door-mounted bracket, Mounting fasteners x 2, Filter Column, Ball Valve, Tri-clamp clamps x 2, Tri-clamp seals x 2, Filter papers pack of 5, 500g SS Loose Carbon x 1.

A finishing carbon with a small grain size, providing superior filtration/polishing power to remove off flavours, off aromas, colour and congeners from distillate.

Suitable for use in the Filter Pro and other gravity fed. Use 1 bag per filtration with the Still Spirits Filter Pro.

Specifications

• Suitable for funnel filters
• 0.9 mm granule size
• Suitable for use with the Filter Pro and other gravity-fed filters

Infusion spirals provide simple and fast extraction of oak aroma and flavour at a fraction of the price of a barrel. They are also really easy to add to bottles or a carboy and remove afterwards, there is no need to filter out chips. These can used in spirits, wine, beer and cider.

Wine: Use 1 spiral per 11 to 23 L for 6 weeks or until desired flavour is achieved.

Beer, spirits and cider: Use 1 spiral per 11 L for 3 - 6 weeks or until desired flavour is achieved.

The Botanical Basket can be used to infuse your spirit with botanical flavours from the Gin Botanicals range or your own ingredients. Simply use one of the Gin Botanicals packets, or your own botanical recipe, add the ingredients in the basket for your own unique brand of spirits!

Simply make your spirit wash as normal, perform the Stripping Run, then during the Spirit Run put your botanical ingredients into the Botanical Basket, screw the basket on to the Pot Still Alembic Dome Top and Pot Still Alembic Condenser, or Turbo 500 Condenser (by removing the saddles) and run your spirit through.

In the Gin Botanicals Kit, you'll receive the Botanical Basket and Gin Botanicals London Dry Gin Style packet.

By simply attaching your Botanical Basket to your Alembic or Turbo 500 setup and adding the Gin Botanicals packet during distillation, you can make this beautiful homemade gin style!

Please note: Use 30 - 35 g of Gin Botanicals when using the Air still and remove saddles first if using a Turbo 500 Condenser.

• Simply make your spirit wash as normal
• Perform the Stripping Run
• During the Spirit Run put your Gin Botanicals packet of ingredients into the Botanical Basket, screw the basket on to the Pot Still Alembic Dome Top and Pot Still Alembic Condenser, or Turbo 500 Condenser (by removing the saddles) and run your spirit through
• Just like that, you have yourself a homemade botanical London Dry gin!
• Enjoy, store for later, or give away as a great gift idea!

Gin Botanicals London Dry Gin Style

A blend of juniper berries, coriander seeds, liquorice root and citrus peel to distil gin and enjoy any way you like.

Botanical Basket

The Botanical Basket can be used to infuse your spirit with botanical flavours from the Gin Botanicals range or your own ingredients. Simply use one of the Gin Botanicals packets, or your own botanical recipe, add the ingredients in the basket for your own unique brand of spirits!

Gin Botanicals is a range that allows you to create your very own blend of homemade gin!

With the Botanical Basket and a Gin Botanicals packet of ingredients, along with your Turbo 500 Boiler, Pot Still Alembic Dome Top, and Pot Still Alembic Condenser, you can make a range of beautiful homemade gin styles!

The Turbo 500 Stainless Steel Condenser and Turbo 500 Copper Condenser can be used directly with the Turbo 500 Boiler instead of the Alembic Dome Top and Alembic Condenser, but make sure to remove the saddles first.

Gin Botanicals London Dry Gin Style

Contains a blend of juniper berries, coriander seeds, liquorice root and citrus peels. The ideal blend to make a delicious London Dry style gin.

Instructions

Consult either the Botanical Basket Instructions or page 6 of the Air Still Instructions for detailed information on how to use botanicals with your distilling system.

Suitable for distilling 3 - 6 litres of gin spirit.

Ingredients

Juniper berries (minimum 65%), coriander seeds, dried citrus peels (lemon, orange), liquorice root.

A granulated carbon used for removing distillation by-products.

Use with Icon Liqueurs Shamrock Cream 330 ml to create an Irish whiskey style flavouring with a distinct, sweet and creamy taste, and subtle notes of chocolate and coffee.

Mixing Instructions

Shake well before use. Pre-mix 70 ml of warm water with 250 ml of 40% ABV distilled spirit or vodka. Add the mixture into the Still Spirits Cream Liqueur Base 215 g while whisking thoroughly. Add this flavouring and top up to 1 L with 40% ABV distilled spirit or vodka.

Used in early model Z Filters prior to June 2004 and now also used in the Filter Pro. Place filter paper between outlet tap end and washer.

A low Sweet thickener for liqueurs and spirits.

Use approximately 50ml per 750ml of spirits to improve smoothness.

Ingredients: Glucose syrup (from corn)

Contain sulphites

A traditional blended whiskey flavouring.  A great value flavouring suitable for mixing with larger volumes of neutral spirit or vodka.

A traditional bourbon flavouring. A great value flavouring suitable for mixing with larger volumes of neutral spirit or vodka.

A traditional dark rum flavouring. A great value flavouring suitable for mixing with larger volumes of neutral spirit or vodka.

A traditional gin flavouring. A great value flavouring suitable for mixing with larger volumes of neutral spirit or vodka.
