The G40 & G70 Distilling Lid plus the complete set of fittings to connect the T500 Reflux Condenser (stainless steel or copper) to either the G40 or the G70 for reflux distilling.

The ultimate bundle to pair with the T500 Reflux Condenser stainless steel or copper), allowing you to turn your G40 or G70 Brewing System into an all-in-one automated brewing system that can also be used for reflux distillation. Bundle includes the G40 & G70 Distilling Lid plus the T500 Reflux Condenser Attachment Kit so you can brew high quality beer and distill neutral spirits.

INCLUDES

• G40 & G70 Distilling Lid
• Standard 4" tri-clamp opening (industry standard)
• Pressure relief valve
• Barrel clamp locking mechanism
• 2” to ½” (48mm) DN40 Thread Adapter
• 2” Tri-Clamp Seal with Mesh
• 2” Tri-Clamp
• 4” to 2” Tri-Clamp reducer
• 4” Tri-Clamp Seal
• 4” Tri-Clamp
• 304 Grade Stainless Steel Construction

Note: T500 Reflux Condenser sold separately

A complete set of fittings to connect the G40 & G70 Distilling Lid to the Still Spirits T500 Alembic Condenser for pot distilling.

The G40 or the G70 paired with the Distilling Lid and T500 Alembic Condenser Attachment Kit offers an all-in-one automated brewing system that can also be used to for pot distillation, making it the ultimate combo to brew high quality beer and distill whiskey, bourbon, rum, and more.

INCLUDES

• 4” Tri-Clamp
• 4” Tri-Clamp Seal
• 4” to 2” Copper Alembic Helmet
• 2” Tri-Clamp
• 2” Tri-Clamp Seal
• 2” to ½”(48mm) DN40 Thread Adapter

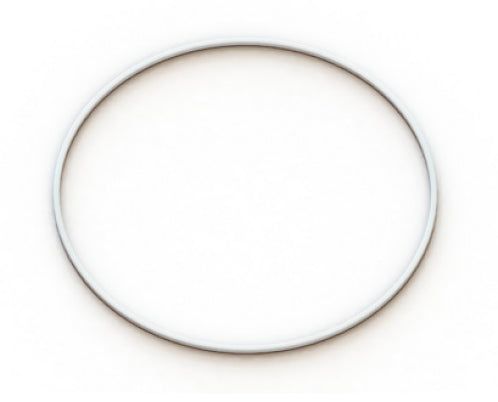

• Condenser Silicone O-Ring

FEATURES

• 304 Grade Stainless Steel Construction
• Copper Helmet to Aid in Reduction of Sulphur Compounds and Retention and Development of Flavour

Note: Distilling Lid & Still Spirits Pot Still Alembic Copper Condenser sold separately.

A complete set of fittings to connect the G40 & G70 Distilling Lid to the Still Spirits T500 Reflux Condenser (stainless steel or copper) for reflux distilling.

The G40 or the G70 paired with the Distilling Lid and T500 Reflux Condenser Attachment Kit offers an all-in-one automated brewing system that can also be used for reflux distillation, making it the ultimate combo to brew high-quality beer and distill neutral spirits.

INCLUDES

• 2” to ½” (48mm) DN40 Thread Adapter

• 2” Tri-Clamp Seal with Mesh

• 2” Tri-Clamp

• 4” to 2” Tri-Clamp reducer

• 4” Tri-Clamp Seal

• 4” Tri-Clamp

• 304 Grade Stainless Steel Construction

Note: Distilling Lid and T500 Reflux Condenser sold separately

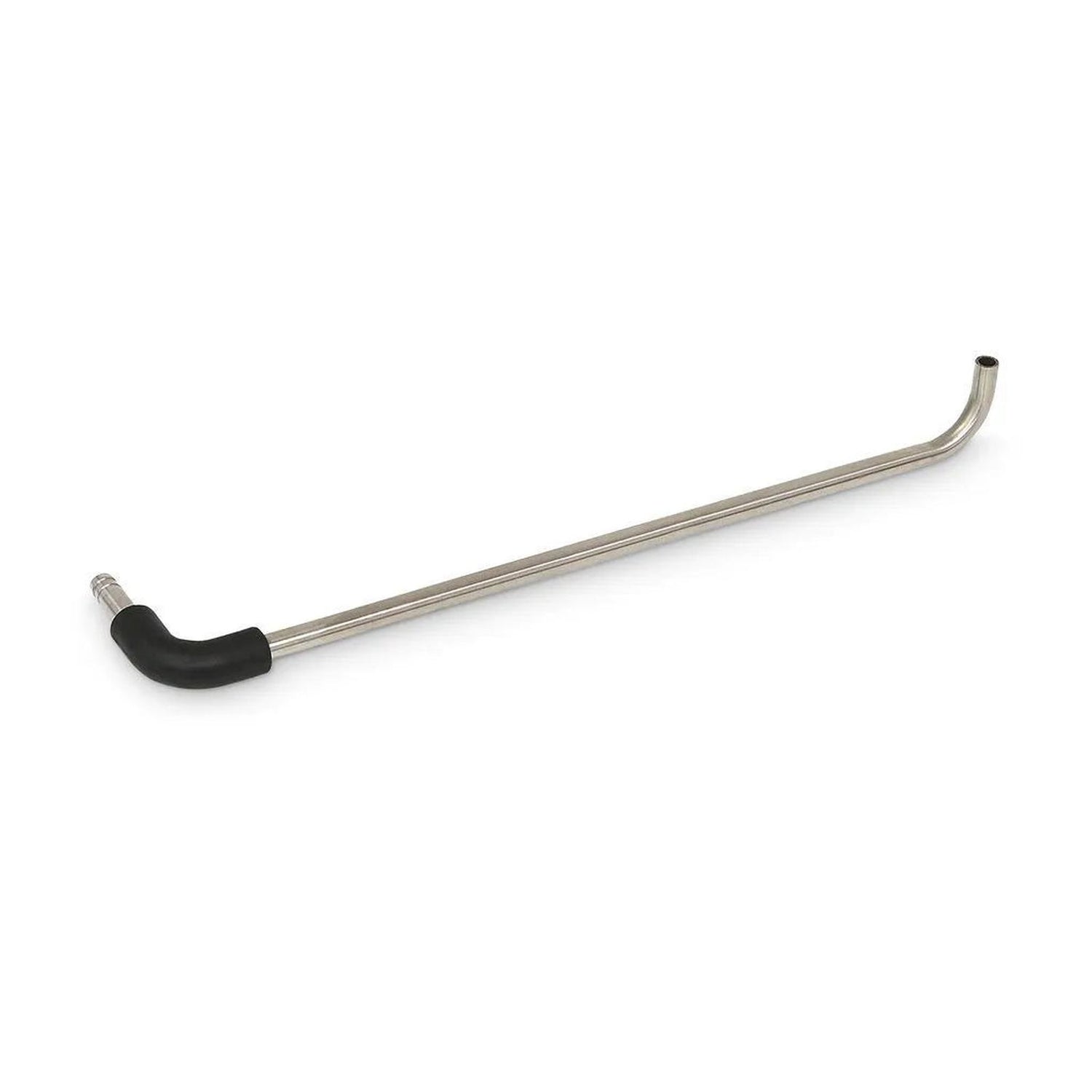

Simply plug the Whirlpool Arm into the G40 or the G70 recirculation pipework to easily create a whirlpool with no manual stirring necessary.

This item is not held in stock and is ordered in on request. Please contact to check availability and shipping cost.

Requires 15amp power supply.

The Grainfather G70v2 is the ultimate 70L brewing system, allowing you to create enough high-quality beer to fill 122 pints in one brew. It’s the perfect match for experienced brewers, with built-in wireless connectivity so that you can connect to the Grainfather App for guided brewing and access to brewing tools, recipes and calculators. Now with a perforated grain basket, the G70v2 makes mashing even more efficient.

This item is not held in stock and is ordered in on request. Please contact to check availability and shipping cost.

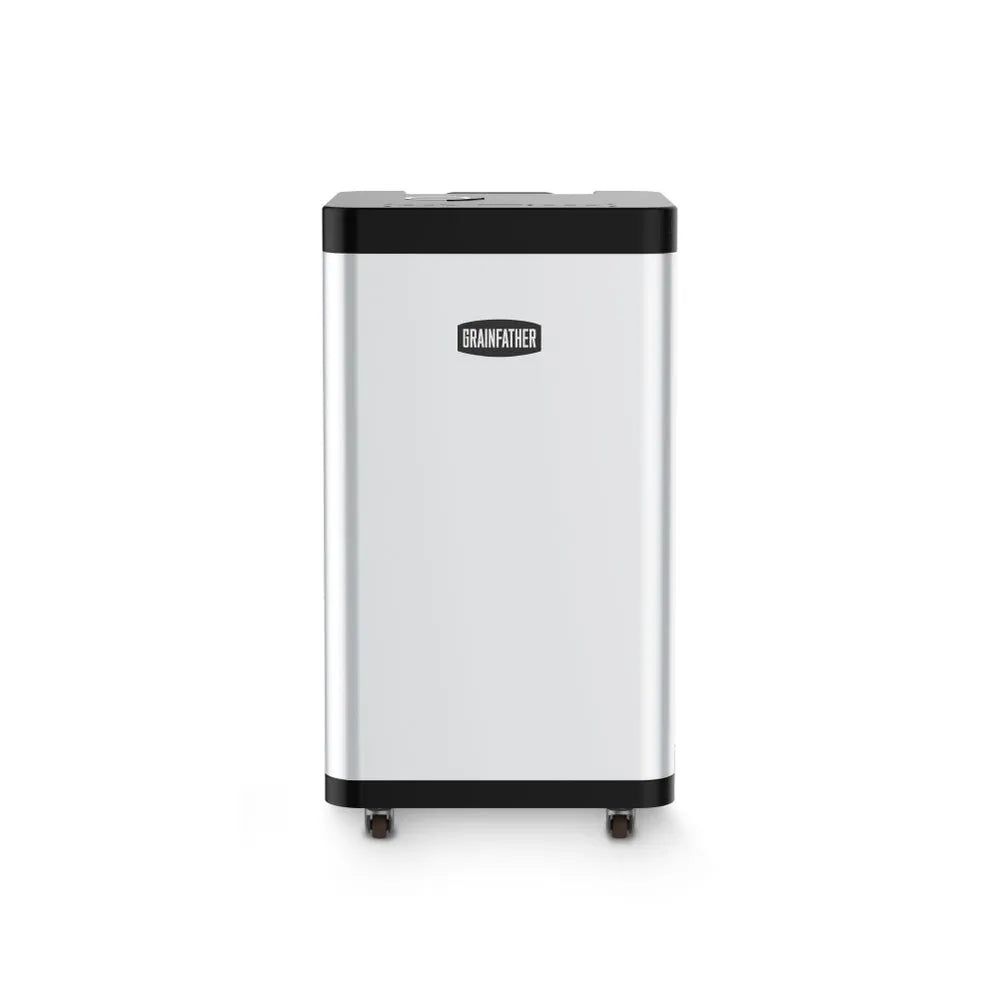

Don’t leave your fermentation to chance, leave it to the GC2. Produce consistent beers every time with accurate temperature control of up to two fermenters.

Control and power up to two fermenters at different temperatures and fermentation schedules. Compatible with the Grainfather App when connected to Grainfather G SERIES fermenters or the GCA Glycol Chiller Adapter for most other fermenters to manage your fermentation from anywhere via Wi-Fi.

By accurately controlling the temperature of your fermentation, you can produce consistent beers, every time.

FEATURES:

• Control and power up to two fermenters at different temperatures and fermenting schedules.
• Use with the GCA Glycol Chiller Adapter to connect to the Grainfather S SERIES range of fermenters or most other fermenters.
• Sleek and compact design with LED control display
• Compatible with the Grainfather App when connected to a Grainfather G SERIES fermenter or the GCA for managing your fermentation from anywhere via Wi-Fi
• Backed by a 3-year warranty

WHATS INCLUDED

• GC2 Glycol Chiller

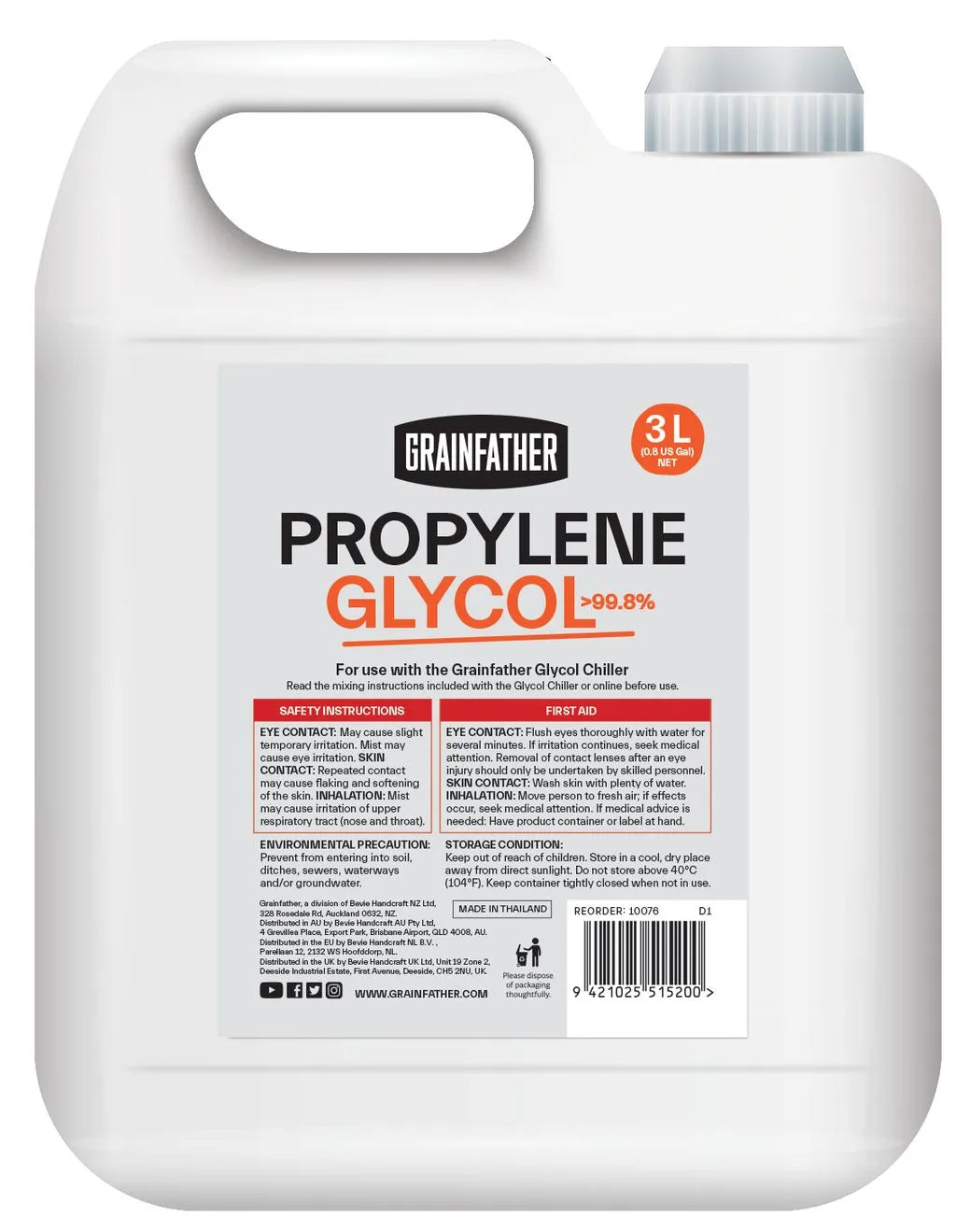

• Propylene glycol*
• 2 x cooling connection couplers*
• 2 x 2m insulated hoses*
• Glycol funnel
• Silicone tubing for priming pump

*Packed separately

SPECIFICATION

SIZE:

• 583 x 320 x 363mm (23 x 12.6 x 14.6”)

 WEIGHT:

• 19.5kg (71.5lb)

 CAPACITY:

• 3L (0.8 US Gal) glycol tank

 POWER

• NZ/AU/EU/UK: 180W, 220V
• US: 160W, 110V

 CONNECTIVITY

• None*

 *Wi-Fi control available when used with G SERIES fermenters or the GCA.

Note: The instructions for the Glycol Chiller will be attached to the outside of the shipping box. It is important that you retain these, do not throw them away and read them carefully before use to ensure no damage occurs to the unit. If these for any reason are not included with your purchase, we highly recommend you download a new copy via the instructions tab on this page and read them carefully.

Warranty:

There is 36 month warranty for Glycol Chillers.

IMPORTANT PLEASE READ: Make sure the chiller has been standing upright for at least 24 hours before turning it ON. Before using the Glycol Chiller, you must prime the pump by carefully following the instructions

This item is not eligible for free shipping.

This item is not held in stock and is ordered in on request. Please contact to check availability and shipping cost.

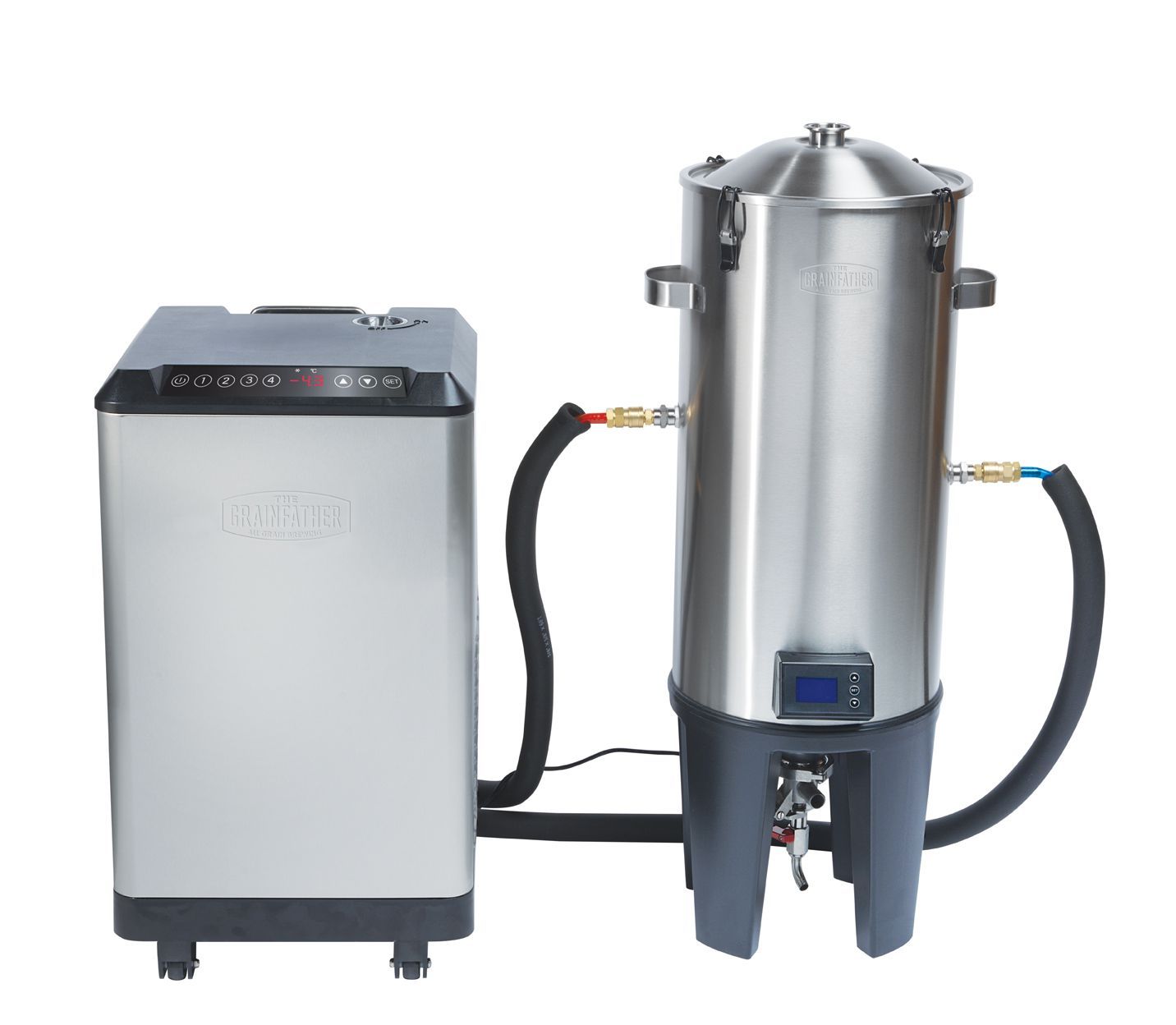

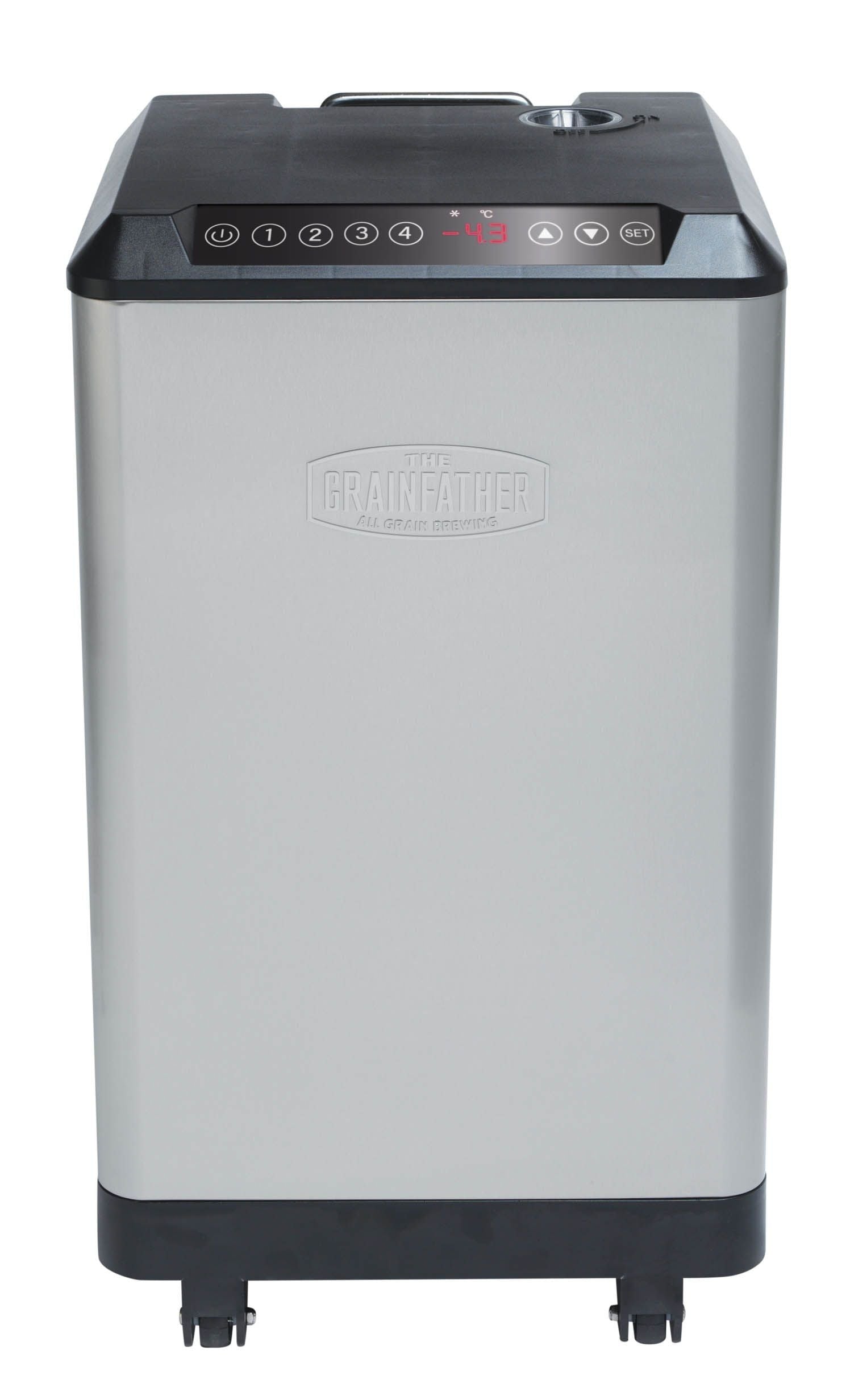

Control your fermentation temperature accurately, every time!

Temperature control is one of the most crucial elements for producing a good quality beer. It needs to be regulated and stable throughout the whole fermentation process to ensure the yeast doesn't get stressed and ferments correctly to get the right flavour profile.
With the ability to individually power and control the temperature of up to four Grainfather Conical Fermenters, each with their own fermenting schedules, the Grainfather Glycol Chiller is the perfect addition to ensure superior fermenting results.

Design:
With a sleek and compact design, that still accommodates our full array of features, the Glycol Chiller maintains the Grainfather’s principle of providing quality home brewing equipment, that deliver’s craft brewery like results, with a small footprint.
With the addition of the Glycol Chiller, your system is operating at the ultimate level and you are even able to cold crash and lager down to 4-6ºC (39-43°F). The Glycol Chiller connects to a hidden cooling sleeve, located in between the two stainless steel walls of the Conical Fermenter. Your desired temperature is dialed into the digital temperature controller on the Conical Fermenter, the liquid then travels through this sleeve, cooling the stainless steel which in turn cools the beer in the fermenter. The cooling sleeve never comes into contact with the beer, is completely concealed and does not need cleaning or sanitising - a true innovation for a fermenter on this scale.

Features:

• Allows you to cold crash 23 L (6 US Gal) of wort to as low as 4-6ºC (39-43°F). Minimum temperature will vary based on external factors such as ambient room temperature, the number of fermenters connected and other environmental conditions.
• Cools and powers up to 4 Conical Fermenters at different temperatures and fermenting schedules.
• Includes propylene glycol to get you efficient cooling for your fermenter right away.

Note: The instructions for the Glycol Chiller will be attached to the outside of the shipping box. It is important that you retain these, do not throw them away and read them carefully before use to ensure no damage occurs to the unit. If these for any reason are not included with your purchase, we highly recommend you download a new copy via the instructions tab on this page and read them carefully.

Warranty:

There is 36 month warranty for Glycol Chillers.

Includes:

• Glycol Chiller
• Wall outlet power cord with plug
• 2 x cooling connection couplers
• 2 x 2 m (6.5 ft) insulated hoses
• 1 x Glycol Funnel
• 1 x silicon tube for priming pump
• 1 x 3 L (3 US qt) propylene glycol

NOTE: When you receive your unit, you will need to fill it up with a propylene glycol mixture. Refer to the instructions provided with the Glycol Chiller for mixing, filling and pump priming information.

Specs:

• LED display
• 6 L (1.5 US Gal) glycol tank
• 300 W
• 220 – 240 V, 50Hz
• 390W x 450D x 656H (mm)
• Weight: 28.3 kg (62 lbs)

IMPORTANT PLEASE READ: Make sure the chiller has been standing upright for 24 hours before turning it ON. Before using the Glycol Chiller, you must prime the pump by carefully following the instructions

This item is not eligible for free shipping.

A bored silicone bung for the Grainfather GF30 and SF70.

Measures approximately 41mm across the top, tapering to approximately 35mm across the bottom.

Ferment like never before! The Grainfather GF30 gives the brewer professional fermentation control, just like the commercial breweries. Fermentation is arguably the most important part of producing a good quality beer. A good fermentation environment starts with a clean and sterile fermenter, has a consistent controlled temperature base and exposure to oxygen is minimised. The Grainfather Conical Fermenter provides you with a modular system for all of this and more!

FEATURES:

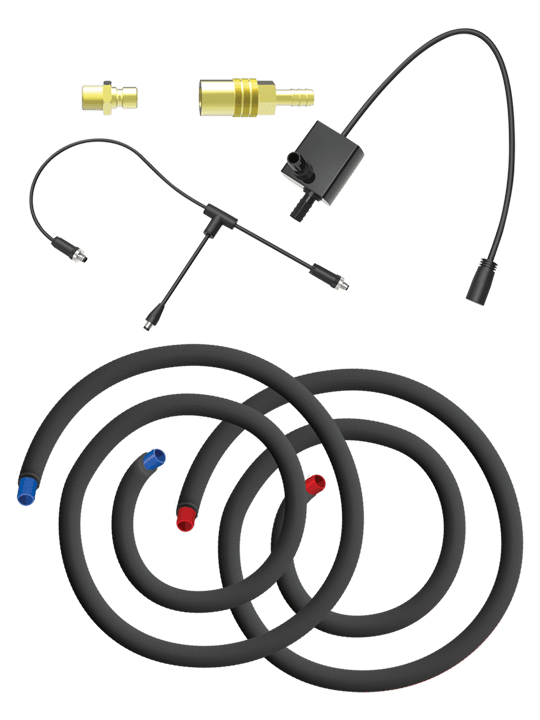

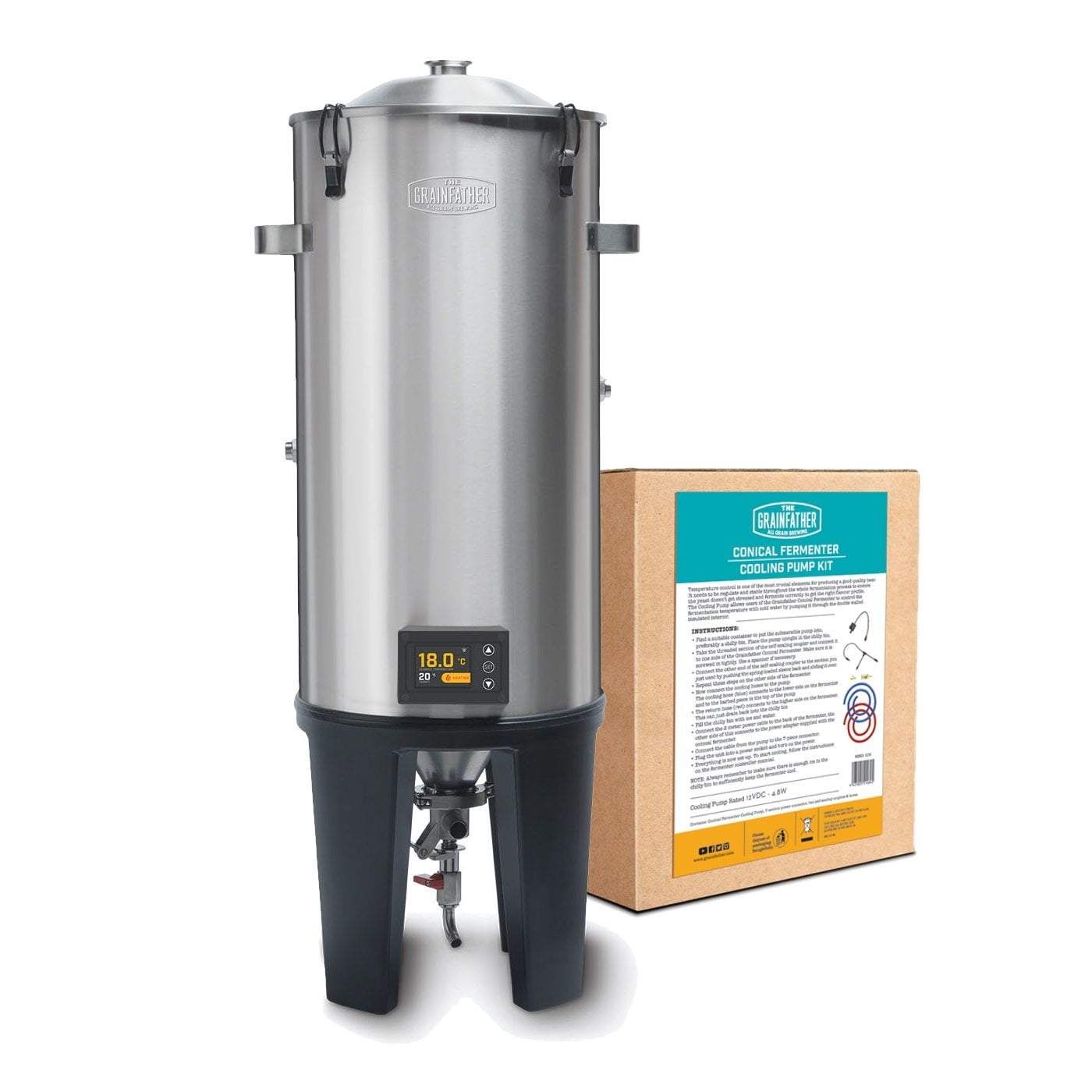

Basic Cooling Pump Kit

The Cooling Pump Kit allows users of the Grainfather Conical Fermenter to control the fermentation temperature with cold water by pumping it through the double walled insulated interior.

Wireless Connectivity

The Conical Fermenter Pro comes with a built-in controller with wireless connectivity and digital display. This means you can connect the controller to the internet and the Grainfather App and track fermentation with automatic alerts and notifications from wherever have an internet connection.

Double Walled

A stainless steel double walled skin is filled with a thick layer of polyurethane foam for insulation. This is what keeps the wort at a constant stable temperature with minimal influence from any external environmental temperature changes, providing insulation for your fermentation that a standard jacket cannot achieve.

Integrated Gentle Heating

In the cavity of the fermenter between the outer body and cone sits a 30 Watt, 12V heating element. Unlike standard heating elements/sources that directly heat the liquid, this heat source is designed to heat the environment in between the walls of the fermenter, which in turn heats the liquid. It is similar to controlling the temperature in a temperature controlled room. The fermenter acts as an artificial environment which can be heated, meaning the temperature is raised in an even and controlled manner which is much better for the yeast.

Integrated Cooling Sleeve

In between the two stainless steel walls sits a cooling sleeve (also made of stainless steel). This cooling sleeve is welded onto the inner wall of the fermenter and can be hooked up to the additionally purchased Glycol Chiller. Temperature is dialed into the Temperature Controller and as the cooling liquid travels through this sleeve, it cools the stainless steel which in turn evenly cools the beer in the fermenter. The cooling sleeve never comes into contact with the beer, it is completely concealed, built into the fermenter and never needs cleaning or sanitising - a true innovation for a fermenter of this scale.

Easy Access to the Interior for Hassle Free Cleaning

The Grainfather Conical Fermenter has a smooth interior with no additions such as cooling coils or additional sampling valves meaning it is easy to clean and minimises the risk of infection.

Golden Angle Conical

The conical shape of the fermenter is typical for professional breweries. Our conical has been designed with the 'Golden Angle' of 60º. This is the optimum angle for yeast and sediment to drop down to the bottom of the cone without getting stuck to the sides, allowing you to transfer from above the sediment line, resulting in clearer beer. The conical shape also allows for better mixing during fermentation due to the path of convention currents that it enables to occur.

Dual Valve Tap

Make the yeast dumping, transferring and sampling process more professional with this innovative all in one valve. Sampling and transferring is done through an inlet above the sediment line, allowing for clear, sediment free beer. Easily collect your yeast from below the sediment line with the same unique valve for re-cultivating and pitching. The innovative design of the valve allows for this dual functionality and less cleaning for you.

Support

The Grainfather Conical Fermenter is fully supported around the world by a fantastic support team who love brewing just as much as you do. Our support team is here for any technical enquiries on brewing or how the Conical Fermenter works, as well as general customer service enquiries.

 All Grainfather Conical Fermenters come with a 24 month warranty.

Whats Included

Conical Fermenter
Fermenter Lid
Rubber Bung
Bubbler Airlock
Cone Plug
Cone Plug Seal
5 cm (2") Tri Clamp
Built in Wireless controller
Powder Adapter and Wall Plug
2 m (6.5 ft) M12 3-Pin Power Cord
Dual Valve Tap

Digital Temperature Controller

Specifications

304 Stainless Steel Body (polished inner and brushed outer)
30 L (8 US Gal) capacity (volume markings on inner body up to 25 L (7 US Gal)
30 W, 12 V heating power
Built in Wireless controller
3.8 cm (1.5") ferrule on lid (for pressure transfer attachments)
5 cm (2") ferrule on bottom of cone
Dual Valve Tap with 110 mm (4.3”) inlet
Dimensions of Conical Fermenter:
Diameter with handles: 360 mm
Height (without airlock): 910 mm
Height with bubbler airlock: 1090 mm
Dimensions of Carton

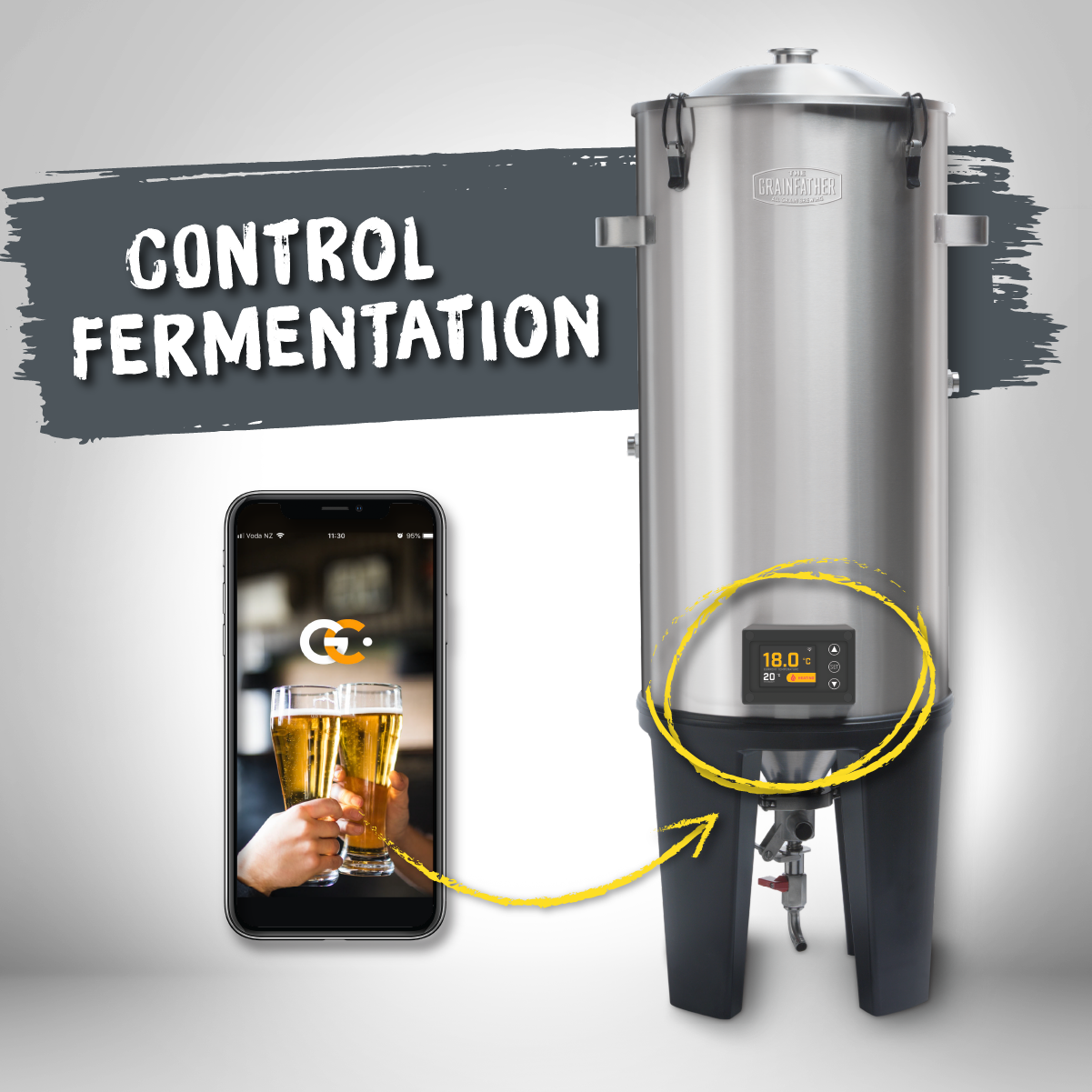

Ferment like never before! The Grainfather Conical Fermenter give the brewer professional fermentation control, just like the commercial breweries. Fermentation is arguably the most important part of producing a good quality beer. A good fermentation environment starts with a clean and sterile fermenter, has a consistent controlled temperature base and exposure to oxygen is minimised. The Grainfather Conical Fermenter provides you with a modular system for all of this and more!

FEATURES:

Wireless Connectivity

The Conical Fermenter Pro comes with a built-in controller with wireless connectivity and digital display. This means you can connect the controller to the internet and the Grainfather App and track fermentation with automatic alerts and notifications from wherever have an internet connection.

Double Walled

A stainless steel double walled skin is filled with a thick layer of polyurethane foam for insulation. This is what keeps the wort at a constant stable temperature with minimal influence from any external environmental temperature changes, providing insulation for your fermentation that a standard jacket cannot achieve.

Integrated Gentle Heating

In the cavity of the fermenter between the outer body and cone sits a 30 Watt, 12V heating element. Unlike standard heating elements/sources that directly heat the liquid, this heat source is designed to heat the environment in between the walls of the fermenter, which in turn heats the liquid. It is similar to controlling the temperature in a temperature controlled room. The fermenter acts as an artificial environment which can be heated, meaning the temperature is raised in an even and controlled manner which is much better for the yeast.

Integrated Cooling Sleeve

In between the two stainless steel walls sits a cooling sleeve (also made of stainless steel). This cooling sleeve is welded onto the inner wall of the fermenter and can be hooked up to the additionally purchased Glycol Chiller. Temperature is dialed into the Temperature Controller and as the cooling liquid travels through this sleeve, it cools the stainless steel which in turn evenly cools the beer in the fermenter. The cooling sleeve never comes into contact with the beer, it is completely concealed, built into the fermenter and never needs cleaning or sanitising - a true innovation for a fermenter of this scale.

Easy Access to the Interior for Hassle Free Cleaning

The Grainfather Conical Fermenter has a smooth interior with no additions such as cooling coils or additional sampling valves meaning it is easy to clean and minimises the risk of infection.

Golden Angle Conical

The conical shape of the fermenter is typical for professional breweries. Our conical has been designed with the 'Golden Angle' of 60º. This is the optimum angle for yeast and sediment to drop down to the bottom of the cone without getting stuck to the sides, allowing you to transfer from above the sediment line, resulting in clearer beer. The conical shape also allows for better mixing during fermentation due to the path of convention currents that it enables to occur.

Dual Valve Tap

Make the yeast dumping, transferring and sampling process more professional with this innovative all in one valve. Sampling and transferring is done through an inlet above the sediment line, allowing for clear, sediment free beer. Easily collect your yeast from below the sediment line with the same unique valve for re-cultivating and pitching. The innovative design of the valve allows for this dual functionality and less cleaning for you.

Support

The Grainfather Conical Fermenter is fully supported around the world by a fantastic support team who love brewing just as much as you do. Our support team is here for any technical enquiries on brewing or how the Conical Fermenter works, as well as general customer service enquiries.

 All Grainfather Conical Fermenters come with a 36 month warranty.

Whats Included

Conical Fermenter
Fermenter Lid
Rubber Bung
Bubbler Airlock
Cone Plug
Cone Plug Seal
5 cm (2") Tri Clamp
Built in Wireless controller
Powder Adapter and Wall Plug
2 m (6.5 ft) M12 3-Pin Power Cord
Dual Valve Tap

Digital Temperature Controller

Specifications

304 Stainless Steel Body (polished inner and brushed outer)
30 L (8 US Gal) capacity (volume markings on inner body up to 25 L (7 US Gal)
30 W, 12 V heating power
Built in Wireless controller
3.8 cm (1.5") ferrule on lid (for pressure transfer attachments)
5 cm (2") ferrule on bottom of cone
Dual Valve Tap with 110 mm (4.3”) inlet
Dimensions of Conical Fermenter:
Diameter with handles: 360 mm
Height (without airlock): 910 mm
Height with bubbler airlock: 1090 mm
Dimensions of Carton
368 mm W x 325 mm L x 905 mm H

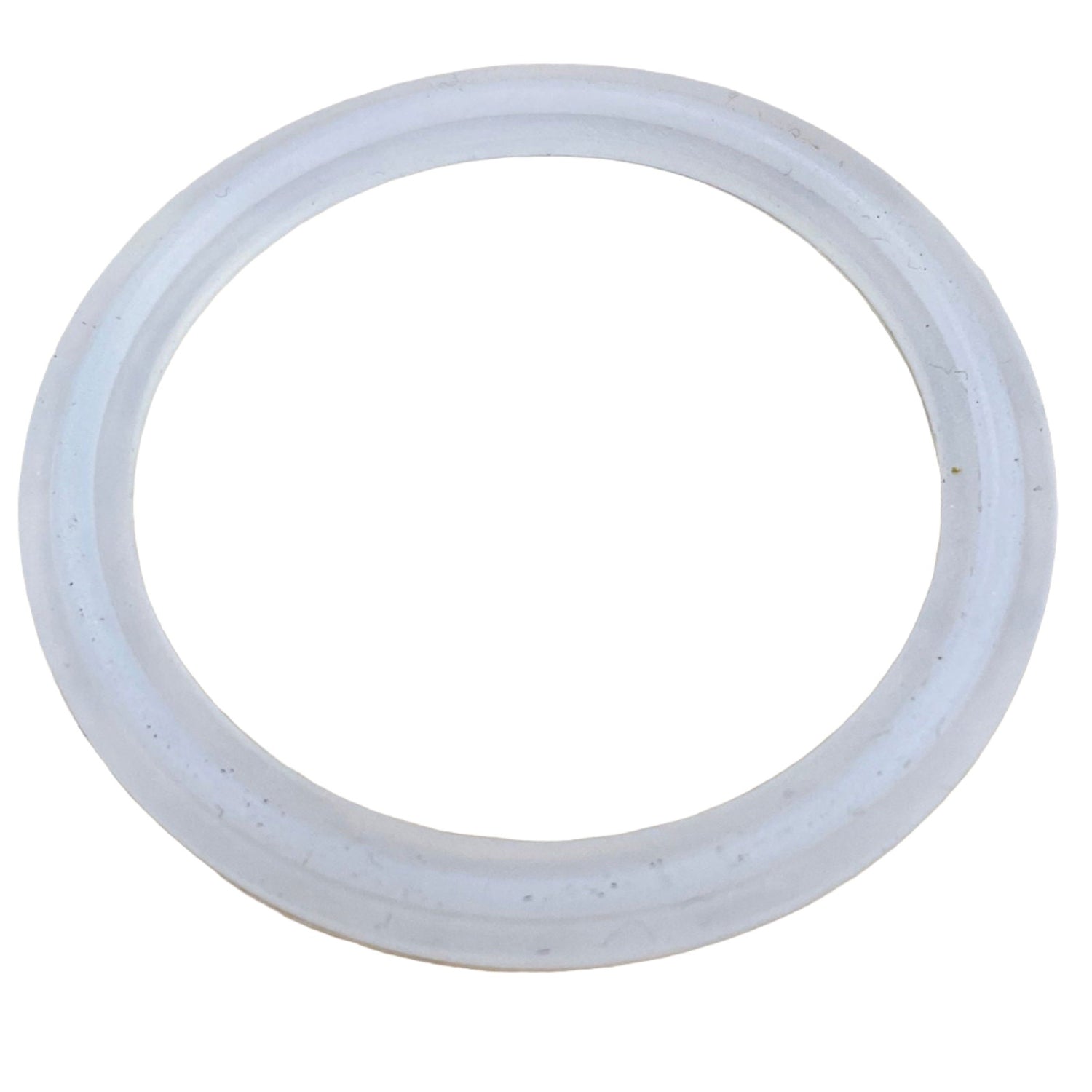

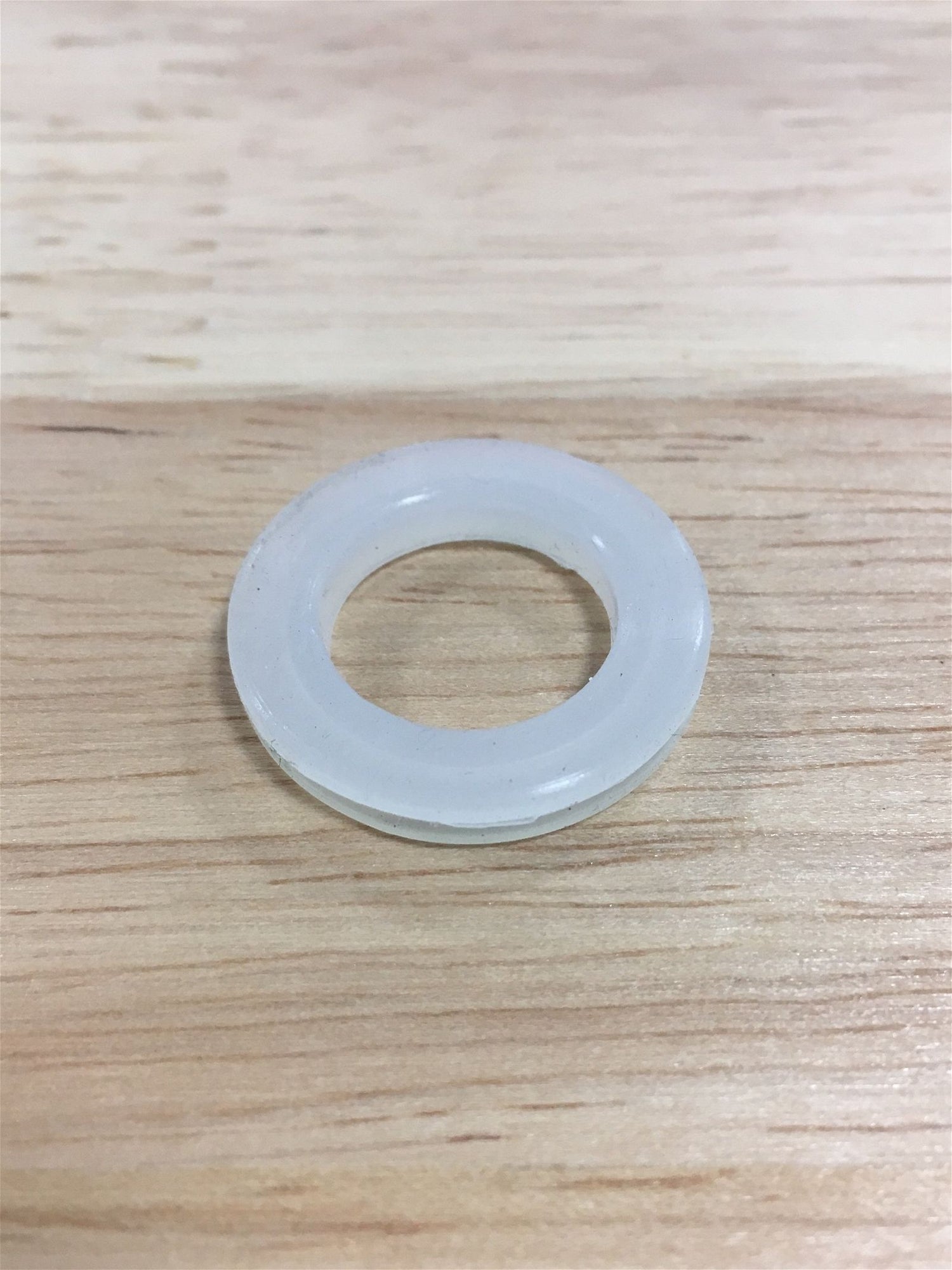

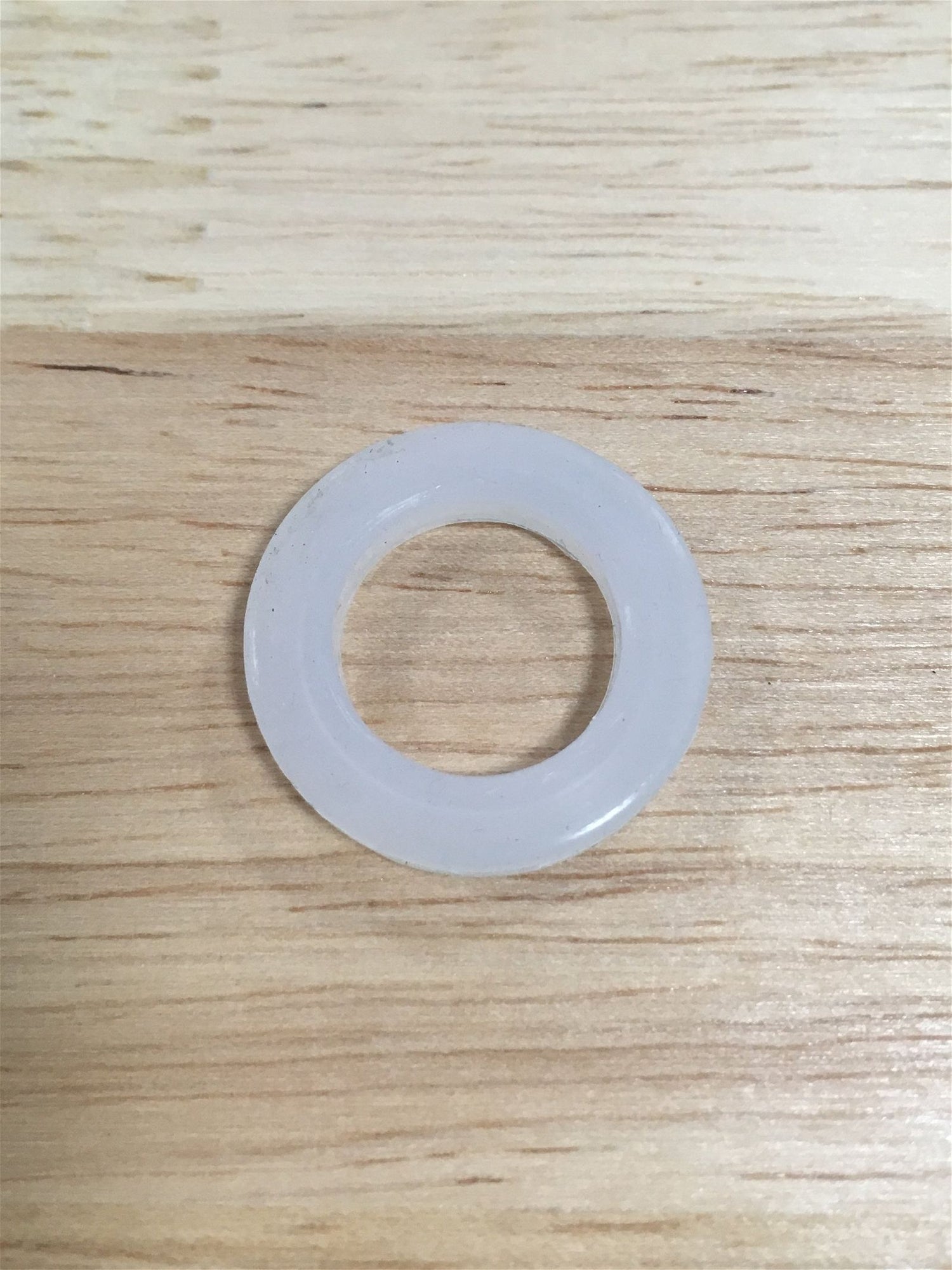

This is a replacement seal (2 inch beaded tri clamp seal) for the Conical Fermenter cone plug.

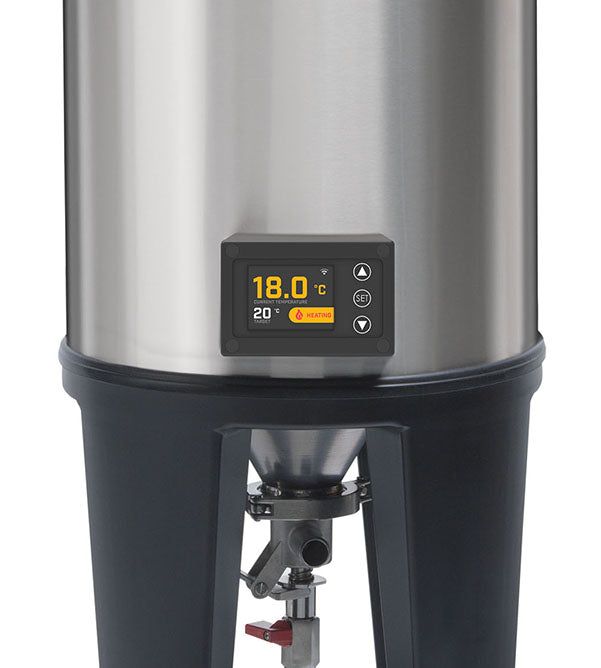

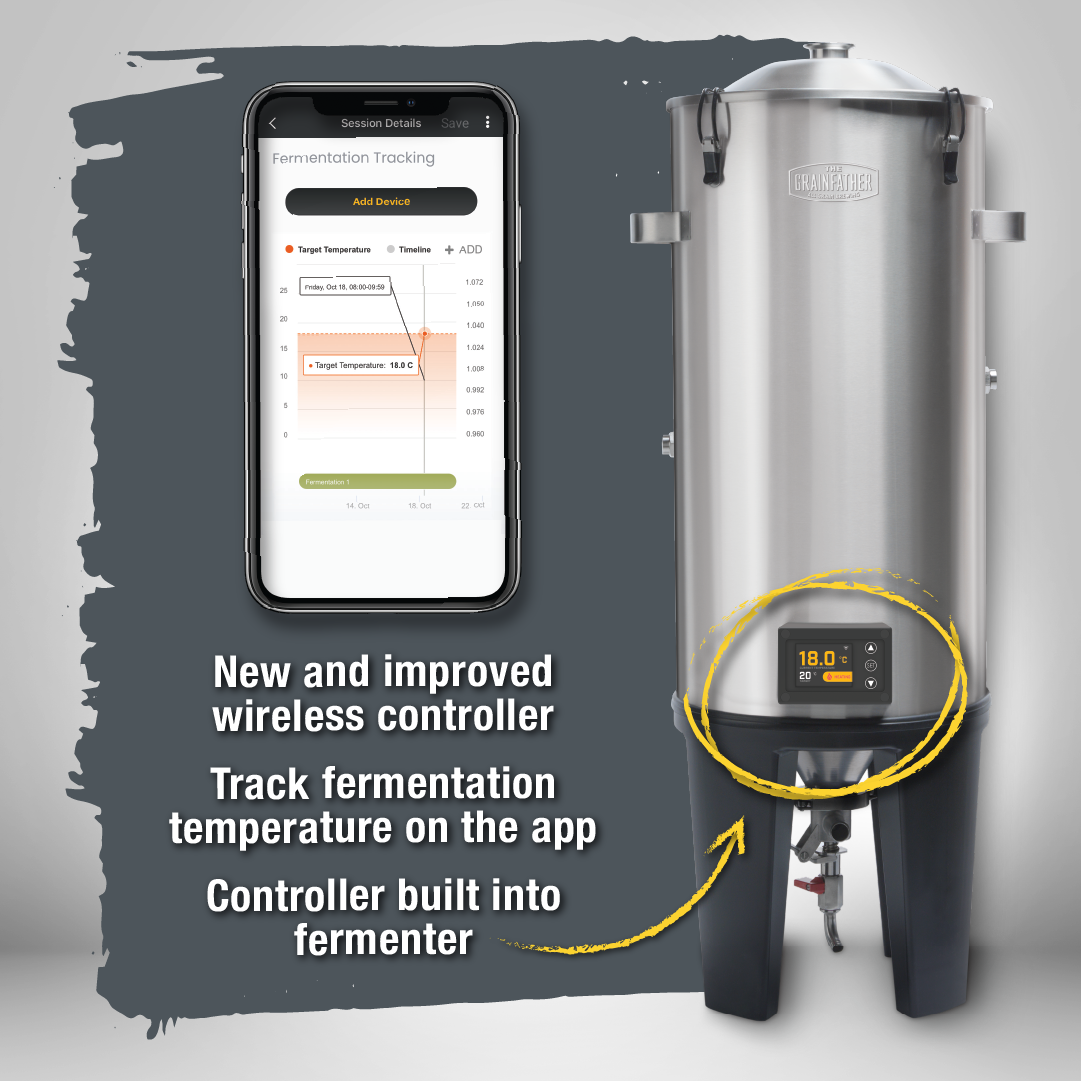

The new Grainfather Conical Fermenter Wireless Temperature Controller is wifi-enabled, and is designed for use with the Grainfather Conical Fermenter PRO. This all-new wireless controller is an upgrade from the original Conical Fermenter Temperature Controller, and can be easily installed on the Conical Fermenter using the directions provided.

Control the heating and cooling (when used with The Grainfather Gylcol Chiller or Cooling Pump Kit) remotely with the Conical Fermenter Wireless Temperature Controller. Simply connect the controller to the Grainfather App and control and track the fermentation temperature when you're out and about.

This new wireless controller attaches directly to the fermenter, alleviating any concern of the controller falling off the mounting bracket.

With a new and improved digital display and the flexibility the new controller offers, you are definitely going to want to upgrade.

Instructions

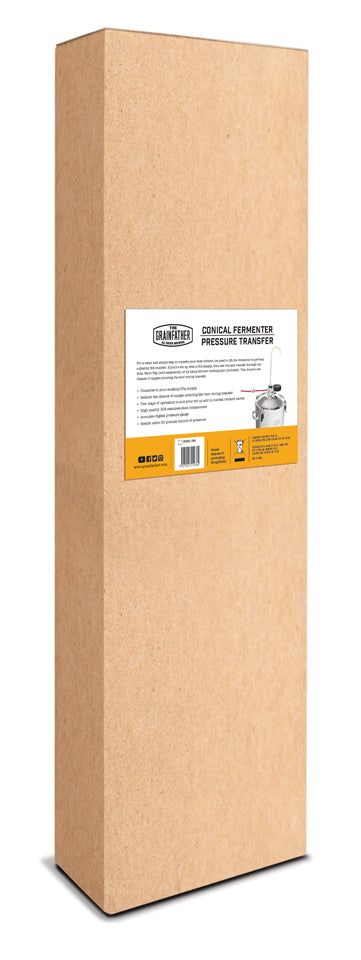

Easily attach to the Grainfather Conical Fermenter, for a clean and simple way to transfer your beer without the need to lift the fermenter to perform a gravity fed transfer. This also ensures less chance of oxygen entering the beer during transfer.

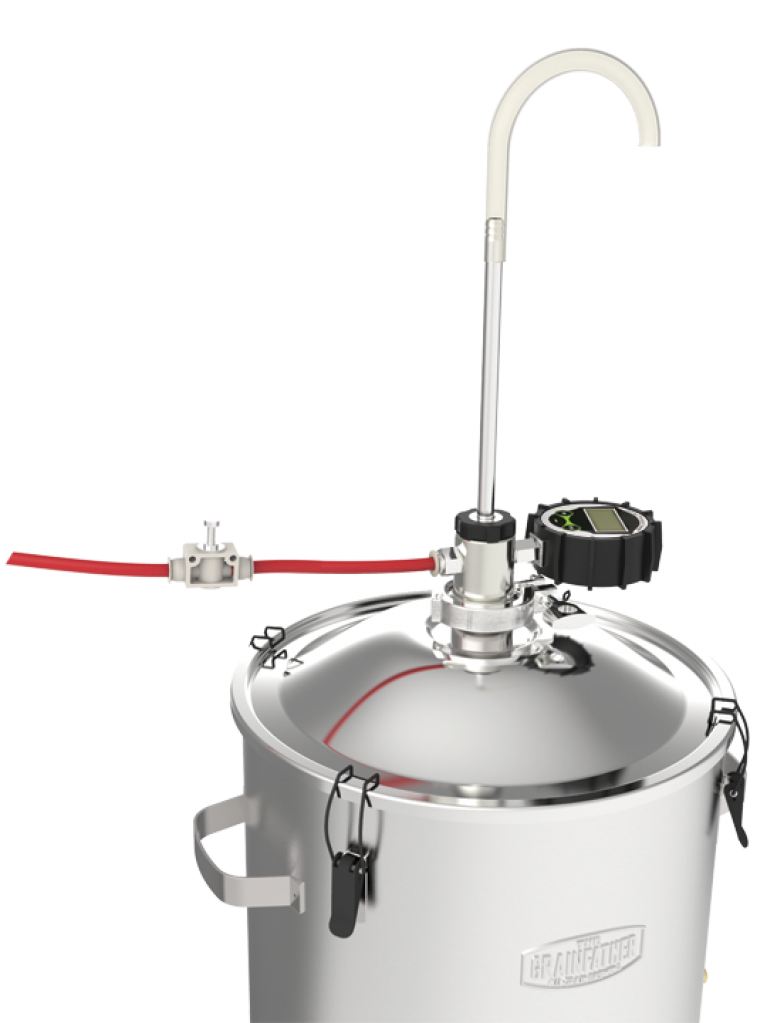

All you need is a C02 bottle and a regulator to attach to the Pressure Transfer and you can transfer your beer into a keg or bottles through the Conical Fermenter Dual Valve Tap or via the top of the fermenter lid using the Beer Racking Pipe.

NOTE: Batteries are not included for the Pressure Gauge. 2 x AAA batteries are needed.

Specifications

High quality 304 stainless steel components
Accurate digital pressure gauge
Needle valve for precise control of pressure

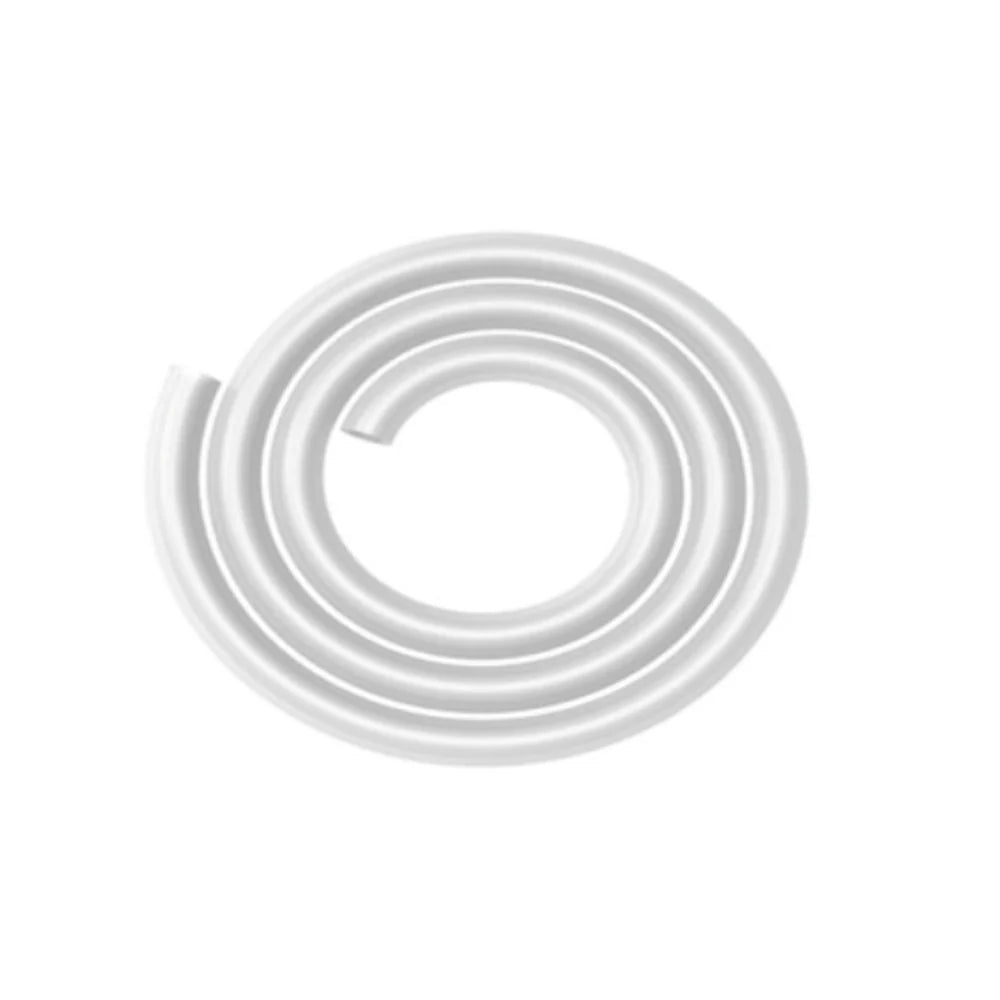

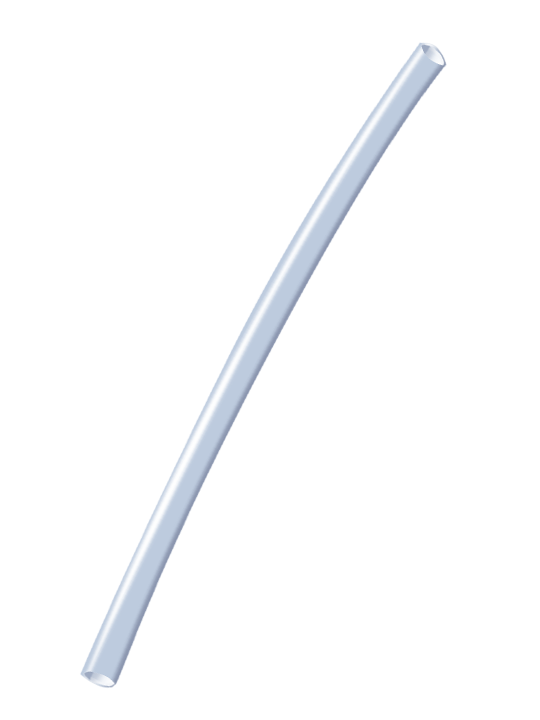

Replacement high-temperature food-grade silicone hose for use with the Grainfather GF30 Conical Fermenter Pressure Transfer.

This tube can connect to the sample valve of the dual valve tap or the pressure transfer dip tube for transferring liquid out of the fermenter.

Length: 2m

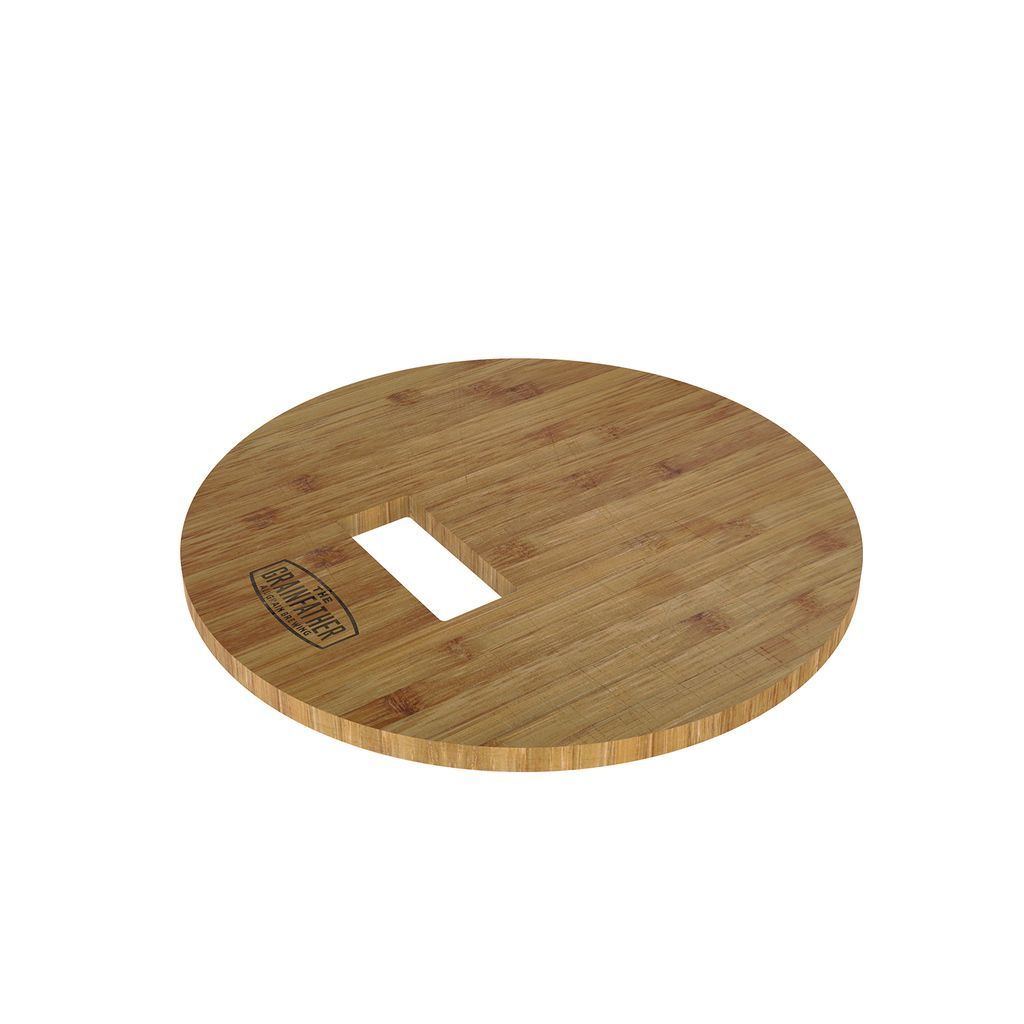

The Grain Mill Bamboo Mounting Board works great with the Electric Grain Mill. Mount the mill onto the board and place it over a bucket to catch your freshly crushed grain.

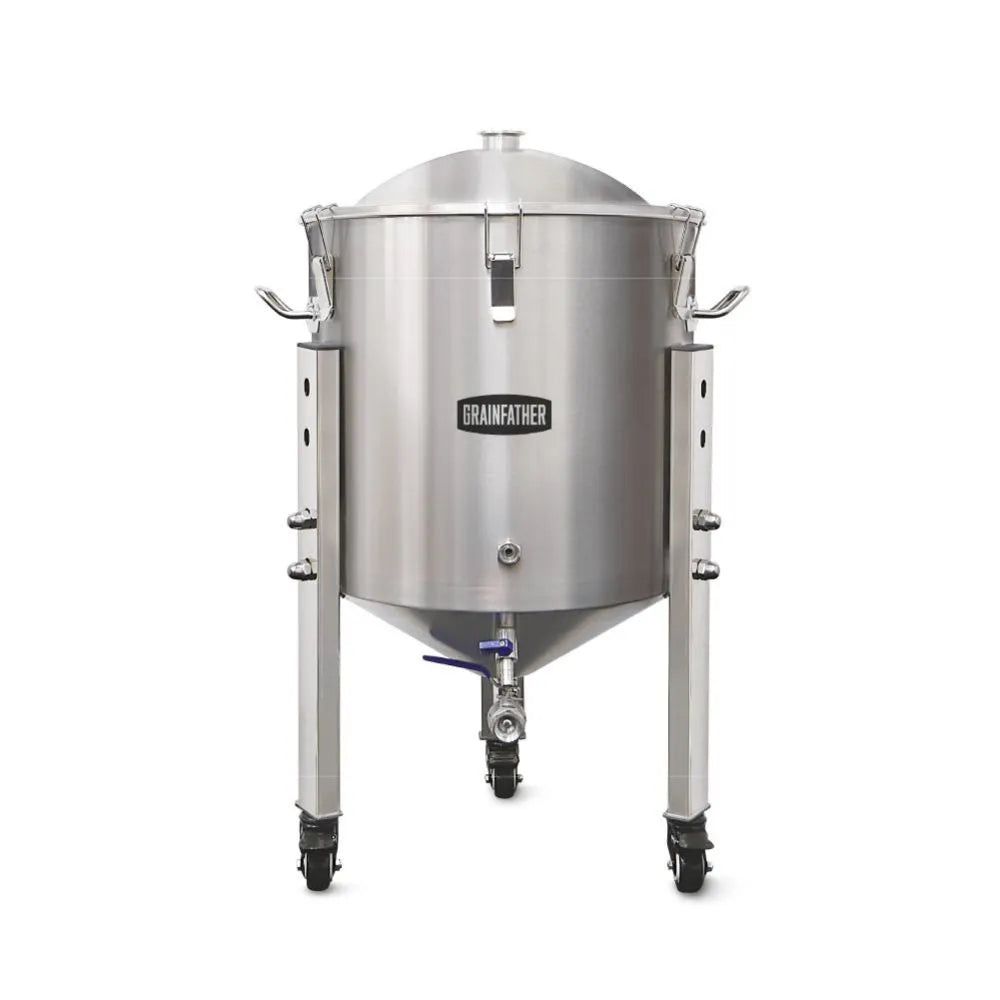

The SF50 has a 50L capacity that is designed to hold batches of up to 45L. It can be adapted to suit your brewing space with an adjustable leg height and castor wheels for easy manoeuvrability. Its intuitive design, 304-grade stainless steel build, and 113° angle conical makes both fermentation and cleaning easy. A perfect brewing companion for smaller brewing systems like the S40, G30 or G40.

Product Features:

• Sleek high quality 304 grade stainless steel body
• 113° angle conical avoids yeast and sediment getting stuck to the sides of the cone.
• Adjustable leg height and castor wheels for easy manoeuvrability.
• Easily dump yeast with a separate valve.
• Insert temperature probes into the built-in thermowell for accurate temperature readings.
• Transfer and take samples above the yeast and trub line with an accessible valve on the side of the unit.
• Compatible with the GC4 for accurate temperature control.
• Comes with a 2-year warranty.

What's Included:

• Grainfather SF50 Conical Fermenter
• Stainless steel lid with 38mm tri-clamp fitting
• Rubber bung & airlock

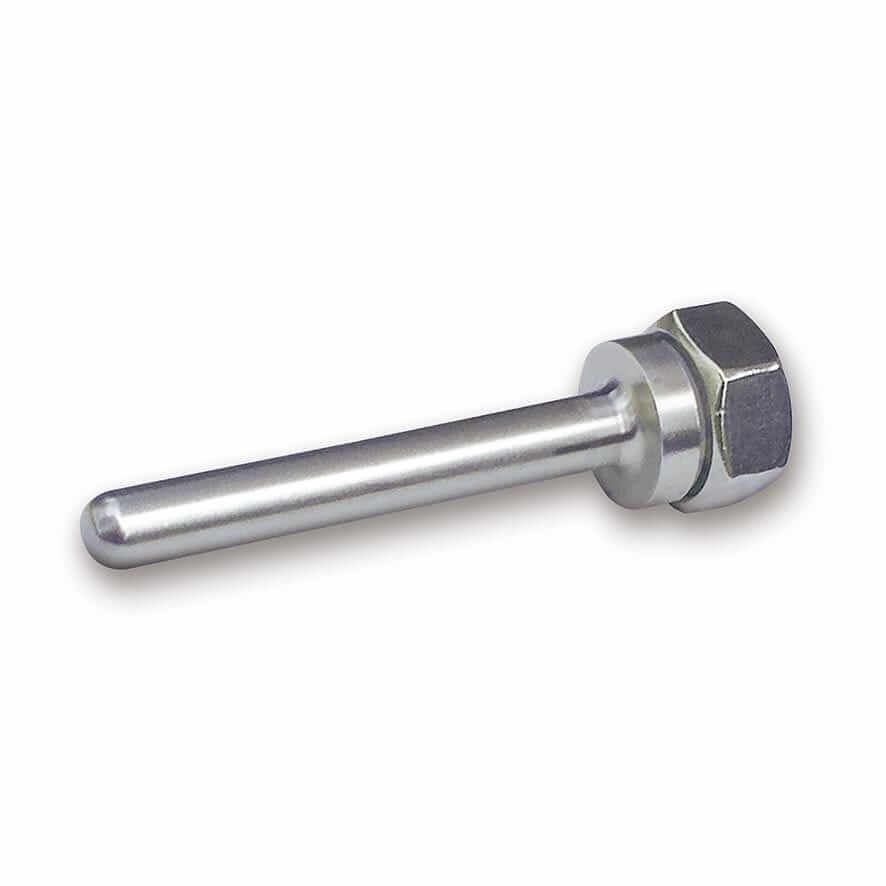

• Thermowell (use with GCA or thermometer)
• Cone mounted 10mm stainless steel barbed sample valve
• 19mm bottom mounted stainless steel dump valve
• Adjustable and removable legs with castor wheels

SPECIFICATIONS

SIZE: 866 x 394 (h x d)

WEIGHT: 10kg

CAPACITY: 50L

POWER: None

CONNECTIVITY: None

Click here for the SF70 technical specifications.

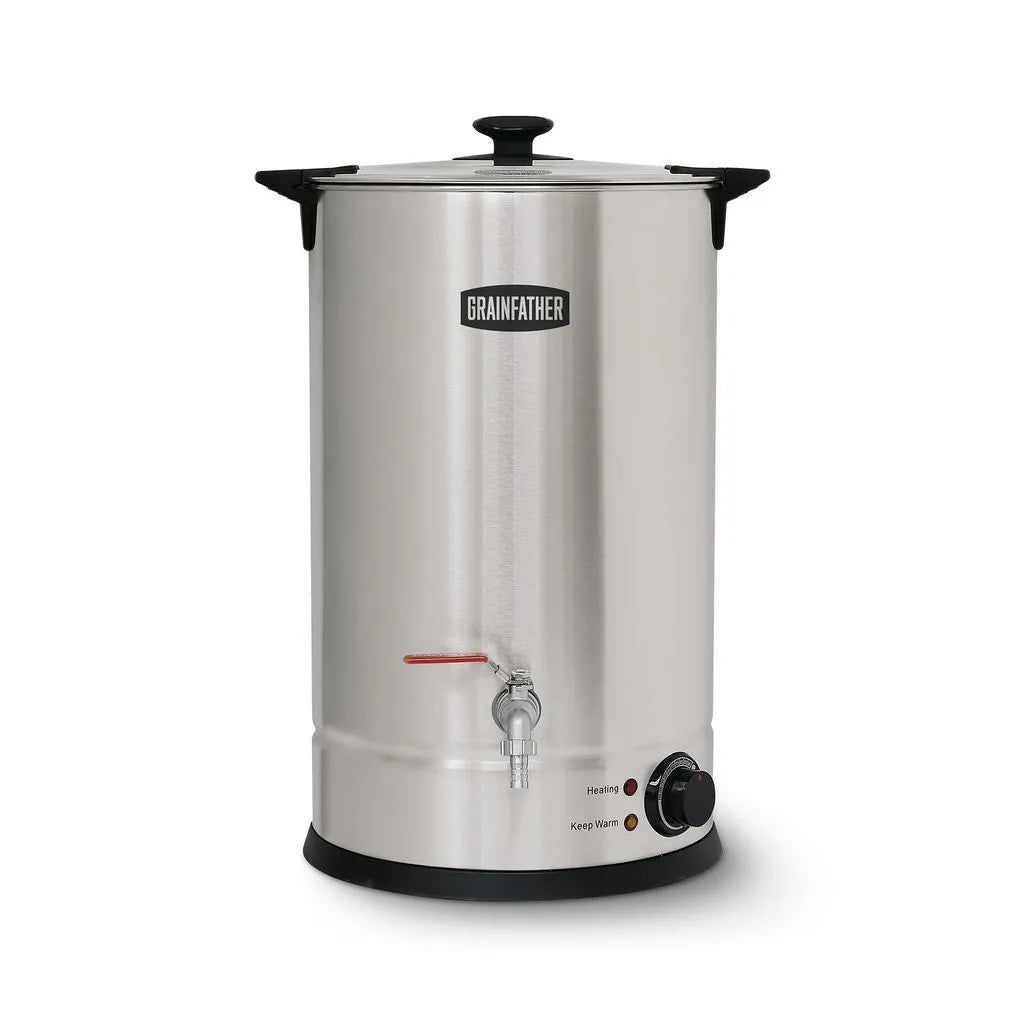

The Sparge Water Heater is a temperature controlled urn that allows you to heat up to 18 L of water making the brewing process even easier by having the right amount of sparge water heated to the right temperature ready at the time of sparge.

Start heating your sparge water when you begin the mash to ensure it is ready for when you need to sparge. Once water is at required temperature, it will hold that temperature until changed or turned off. Also comes with a sight glass, tap and heating lights.

NOTE: Graduations on the scale are measured from the tap.

Specifications

18 L Capacity
Stainless Steel Body
2 kw Element
Sight Glass (with 1 L graduations visible)
Tap
Temperature Control
Heating Lights (to indicate input temperature has been reached or is still being heated)

The 25L Sparge Water Heater is designed to be used with brewing systems of up to 40L, making it the perfect companion for the G40 or the G30. This temperature-controlled urn allows you to heat up to 25L of water in preparation to sparge, reducing the time and effort of heating additional sparge water during your brew, making your brew days even easier.

Specifications

• 304 grade stainless steel with a brushed finish.
• 25L capacity
• 2250W
• Heats up to 25L (6.6 US Gal) of sparge water in approx. 50 minutes.
• One piece structure for easy cleaning.
• Cool touch lid, with a twisted lock for safety purposes.
• Water gauge indication with an easy to use ball valve tap for dispensing water.
• 45-110°C variable thermostat to heat your water to the desired temperature.
• Heating lights to indicate when the temperature has been reached or still heating.
• Concealed heating element.

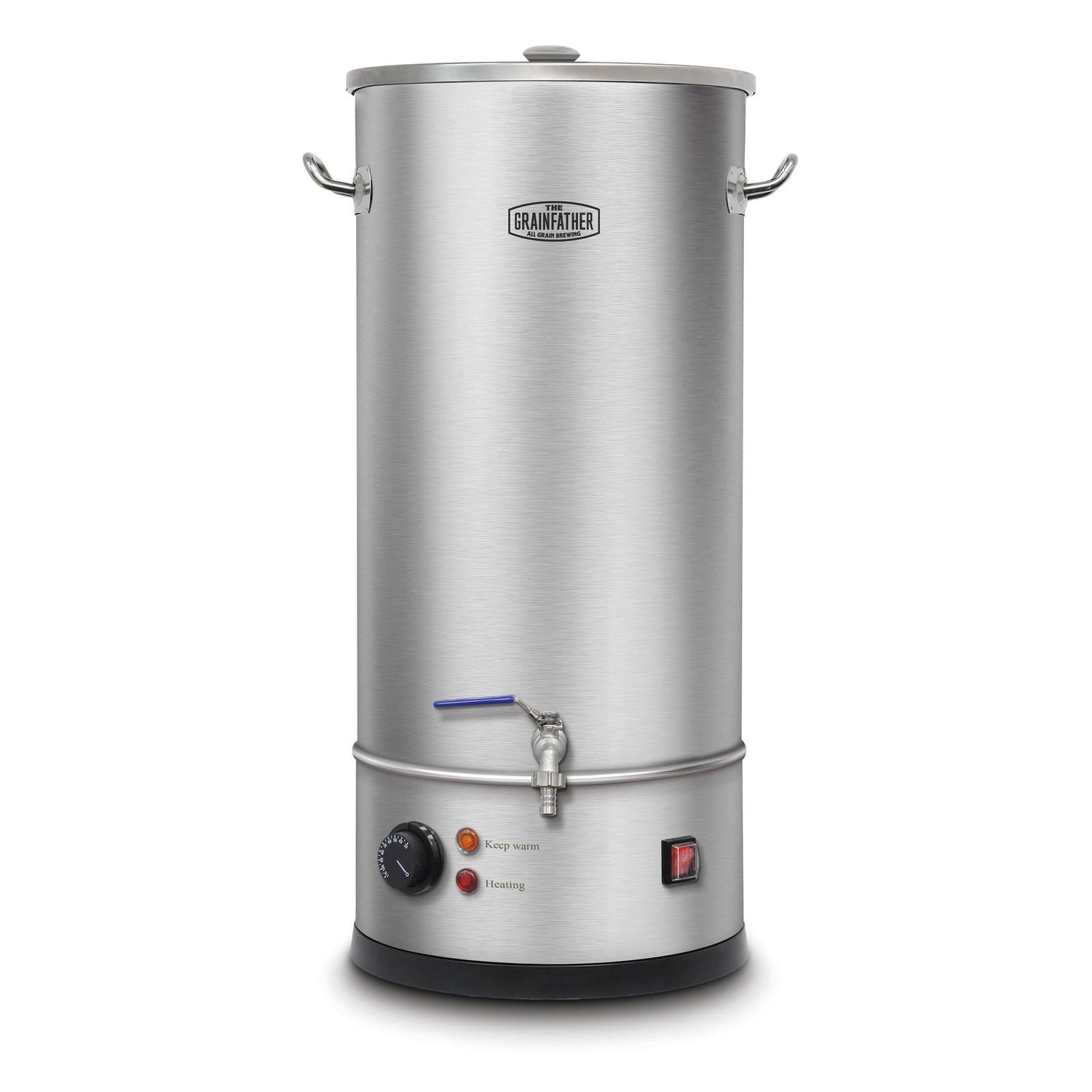

With the Grainfather Sparge Water Heater 40L, you can heat and keep up to 40L of sparge water at a specified temperature until it's needed. This means you can focus on the rest of your brew day, without having to worry about how or when you're going to heat a large volume of sparge water, and avoid the need to use 2 (or more) smaller volume heaters.

The unit heats up to 40L (10.6 US Gal) of sparge water in approx. 50 minutes, so you can simply start heating during the mash, and can forget about it until it's time to sparge.

Full Product Specs:

• Easy to read water level markings.
• Thermostat to heat water to your desired temperature, as well as boil.
• Easy to use ball valve tap for dispensing water.
• Heats up to 40 L (10.6 US Gal) of sparge water in approx. 50 minutes.
• 304 grade stainless steel.

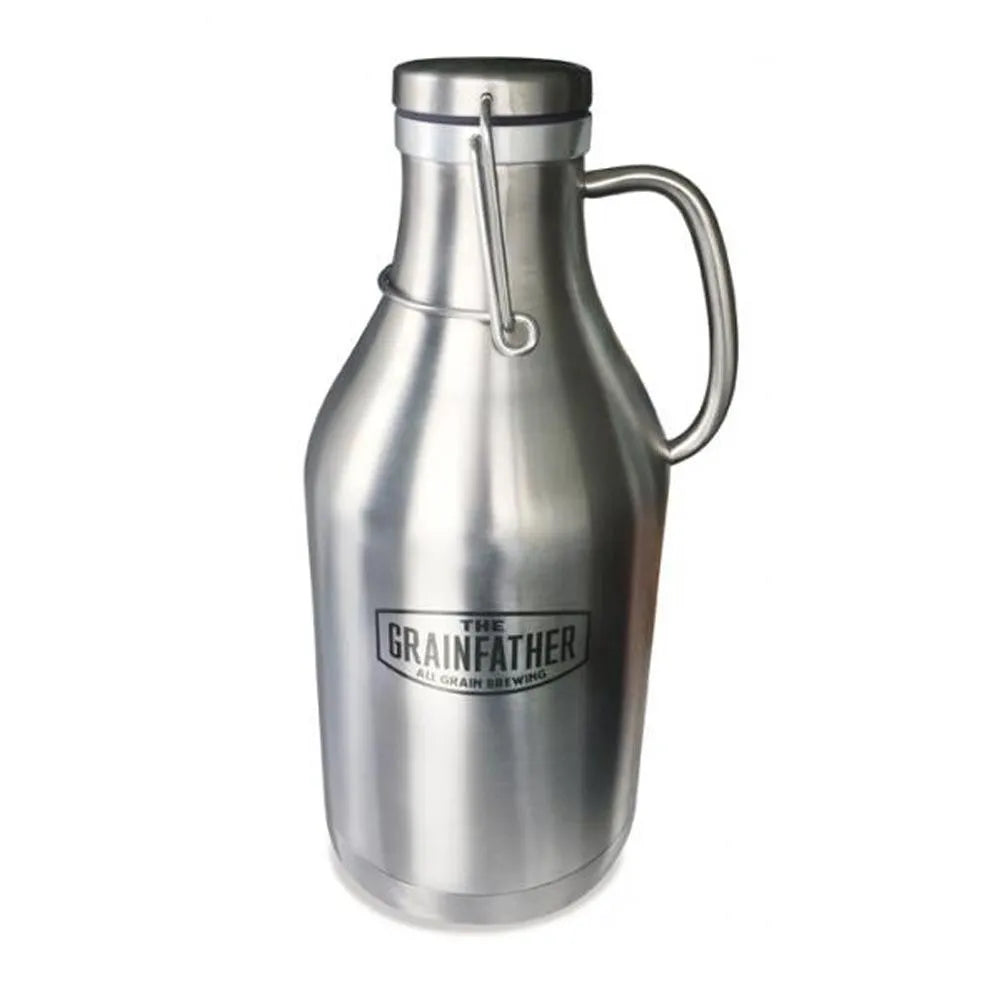

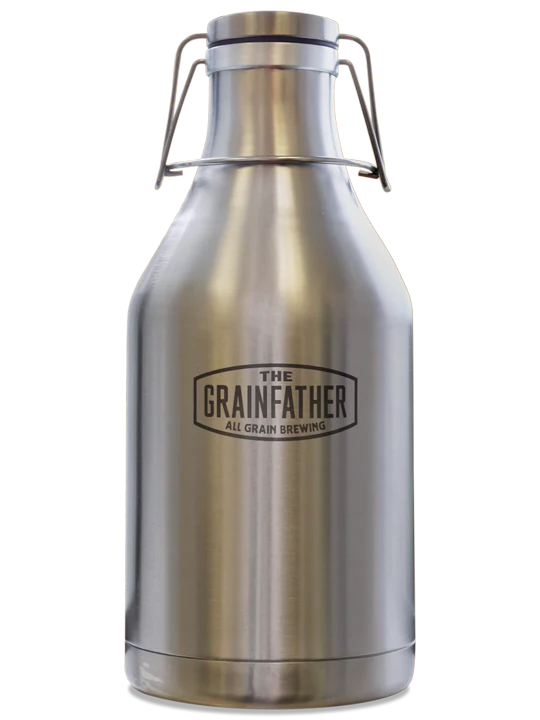

A great solution for taking 2 L of beer from your keg to wherever you need to go, be it inside or to the party or simply to the other side of the room!

Made from high grade stainless steel, and insulated to keep your beer chilled.

Specifications

304 grade stainless steel
Double walled with vacuum insulation
Flip top lid
2 L capacity

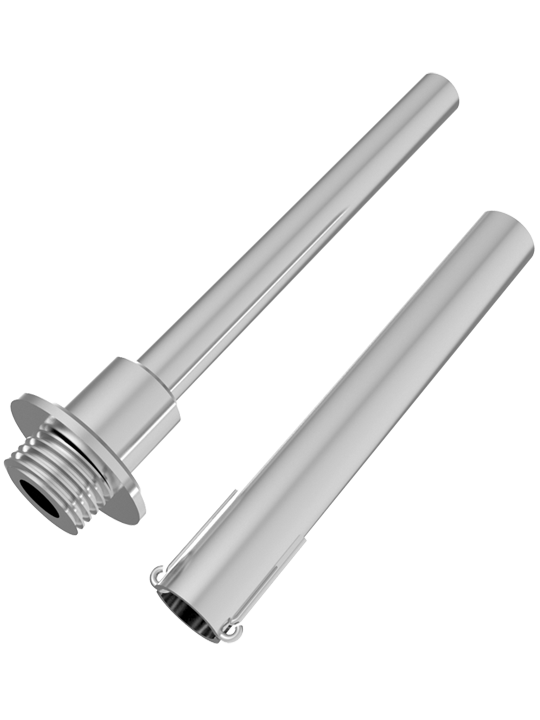

The Grainfather Thermowell consists of a tube closed at one end which can be fitted to a fermenter and allows for the Grainfather Fermentation Thermometer, or the GCA temperature probe to be inserted.

The Thermowell is fixed to the fermenter so that the closed tube is surrounded by the fermenter contents. The thermometer or temperature probe can then be inserted to can read the temperature accurately, without touching the liquid.

A 14mm hole in the fermenter is required for installation. The Thermowell is also a spare part for the SF70.

Includes:

• Thermowell
• Nut
• O-ring

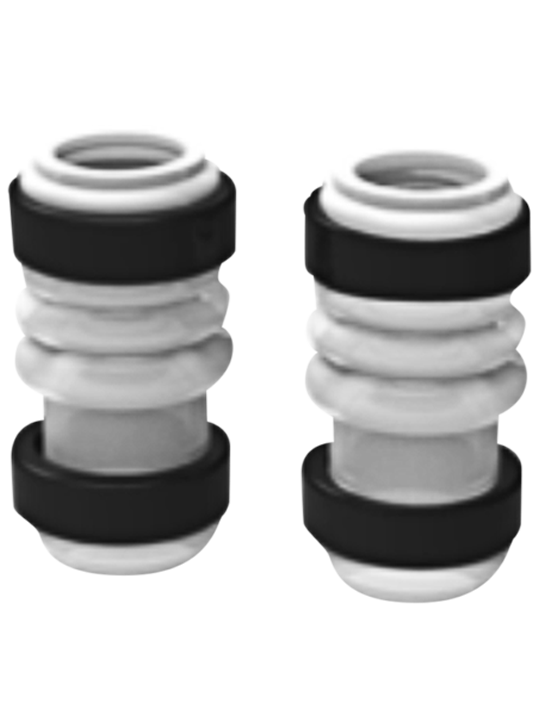

Replacement pump silicone tubes with fixing rings.

Whirlpooling and aerating is good practice before you pump the wort out of your brewing system. It infuses oxygen which promotes enhanced yeast activity and places the hops and protein back into suspension before the filtering process.

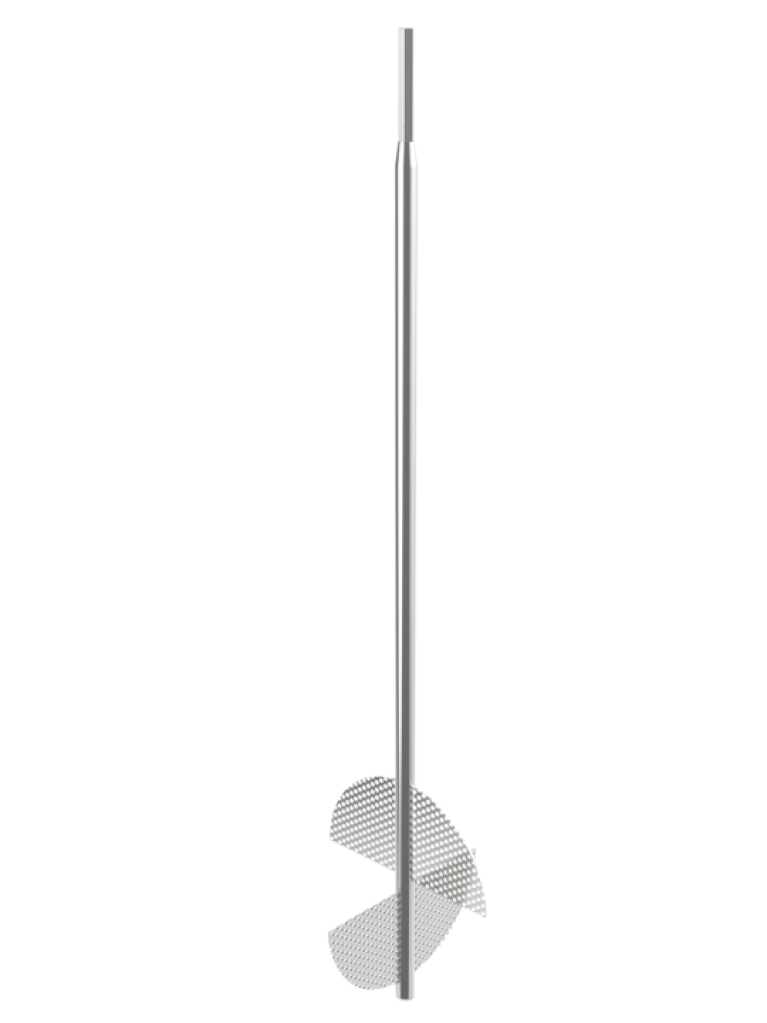

The Grainfather Whirlpool and Aeration Brewing Paddle provides an excellent whirlpool by allowing the perfect amount of liquids and solids to pass through its large blades. Just simply attach to a standard electric power drill via its ‘chuck bit’ styled end for relaxed aeration of your wort.

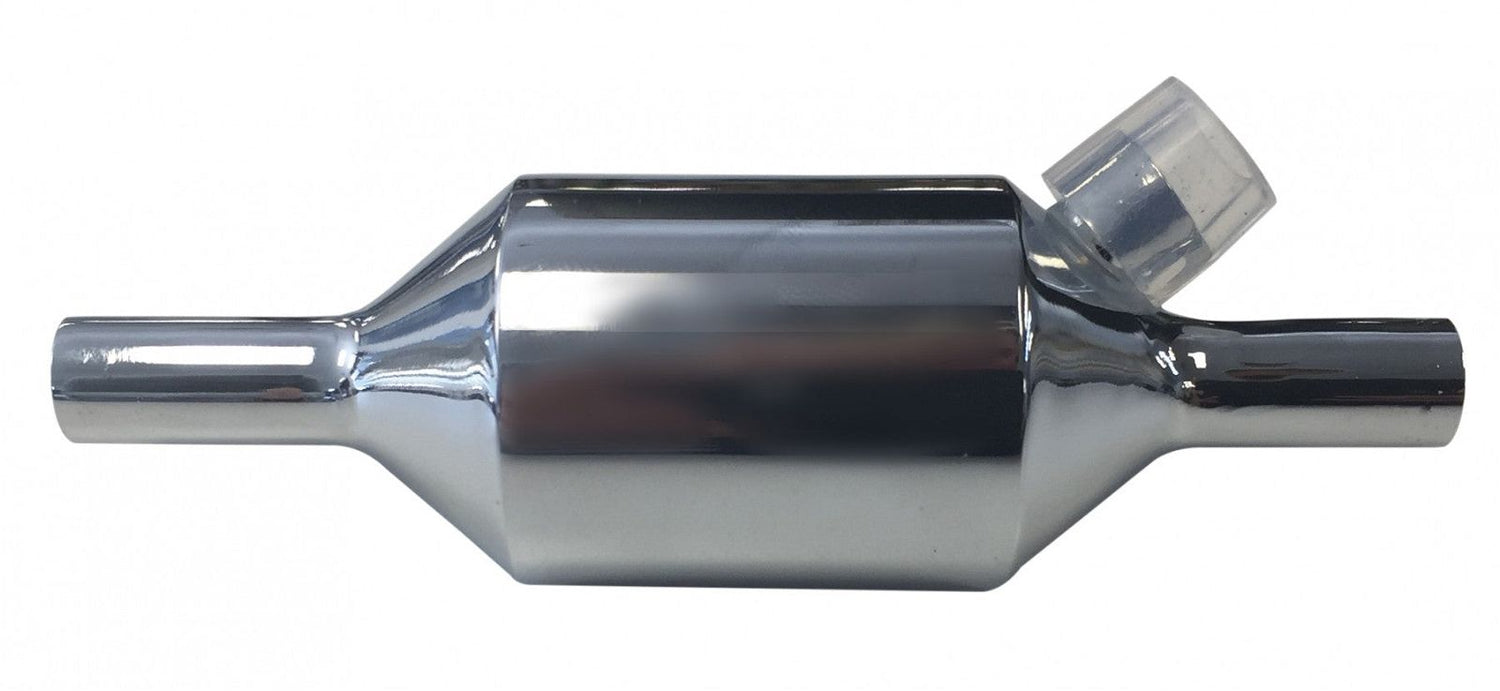

Use in conjunction with the Grainfather Connect Control Box thermometer, for accurate control of your wort transfer temperature through the Grainfather Counter Flow Chiller. Avoid long lag time and off flavours by using the Grainfather Wortometer. Adjust your wort and water flow rates from the Grainfather Counter Flow Chiller by dialling in the exact wort temperature your specific yeast requires.  Requires a 8 mm inner diameter silicon hose.

Click here to download the Wortometer Instructions.

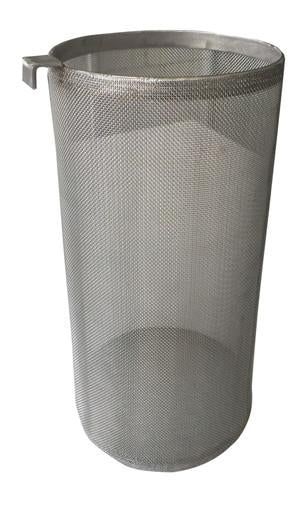

The Mangrove Jack’s Hop Spider keeps hops together during the boil. It can be used on all appropriate sized boil pots, including the Grainfather.

Made with a coarser, 800 micron mesh, for maximum wort flow and increased hop utilisation.

Specs
Diameter: 15 cm
Length: 30 cm
Material: 800 micron 304 grade stainless steel mesh, with stainless steel support band and single hook.
