A brewing heater belt that fits around your fermenter to provide steady and constant warmth for your brew. The 30 watts will gently warm without creating a hot spot, and can be moved up or down the fermenter to increase or decrease the heat transfer to the brew.
To further control the temperature of your fermentation, combine with a RAPT Temperature Controller or similar to regulate the heater belt automatically.
Note: fermenter not included.
From: Kegland
This Mangrove Jack's Heat Pad ensures constant brewing temperature which is crucial for the success of brewing beer, wine or spirits.
Heat Pad SpeCraft Series:
- Provides low, constant heat where it is needed for fermentation.
- Aids yeast activity and helps avoid stuck fermentation.
- Inexpensive to run.
- Voltage: 220-240V
- Power: 25W
- Colour: White
Digital instant read thermometer with folding probe.
A perfect pocket temperature probe for homebrewing and BBQ! Check the temperature of your mash, whirlpool additions, or use it to check the internals of that fine-looking lamb roast on the bbq! With a range of -50°C to 300°C you will be hard-pressed not to get a temperature reading.
Specifications:
- Range: -50°C ~ 300°C / -58°F ~ 572°F
- Resolution: 0.1°C
- Temperature Error: +-1°C (0~100°C)
- Power Supply: AG13 button battery x 1 (included)
Functions:
- ON/OFF
- °C/°F
- HOLD
From: Kegland

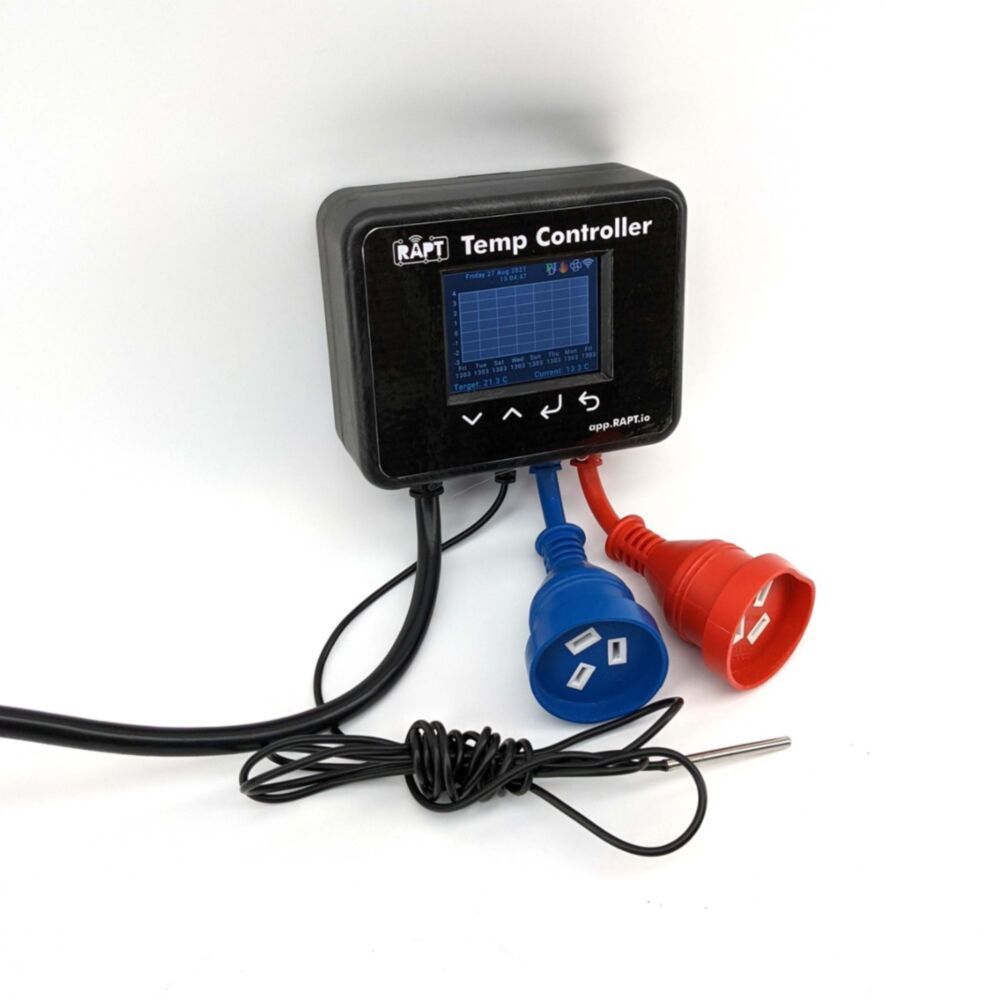

This RAPT wifi connected temperature controller box will enable you to monitor, track and control heating and cooling devices remotely through the internet. Set complex temperature profiles so the temperature will automatically change over time.
It connects with the RAPT web portal meaning that you can monitor, log and control the devices plugged into this temperature controller box remotely.
The colour screen clearly displays temperature, graphs of future and past temperature settings, and makes it much easier to perform profile temperature steps.
This plug and play temperature controller box has two clearly marked blue and red power sockets for heating and cooling so you can control a fridge or heating device at the same time to completely monitor and control the temperature. Each power outlet is rated to 10amp (2400 Watt max).
PID Included
This temp controller box comes with PID heating function often used for higher powered devices. This greatly reduces the chance of scorching and will deliver better temperature control with less fluctuation.
Temperature Range
The temperature range of this device will enable you to control devices from -20C and up to 120C.
Various Mounting Options
This innovative design enables you to panel mount this controller, mount to a hanging point or hook, mount on top of a fridge or brewery. Simply unscrew the mounting plate and switch the mounting to your preferred orientation.
RAPT Wifi Compatible
This product will connect with the https://app.rapt.io/ portal. This portal will enable you to monitor, control and log past temperature and also show a future projection of temperature profiles that you might have running.
The Google Play Android App can be downloaded via the link below.
https://play.google.com/store/
The Apple App Store RAPT App can be downloaded via the link below.
https://apps.apple.com/th/app/
"This app is a web mobile wrapper that allows you to browse the RAPT portal/website so that the website renders into a mobile device screen increasing usability on your device. It also gives you the added functionality of push notifications to your mobile device."
From: Kegland
Use in conjunction with the Grainfather Connect Control Box thermometer, for accurate control of your wort transfer temperature through the Grainfather Counter Flow Chiller. Avoid long lag time and off flavours by using the Grainfather Wortometer. Adjust your wort and water flow rates from the Grainfather Counter Flow Chiller by dialling in the exact wort temperature your specific yeast requires. Requires a 8 mm inner diameter silicon hose.
Click here to download the Wortometer Instructions.
The Sparge Water Heater is a temperature controlled urn that allows you to heat up to 18 L of water making the brewing process even easier by having the right amount of sparge water heated to the right temperature ready at the time of sparge.
Start heating your sparge water when you begin the mash to ensure it is ready for when you need to sparge. Once water is at required temperature, it will hold that temperature until changed or turned off. Also comes with a sight glass, tap and heating lights.
NOTE: Graduations on the scale are measured from the tap.
Specifications
18 L Capacity
Stainless Steel Body
2 kw Element
Sight Glass (with 1 L graduations visible)
Tap
Temperature Control
Heating Lights (to indicate input temperature has been reached or is still being heated)
Fermentation Heating Wrap Belt - With Velcro Strap (30watts) 220-240VAC (50-60hz)
Perfect heating solution for those who want more even coverage and absolute certainty that their PET fermenter will not melt even if the fermenter is empty.
Punching in at an ample 30 watts, this heating wrap belt is great when paired with insulation and a temperature controller box to dial in that optimum fermentation profile.
To further control the temperature of your fermentation, combine with a RAPT Temperature Controller or similar to regulate the Heating Wrap Belt automatically.
Features:
- Easy to use
- Handy velcro strap
- Low watt density
- Durable vinyl coating
- 30 watt gentle heating
- Great for fermenters or bottle conditioning
- Sit on top or wrap around your fermentation vessel
Dimensions: approx. 1000mm x 250mm
From: Kegland
These 304 Stainless 2200w weldless elements are designed to fit a 32mm hole inside the wall of your brewing vessel or boiler. It comes bundled with the power cord.
We do recommend using a RAPT Temperature Controller to run this element with the appropriate thermowell or temperature probe attachment.
These electric brewing elements are highly recommended for your HLT, or even for a HERMS or RIMS setup. Multiple elements may be required for larger volumes and depending on what temperature you are trying to achieve. If you are going to be using these elements directly in your mash tun, and will try to maintain temperature using the element, we would recommend getting a power control chip 3600w to modify the power output to the element. Too higher power directly in contact with your malted grain can cause scorching/off flavours as the temperature may not be evenly distributed and isolated purely around the element itself.
Element Length: approx. 300mm
Diameter: approx. 25mm
Thread: approx. 32mm
From: Kegland

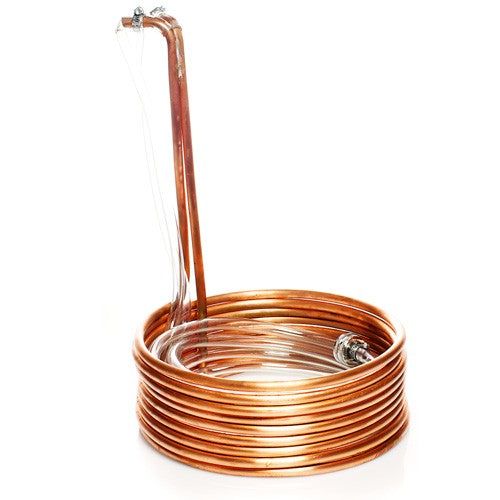

A copper immersion chiller is a great piece of equipment for all-grain and extract brewers to cool the wort at the end of the boil. It is immersed into the boiling wort at least 10 minutes before the end of the boil (this will help to sanitise the chiller, although it should be clean before being used) and attached to a cold water source.
When ready to cool the wort, turn on the cold water and it will flow through the immersion chiller and cool the wort.
To increase the rate at which the wort cools you can stir the wort to create a whirlpool. This will cause more of the wort to come into contact with the chiller and cool the wort faster. Make sure to sanitise whatever you use to stir the wort.
You could also use a pump (such as the MKII 25w High Temp Magnetic Pump) to create a whirlpool immersion chiller; made popular by award winning American home brewer Jamil Zainasheff. Here is a link to Jamil's site, Mr Malty, with more details.
An immersion chiller can also be used to pre-chill the cooling water. Just submerge the immersion chiller in an ice bath to to pre-chill the water that ultimately flows into another immersion chiller in the wort. This can be particularly helpful during summer when the groundwater temperature increases.
This chiller comes complete with a garden hose fitting on one end to connect to your garden or kitchen tap, and clear vinyl tubing.
Specifications
Copper Diameter: 3/8"
Copper Length: 25 feet (around 7.5m)
Outside diameter of coil: approx. 250mm
From: Krome Dispense
The DigiBoil (digital turbo boiler) is a quality made 304 grade stainless steel turbo boiler.
The 35 litre size is the total rated size to the brimful. If using the DigiBoil as a brew kettle do not fill to greater than 25L-30L to ensure you have sufficient head space to comfortably contain the hot break and avoid a boil over.
The boiler has a quality made stainless tap with stainless barb and 1/2 inch thread so you can attach the wide range of half inch fittings such as camlocks.
The unit comes with a concealed element for easy cleaning.
The digital display can be set from 0℃ and up to 140℃ with 1℃ increments and 1℃ resolution on the display.
The side of the boiler is pre-marked with graduations in litres and gallons that are accurate to +/- 1 litre.
- Litre and Gallon Graduations
- Stainless steel tap with barb and 1/2 thread
- Dual element control (so you can adjust the power from 500watts, 1900watts or 2400watts)
- Easy to use
- Great for use as a hot liquor tank, boiler, or hot water urn
- Concealed element for easy cleaning
- Can also be used for sous vide cooking
Want to save some power?
You can also purchase the neoprene jacket/parka that fits this unit here. This will reduce your heat loss by about 200-300 watts.
Temperature control is one of the most crucial elements for producing a good quality beer. It needs to be regulated and stable throughout the whole fermentation process to ensure the yeast doesn't get stressed and ferments correctly to get the right flavour profile.
To be able to cool with the Grainfather Conical Fermenter, you need to have the Conical Fermenter Temperature Controller. Then once your target temperature is below the temperature of the wort in your fermenter the Cooling Pump Kit pumps ice cold water through the double walled insulated interior to cool down your wort.
Simply connect the couplers and insulated hoses to the Conical Fermenter, submerge the submersible pump into a cooler box with water (add ice for your required temperature) and pump the liquid through the insulated cooling sleeve of the Conical Fermenter body.
Whats Included
Conical Fermenter Cooling Pump (submersible)
T-section power connector
2 x brass couplers
Specifications
Rated 12 VDC – 4.8 Watts
A bi-metal weldless thermometer with glass face. Ideal for fitting to your mash tun, hot liquor tank or kettle.
Features:
- Calibration screw so you can fine tune the temperature
- 304 stainless steel housing and probe
- ½” BSP thread and includes silicon and stainless steel washers.
- Temperature range -5C to 100C customised for brewing
Includes a slimline nut and 2 x silicone seals plus a stainless washer.
From: Kegland
Gen2 - 2400W Power Station 240V - Power Controller
The new and improved Generation 2 - 2400 watt Power Controller. Suitable for homebrewers, distillers and any other means of power wattage adjustment up to 2400 watt (standard 10 amp). If you do not know if your electrical device can be reduced in power without failing, contact the manufacturer or an electrician.
We highly recommend using this product with our 2200w Weldless Element. We do not recommend plugging this unit into anything higher than a 10amp plug. Therefore you cannot use a 3600w tri-clamp element with this unit. We should also point out that if you do use this on a BrewZilla or Digiboil, that you will only be able to reduce 10-30% worth of power before the display turns off. Once the display turns off, so do the elements.
Please note; we recommend using x1 element only per Power Station Controller. If you are looking to use multiple, please ensure you have multiple Power Controllers on different circuits. If you are unsure please ask an electrician or trained professional. DO NOT EXCEED 2400W WITH THIS CONTROLLER!
From: Kegland
The Temp Twister allows you to heat and cool your FermZilla or other fermenter or bright tank, ideally by combining with a glycol chiller. This coil can be adapted to fit any fermenter or bright tank that has an opening of 110mm diameter or larger. Simply drill to two 22mm holes in the lid of your fermenter and use the included Duotight bulkhead fittings to attach the coil to the lid of your fermenter.
Specifications
- Coil Diameter x Height: 11cm x 68cm
- High Material: 304 Stainless Steel Coil
- Thickness: 9.5mm OD (3/8")
- Coil Length: 6 meters
- Heat Transfer: With this coil submersed in liquid it will be able to absorb more than 250watts
From: Kegland
Ferment like never before! The Grainfather GF30 gives the brewer professional fermentation control, just like the commercial breweries. Fermentation is arguably the most important part of producing a good quality beer. A good fermentation environment starts with a clean and sterile fermenter, has a consistent controlled temperature base and exposure to oxygen is minimised. The Grainfather Conical Fermenter provides you with a modular system for all of this and more!
FEATURES:
Basic Cooling Pump Kit
The Cooling Pump Kit allows users of the Grainfather Conical Fermenter to control the fermentation temperature with cold water by pumping it through the double walled insulated interior.
Wireless Connectivity
The Conical Fermenter Pro comes with a built-in controller with wireless connectivity and digital display. This means you can connect the controller to the internet and the Grainfather App and track fermentation with automatic alerts and notifications from wherever have an internet connection.
Double Walled
A stainless steel double walled skin is filled with a thick layer of polyurethane foam for insulation. This is what keeps the wort at a constant stable temperature with minimal influence from any external environmental temperature changes, providing insulation for your fermentation that a standard jacket cannot achieve.
Integrated Gentle Heating
In the cavity of the fermenter between the outer body and cone sits a 30 Watt, 12V heating element. Unlike standard heating elements/sources that directly heat the liquid, this heat source is designed to heat the environment in between the walls of the fermenter, which in turn heats the liquid. It is similar to controlling the temperature in a temperature controlled room. The fermenter acts as an artificial environment which can be heated, meaning the temperature is raised in an even and controlled manner which is much better for the yeast.
Integrated Cooling Sleeve
In between the two stainless steel walls sits a cooling sleeve (also made of stainless steel). This cooling sleeve is welded onto the inner wall of the fermenter and can be hooked up to the additionally purchased Glycol Chiller. Temperature is dialed into the Temperature Controller and as the cooling liquid travels through this sleeve, it cools the stainless steel which in turn evenly cools the beer in the fermenter. The cooling sleeve never comes into contact with the beer, it is completely concealed, built into the fermenter and never needs cleaning or sanitising - a true innovation for a fermenter of this scale.
Easy Access to the Interior for Hassle Free Cleaning
The Grainfather Conical Fermenter has a smooth interior with no additions such as cooling coils or additional sampling valves meaning it is easy to clean and minimises the risk of infection.
Golden Angle Conical
The conical shape of the fermenter is typical for professional breweries. Our conical has been designed with the 'Golden Angle' of 60º. This is the optimum angle for yeast and sediment to drop down to the bottom of the cone without getting stuck to the sides, allowing you to transfer from above the sediment line, resulting in clearer beer. The conical shape also allows for better mixing during fermentation due to the path of convention currents that it enables to occur.
Dual Valve Tap
Make the yeast dumping, transferring and sampling process more professional with this innovative all in one valve. Sampling and transferring is done through an inlet above the sediment line, allowing for clear, sediment free beer. Easily collect your yeast from below the sediment line with the same unique valve for re-cultivating and pitching. The innovative design of the valve allows for this dual functionality and less cleaning for you.
Support
The Grainfather Conical Fermenter is fully supported around the world by a fantastic support team who love brewing just as much as you do. Our support team is here for any technical enquiries on brewing or how the Conical Fermenter works, as well as general customer service enquiries. All Grainfather Conical Fermenters come with a 24 month warranty.
Whats Included
Conical Fermenter
Fermenter Lid
Rubber Bung
Bubbler Airlock
Cone Plug
Cone Plug Seal
5 cm (2") Tri Clamp
Built in Wireless controller
Powder Adapter and Wall Plug
2 m (6.5 ft) M12 3-Pin Power Cord
Dual Valve Tap
Digital Temperature Controller
Specifications
304 Stainless Steel Body (polished inner and brushed outer)
30 L (8 US Gal) capacity (volume markings on inner body up to 25 L (7 US Gal)
30 W, 12 V heating power
Built in Wireless controller
3.8 cm (1.5") ferrule on lid (for pressure transfer attachments)
5 cm (2") ferrule on bottom of cone
Dual Valve Tap with 110 mm (4.3”) inlet
Dimensions of Conical Fermenter:
Diameter with handles: 360 mm
Height (without airlock): 910 mm
Height with bubbler airlock: 1090 mm
Dimensions of Carton
The Grainfather counterflow chiller is used after boiling the wort to cool it down fermentation temperature. The counterflow does this by acting as a heat exchange between the wort and water from your tap as you transfer the wort from your boil kettle to your fermenter. Because this is a one-step process of transferring and cooling, it is more efficient and more sanitary than immersion chillers, and the curved design allows for similar performance to plate chillers without the crevasses that can make cleaning painful.
Features
- One step transferring and cooling
- Fast cooling time to within 3C of source water temperature.
- More sanitary transferring
- Copper inner coil for high heat exchange
- Compatible with a range of brewing systems
Includes
- Counterflow chiller
- G30 connector
- 9mm right angle hose barb connector for G40, G70 and other brew systems
- Tap adapter set for connection to garden hoses and most faucets
Specifications
- Copper inner coil
- 9mm ID inlet and outlet hoses
- Colour coded hoses for inlet and outlet water
This digital turbo boiler is a quality made 304 grade stainless steel turbo boiler.
The 65 Litre size is the total rated size brimful, so typically if you are using this as a beer boiler you would probably only fill it up to 50-60L so you had 5-10 litres of head space to boil comfortably.
The boiler has a quality made stainless tap with stainless barb and 1/2inch thread so you can attach the wide range of other half inch fittings such as camlocks and many other fittings that we can supply.
The unit comes with a concealed element for easy cleaning.
The digital display can be set from 0℃ and up to 140℃ with 1℃ increments and 1℃ resolution on the display.
The side of the boiler is pre-marked with graduations in litres and gallons that are accurate to +/- 1 litre.
- Litre and Gallon Graduations
- Stainless steel tap with barb and 1/2 thread
- Triple element control (so you can adjust the power from 500watts, 1000watts, 1500watts, 2000watts, 2500watts, 3000watts and 3500watts! )
- Easy to use
- Great for use as a hot liquor tank, boiler, or hot water urn
- Concealed element for easy cleaning
- Can also be used for sous vide cooking
Dimensions: 42cm diameter x 74cm high
You can also purchase the neoprene jacket/parka that fits this unit here. This will reduce your heat loss by about 200-300 watts.
Note: Out of the box this unit needs a 15amp power socket. With that said you can convert this to a 10amp compatible device in two different ways. You can either:
1. Purchase a device like an Ampfibian Mini 15amp to 10amp adaptor. If you do this you will be able to run the Digiboil, however if you turn on all three elements you will trip the circuit breaker. For this reason you will only be able to use a maximum of 2 of the elements. (not all three)
2. Alternatively you can remove the cord and replace the cord on this device with a 10amp cord, but if you do this you will need to disconnect the larger element resulting in 1300watts less power.
Infrared Thermometer Gun -50C to +580C (Black)
This thermometer gun has a built-in Dual laser that can be switched On and Off. Dual laser is an important feature when choosing infrared thermometers because it allows for much higher accuracy of readings. When measuring an object a Dual Laser will help greatly in finding the convergence point of the measured target and the spot ratio, which can only be achieved with Dual Laser.
Features:
- Double Laser pointer for accurate target aiming
- Simple one-handed operation
- Laser ON/OFF Switch
- Low battery indication
- LED backlight system for operation under poor illumination
- C° / °F temperature unit conversion
- Automatic Power off in 15 seconds without any operation
- Display hold, scan function
Note:
1. When using this product to measure temperature, consider the ratio between the distance (the length from the product to the measured object) and the size of the measurement area, referred to as the object distance ratio. When the distance between the product and the measured object increases, the measurement area will increase accordingly.
2. If you want to use boiled water to measure the quality of the product, please note that when measuring boiling liquids, do not allow smoke or water vapour to contact the temperature sensing area, and keep the measurement angle at 45 ~ 60 degrees.
Specifications:
- Temperature Range: -50 to 550°C
- Accuracy: ± 2% or 2°C
- Distance Spot Ratio: 12:1
- Emissivity: 0.1~1.0(Adjustable)
- Response Time Wavelength: 500ms & (8-14) um
- Repeatability: ± 1% or 1°C
- Resolution: 1°C or 1°F
- Storage Temperature: -20-50°C
- Operating Temperature: 0-50°C
From: Kegland
The Create+ Voltage Controller allows for better control of cuts during a spirit run. Reducing the heat input using the voltage controller will allow for a slower controlled distillation; this makes it easier to distinguish between heads, hearts and tails. Especially useful during pot distillation or vapour infusion spirit runs.
It also allows for the ability to then increase heat input as the distillate output slows towards the end of a run. This is especially useful towards the end of a pot distillation run during the ‘tails’ of a spirit run.
Designed for use with the Create+ Boiler 25 L. Electrical Safety Certified for use in New Zealand and Australia.
Specification
- Power rating: 2400W
- Plug rating: 250V AC, 10A
- Socket rating: 250V AC, 10A
- Max output current rating: 10A
- Product rated supply voltage : 220 - 240V AC
- Rated supply frequency: 50/60 Hz
- Size: 150 x 160 x 90 mm (approx.)
- Weight: 800 g
- Warranty: 12 months
This item is not held in stock and is ordered in on request. Please contact to check availability and shipping cost.
RAPT Temperature Controlled Fermentation Chamber
This fermentation chamber has been designed to heat and cool your entire fermenter. This is the ideal scenario as the whole fermentation vessel is placed in a temperature controlled environment which gives you the most even temperature and most precise control of your fermenter.
Many home made products can greatly be improved with perfect temperature control. The RAPT Temperature Controlled Fermentation Chamber gives you an electrically efficient means of setting, monitoring and controlling temperature which is perfect for Beer Making, Wine Making, Salami Making, leavening bread, fermenting yogurt, kombucha, germinating seeds, growing sprouts, kimchi, sauerkraut, olives, cheese, making spirit washes. Accurate temperature control is the key to getting reliable and repeatable results.
From -2°C up to 50°C all at the touch of your fingertips!
The control panel comes complete with an integrated colour TFT screen, the integrated secondary regulator that can be used to regulate gas into the chamber with our Inline Regulator with an integrated gauge or alternatively this can be switched over to the Gauge integrated BlowTie unit to regulate residual pressure in your fermenter. The 4 button colour display conveniently shows a log of historic temperature graphs, allows you to start, set/stop temperature profiles and gives you access to other critical information for that particular fermentation.
For more accurate readings of the core temperature of your fermenter. We highly recommend using a thermowell like our 60cm duotight thermowell with the 2m probe extension for the RAPT Fermentation Chamber.
Perfect as a Kegerator too!
This multi purpose chamber can also be used as a kegerator. In particularly cold climates where the ambient temp is below zero, this chamber can warm your kegs and prevent them from freezing. This chamber also has a higher keg storage capacity than a conventional kegerator that takes up the same footprint. This unit can hold 4 x 19L kegs on the floor and has enough headroom that you can also fit another layer of 9.5L half size kegs above this. To fit beer taps, you can drill your own holes through the door.
Convert to Display Chamber
This Chamber comes with brushed stainless steel PU foam-filled door. If you want to upgrade to a glass door the double glazed glass door can be purchased separately and switched over - coming soon.
What is RAPT?
RAPT is a dedicated Internet of Things (IOT) Hub for fermentation logging and control. It's a free service whereby any RAPT enabled product can both log and store data to the hub where you can conveniently access this data. The RAPT hub can also allow you to control your devices remotely giving you absolute control of the device irrespective of where you are. The RAPT portal enables you to make complex temperature profiles that involved different temperature settings over time meaning you can start/run a temp profile giving you a set and forget experience. The RAPT portal also controls the alert/notification process for you so you can receive email notifications in the off instance that something doesn't go to plan.
Specifications:
Integrated Heating: 50watt Heating Power
Cooling Capacity: 300watt Cooling Power
Max Power Consumption: 225 Watts
Refrigerant: r600a
Connectivity: Wifi (802.11) and Bluetooth
Temperature accuracy: +/- 0.1C
Temp Resolution: 0.1C
Integrated Screen: 2.8inch (diagonal) 320 x 240 Colour LCD TFT Active Matrix
External Dimensions:
Width: 540mm
Depth: 610mm
Height: 1760mm
Internal Dimensions:
Width: 440mm
Depth: 500mm
Height: 1300mm
To see the dimensioned drawings on this part click here.
Why buy an insulated fermentation chamber over a glycol chiller?
Typically in the past, some customers have needed to resort to glycol chillers to chill fermenters but this represents several issues:
- Glycol chillers often require a very cold liquid to enter into a fermenter causing an excessively cold part in the fermenter core.
- Glycol chillers consume significant amounts of power and in most instances more than double what this chamber would consume.
- Glycol chillers often result in spilling sticky glycol especially when hoses are connected and disconnected to the fermenter.
- Glycol chillers generally require penetrations through the walls/lid of the fermenter making the fermenter less sanitary and requiring more cleaning. "who needs that!"
- Often fermenters are not made with sufficient insulation. So when using a glycol chiller much of the chilling is lost which is not only power inefficient but the customer ends up with a large temperature gradient. This temperature gradient can result in convection currents in the fermenter that make it difficult for yeast and other solids to settle out of suspension. So clarification of the beer takes significantly longer.
- Many glycol chillers and fermenter combinations do not have sufficient power or are not well enough insulated to cool to sub-zero temperatures. So crash chilling is not possible. This is a significant compromise to a temperature-controlled solution and also results in less ability to clarify the finished beer.
For these reasons KegLand has developed the worlds first dedicated RAPT enabled fermentation chamber that can cool down to -2C and heat up to 50C even in hot and cold weather.
The Google Play Android App can be downloaded via the link below.
https://play.google.com/store/
"This app is a web mobile wrapper that allows you to browse the RAPT portal/website so that the website renders into a mobile device screen increasing usability on your device. It also gives you the added functionality of push notifications to your mobile device."
From: Kegland
The 25L Sparge Water Heater is designed to be used with brewing systems of up to 40L, making it the perfect companion for the G40 or the G30. This temperature-controlled urn allows you to heat up to 25L of water in preparation to sparge, reducing the time and effort of heating additional sparge water during your brew, making your brew days even easier.
Specifications
- 304 grade stainless steel with a brushed finish.
- 25L capacity
- 2250W
- Heats up to 25L (6.6 US Gal) of sparge water in approx. 50 minutes.
- One piece structure for easy cleaning.
- Cool touch lid, with a twisted lock for safety purposes.
- Water gauge indication with an easy to use ball valve tap for dispensing water.
- 45-110°C variable thermostat to heat your water to the desired temperature.
- Heating lights to indicate when the temperature has been reached or still heating.
- Concealed heating element.

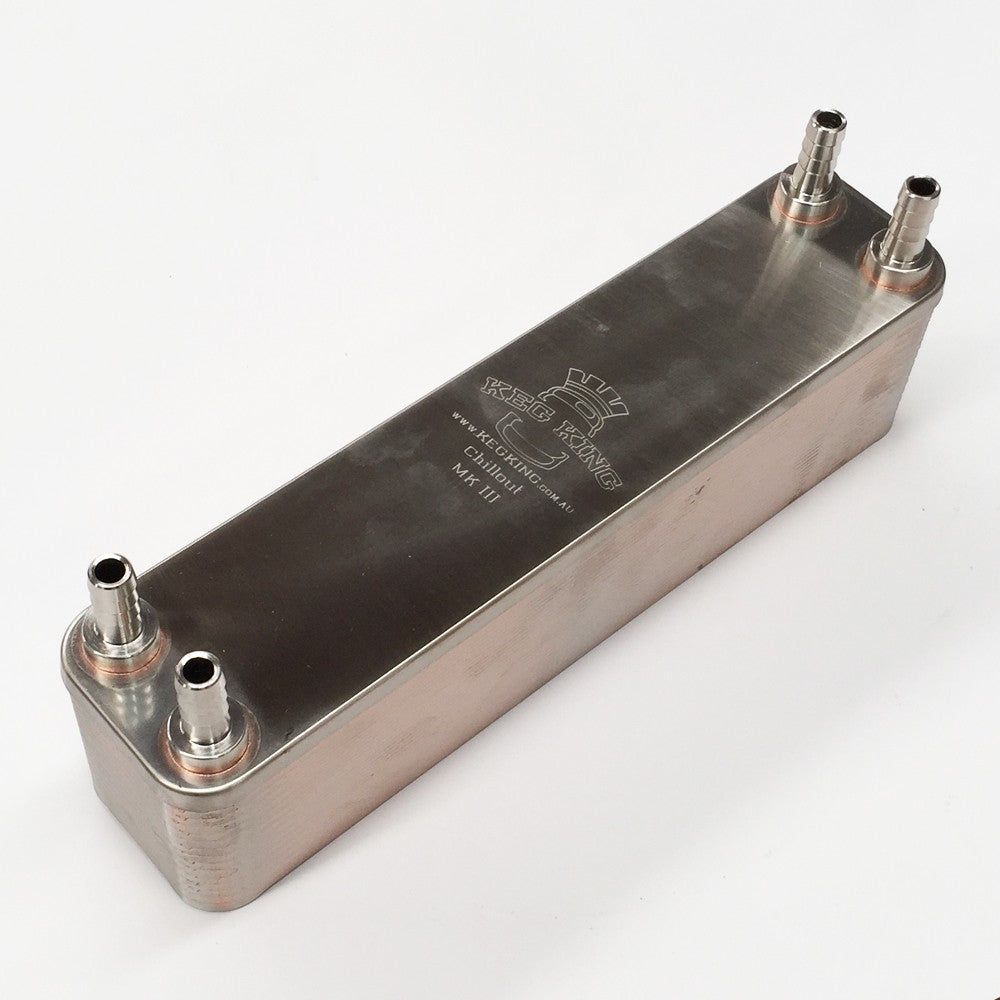

Chillout Threaded MKIV - Counterflow Chiller - 30 Plate Heat Exchanger.
The Chillout MKIV, now with new and improved male 1/2" threaded posts is the fastest way to chill your wort to yeast pitching temperature to get your fermentation off to a quick healthy start.
The Chillout is made from stainless steel and brazed together with pure copper. It also has ripples up and down each plate. This creates more surface area and improves heat transfer.
To clean connect water to supply to the port where your wort was coming out and backflush the unit for a few minutes to ensure that any residue has been completely washed out.
Remember to sanitise either with boiling wort, or a short flush with StellarSan before use. Do not clean with StellarSoda or leave Phosphoric Acid based sanitisers left to store inside the plate chiller.
If you require mounting bolts (two spots on the rear), please use a M5 bolts (not included).
Dimensions: 315mm x 73mm x 51mm (not including threads)
From: Kegland
This item is not held in stock and is ordered in on request. Please contact to check availability and shipping cost.
Don’t leave your fermentation to chance, leave it to the GC2. Produce consistent beers every time with accurate temperature control of up to two fermenters.
Control and power up to two fermenters at different temperatures and fermentation schedules. Compatible with the Grainfather App when connected to Grainfather G SERIES fermenters or the GCA Glycol Chiller Adapter for most other fermenters to manage your fermentation from anywhere via Wi-Fi.
By accurately controlling the temperature of your fermentation, you can produce consistent beers, every time.
FEATURES:
- Control and power up to two fermenters at different temperatures and fermenting schedules.
- Use with the GCA Glycol Chiller Adapter to connect to the Grainfather S SERIES range of fermenters or most other fermenters.
- Sleek and compact design with LED control display
- Compatible with the Grainfather App when connected to a Grainfather G SERIES fermenter or the GCA for managing your fermentation from anywhere via Wi-Fi
- Backed by a 3-year warranty
WHATS INCLUDED
- GC2 Glycol Chiller
- Propylene glycol*
- 2 x cooling connection couplers*
- 2 x 2m insulated hoses*
- Glycol funnel
- Silicone tubing for priming pump
*Packed separately
SPECIFICATION
SIZE:
- 583 x 320 x 363mm (23 x 12.6 x 14.6”)
WEIGHT:
- 19.5kg (71.5lb)
CAPACITY:
- 3L (0.8 US Gal) glycol tank
POWER
- NZ/AU/EU/UK: 180W, 220V
- US: 160W, 110V
CONNECTIVITY
- None*
*Wi-Fi control available when used with G SERIES fermenters or the GCA.
Note: The instructions for the Glycol Chiller will be attached to the outside of the shipping box. It is important that you retain these, do not throw them away and read them carefully before use to ensure no damage occurs to the unit. If these for any reason are not included with your purchase, we highly recommend you download a new copy via the instructions tab on this page and read them carefully.
Warranty:
There is 36 month warranty for Glycol Chillers.
IMPORTANT PLEASE READ: Make sure the chiller has been standing upright for at least 24 hours before turning it ON. Before using the Glycol Chiller, you must prime the pump by carefully following the instructions
This item is not eligible for free shipping.
This item is not held in stock and is ordered in on request. Please contact to check availability and shipping cost.
Control your fermentation temperature accurately, every time!
Temperature control is one of the most crucial elements for producing a good quality beer. It needs to be regulated and stable throughout the whole fermentation process to ensure the yeast doesn't get stressed and ferments correctly to get the right flavour profile.
With the ability to individually power and control the temperature of up to four Grainfather Conical Fermenters, each with their own fermenting schedules, the Grainfather Glycol Chiller is the perfect addition to ensure superior fermenting results.
Design:
With a sleek and compact design, that still accommodates our full array of features, the Glycol Chiller maintains the Grainfather’s principle of providing quality home brewing equipment, that deliver’s craft brewery like results, with a small footprint.
With the addition of the Glycol Chiller, your system is operating at the ultimate level and you are even able to cold crash and lager down to 4-6ºC (39-43°F). The Glycol Chiller connects to a hidden cooling sleeve, located in between the two stainless steel walls of the Conical Fermenter. Your desired temperature is dialed into the digital temperature controller on the Conical Fermenter, the liquid then travels through this sleeve, cooling the stainless steel which in turn cools the beer in the fermenter. The cooling sleeve never comes into contact with the beer, is completely concealed and does not need cleaning or sanitising - a true innovation for a fermenter on this scale.
Features:
- Allows you to cold crash 23 L (6 US Gal) of wort to as low as 4-6ºC (39-43°F). Minimum temperature will vary based on external factors such as ambient room temperature, the number of fermenters connected and other environmental conditions.
- Cools and powers up to 4 Conical Fermenters at different temperatures and fermenting schedules.
- Includes propylene glycol to get you efficient cooling for your fermenter right away.
Note: The instructions for the Glycol Chiller will be attached to the outside of the shipping box. It is important that you retain these, do not throw them away and read them carefully before use to ensure no damage occurs to the unit. If these for any reason are not included with your purchase, we highly recommend you download a new copy via the instructions tab on this page and read them carefully.
Warranty:
There is 36 month warranty for Glycol Chillers.
Includes:
- Glycol Chiller
- Wall outlet power cord with plug
- 2 x cooling connection couplers
- 2 x 2 m (6.5 ft) insulated hoses
- 1 x Glycol Funnel
- 1 x silicon tube for priming pump
- 1 x 3 L (3 US qt) propylene glycol
NOTE: When you receive your unit, you will need to fill it up with a propylene glycol mixture. Refer to the instructions provided with the Glycol Chiller for mixing, filling and pump priming information.
Specs:
- LED display
- 6 L (1.5 US Gal) glycol tank
- 300 W
- 220 – 240 V, 50Hz
- 390W x 450D x 656H (mm)
- Weight: 28.3 kg (62 lbs)
IMPORTANT PLEASE READ: Make sure the chiller has been standing upright for 24 hours before turning it ON. Before using the Glycol Chiller, you must prime the pump by carefully following the instructions
This item is not eligible for free shipping.
The GCA Kit makes accurate temperature control more accessible for brewers. Whether you have a plastic or stainless steel fermenter, bucket or barrel, or even a conical, this kit has everything that you need to connect your fermenter to the Grainfather Glycol Chiller (sold separately).
It comes with a Glycol Chiller Adapter (GCA), heating pad, cooling coil, rubber bung, 4 x rubber bung stoppers, 2 x hose clamps and 2 x cooling connection hoses. The GCA also has wireless capabilities, making it compatible with the FREE Grainfather App, so you can control your fermentation temperature from anywhere.
Simply assemble the cooling coil and bung, and place this inside your fermenter. Attach the hoses to the cooling coil using the hose clamps and then also connect the other end of the hoses to the Glycol Chiller. Attach the heating pad and the temperature probe to the fermenter and then connect both cables to the GCA. Plug the power cord into the GCA, then connect the other end of the cord to the Glycol Chiller. Once set up and connected, the cooling coil and heating pad will regulate cooling and heating as required.
Now everyone can benefit from accurate temperature control and create even better beers!
View the Glycol Chiller Adapter Kit instructions online
3600 Watt Stainless Steel Heating Element with 2 inch tri-clamp (220-240v)
It can be fitted to a 2" tri-clamp ferrule. It does have a water-resistant screw element guard. This was produced to be used with the 118L Kegmenter that has 2" ferrules.
It is highly regarded as a popular and reliable element for distillers and homebrewers.
This element is to be installed by a professional electrician with a 15amp Cord.
From: Kegland
With the Grainfather Sparge Water Heater 40L, you can heat and keep up to 40L of sparge water at a specified temperature until it's needed. This means you can focus on the rest of your brew day, without having to worry about how or when you're going to heat a large volume of sparge water, and avoid the need to use 2 (or more) smaller volume heaters.
The unit heats up to 40L (10.6 US Gal) of sparge water in approx. 50 minutes, so you can simply start heating during the mash, and can forget about it until it's time to sparge.
Full Product Specs:
- Easy to read water level markings.
- Thermostat to heat water to your desired temperature, as well as boil.
- Easy to use ball valve tap for dispensing water.
- Heats up to 40 L (10.6 US Gal) of sparge water in approx. 50 minutes.
- 304 grade stainless steel.
The Grainfather digital Temperature Controller replaces the temperature display. With this you can control the heating and the cooling (if you have the Grainfather Glycol Chiller) of your fermenter by dialing in a temperature or even setting a temperature schedule (can set up to 5 stages). This snaps on easily via magnets and pogo pins with no extra cords or clutter.
Specifications
Control the heating element and Glycol Chiller (available separately)
Choose between imperial and metric (C° & F°)
Total of 4 fermentation profiles with up to 5 steps each (2 are pre-set for a lager and an ale, 2 are custom)
Hysteresis is customisable and able to be set at 0.1 intervals between a range of 0.1°C – 1.9°C & 0.2°F - 2.9°F (the default setting is 0.5°C)
