The Create+ Vented Collection Cup is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel Vented Collection Cup integrates into a modular distilling system, facilitating the secure connection of distillate collection tubing while allowing safe venting of pressure during the distillation process.

Key features:

• Connects to 2" tri-clamp distilling accessories
• 304 grade sainless steel construction
• High temperature resistent food grade silicone

INSTRUCTIONS: Insert Collection Cup into your distilling system, ensure the vent weld is at least horizontal so that distillate flows out of the barbed tube, place a silicone gasket in the tri-clamp connection and secure with a tri-clamp.

CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.

CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.

CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.

WHATS INCLUDED

• Vented Collection Cup with Ø10 mm Barbed Tube and Vent Port
• 2" Tri-clamp
• 2" Silicone Gasket

SPECIFICATIONS

• Dimensions: H 11.3 cm x W 7.1 cm x D 5.1 cm
• Vent port/tube Ø12 mm
• Barbed tube Ø10 mm
• Weight: 0.170 kg

NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:

• A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
• A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.

We recommend external support if:

• Your column & condenser exceeds the above specifications.
• The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
• If the column & condenser is noticeably leaning.

The Botanical Basket can be used to infuse your spirit with botanical flavours from the Gin Botanicals range or your own ingredients. Simply use one of the Gin Botanicals packets, or your own botanical recipe, add the ingredients in the basket for your own unique brand of spirits!

Simply make your spirit wash as normal, perform the Stripping Run, then during the Spirit Run put your botanical ingredients into the Botanical Basket, screw the basket on to the Pot Still Alembic Dome Top and Pot Still Alembic Condenser, or Turbo 500 Condenser (by removing the saddles) and run your spirit through.

In the Gin Botanicals Kit, you'll receive the Botanical Basket and Gin Botanicals London Dry Gin Style packet.

By simply attaching your Botanical Basket to your Alembic or Turbo 500 setup and adding the Gin Botanicals packet during distillation, you can make this beautiful homemade gin style!

Please note: Use 30 - 35 g of Gin Botanicals when using the Air still and remove saddles first if using a Turbo 500 Condenser.

• Simply make your spirit wash as normal
• Perform the Stripping Run
• During the Spirit Run put your Gin Botanicals packet of ingredients into the Botanical Basket, screw the basket on to the Pot Still Alembic Dome Top and Pot Still Alembic Condenser, or Turbo 500 Condenser (by removing the saddles) and run your spirit through
• Just like that, you have yourself a homemade botanical London Dry gin!
• Enjoy, store for later, or give away as a great gift idea!

Gin Botanicals London Dry Gin Style

A blend of juniper berries, coriander seeds, liquorice root and citrus peel to distil gin and enjoy any way you like.

Botanical Basket

The Botanical Basket can be used to infuse your spirit with botanical flavours from the Gin Botanicals range or your own ingredients. Simply use one of the Gin Botanicals packets, or your own botanical recipe, add the ingredients in the basket for your own unique brand of spirits!

Copper is required as a catalyst to remove sulphur odours during distillation. These are essential for high alcohol washes, typically over 16% ABV.

A replacement temperature sensor with a teflon wire and stainless steel probe for the T500 Still. It could also be used for many other applications.

Includes battery.

Temperature range: -20℃ - 200℃

Fill your T500 column with saddles, shaking into place as you fill.

Ideal for adjusting the water flow for stills. An adapter is included so the unit should work on a 22mm and 24mm threaded faucet. This unit is a needle valve design which allows accurate adjustment of the water flow.

We're all familiar with having to try and keep someone from flushing the toilet or turning the dishwasher on while we're distilling so we can get the best results. Now you don't have to worry. The Still Spirits Water Flow Regulator will help you to perfectly control your water flow, speeding up your distillation when using your still.

We have designed your own small water supply especially for your still. Connect this device to your tap, let it fill with water, and you have a reservoir of water for your still.

The Water Flow Regulator includes:

• It's own built in pump to supply water to your still

• A float valve to regulate how much water it holds

• A water flow controller, so that you can set it to the exact flow rate for your needs

• A cool reservoir to store up to 1 L of water.

With this connected to your still, you never have to worry about temperature variation again. High quality and simple to use

A replacement mecanicco swing lid for the 5L Glass Jar Demijohn with mecanicco Swing Lid. Not suitable for the 5L Glass Jar Demijohn with Screw Cap/Lid.

Useful for measuring small ammounts of additives.

Replacement food grade silicone tubing for the top loop of the T500 Reflux Condenser.

Internal Diameter: 6 mm

Length: 0.2 m

Replacement PVC tubing for the T500 Still.

ID: 6mm

Length: 1.1m

Replacement distillate out tube for the T500 Reflux Condenser.

Replacement water discharge tubing for the T500 Still. Connect to outlet block and run to drain.

ID: 8mm

Length: 1.5m

Screw-in tap for use with Handcraft Supplies 30L Wide Mouth Fermenter. Simply screw the tap in the pre-drilled hole at the bottom of the fermenter before filling the fermenter with your ingredients. Mangrove Jack's Silicone Hose 100mm is required to connect the tap to a brew bottler. Not compatible with sediment reducer.

Thermometer With Clip - a multi-purpose thermometer you can use when brewing beer, heating milk for cheese making, or frothing milk for coffee.

This Thermometer With Clip has a long stem and a clip that you can use to attach the thermometer to the side of your equipment.

The thermometer is made of stainless steel that is durable and corrosion-resistant. The dial is large which makes it easy to note the reading.

Probe length: 125mm

Temperature range: 0℃ - 110℃

From: Krome Dispense

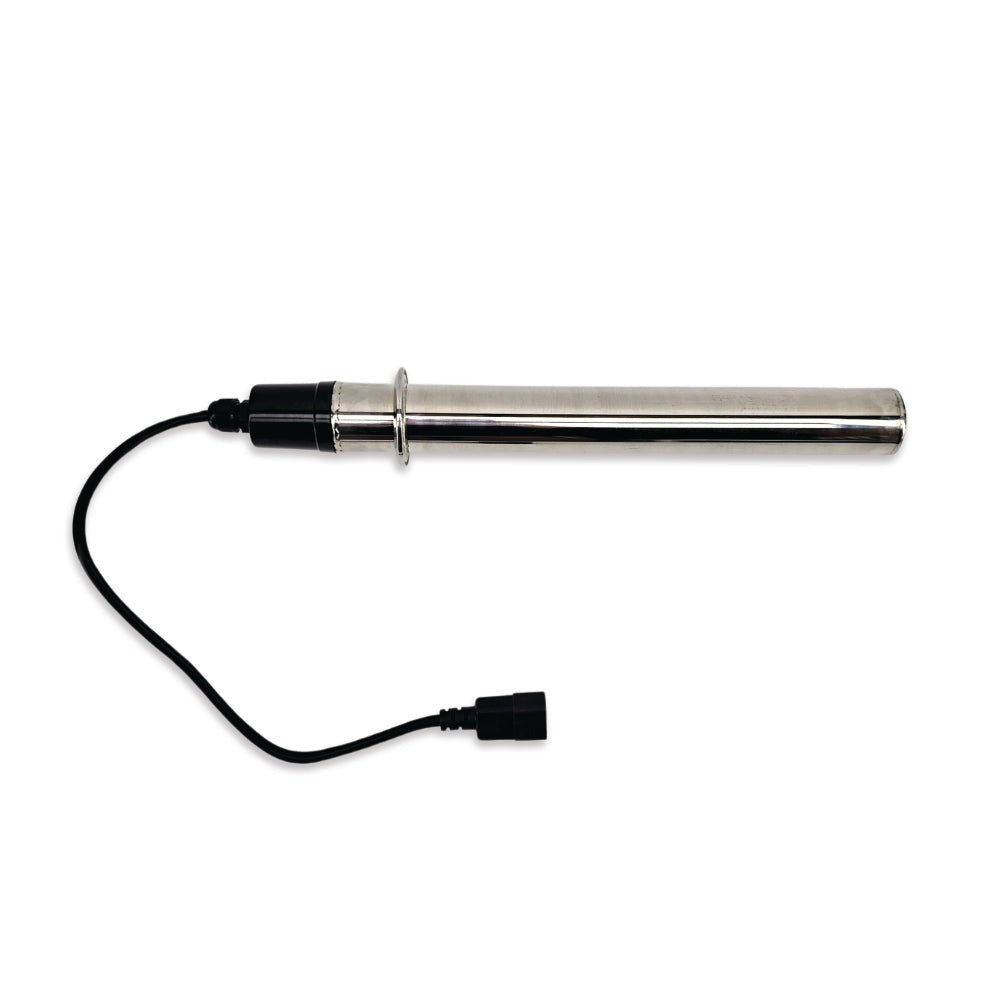

This is a low watt density warming wand to be used on a fermenter to maintain warmer yeast profile temperatures in the colder months of the year.

• 125watt
• 1.5" Tri-Clamp

From: Kegland

High quality full stainless steel (304) worm drive hose clamps. Great for clamping beer and gas line as well as any other tubing.

Features

• Slotted hex head screw
• Full stainless steel, including screw (W4)

Available sizes:

• 8mm - 12mm
• 10mm - 16mm
• 12mm - 20mm
• 16mm - 25mm
