This easy to use and compact spunding valve is handy for keg transfers or pressurised fermentations when you want to limit oxygen exposure and use counter pressure in the keg you are filling into or in the fermenter you are using.

This new improved G2 model has several upgrades:

1. duotight fitting where the gauge attaches
- This allows for a multitude of different options such as digital gauge or larger gauge to be purchased separately and upgraded.

2. Manual ring pull pressure relief
- This allows for you to not only adjust the pressure with the black rotary knob but also use the ring pull to instantly release pressure if you want to release manually.

3. Option for Several Colour Coded PRVs to be used
Yellow - 1.2bar (17psi)
Red - 2.5bar (35psi)
Green - 4.5bar (65psi)
Grey - 7bar (100psi)

This is a low profile option only 4.5cm in height.  This spunding valve fits to standard gas posts on your fermenter or keg.

It works right out of the box but has several upgrade options as shown in the images.

From: Kegland

This plastic carbonation cap has been designed to suit soda bottles, coke bottles, FermZilla lids and collection containers. These are great for cleaning your keg lines, or carbonating beer quickly in a bottle, or if you simply want to take beer to a mates.

Liquid and Gas ball lock compatible.

This carbonation cap is also suited to any of the FermZilla products such as the FermZilla Pressure kit.

Made from high quality engineering plastic, it will last a very long time. It is chemically resistant and also designed to resist impact and physical damage.

The thread specification on this product is the PCO 1881 (AKA Coke bottle thread).

Yellow Plastic Carbonation and Line Cleaning Cap or FermZilla Pressure Cap.

These carbonation caps are now available in yellow to help differentiate between gas and liquid posts. Liquid = Gold is all you need to remember. Add your silicone dip tube to this cap and never risk accidentally attaching your gas line. Note: It is a multi post, so it will take both gas or liquid if you want to change it up.

Need to clean your beer line? Carbonate your beer quickly? Or simply want to take a traveller over to a mates? Then do yourself a favour and grab one of these essential tools for your brewing needs.

Liquid and Gas ball lock compatible.

This carbonation cap is also suited to any of the FermZilla products such as the FermZilla Pressure kit.

This product is made from high quality engineering plastic and will last a very long time.  It's chemically resistant and also designed ot resist impact and physical damage.

The thread specification on this product is the PCO 1881 (AKA Coke bottle thread).

From: Kegland

The BlowTie Diaphram Spunding Valve - a great tool if you want to control the pressure retained in a pressure vessel that is releasing pressure. It has been designed for simplicity and ease of putting together. Many brewers use this spunding valve in combination with the FermZilla pressure rated fermenters.

This is the new "BlowTie 2" upgarded model which has the integrated pressure gauge. The adjustment knob on the top of the unit makes it easy to increase and decrease the set pressure. This BlowTie unit can be easily disassembled for cleaning using a screw driver. Designed to suit 8mm (5/16") tubing. It's compatible with both the 4mm ID Tubing or 5mm ID.

This compact solution for adjusting residual pressure in your fermenter makes pressure control easier than it's ever been. This can be used for compressed air, CO2, nitrogen, mains water supply and many other things but its primary use is to control the residual pressure inside fermenters.

Specifications:
1. Suits pressures 0-23psi (but with different gauges the unit can go above 100psi)
2. Made from food grade acetal
3. Stainless screws
4. 8mm (5/16") push on both sides

The design utilises the reliability of the Duotight o-ring system to make sure you can fit hoses to this unit quickly and with leak free connections.

Pressure Fermentations
With the popularity of pressurised fermentation it has become increasingly important to have a method of regulating and controlling this residual pressure from the fermentation process. The BlowTie has been designed specifically for this reason.

Pressure Transfers
When transferring from keg to keg, keg to bottle, or fermenter to keg it is often a good idea to have head pressure in the keg you are filling into especially if you are transferring a beverage that is carbonated. For this reason the BlowTie can consistently control this head pressure giving you more consistent results and without losing carbonation in the process.

Traditional spunding valves that use a simple spring against a seal are flawed right from the beginning as the physical aspects of the design dictate that you will have a significant difference between the opening pressure and closing pressure during operation. Brewers have tolerated this imperfection for long enough and now you can control these pressures far more accurately.

The BlowTie has been made completely differently taking advantage of a diaphragm to actuate the sealing mechanism that will release pressure from the pressure vessel with much more accurate control pressure.

Instructions:
Use the yellow adjustment knob to control the pressure coming out of the pressure vessel. Clockwise is higher pressure and anticlockwise is lower pressure. We would recommend gassing a keg to a known pressure e.g. 15psi then attach your BlowTie Kit to the keg and adjust to 10psi.

These gauges are accurate to about 10% of the range of the pressure gauge. So if you use the lowest range possible it will ensure the best possible accuracy.

IMPORTANT WARNING: Do not exceed gauge pressure. If you set a gauge pressure higher than the graduations on the gauge you can damage the gauge. (ie if you are using the 0-60psi gauge. Do not set pressure above 60psi or damage to the gauge may occur.)

Material: food grade engineering plastic, stainless steel and quality made EPDM seals
From: Kegland

The FermZilla All Rounder 30L is the perfect fermentation vessel that can be used for fermenting under pressure, carbonating and dispensing. It's far more capable than the FermZilla Flat bottom but it's less complicated and less expensive than the FermZilla Conical Unitank. So like the name says it's the "All Rounder".

If you want to use this product under pressure we would recommend that you use the pressure kit.

This kit includes:

• 1 x All rounder tank
• 1 x Stainless Steel Handle Assembly
• 1 x 304 stainless stand
• 1 x Airlock
• 1 x Pressure rated lid
• 1 x Digital temperature sticker
• 1 x Red 2.5bar pressure relief valve
• 1 x Graduation Sticker

Easy to Clean

This fermenter is made from super smooth PET so it's easy to clean. Just use a small scoop of PBW or similar and wipe it clean after a 5 minute soak. No scrubbing necessary.

Large 120mm Opening

The opening at the top is significantly larger then the older Snub Nose or other similar fermenters. This bad boy has 120mm opening so even brewers with large arms can easily get into the top making cleaning even easier.

Pressure Rated

This fermenter is rated up to 2.5bar so you can force carbonate just like a keg. You can use this fermenter for closed transfers and significantly reduce oxygen exposure.

Crystal Clear

The wall of the All Rounder is crystal clear so you can see what's going on inside. This makes it really easy to determine visually how the fermentation, how the yeast is flocculating etc.

Impermeable

The PET plastic is not permeable like some other fermenters made from PP or HDPE. The fermenter wall is a much better gas barrier keeping your product fresher for longer.

No Flavour and Aroma Carry Over

Other HDPE fermenters tend to be so porous they carry flavour and aroma from one batch to another.

Robust and Difficult to Damage

Impossible to smash like glass. The tank is impact resistant but light weight and easy to use.

IMPORTANT NOTE: This tank should not be used for hot liquid. Do not put liquids inside this tank over 50C. It will melt the tank. Also, while this tank comes pressure tested we recommend that every 2 years you re-hydro test this tank yourself.

From: Kegland
Diameter: approx. 352mm
Height: approx. 569mm (from stand base to top of airlock) or 614mm with stand reversed

The FermZilla All Rounder 60L is the perfect fermentation vessel that can be used for fermenting under pressure, carbonating and dispensing. It's far more capable than the FermZilla Flat bottom but it's less complicated and less expensive than the FermZilla Conical Unitank. So like the name says it's the "All Rounder".

If you want to use this product under pressure we would recommend that you use the pressure kit.

This kit includes:

1 x All rounder tank
1 x Stainless Steel Handle Assembly.
1 x 304 stainless stand
1 x Airlock
1 x Pressure rated lid
1 x Digital temperature sticker
1 x Red 2.5bar pressure relief valve
1 x Graduation Sticker

Easy to Clean
This fermenter is made from super smooth PET so it's easy to clean.  Just use a small scoop of PBW or similar and wipe it clean after a 5 minute soak.  No scrubbing necessary.

Large 120mm Opening
The opening at the top is significantly larger then the older Snub Nose or other pressure fermenters.  This bad boy has 120mm opening so even brewers with large arms can easily get into the top making cleaning even easier.

Pressure Rated
This fermenter is rated up to 2.5bar so you can force carbonate just like a keg.  You can use this fermenter for closed transfers and significantly reduce oxygen exposure.

Crystal Clear
The wall of the All Rounder is crystal clear so you can see what's going on inside.  This makes it really easy to determine visually how the fermentation, how the yeast is floculating etc.

Impermeable
The PET plastic is not permeable like some other fermenters made from PP or HDPE.  The fermenter wall is a much better gas barrier keeping your product fresher for longer.

No Flavour and Aroma Carry Over
Other HDPE fermenters tend to be so porous they carry flavour and aroma from one batch to another.

Robust and Difficult to Damage
Impossible to smash like glass.  The tank is impact resistant but light weight and easy to use.

Please read the instructions thoroughly before use. We will not be held liable for misuse or mishandling of the unit contrary to the instructions.

IMPORTANT NOTE: This tank should not be used for hot liquid.  Do not put liquids inside this tank over 50C.  It will melt the tank.  Also this tank comes pressure tested however we recommend that every 2 years you re-hydro test this tank yourself.

Note: Some of the photos are of the FermZilla - All Rounder 60L with a red plastic pressure kit. The pressure kit is not included in the standard kit.

From: Kegland

This handy little strap will make cleaning and transport your FermZilla All Rounder 30L or 60L an absolute breeze. Simply attach through both sections of the base in the orientation you wish. Slide up and out of the little buckle pieces making sure that the buckle is facing towards you, then strap in and strap down!

The Strap is long enough for the 60L and 30L. We recommend rolling up the excess strap and paper clipping or cutting to suit the 30L.

Please note the paper clips used in the photos are not included.

From: Kegland

FermZilla 2" Tri-Clamp Lid.

Upgrade your FermZilla All Rounder or Tri-Conical fermenter with the new 2 Inch Tri-Clover Lid from Kegland. Add yeast, hops or even take samples from a wine thief from the top and not have to remove the entire lid.

This particular lid was designed in order to suit a growing number of customers dry hopping without exposing the batch to oxygen from opening the lid. By using this lid in conjunction with the FermZilla 2" Butterfly Valve and Hop Bong Kit, you would be able to purge CO2 into the tube and expel all the oxygen around it and dump freely into the vessel.

Features:
2 x PCO1881 Male Ports - Recommended to be used with 1 x Red (Gas) Ball Lock Cap and 1 x Yellow (Liquid) Ball Lock Cap.
1 x Pressure Relief Valve Port - Includes Red 35psi / 2.5bar PRV
1 x 2 Inch Tri-Clamp Ferrule

Undrilled Ports:
1 x Thermowell Port (8mm duotight x 1/4" bulkhead) Suitable for 60cm Thermowell duotight Kit.
2 x Ice Water / Glycol Temp Twister Ports (9.5mm duotight x 1/2" bulkheads).

Please Note: Temp Twister will need to be bent on a 20° Angle in order to fit on the curved lid and align vertically in the tank.

Also includes:
1 x 2 Inch Tri-Clamp x PCO1881 Male Thread with PCO1881 Bottle Cap
1 x 2 Inch Tri-Clamp Clamp
1 x 2 Inch Tri-Clamp Beaded Silicone Seal

Important:
- Release the pressure completely before opening the 2" Tri-Clamp.
- Only use KegLand Red 35psi / 2.5 bar PRV or KegLand Yellow 17psi / 1.5bar PRV's with this lid. Ensure they are cleaned and dried of sticky residue before each fermentation. Failure to do so could cause injury and void warranty.

From: Kegland

This jacket will keep your FermZilla All Rounder 30L cool in summer and warm in winter. It can also be used with a heater belt to warm up the wort if the heat from the fermentation isn't enough. To control the temperature, we suggest using a MKII Temp Controller.

This jacket also completely blocks any light/UV to prevent light struck or skunked beer.

From: Kegland

2" Hop Bong Upgrade Kit For FermZillas - The Kriger (Warrior).

Named purely on its looks and not its function. The Hop Bong is a versatile pressurisable tri-clamp accessory, capable of not only dry hopping oxygen purged hops into fermenters but also as an inline carbonation/oxygenation accessory.

This is an upgrade kit for existing FermZilla Tri-Conical and All Rounder fermenters users who want to use the new 2" Tri-Clamp Adapted Pressure Lid.

Constructed from Nylon 12: an autoclavable, extremely robust, and chemical resistant engineering plastic.

Includes:
1 x FermZilla Tri-Clamp Pressure Lid (including PRV, Bottle caps, 2Inch clamp, seal, PCO1881/Tri clover adaptor)
1 x FermZilla Tri-Conical - 2" x 2" Tri-Clamp Butterfly Valve
1 x Carbonation Cap PCO1881 (Red / Gas)
1 x 2 Inch Tri-Clamp - Hop Bong - Sight Glass
1 x PCO1881 PRV Cap
1 x Red PRV (35psi/2.5bar)
2 x 2 Inch Tri-Clamp Clamp
2 x 2 Inch Tri-Clamp Silicone Beaded Seal

Does not include:
1 x Carbonation Cap PCO1881 (Yellow / Liquid)
1 x Carbonation Cap PCO1881 (Red / Gas)
1 x SS Float + 80cm Silicone Dip Tube + Dip Tube Hop Filter

Please note that the Hop Bong is not made from glass. It is made from special engineering plastic.

Capacity in Hop Pellets
150g to 180g

From: Kegland

FermZilla Plastic Pressure Kit - suits both 27L and 55L FermZilla fermenters. This is the plastic version, there is also a stainless option.

Add this optional pressure kit to your FermZilla and turn your FermZilla into a true unitank. Unitanks are conical fermenters used both for fermentation and for carbonating and serving finished beer. This extremely inexpensive upgrade will truly show you what the FermZilla was designed for. Here are some possibilities:

Fermenting Under Pressure: First one of the most intriguing uses is to ferment under pressure which reduces ester production and fusel alcohol production. That means that you can ferment warmer than you normally would, even making lagers at room temperature. Most commercial beer is fermented under pressure just due to the size of commercial tanks and the pressure that is created by the column of beer. It is one of the differences between commercial brewing and homebrewing. The lid has a built in relief valve that will blow at 35psi and we strongly recommend you also purchase an adjustable pressure relief valve, or blow tie kit, that allows you to set a lower pressure. It is also a good idea to have two relief valves on the FermZilla anytime the unit is under pressure.

Carbonating, Pushing, and Serving: When you are fermenting under pressure the beer is already carbonated when you are done fermenting. You can control the level of carbonation by using an adjustable pressure relief. The idea is that the FermZilla can eliminate kegging and you can serve directly from the fermenter. We love this idea but there will probably still be times that you want to keg. Use a beer line to connect the FermZilla to your keg and enjoy the easiest kegging experience ever. You can also choose to send carbonated beer through a beer filter on the way to your keg. When applying pressure with a CO2 tank also make sure that you have a functional relief valve on your CO2 regulator.

Lack of Oxidation Because the beer always has a CO2 blanket through fermentation and during any transfers out, oxidation is eliminated. When you cold crash you won't be sucking air back in through an airlock.

Key Features:

• Ferment beer under pressure to reduce ester and fusel alcohol production
• Ability to always draw clear beer with the unique, floating draw tube
• Keg already carbonated beer
• Use co2 to push beer into a keg or though a filter into a keg
• Carbonate and serve beer directly from the FermZilla, eliminating kegging all together

Kit Includes:

1 x Red Plastic Carbonation Cap
1 x Yellow Plastic Carbonation Cap
1 x Float & Dip Tube Filter Kit

Add the optional pressure kit to your FermZilla and turn your FermZilla into a true uni tank.

Uni tanks are conical fermenters used both for fermentation and for carbonating and serving finished beer.

Here are some possibilities:

Fermenting Under Pressure:

First one of the most intriguing uses is to ferment under pressure which reduces ester production and fusel alcohol production. That means that you can ferment warmer than you normally would, even making lagers at room temperature. Most commercial beer is fermented under pressure just due to the size of commercial tanks and the pressure that is created by the column of beer. It is one of the differences between commercial brewing and homebrewing. The lid has a built in relief valve that will blow at 35psi and we strongly recommend you also purchase an adjustable pressure relief valve, or blow tie kit, that allows you to set a lower pressure. It is also always a good idea to have two relief valves on the FermZilla anytime the unit is under pressure.

Carbonating, Pushing, and Serving:

When you are fermenting under pressure the beer is already carbonated when you are done fermenting. You can control the level of carbonation by using an adjustable pressure relief. The idea is that the FermZilla can eliminate kegging and you can serve directly from the fermenter. We love this idea but there will probably still be times that you want to keg. Use a beer line to connect the FermZilla to your keg and enjoy the easiest kegging experience ever.  You can also choose to send carbonated beer through a beer filter on the way to your keg.  When applying pressure with a CO2 tank also make sure that you have a functional relief valve on your CO2 regulator.

Lack of Oxidation

Because the beer always has a CO2 blanket through fermentation and during any transfers out, oxidation is eliminated. When you cold crash you won't be sucking air back in through an airlock.

Key Features:

•    Ferment beer under pressure to reduce ester and fusel alcohol production

•    Ability to always draw clear beer with the unique, floating draw tube

•    Keg already carbonated beer

•    Use co2 to push beer into a keg or though a filter into a keg

•    Carbonate and serve beer directly from the FermZilla, eliminating kegging all together

FermZilla Tri-Conical - 2 Inch x 2 Inch Tri-Clamp Butterfly Valve.

Compatible with any 2 Inch tri-clamp fitting. Primarily designed for the:
- FermZilla 2" Tri-Clamp Lid
- in conjunction with the 2" Tri-Clamp Hop Bong

If you are looking to put your FermZilla Tri-Conical / All Rounder in a Fermentation Chamber / Fridge, you will want to allow 420mm measured from the base of the ring collar to a comfortable level to pull the pressure relief valve to purge oxygen from the hop bong.

From: Kegland

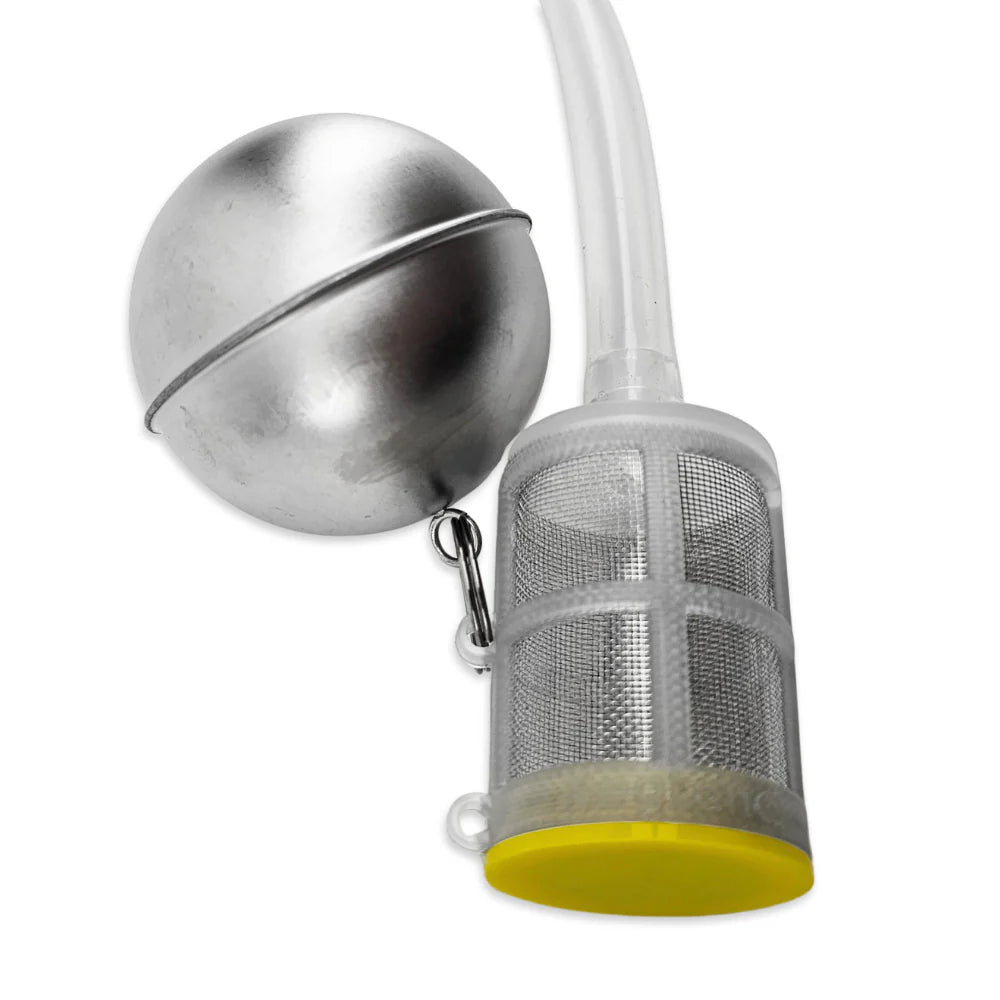

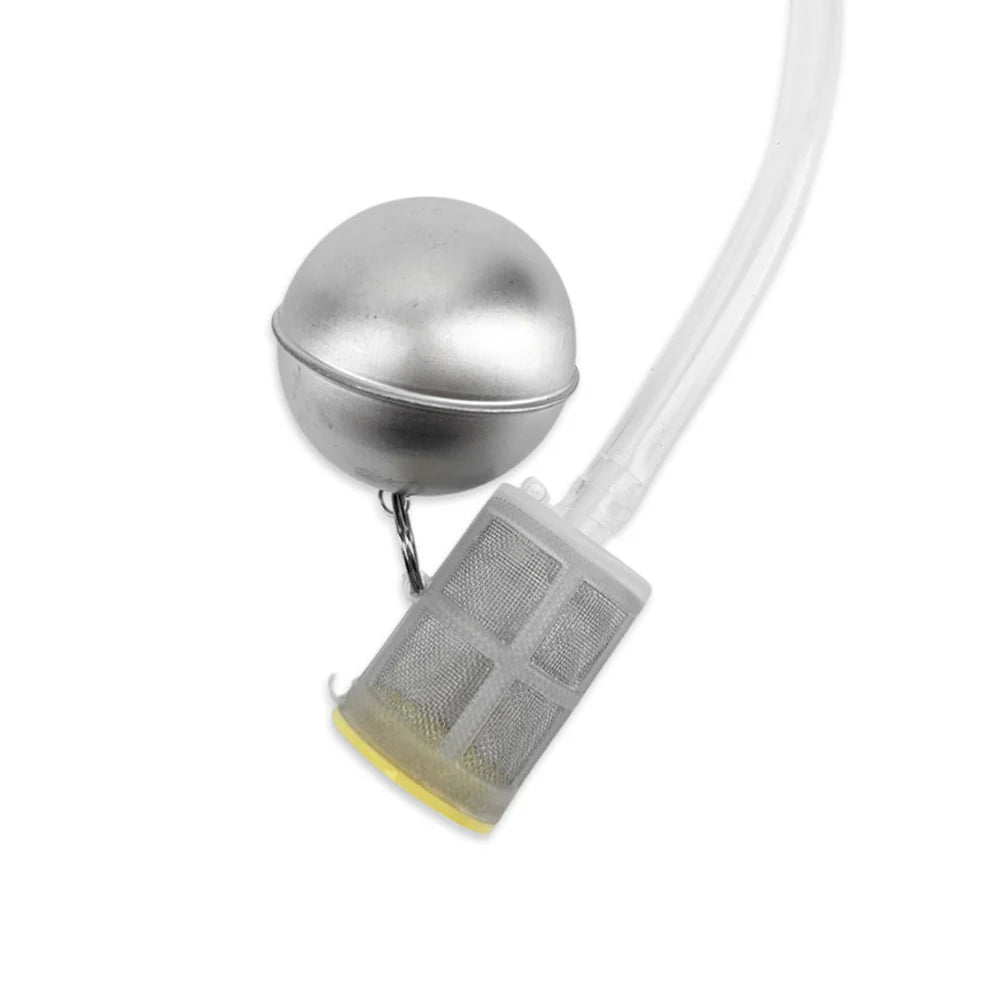

FermZilla - SS Ball Float & 80cm Silicone Dip Tube and Filter Kit. Suits Tri-Conical and All Rounder Models.

This simple design allows you to extract the clearest possible liquid in your pressure vessel with the added security of our new filter included. This helps prevent blockages in your carbonation cap poppet. As the liquid level decreases the float goes down at the same time. Perfect for sampling the sediment free!

This 80cm silicone dip tube and stainless steel float with filter suits the FermZilla Tri-Conical fermenter. Also compatible with Kegmenters and Modified Ball Lock Kegs (not minikegs).

From: Kegland

2" Tri-Clamp Sight Glass - Hop Bong with PCO1881 Male Port and black bottle cap.

Named purely on its looks and not its function. The Hop Bong is a versatile pressurisable tri-clamp accessory, capable of not only dry hopping oxygen purged hops into fermenters, but also as an inline carbonation/oxygenation accessory.

This particular sized tri-clamp hop bong was designed for the FermZilla Tri-Conical and All Rounder fermenters with the new tri-clamp adapted pressure lid. It can also be adapted to any 2" tri-clamp port in your system to use either inline or as a dry hopping device.

Constructed from Nylon 12: An autoclavable, extremely robust, and chemical resistant engineering plastic.

Depending on how you set up your Hop Bong, the most common two fittings for the PCO Port are the Duotight 6.35mm Red Gas Carbonation Cap or Duotight 6.35mm Yellow Gas Carbonation Cap , and the Red PRV Cap.

Please note that the Hop Bong is not made from glass. It is made from special engineering plastic.

Capacity in Hop Pellets
150g to 180g

From: Kegland

Now updated with the all new duotight 8mm Ball Lock Disconnect (Grey+Red/Gas)

This kit has been designed for simplicity and ease of putting together.

This Kit Contains:
1 x BlowTie Spunding Valve Gen 2 with 0-15psi Integrated Gauge
1 x Duotight 8mm (5/16") x Ball Lock Disconnect (Grey+ Red/Gas)
1 x Rigid 8mm Plastic Joiner

All new compact BlowTie Spunding Valve Gen2 Integrated Kit. If you want to control the pressure retained in a pressure vessel that is releasing pressure then the BlowTie Diaphram Spunding Valve is the tool for the job.

If you want to control the pressure retained in a pressure vessel that is releasing pressure then the BlowTie Diaphram Spunding Valve is the tool for the job.

The adjustment knob on the top of the unit makes it easy to increase and decrease the set pressure.

This BlowTie unit can be easily disassembled for cleaning using a Phillips head screw driver.

Designed to suit 8mm OD (5/16") Evabarrier Tubing.

Specifications:
1. Suits pressures 0-15psi (but with different gauges the unit can go above 100psi)
2. Made from food-grade acetal
3. Stainless screws
4. 8mm (5/16") push on both sides

If you are looking for a compact digital gauge with backlight illumination click here. This should only be used on a blowtie if you have excess tubing to stop liquid reaching the gauge. If liquid enters the digital gauge it will break.
