Oxebar 20L Amber PET Keg & Pressure Fermenter Tank
The Oxebar Mono Barrier Keg by KegLand. Beverages will last 3 x Longer than competitors single PET layer kegs.
Fit up to 3 of these badboys in your Series X.1, X or 4.1 (aka XL).
Or fit up to 6 of these in a Series X.1 Plus!
Not only will it protect your beer from damaging light (amber tinting) it will also keep your beverages fresher for up to 3 times as long due to the Mono Barrier PET Polymer Matrix.
It also comes with a floating dip tube with cage filter. Is easy to undo and stack on top of each-other upside down with disconnects attached.
The 20L Oxebar Amber PET Kegs come with a Green Pressure Relief valve rated to 65psi.
Dimensions:
640mm High
235mm Diameter
Other uses:
- Overflow Homebrew Keg
- Cleaning Keg for Commercial Keg Buyers
- In a pinch it could be used as a Pressure Fermenter Tank, although we would highly recommend going for a 30L FermZilla Pressure Brewing Kit for adequate single batch sizing as well as being able to get your hand inside to clean properly.
20L Brimful, ideally 19.5L fill for Kegging purposes.
If you are going to use it as a fermenter, we would recommend between 15L and 18L. When fermenting you will need a spunding valve such as the BlowTie Spunding Valve Kit OR Integrated Gauge BlowTie Kit (0-15psi).
Remember, a PRV is a not a spunding valve.
Includes:
1 x 20L Amber Mono Barrier PET Oxebar Keg
1 x Dual PCO1881 Lid assembly with Oxebar Black Handle
1 x Green Pressure Relief Valve for Keg Lids / MK4 Reg - 65psi
1 x 100cm Silicone Hosing with Stainless Steel float and Hop Filter Cage
1 x RED Multi Gas Post Plastic Carbonation Cap
1 x Yellow Multi Liquid Post Plastic Carbonation Cap
From: Kegland
New commercial 20 litre stainless kegs with D-Type spear included and rubber base and handle.
Premium brand new kegs rated to 130psi working pressure and made using a robotic orbital welding machine with super smooth welding marks making them easier to clean.
These kegs are also passivated, giving them a matte finish, to ensure superior rust protection.
The black rubber handles and base allows easier transportation and less scuffs on the floor of your cool room / kegerator.
Features:
- new, with D-Type spear
- maximum working pressure: 130psi
Dimensions: approx. 240mm Diameter x 570mm High
Stated Capacity: 20 litres
Serial Numbers: No
A new 9.5 litre keg with ball-lock gas in and beer out posts, and lid with pull-ring pressure relief valve.
These premium brand new kegs with Rubber Handle are rated to 130psi working pressure and are made using a robotic orbital welding machine. They have super smooth welds, making them sanitary and easier to clean. The black rubber on these kegs also make them a little nicer to use as they are less likely to damage your floors or crack plastic lining inside your kegerator.
They also have a lid with an internal tab/hook under the lid designed specifically for attaching a hop ball for dry hopping.
Add a Carbonating Keg Lid to enable you to carbonate your beer quickly (overnight) at your standard serving pressure.
Note: Hop Ball not included.
From: Kegland
Dimensions: approx. 214mm diameter x 370mm high
Rated to: 130PSI
A new 19 litre keg with ball-lock gas in and beer out posts, and lid with pull-ring pressure relief valve.
These new kegs are made with a high-barrier elastomer O-Rings to keep your beverage fresher for longer.
Unlike Silicone O-Rings, LOW2 O-Rings are made from synthetic M-Class Cross-Linked elastomer for superior oxygen barrier properties to prevent O2 ingress. This helps keep your beverage fresher for longer.
These premium brand new kegs are rated to 130PSI working pressure and are made using a robotic orbital welding machine. They have smooth welds making them sanitary and easier to clean. The black rubber on these kegs makes them a little nicer to use around your house as they are less likely to damage your tile floors or crack plastic lining inside your kegerator.
They also have a lid with an internal tab/hook under the lid designed specifically for attaching a container for dry hopping.
Add a Carbonating Keg Lid to carbonate your beer quickly (overnight) at your standard serving pressure.
Dimensions: approx. 214mm Diameter x 629mm High
DO NOT USE BLEACH TO CLEAN. Bleach will break down stainless steel and causing pitting to occur.
4L PET Oxebar Keg with Cap and Handle (PCO38 )
Keep your oxygen-sensitive beverages fresher for longer with the Oxebar Monolayer. We recommend this product for storing beer up to 3-6 months.
The new lightweight and reusable plastic kegs are brought to you by Oxebar and KegLand. Store your homebrew in a more convenient size, take it away camping or to a bbq. The new shorter profile 4L under 330mm will fit in most chilly bins or esky coolers. You can also dispense with it lying on its side.
Do not Exceed 4 Bar / 58psi or 45°C
This great value re-usable plastic keg is the best way to store your home brew in a smaller sized container than traditional 19L corny kegs. The small 4L size is convenient, light weight and perfect for sharing beverages with friends.
This 4L keg is light weight, compact and has extreme oxygen barrier properties. This extremely low gas transmission means your beverage will stay much fresher for longer. Even if you do consume the beverage in a short time, that short time will have much less oxygen transmission compared to other PET kegs on the market. Suitable for carbonated and non-carbonated beverages.
This product is sold with the PCO38 cap however if you would like to dispense this product through a draft system we recommend the use of the PCO38 Tapping Head. The tapping head is sold separately and allows you to attach standard ball lock disconnects and add a pressure relief valve to the top of this keg design.
What is Oxebar Mono
Oxebar Mono is a PET polymer blend that utilises several polymers blended together to significantly improve gas barrier properties. When compared with standard PET plastic Oxebar Mono is able to reduce oxygen ingress and CO2 loss so your precious beverage is preserved and shelf life extended by x3. We recommend this product for beer stored in keg up to 6 months.
Dimensions
Diameter:155mm
Height: 325mm
Periodic Hydrotesting Requirement
All pressure vessels should be hydrotested periodically. This is a very simple process and it's nothing to be feared. We recommend that this container be pressure tested every 2 years up to 6 bar. The instructions for this are:
1. Remove RED prv and fit GREY prv (you can borrow one of these from a 19L keg.
2. Fill keg to the absolute brim with water. DO NOT forget this step.
3. Use bike pump, CO2 regulator, air compressor or any other pressure source to pressurize the keg to 6 bar.
4. Hold the keg at 6 bar for 1 minute
5. Release the pressure and immediately remove GREY prv and swap back to RED prv.
Note: This test should be done with the keg and water in the keg at room temperature 15-30C
From: Kegland
8L Keg Oxebar Monolayer Keg With Cap and Handle (PCO38)
This great value re-usable plastic keg is the best way to store your home brew in a smaller sized container than traditional 19 litre corny kegs. The small 8 liter size is convenient, light weight and perfect for sharing beverages with friends.
This 8L keg is light weight, compact and has high oxygen barrier properties with 3x better (less) gas transmission than traditional PET grades of plastic making it suitable for beer storage or other oxygen sensitive carbonated and non-carbonated beverages.
This product is sold with the PCO38 cap however if you would like to dispense this product through a draft system we recommend the use of the PCO38 Tapping Head. The tapping head is sold separately and allows you to attach standard ball lock disconnects and add a pressure relief valve to the top of this keg design.
What is Oxebar Mono
Oxebar Mono is a PET polymer blend that utilises several polymers blended together to significantly improve gas barrier properties. When compared with standard PET plastic Oxebar Mono is able to reduce oxygen ingress and CO2 loss so your precious beverage is preserved and shelf life extended by x3. We recommend this product for beer stored in keg up to 6 months.
Dimensions
Diameter:155mm
Height: 520mm
Do not Exceed 4 Bar / 58psi or 45°C
Periodic Hydrotesting Requirement
All pressure vessels should be hydrotested periodically. This is a very simple process and it's nothing to be feared. We recommend that this container be pressure tested every 2 years up to 6 bar. The instructions for this are:
1. Remove RED PRV and fit GREY PRV (you can borrow one of these from a 19L keg.
2. Fill keg to the absolute brim with water. DO NOT forget this step.
3. Use bike pump, CO2 regulator, air compressor or any other pressure source to pressurize the keg to 6 bar.
4. Hold the keg at 6 bar for 1 minute.
5. Release the pressure and immediately remove GREY prv and swap back to RED prv.
Note: This test should be done with the keg and water in the keg at room temperature 15-30°C
From: Kegland
This replacement Keg Lid is suitable for Cornelius Type 19L and 9.5L Kegs.
Features:
- High quality stainless steel
- NEW Low2 O-ring (Yellow)
- Ring pull pressure relief valve
- Inside hook to attach hop bombs or a hop tube
Hop Tube Not Included*
What is Low2?
Low2 O-Rings are the new standard of homebrew kegs from KegLand. Why? Because of their unique composition (Synthetic M-Class and Cross-Linked Elastomers), they have superior oxygen barrier properties than that of the previus O-Rings (Silicone). This results in your beverage staying fresher for longer.
From: Kegland
Soda Carbonator - Keg Reactor Lid
This is the easy way to have continuous soda water on tap. Don't waste your time with Sodastream or other more expensive carbonators. This simple device makes it easy to have continuous carbonated soda water fed from your mains water supply.
Please see the description below on how to set this up.
Nothing is more refreshing than having your own soda water on tap at home. Sodastream units are great but filling up those tiny 1L bottles is a pain and those small CO2 cylinders run out fast and are expensive to swap. Solve this problem once and for all with the Continuous Soda Carbonator Keg Reactor Solution.
KegLand has invented this really simple to use lid that attaches to a standard ball lock keg. You can use one a 19L ones or a 9.5L keg.
All you have to do is:
1. Position the keg inside your fridge, kegerator, coolroom, or anywhere cold (ideally below 5C).
2. Attach your dispensing tap of choice to the soda water outpost.
3. Attach your gas to the gas in post.
4. Set your CO2 regulator that is connected to the gas post to 30-50psi. (higher pressures will give you more carbonation so set your regulator pressure to achieve desired carbonation level).
NOTE: It's recommended to use a check valve in your CO2 line. We recommend this Duotight check valve or this one that is integrated into the gas ball lock disconnect.
5. The first time you use this unit it's a good idea to purge the air from the headspace of the keg. To do this pull the PRV on the keg lid about 5 times for 2-second bursts.
6. Connect the mains water to the water inlet post on the lid of the keg. We recommend using a check valve for this application to prevent soda water going back into your house mains. We recommend this Duotight check valve. Also, it's a good idea to reduce your mains water pressure. Most domestic mains water pressure is over 100psi. For this unit to work well the mains water pressure should be 10-15psi higher than your regulator set pressure (from step 4). To regulate your water pressure we would recommend the use of the Inline Regulator Inline Regulator.
If you are looking for a mains water connection, you could use our diverter valve (this is not a stainless steel unit) with some 1/4" PE Water Line and a Duotight 6.5mm x 8mm Reducer.
That's it. This simple unit will give you continuous soda water connected to your mains water. Great for a bar cafe, restaurant or just at home.
This is capable of carbonating 10 Litres per hour if you have sufficient ability to cool the water. The colder the water and the higher the gas pressure (from step 4) the higher the carbonation level you will have. If you want to have extremely high soda water production speeds you can pre-chill the water by having one (or several) keg/s placed inline in front of the carbonation reactor. This will help pre-cool the water before it enters the carbonator. Alternatively, you can use a chiller such as the G40 glycol chiller to pre-chill the water before it enters the carbonator. If you do this you can increase your carbonation rate to over 30 litres per hour.
From: Kegland
Note: colour may vary.

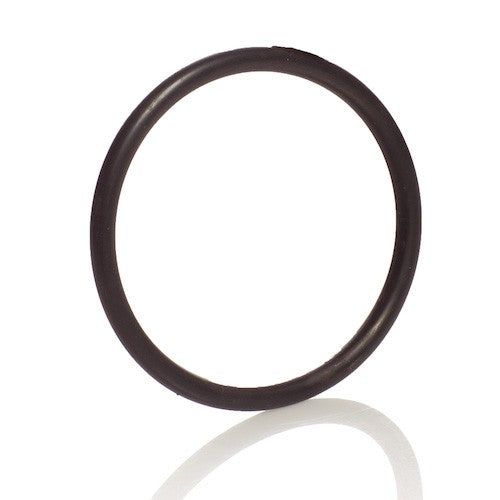

Replacement Low2 keg lid o-ring seal for corny keg lids. Suitable for any 19L, 9.5L corny keg - ball lock or pin lock.
Also suits FermZilla 2" tri-clamp pressure lids.
Because of their unique composition (Synthetic M-Class and Cross-Linked Elastomers), they have superior oxygen barrier properties than that of the previus O-Rings (Silicone). This results in your beverage staying fresher for longer.
From: Kegland

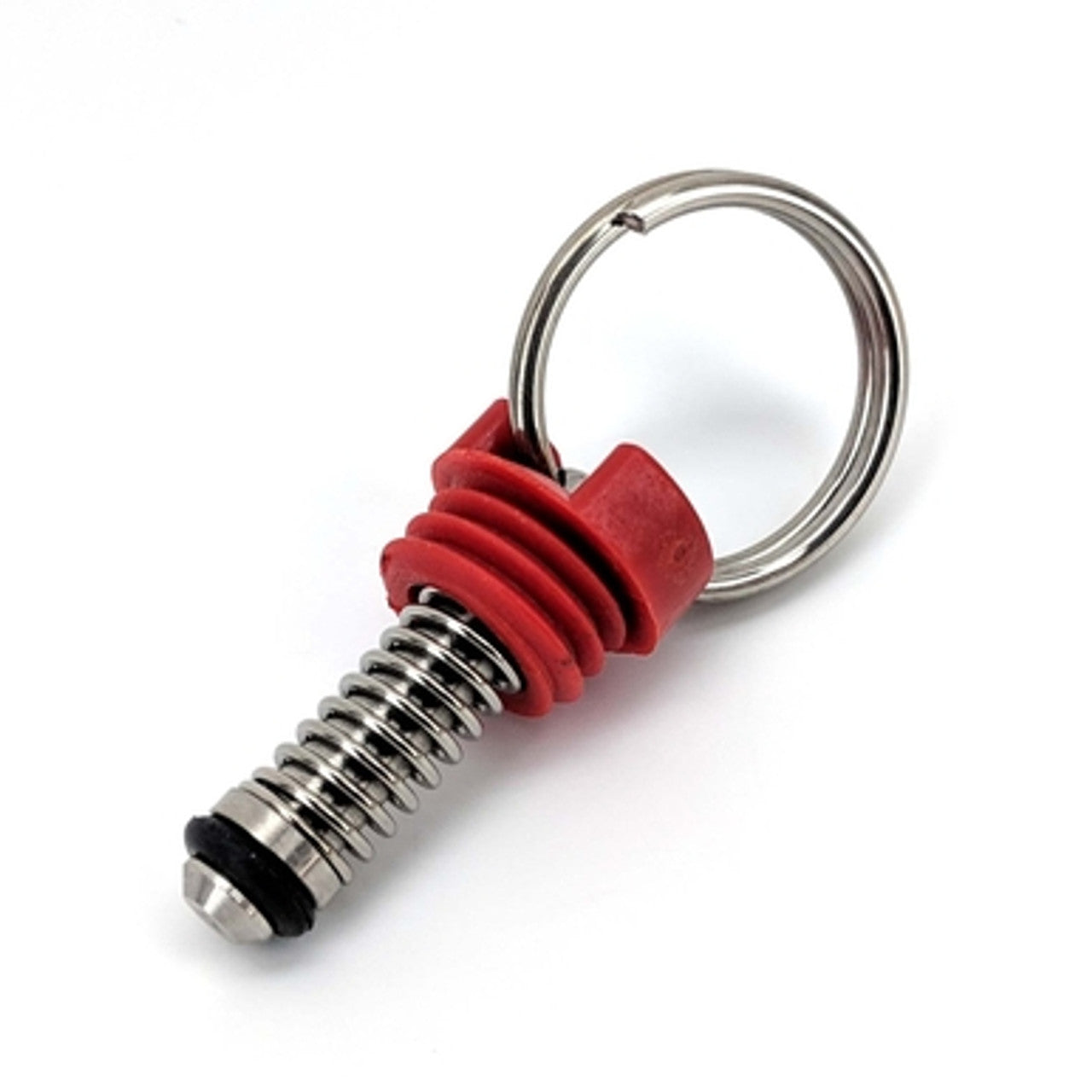

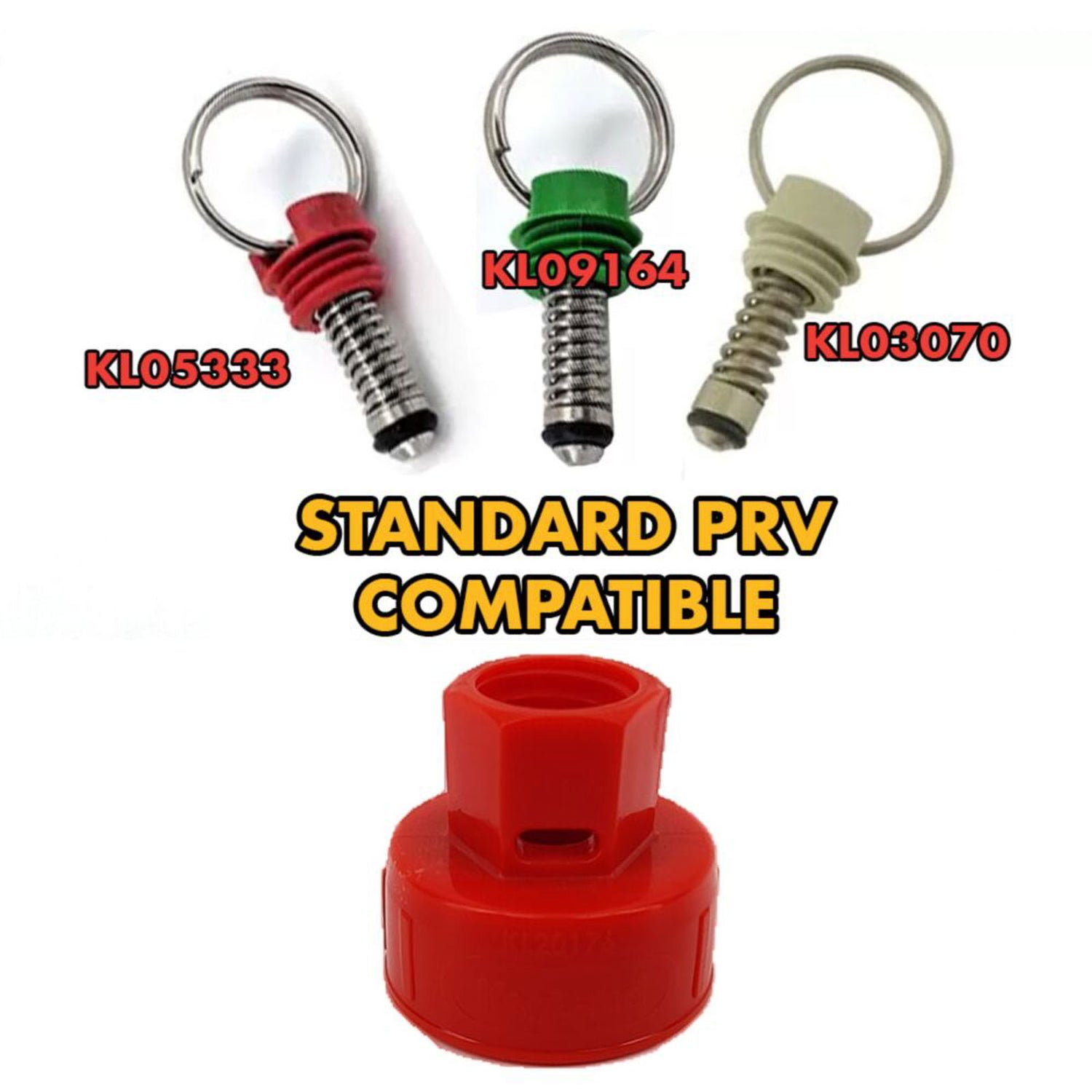

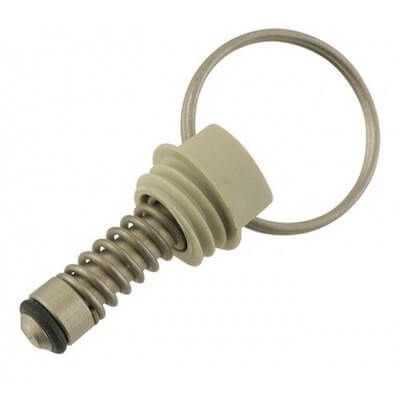

Replacement pressure relief valve (PRV) for corny kegs, MK4 Regulators, and FermZilla Lids.
Now available in three pressure ratings:
Yellow - 17 PSI
Red - 35 PSI
Green - 65 PSI
Grey - 100 PSI
From: Kegland

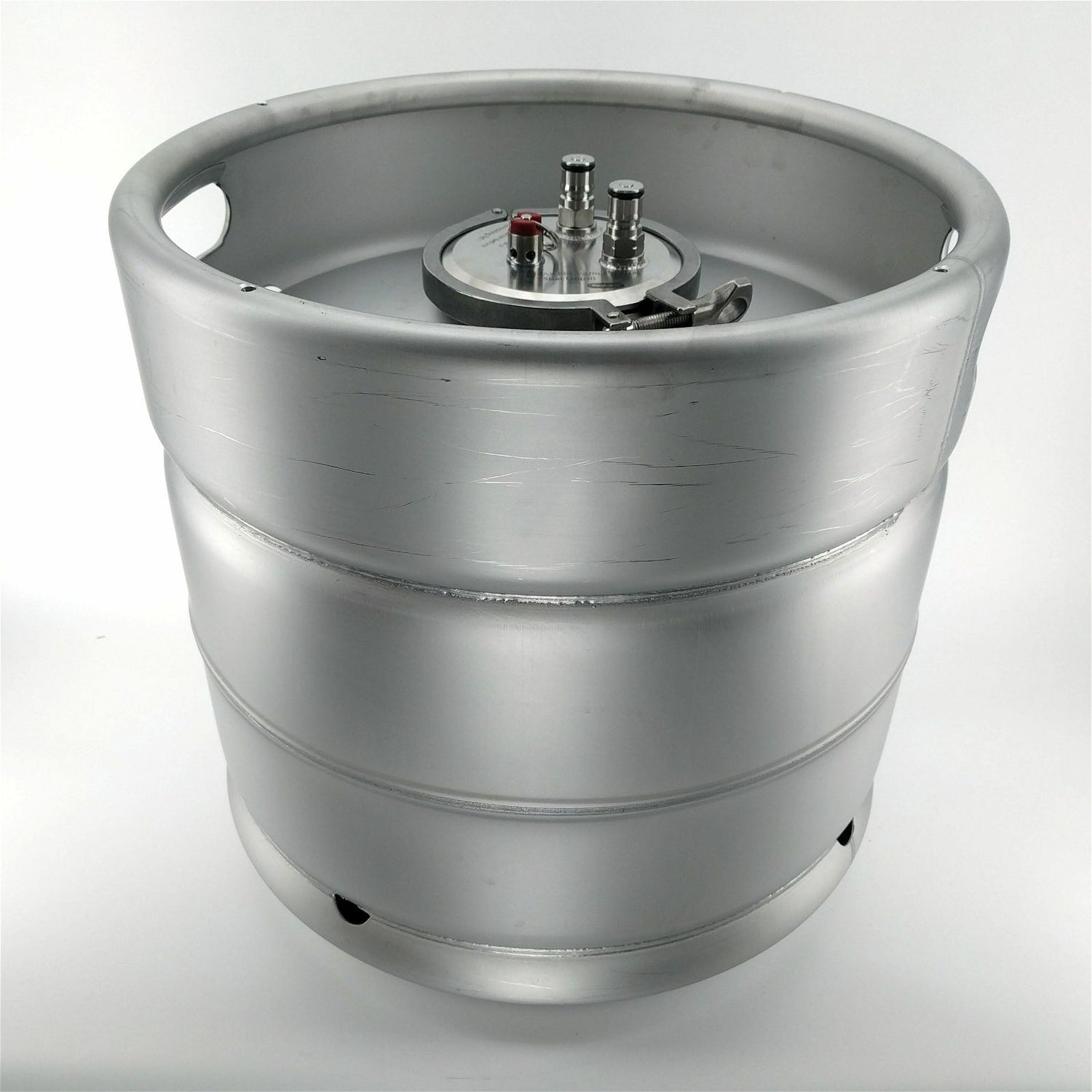

These 29L stainless steel vessels are designed just like a commercial beer keg but with a large 10cm (4inch) tri-clover opening at the top so you can easily get inside the keg to clean it out. This new 29L size is perfect for doing 20-25L batches so you have a bit of spare head space inside the Kegmenter.

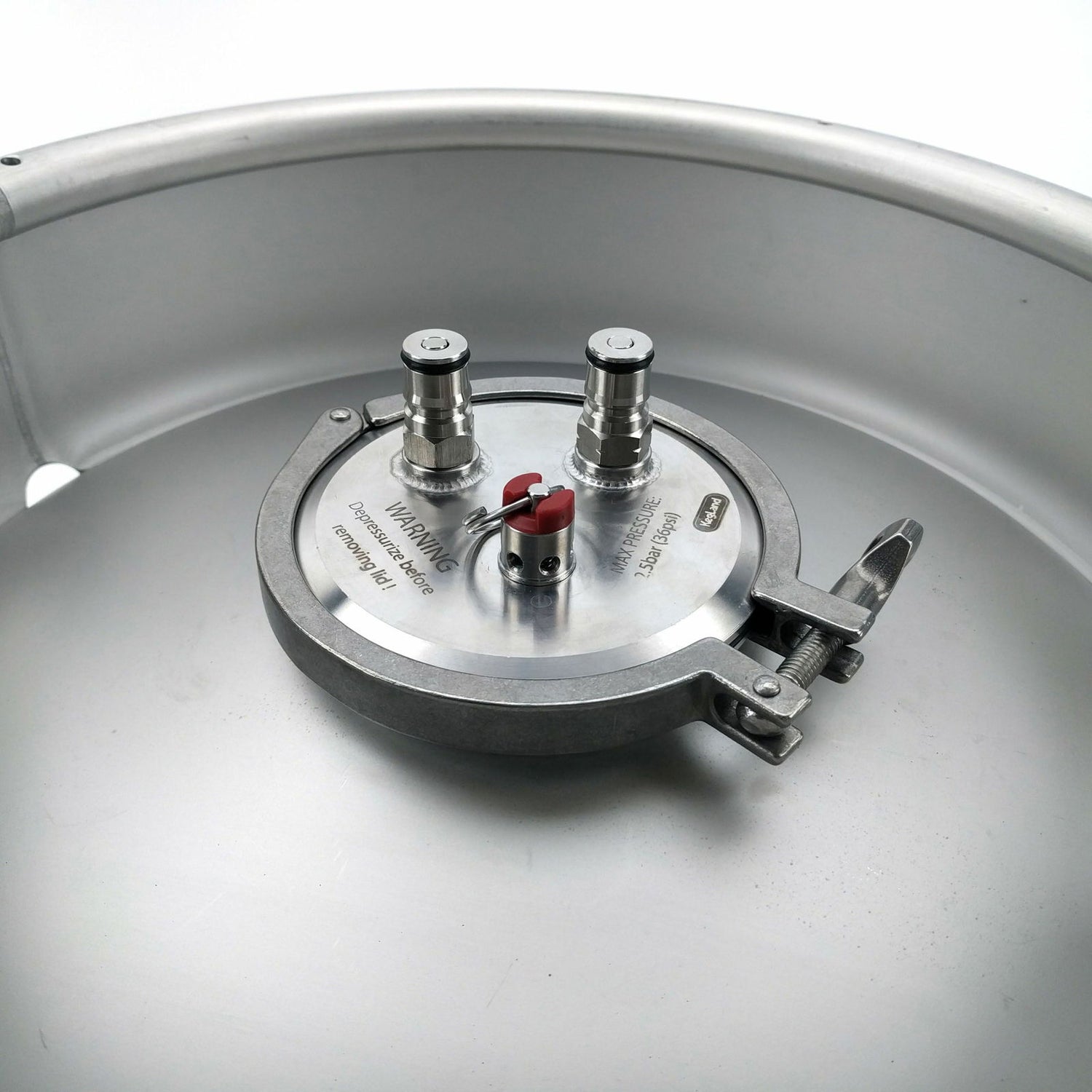

This Kegmenter is bundled with a stainless 4inch tri-clamp ball lock lid which will enable you to turn your kegmenter into a unitank fermenter, and pressurisable so it can also be used as a keg.
The Kegmenter can hold 2.5bar which makes it possible to carbonate and ferment in the same vessel. You can either carbonate naturally with the use of our adjustable pressure relief valve (spunding valve) or if you are using a CO2 gas cylinder you can force carbonate.
Being able to hold pressure also means you can push the beer out of the fermenter directly through a filter or even dispense directly from fermenter to draft beer tap if you wanted to.
The chimes on the Kegmenters have specifically been designed to be taller than normal chimes so they are high enough to give clearance over the stainless posts on the Ball Lock Post Lid. This means the Kegmenters can be stacked. The interlocking stacking chimes means the kegs can be safely stacked up to 4 high.
Pressure Limitations
Maximum Working Pressure: 2.5 BAR
Test Pressure: 5 BAR
Wall Thickness (Body/Chimes): 1.8mm/2.1mm
Diameter: approx. 39.5cm
Height: approx. 38cm
From: Kegland

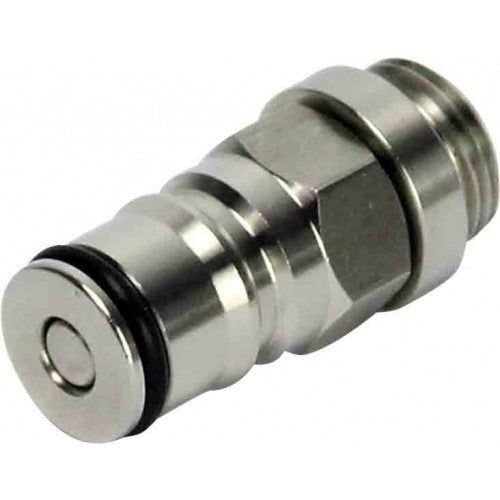

The Liquid Ball Lock Post for Keg Coupler is a liquid ball lock post with a female 5/8 inch connection. It allows you to connect ball lock disconnects to a keg coupler making it extremely easy to swap over from a corney keg to a commercial keg (you will need the correct coupler for the keg as well).
These seals replace the red o-ring seal inside the 20L Oxebar kegs.
Includes:
5 x Low2 Keg Lid Seals to suit the 20L Oxebar Keg (Yellow)
These seals replace the red o-ring seal inside the 20L Oxebar keg lids.
What is Low2?
Low2 O-Rings are the new golden yellow standard of homebrew kegs brought to you by KegLand Australia. Why? Because of their unique composition (Synthetic M-Class and Cross-Linked Elastomers), they have superior oxygen barrier properties than that of the previus O-Rings (Silicone). This results in your beverage staying fresher for longer.
The same material O-Ring (Low2) were independently tested on the 19L stainless steel kegs by GunnLab.
From: Kegland

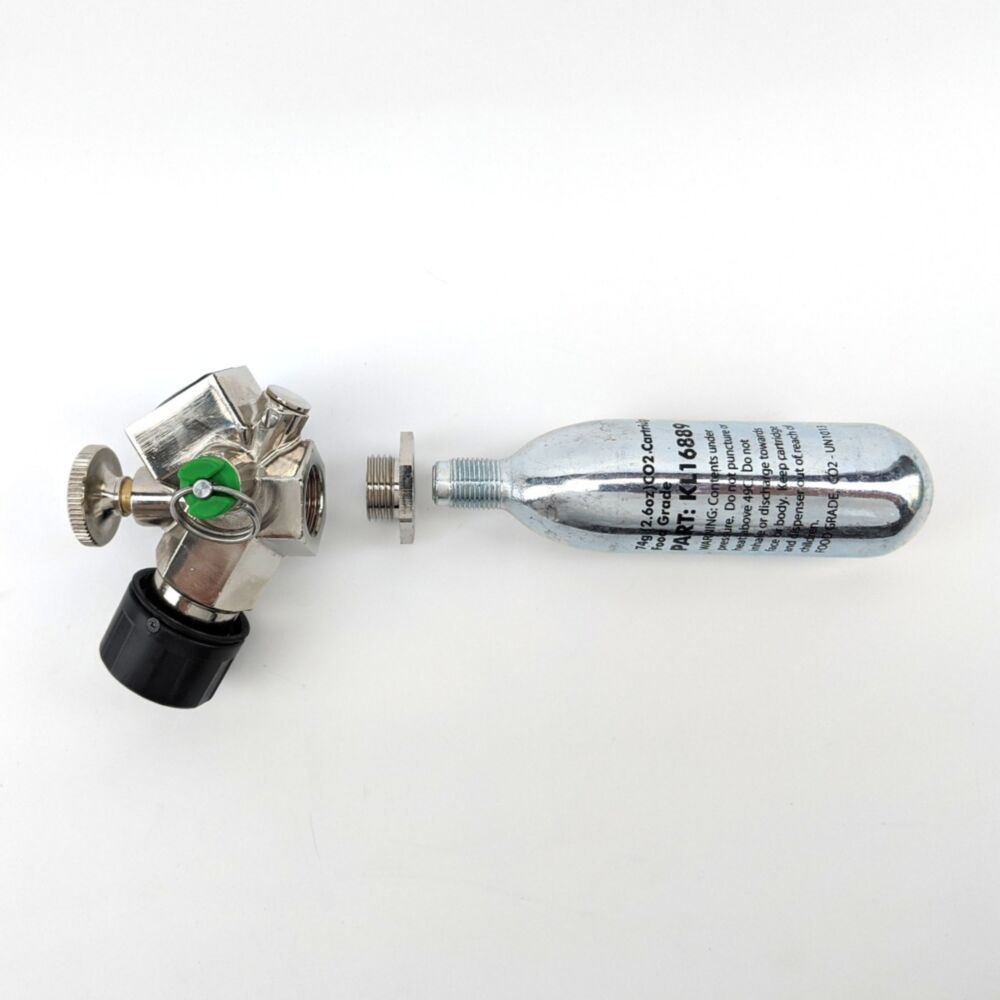

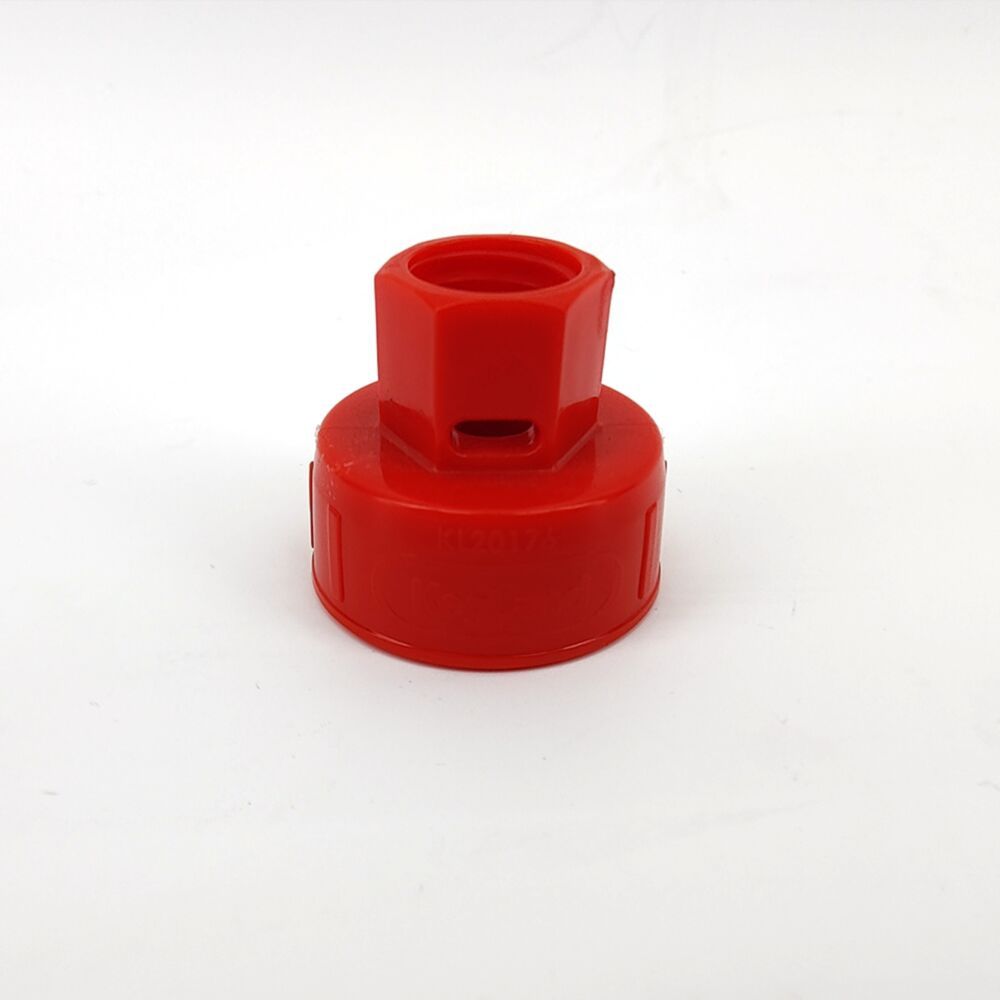

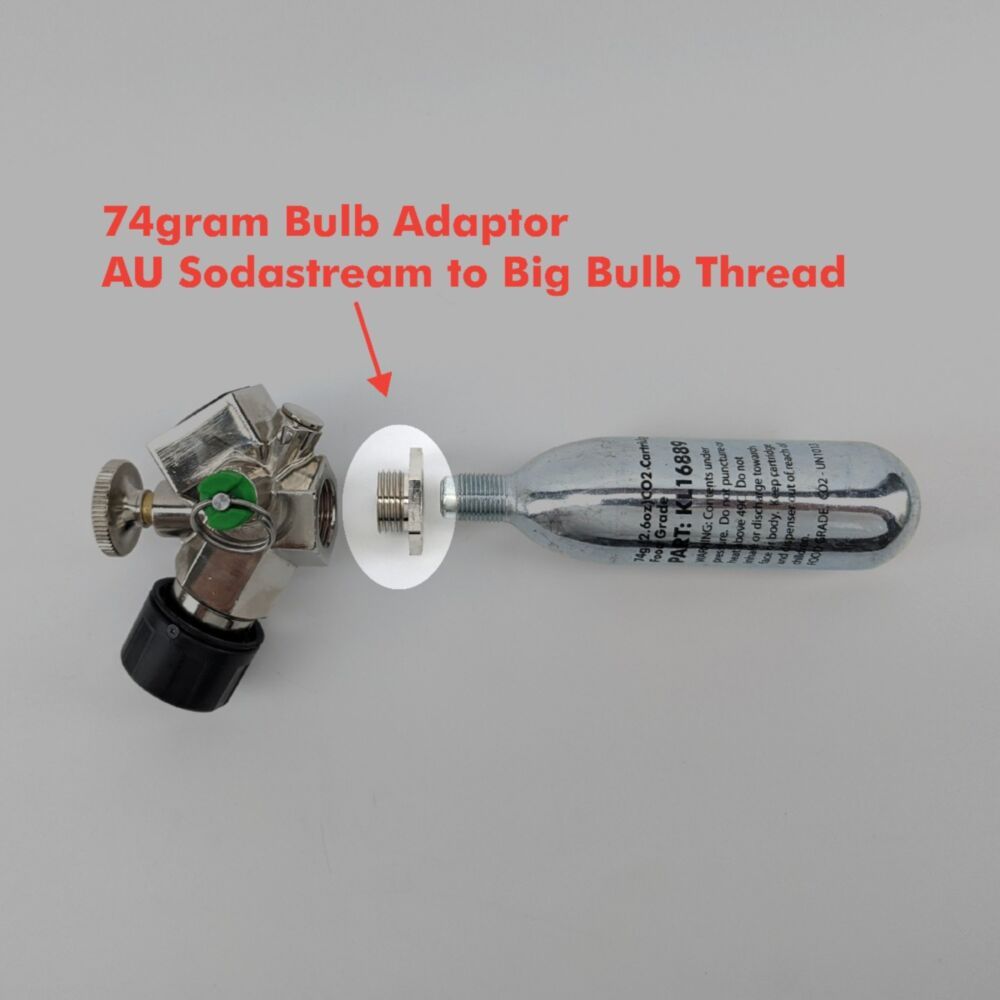

Mini Core 360 Adaptor for 74g Canister/Bulb (G1/2 Male x 5/8-18UNF Female).
This adaptor for the Core 360 Mini Regulator will allow you to use the oversized disposable 74gram co2 bulbs so you can take your keg system anywhere.
The oversized 74gram CO2 bulbs are large enough to dispense almost a whole 19L keg of beer so they are a really great choice for portable keg systems.
NOTE: The regulator itself and 74grams bulbs need to be purchase separately.
From: Kegland

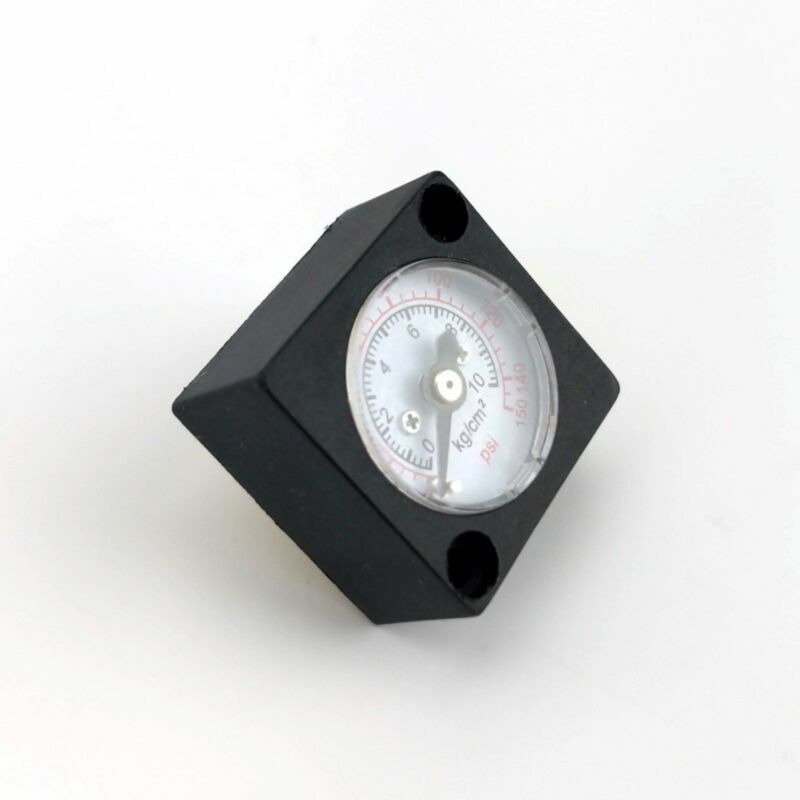

Mini Gauge 0-15psi (0-1.5bar) - for inline Duotight regulator or Blowtie.
This gauge is designed to fit into either our inline regulator or our Blowtie unit. These can be used for water or gas.
Specifications
- Pressure: 0-15psi (0-1bar)
- Graduations: PSI + Bar
- Material: Brass/Plastic/Copper Capillary
- Gauge Diameter: 20mm
- Probe Diameter: 7.8mm (designed to fit 8mm hole)
- Accuracy: These gauges are accurate to 10% of the whole pressure range.
WARNING:
Do not exceed gauge pressure. If you exceed gauge pressure it will damage the capillary in the gauge and prevent the gauge from working correctly. NEVER exceed the maximum gauge display pressure range.
Not tested or approved for pure oxygen.
If you are looking for a compact digital gauge with backlight illumination click here.
From: Kegland

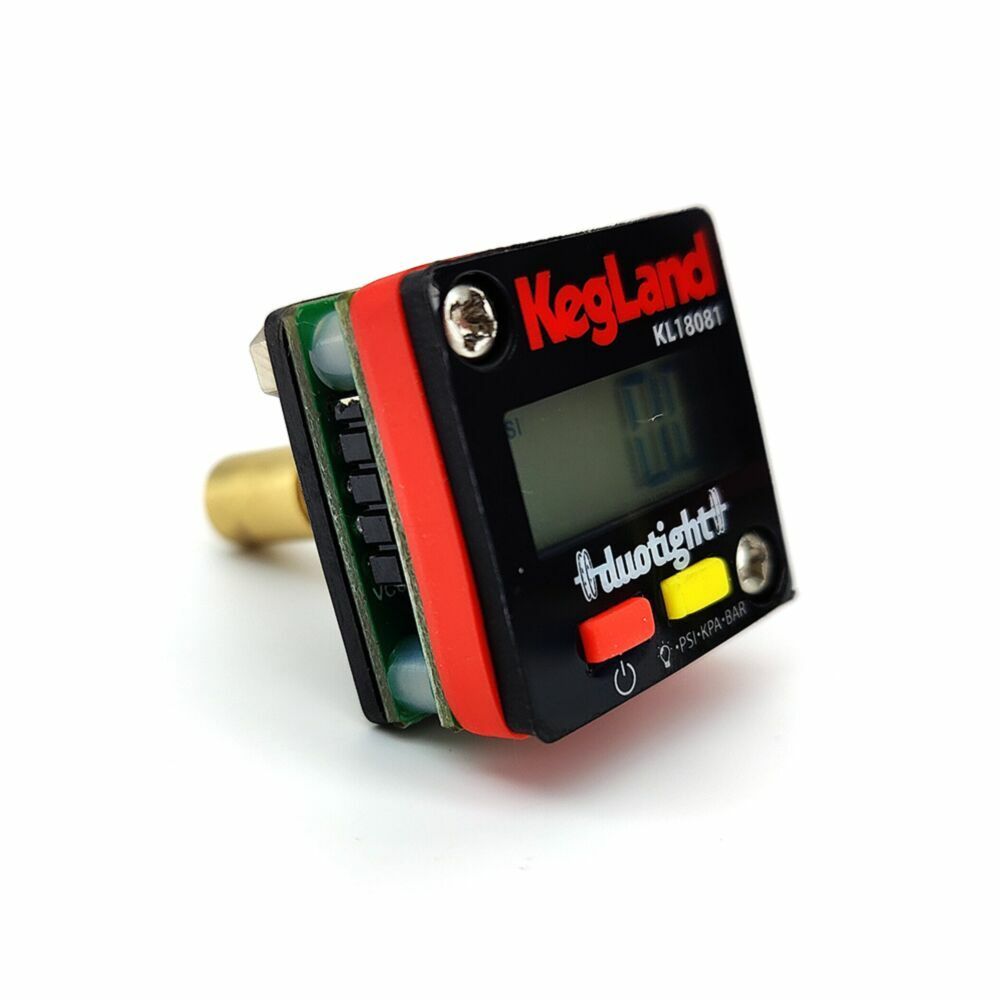

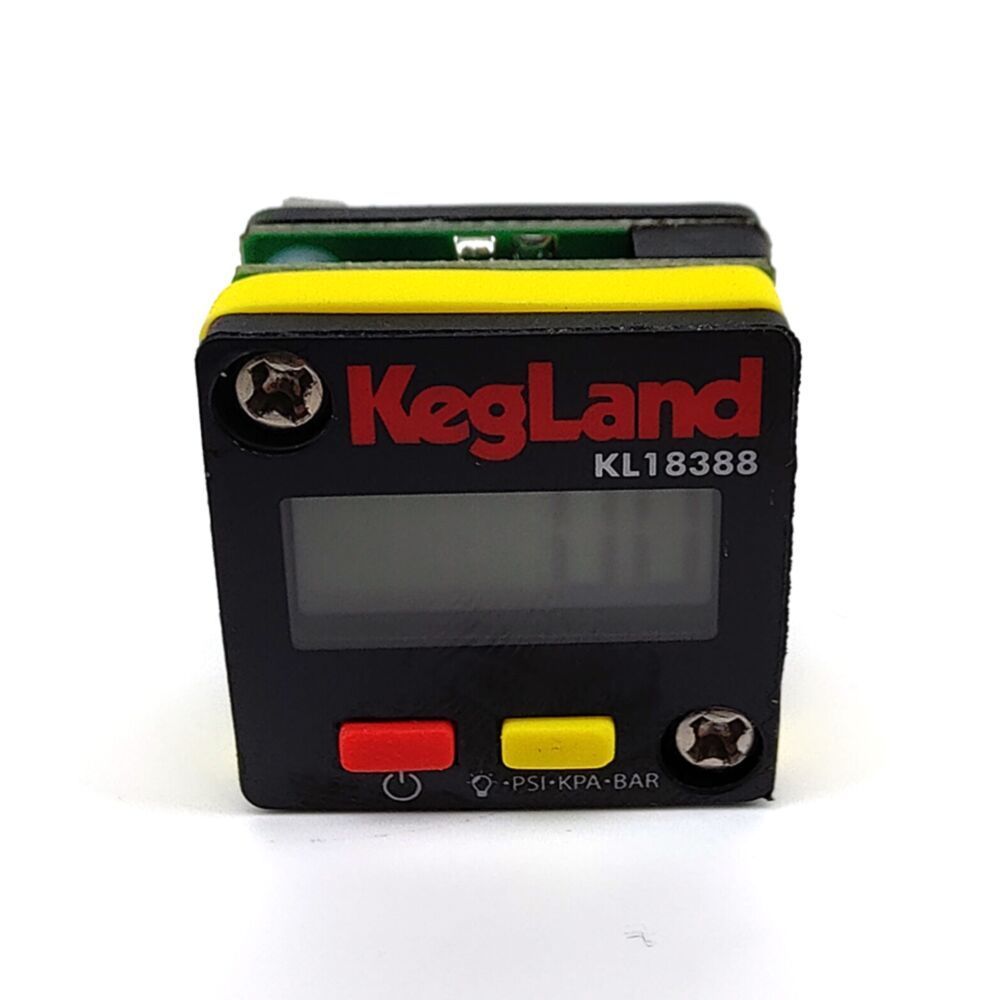

Digital Illuminated Mini Gauge 0-90psi (0-6.2bar) - Duotight 8mm Stem.
Traditional analogue gauges require a small capillary mechanism where a small pipe expands and unravels under pressure. This in turn drives a mechanical cog to rotate the gauge needle. This age old technique works quite well especially in large gauges, but as this mechanism is manufactured smaller and smaller a tradeoff between accuracy and size becomes the issue. With very small gauges, such as a 27mm x 27mm Mini Gauge, it's difficult to make them better than 10% accuracy due to the physical constraints of the mechanical components.
Kegland has developed the worlds most compact mini digital gauge with backlight illumination. This very compact design retains high accuracy while still meeting the desirable small form factor. This meets the growing need as mini keg systems, mini regulators and other more compact keg dispensing solutions is required.
Specifications:
Battery Life: More than 2 years (using the mini gauge once a day)
Battery Type: CR2032
Auto Battery Saver: YES, screen automatically turns off after 15sec
Size: 27mm x 27mm
Duotight Stem: 8mm
NOTE: This gauge is not suitable for measuring pressure of liquids. It is only for measuring gas pressure. If liquid gets into the pressure transducer it will damage the gauge. If you want to measure liquid pressure you can purchase one of these analogue gauges:
KL07696 - Duotight Compatible Push in Pressure Gauge
From: Kegland
Mini Gauge 0-90psi for Integrated Blowtie and In-line regulators - Digital Illuminated
$24.95
Unit price perMini Gauge 0-90psi for Integrated Blowtie and In-line regulators - Digital Illuminated
$24.95
Unit price per

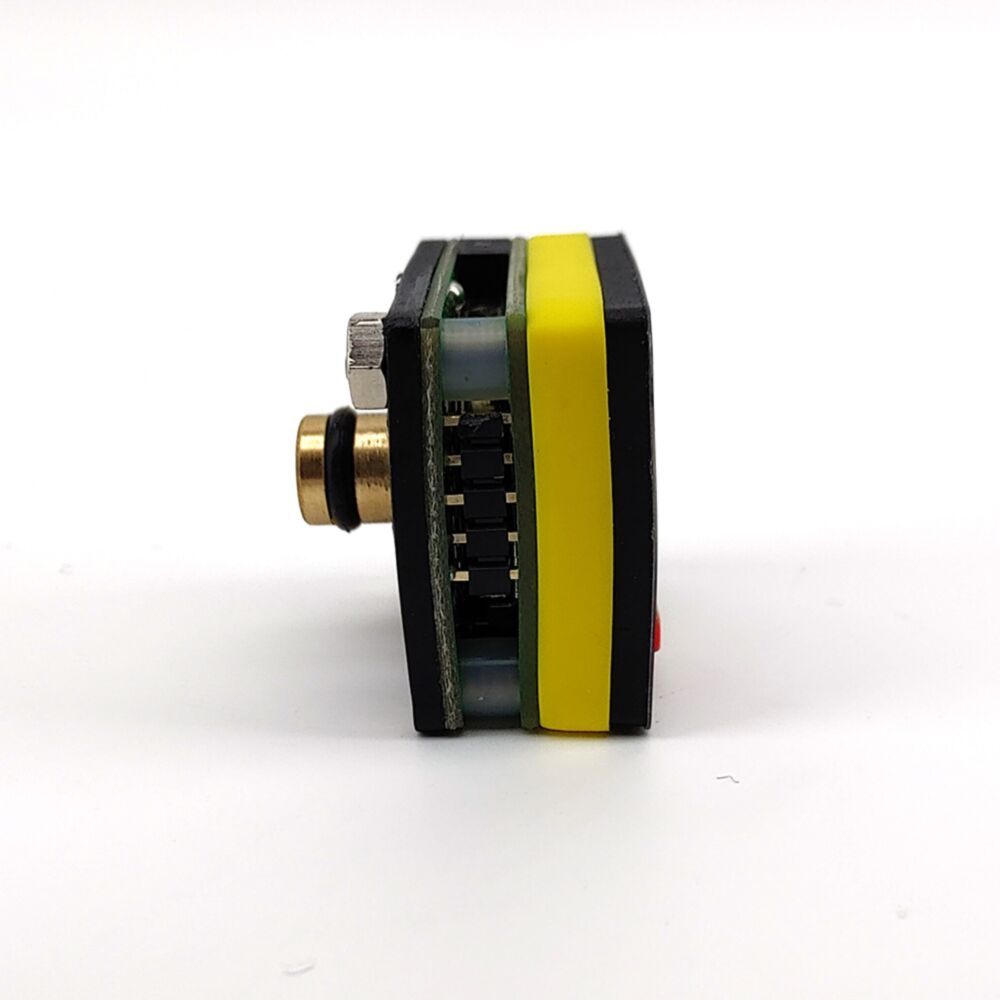

Digital Illuminated Mini Gauge 0-90psi (0-6.2bar) for Integrated Blowtie and In-line regulators.
Traditional analogue gauges require a small capillary mechanism where a small pipe expands and unravels under pressure. This in turn drives a mechanical cog to rotate the gauge needle. This age old technique works quite well especially in large gauges but as this mechanism is manufactured smaller and smaller a tradeoff between accuracy and size becomes the issue. With very small gauges such as a 27mm x 27mm Mini Gauge it's difficult to make them better than 10% accuracy due to the physical constraints of the mechanical components.
Kegland has developed this compact mini digital gauge with backlight illumination. This very compact design retains high accuracy while still meeting the desirable small form factor. This meets the growing need as mini keg systems, mini regulators and other more compact keg dispensing solutions is required.
Specifications:
Battery Life: More than 2 years (using the mini gauge once a day)
Battery Type: CR2032
Auto Battery Saver: Yes, screen automatically turns off after 15sec
Size: 27mm x 27mm
Radial O-ring Stem: 7.8mm Bore
NOTE: This gauge is not suitable for measuring pressure of liquids. It is only for measuring gas pressure. If liquid gets into the pressure transducer it will damage the gauge. If you want to measure liquid pressure you can purchase one of these analogue gauges:
This digital mini gauge can be used to upgrade your:
Blowtie Spunding Valve
Inline Regulator
Core 360 Mini Regulator
If you would like to use the mini gauge to attach to other hobbie projects then you should consider the Duotight Compatible Digital Mini Gauge with part number KL18081 that has the 8mm duotight push in stem. This makes it easy to fit to other 8mm duotight fittings, tubing etc.
From: Kegland

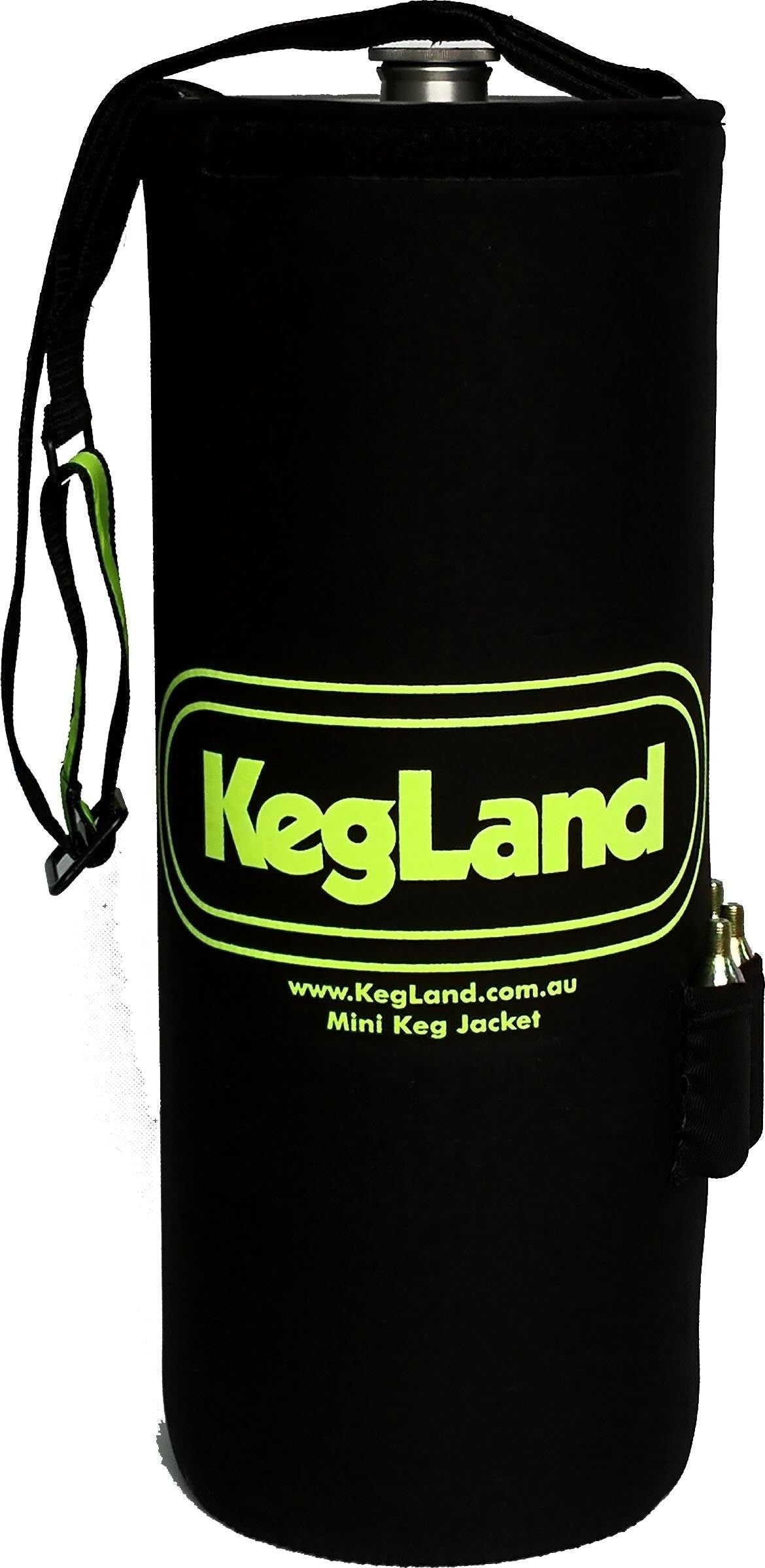

An insulated, neoprene jacket for mini kegs with glow-in-the-dark Kegland branding. Great for BBQs, camping, or parties.
Features:
1. 8mm thick neoprene. Most other keg jackets are only 4mm meaning they simply do not insulate as well.

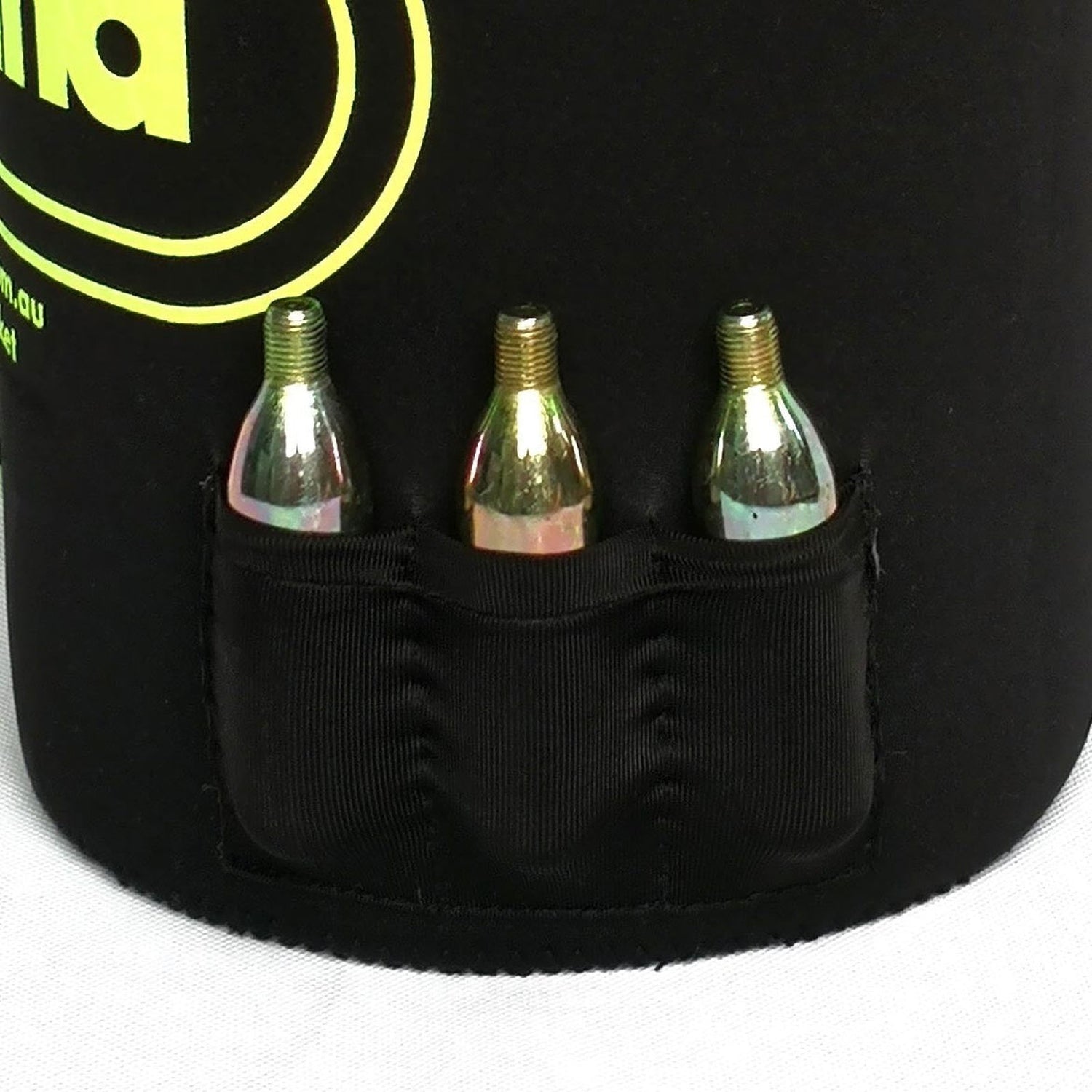

2. 16gram CO2 bulb pockets.
3. Velcro around the top so you can attach various accessories.
4. Comes with heavy duty webbing shoulder strap.
From: Kegland
A stainless steel pump for the MKII 25watt High Temperature Magnetic Drive Pump from Kegland.
This pump is constructed of food-grade materials and handles boiling wort. The impeller housing is made from polysulfone as it is a tough, food-grade plastic rated up to 120C. The magnetic drive acts as a clutch allowing the user to put back pressure on the pump to slow down flow. Since it is magnetic drive, it’s not self priming, you must put the pump under the level of the liquid source.
This is an extremely efficient 1.1amp pump which can be run continuously at elevated temperatures.
The magnetic drive ensures no lubricated bearings are in contact with the liquid at all, so you can be sure there is no chance of any contamination of the liquid being pumped, which is why this pump is ideal for home brewing.
An optional stainless steel pump head is also available.
Voltage: 240V-AC
Power: 25 watts
Max Head: 3.4m
Max Capacity: 19L/min
Fittings: 1/2" BSP
Specifications:
- High accuracy 0.1 degree C.
- Dual plugs so you can control heating and cooling devices with the one controller
- 2 x 10amp sockets on rear; one for heating and one for cooling
- Works from -45C up to 120C
- Comes with fully waterproof probe so you can immerse the probe in water
- Uses “50k ohm” Probe
- Manufactured in compliance with Australian Standards
NOTE: If you want to do a factory reset to the default settings please hold the up and down arrow down for 6 seconds.

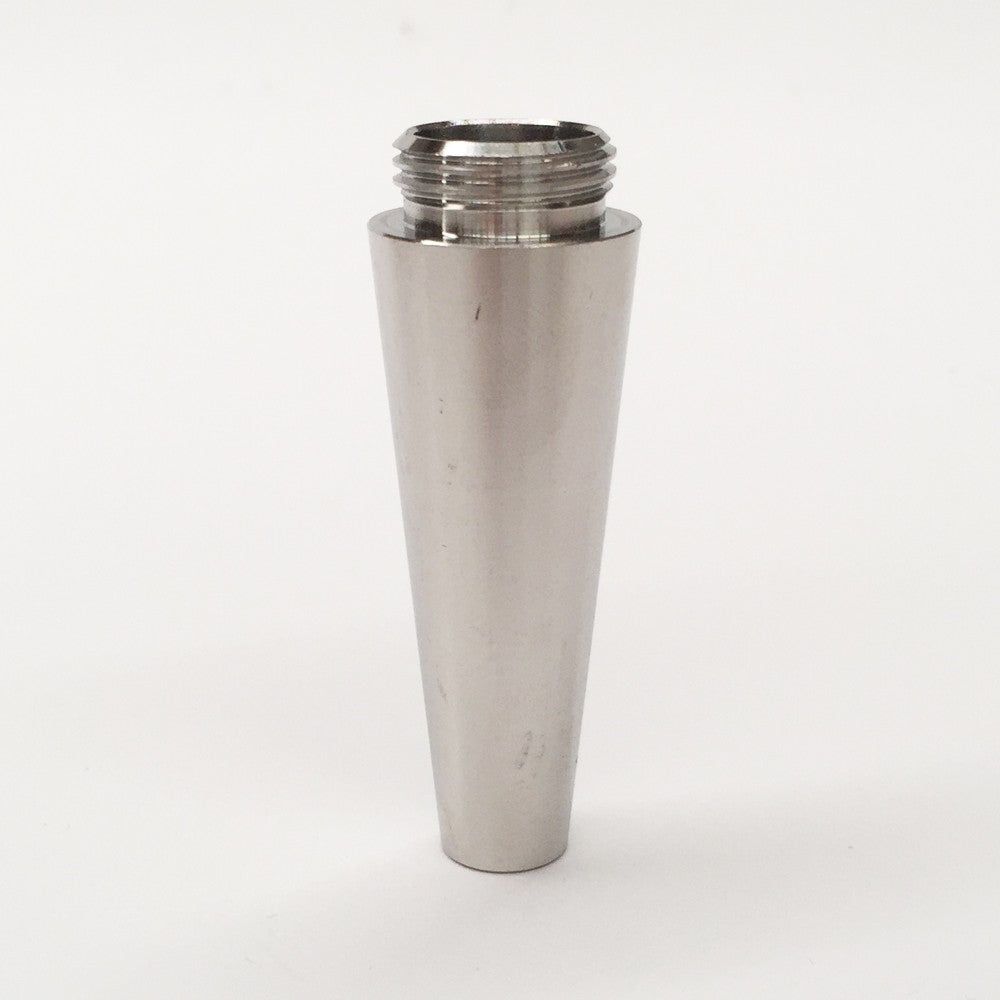

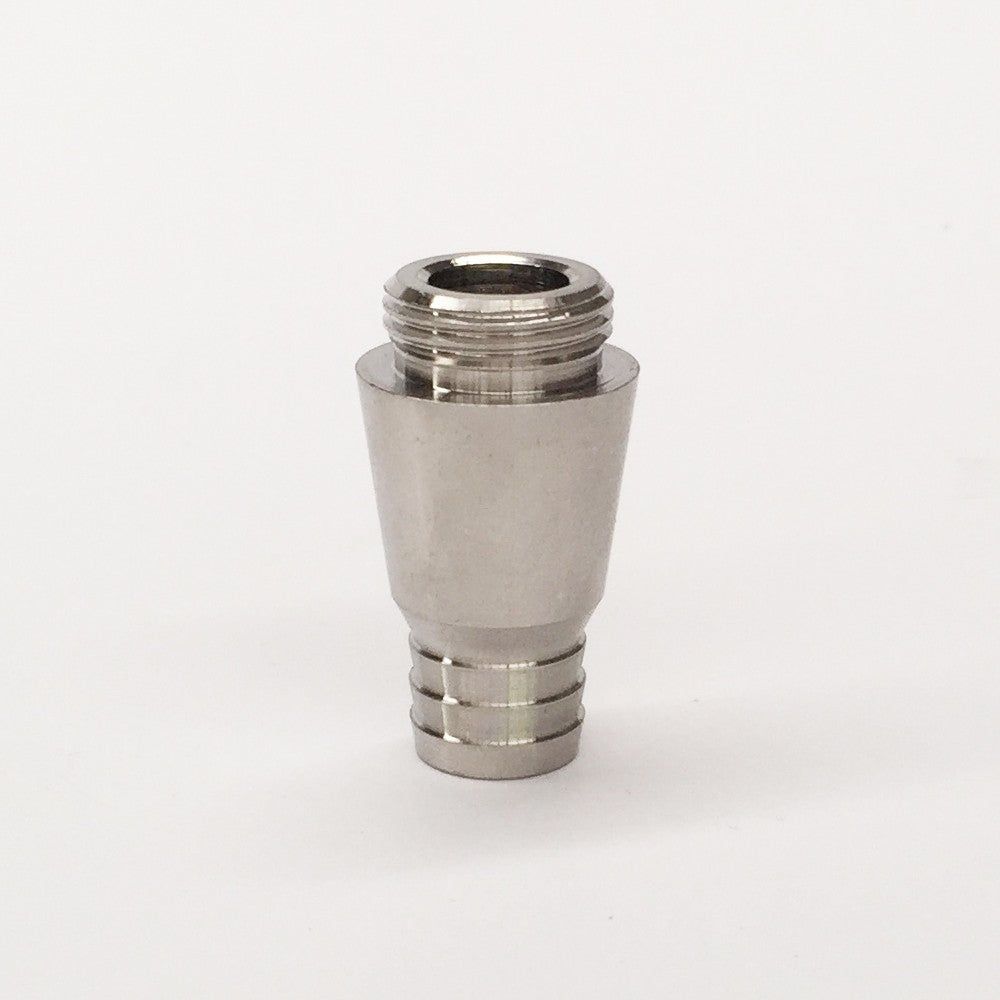

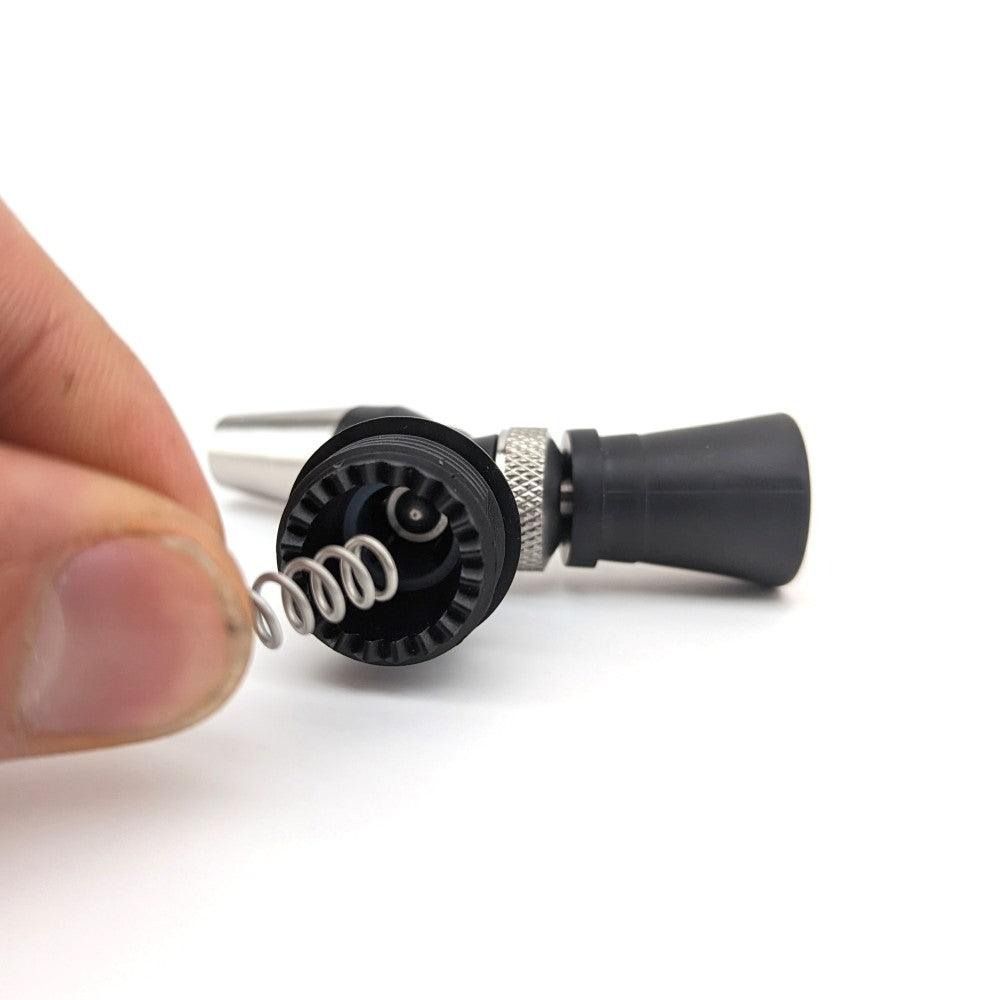

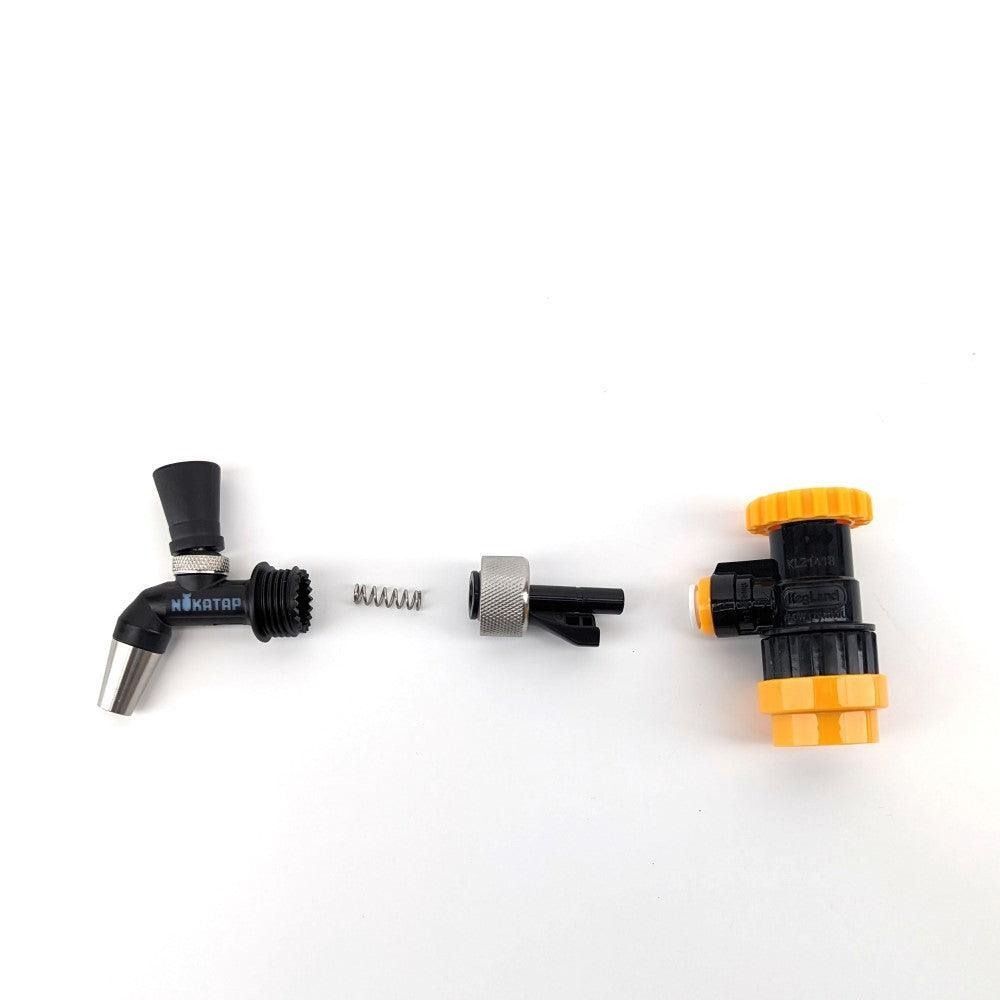

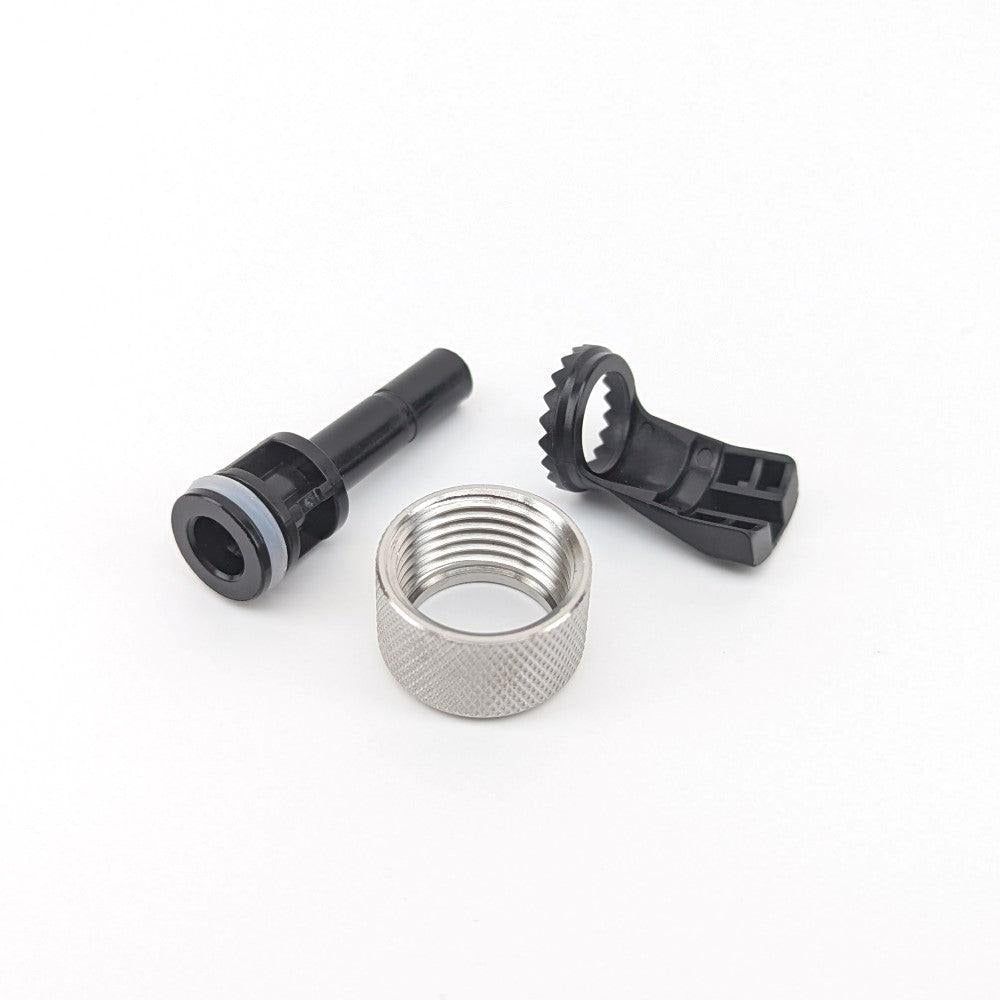

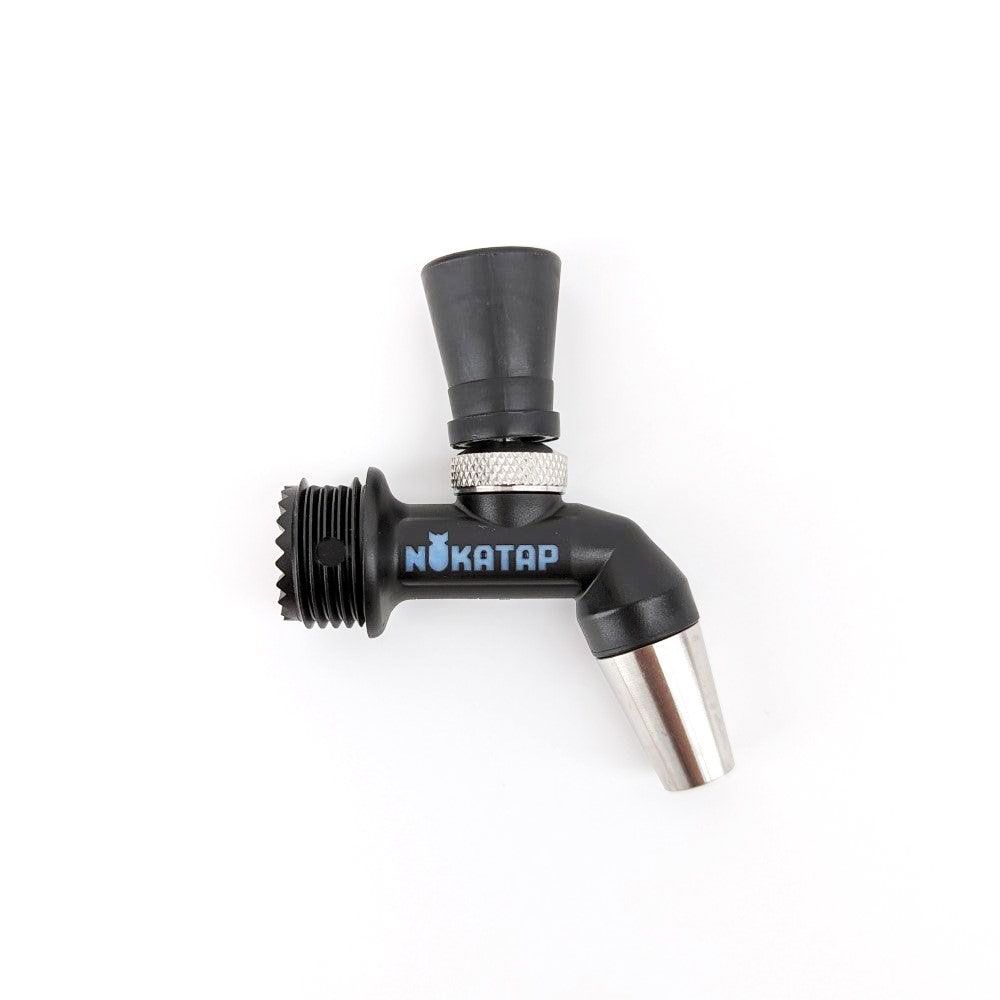

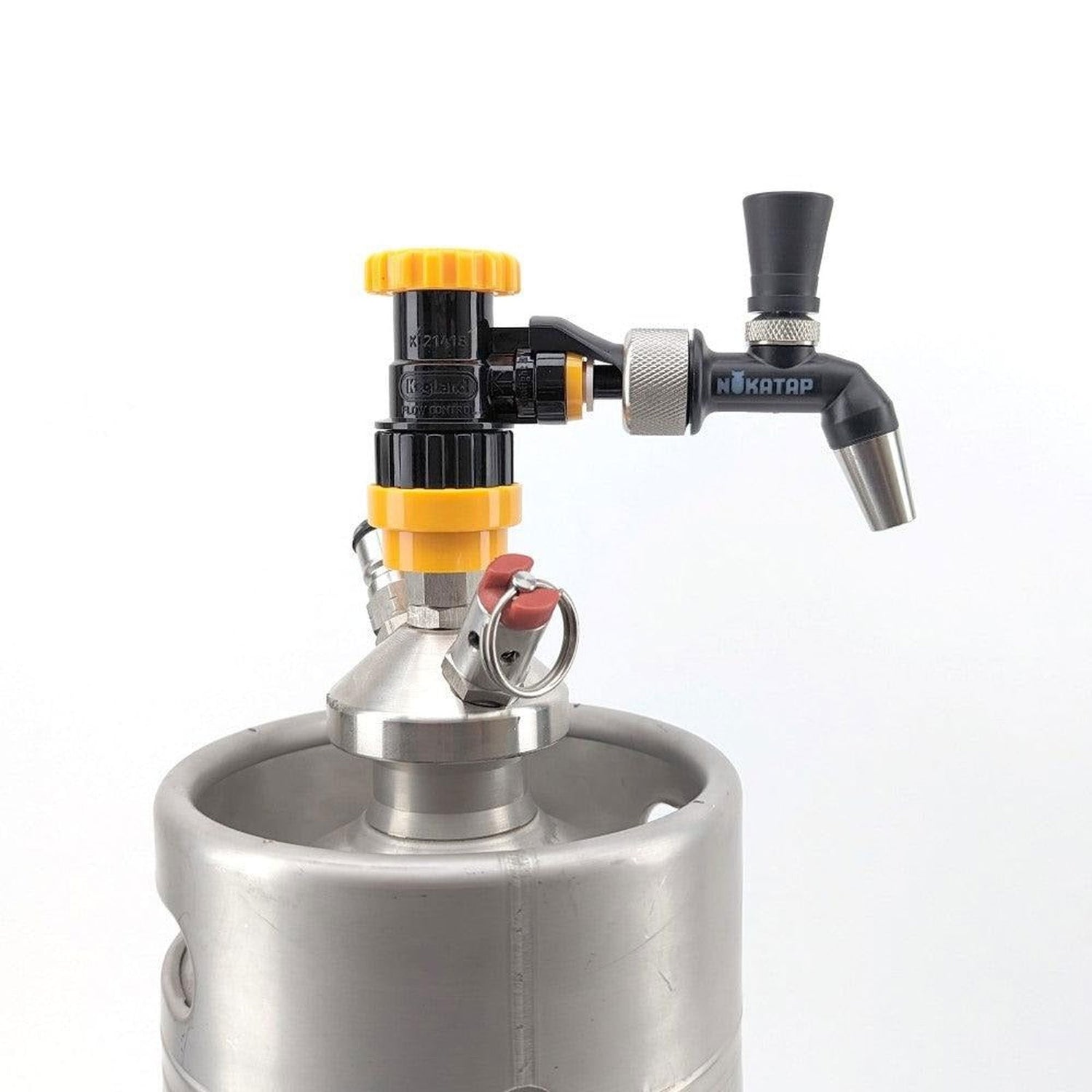

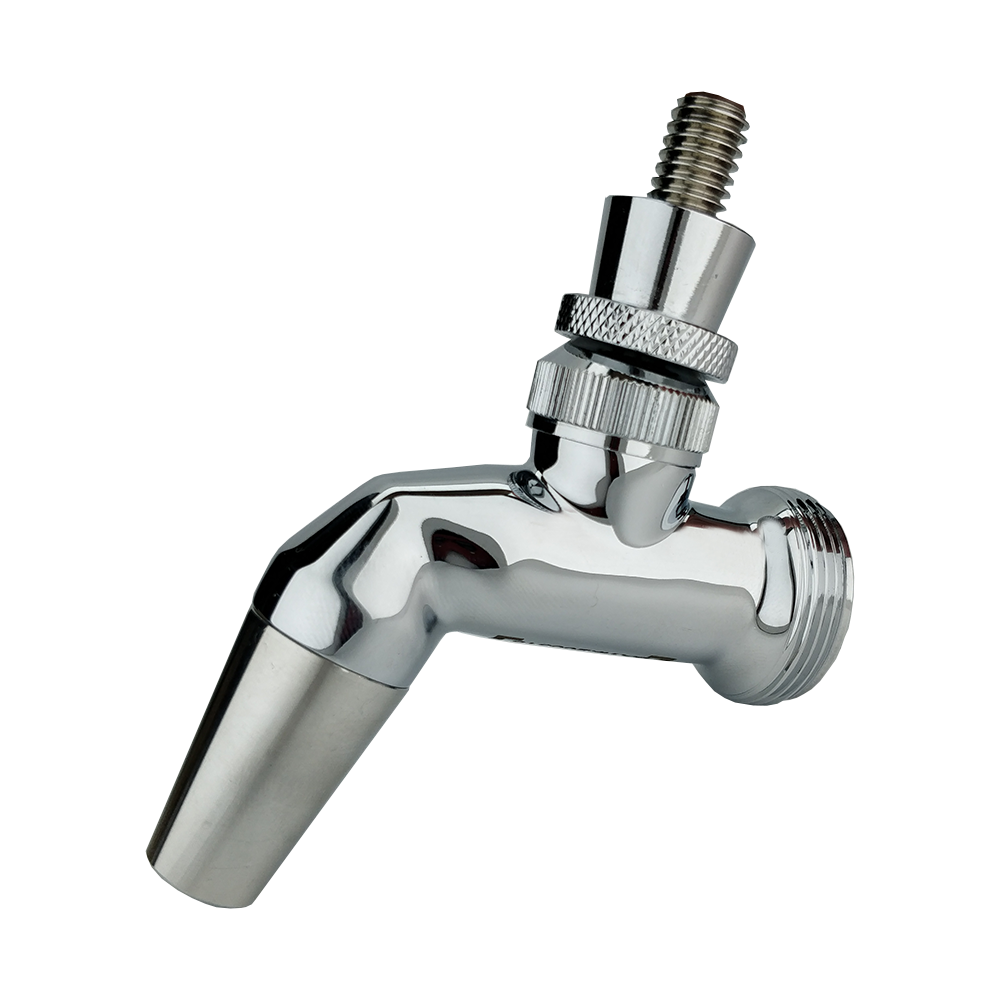

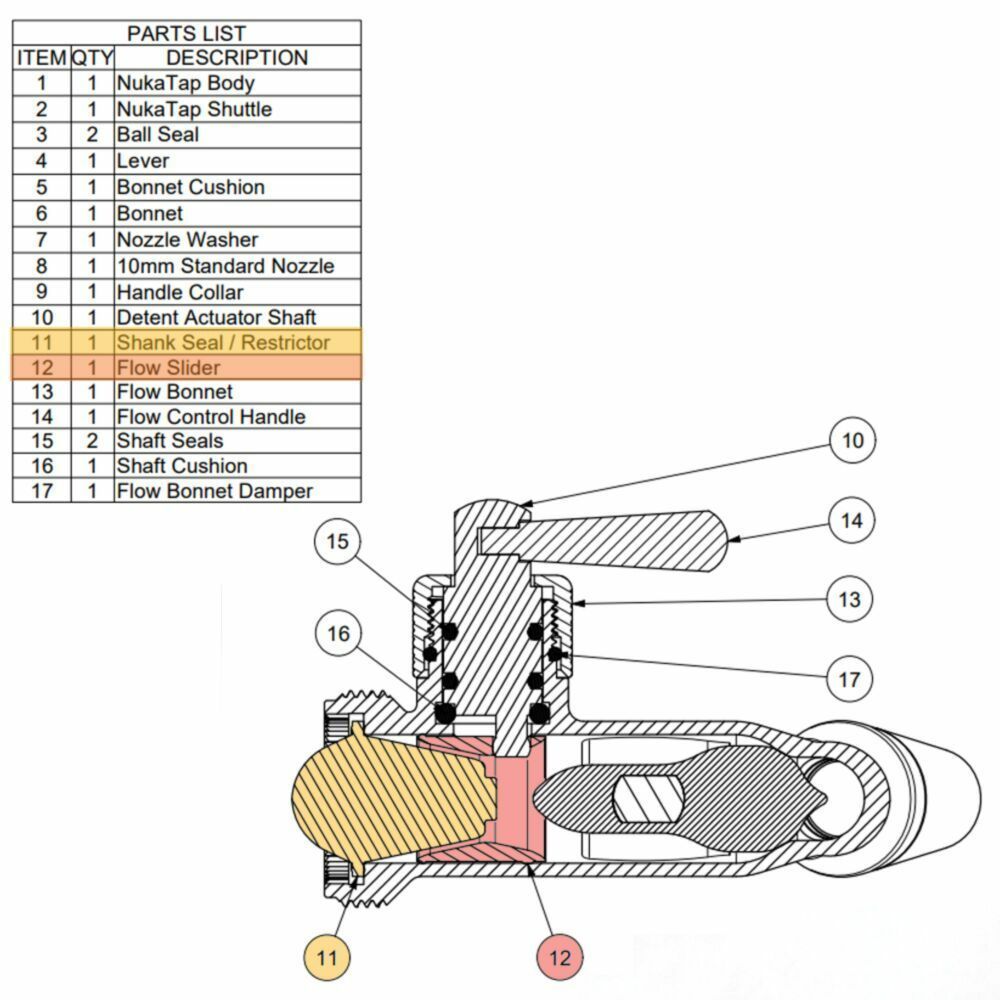

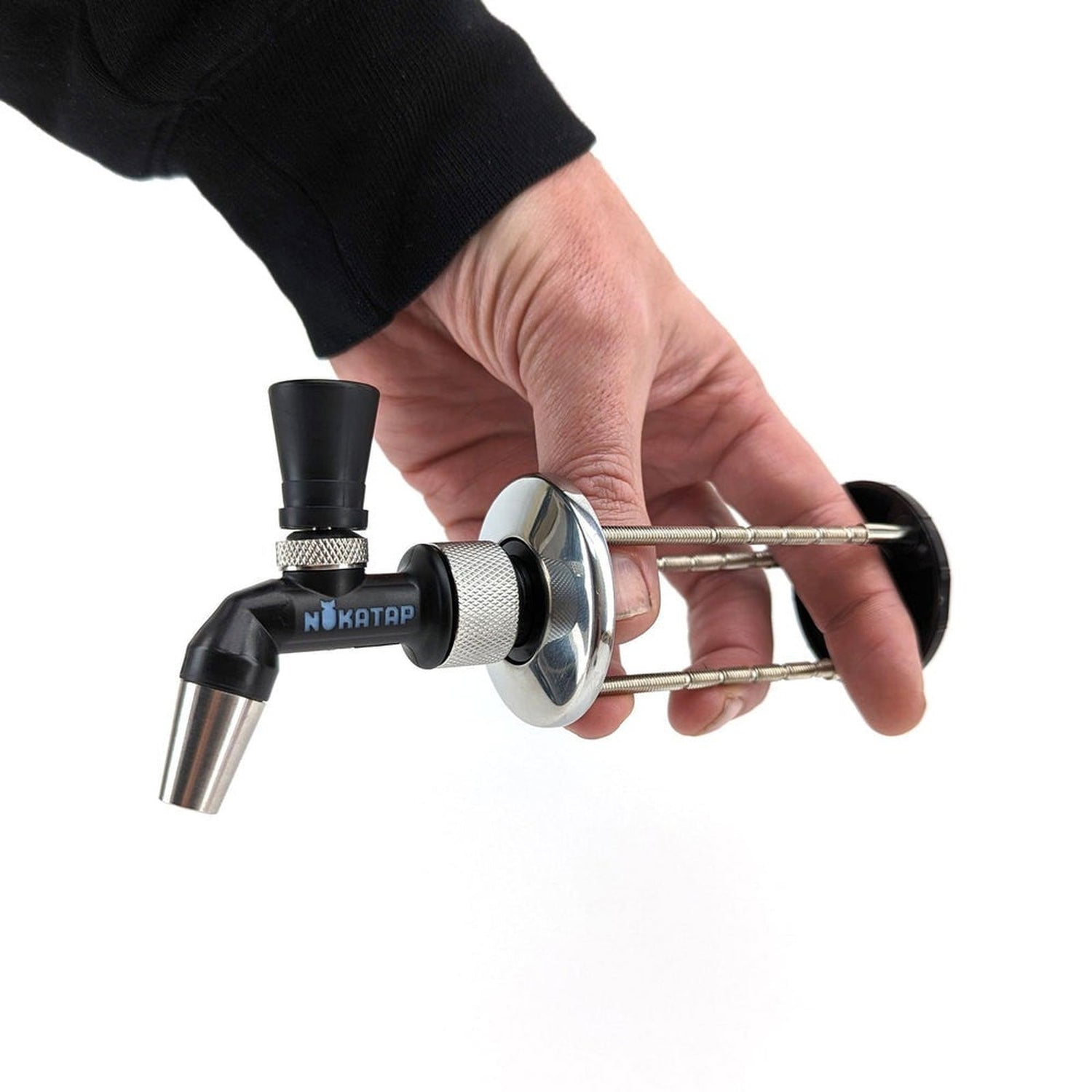

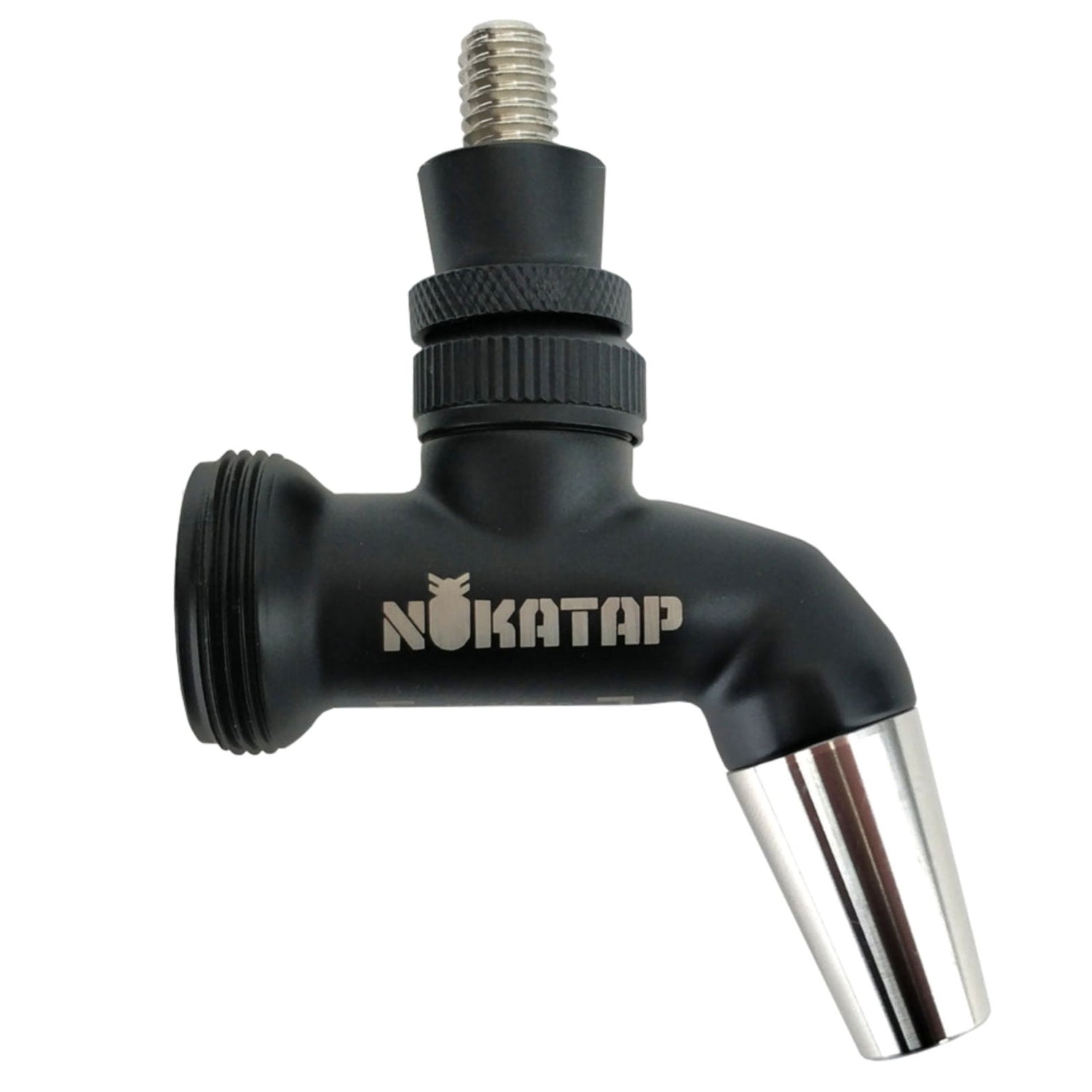

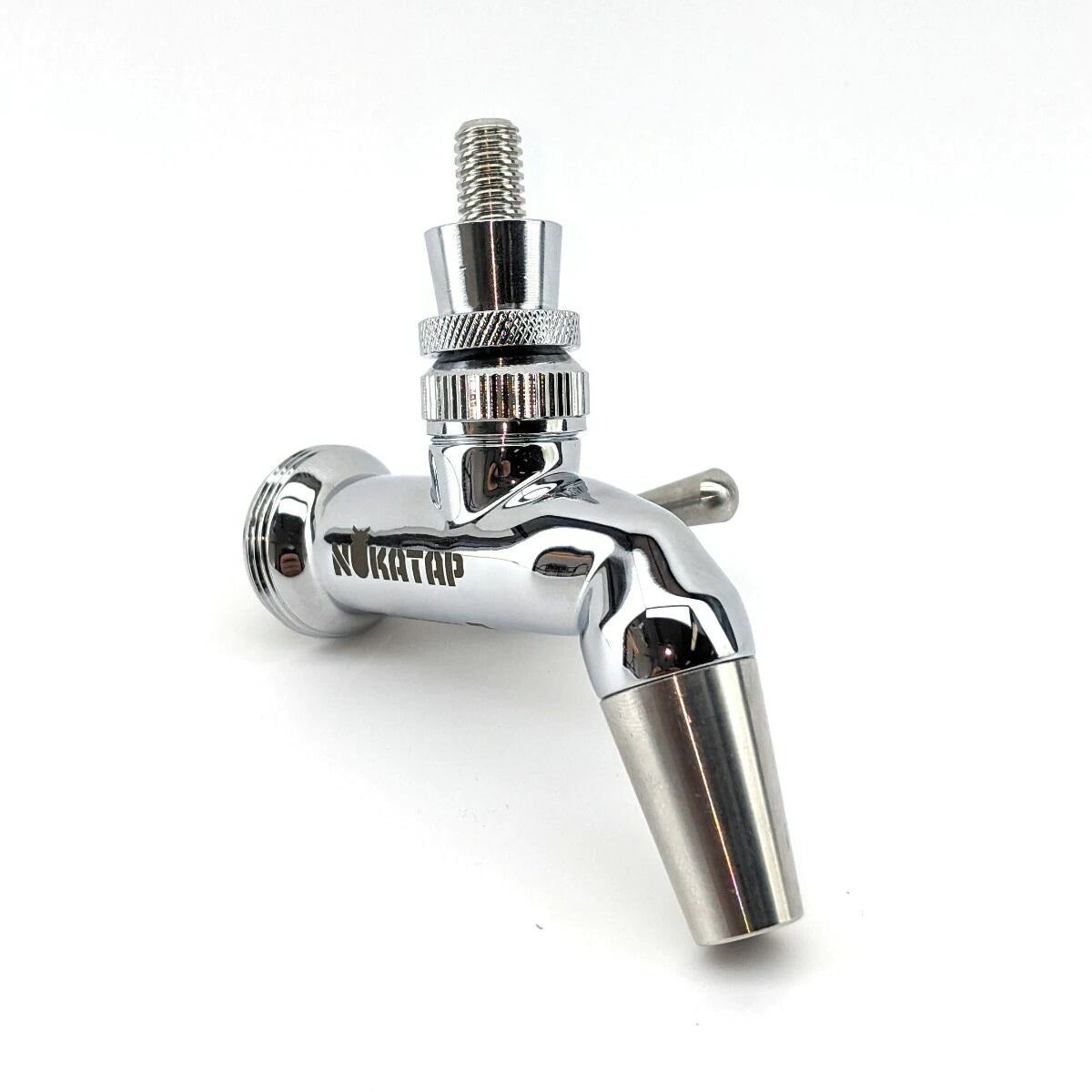

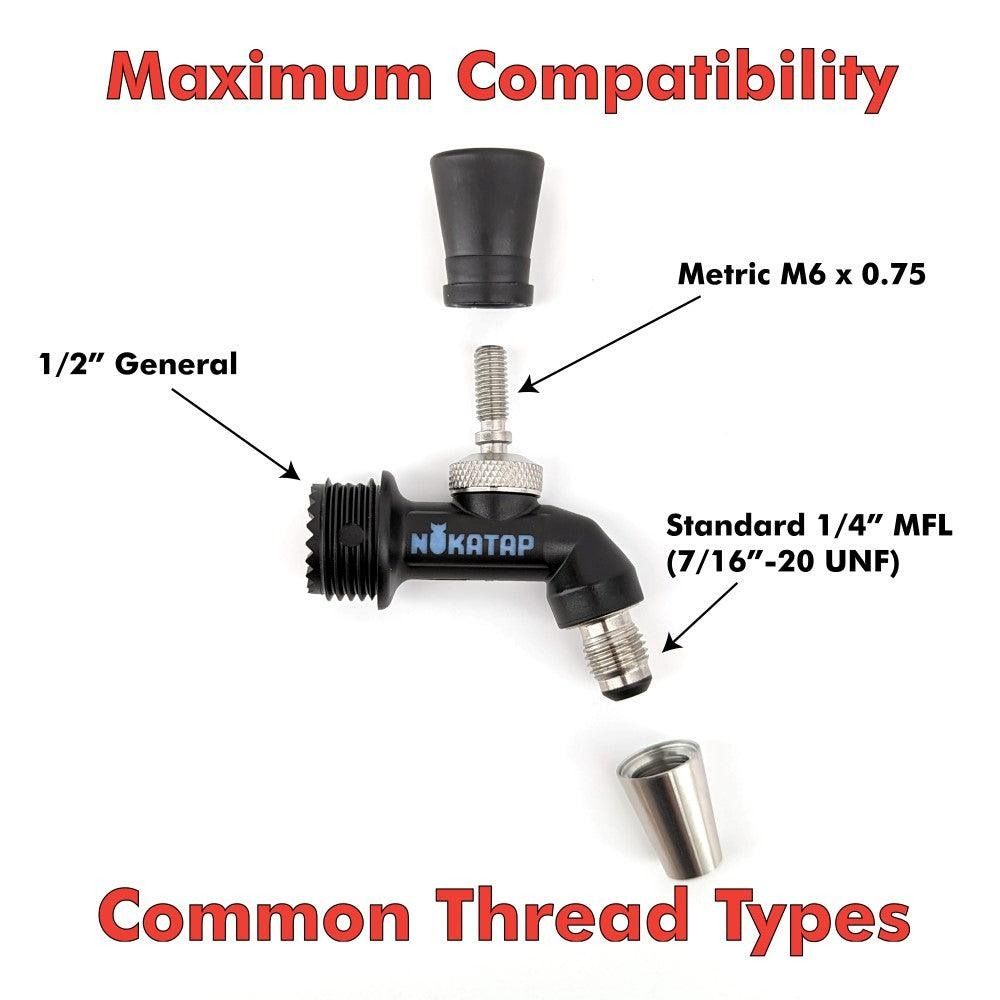

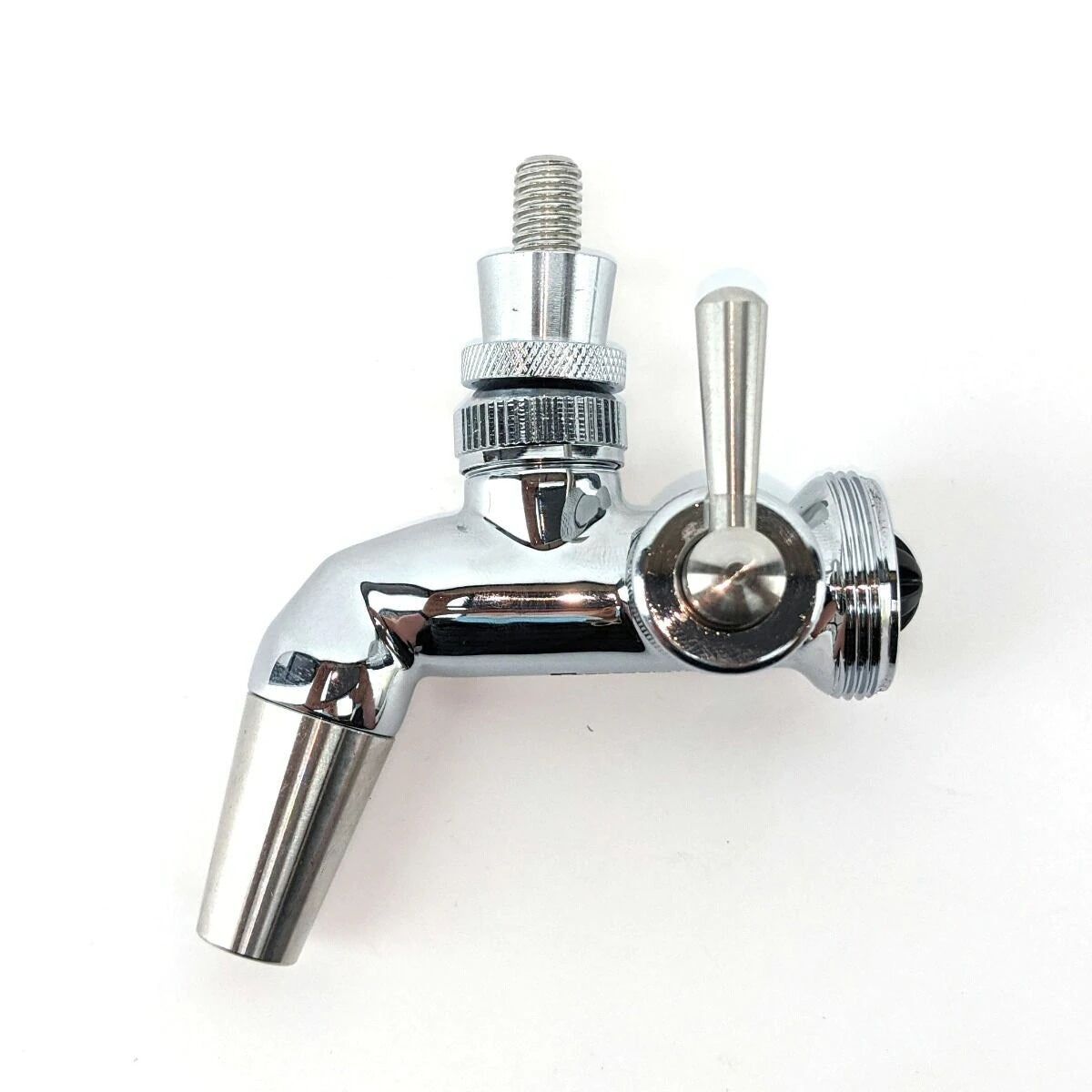

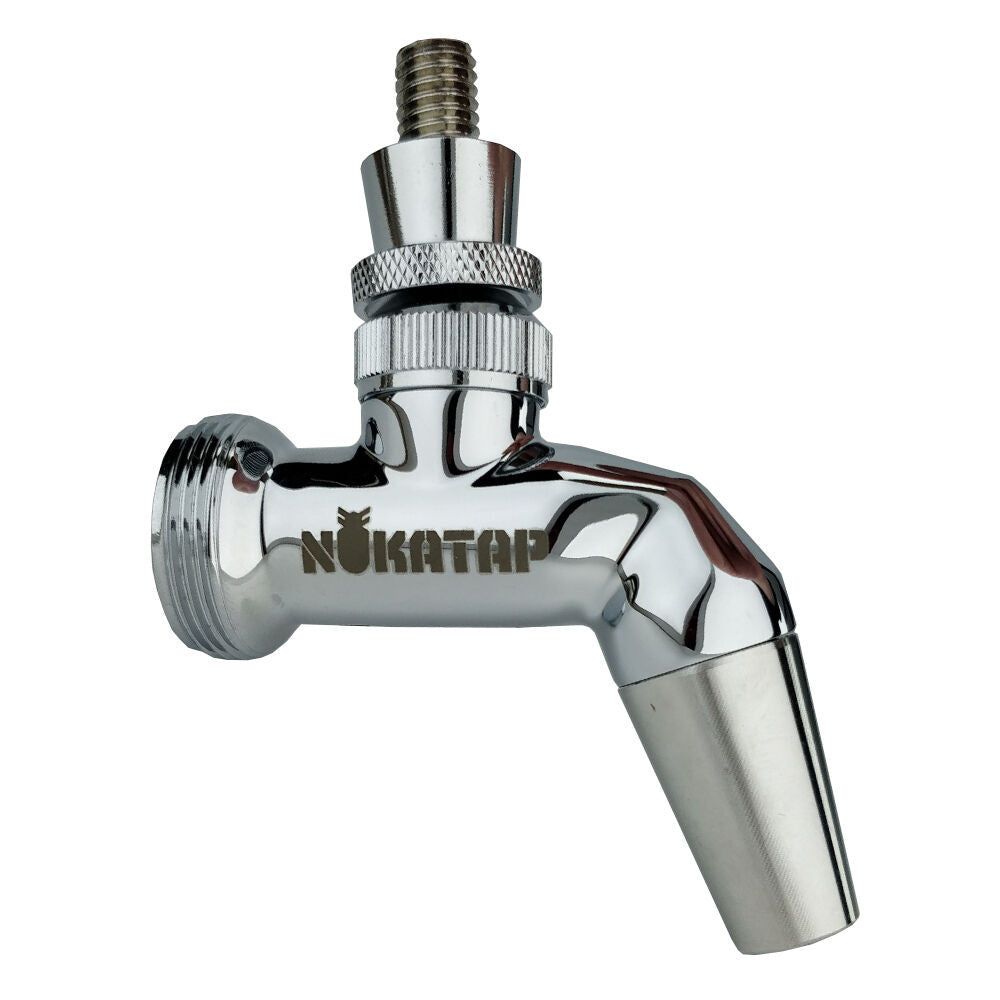

Nukatap - the latest in beer dispensing tap technology. This is the Flow Control model - looking for the non-flow control Nukatap?
What makes the Nukatap different among the other manufactured styles of taps on the market?
- First Pour Foam Reduction in Thermal Mass
- Improved Laminar Flow
- Most Sanitary Forward Sealing Design Design
- Longer Life Seals
- More Versatile Tap Handle Angle
First Pour Foam Reduction
The reduction in thermal mass significantly reduces the first pour foam effect. The tap is often the warmest part of the draft system as it protrudes from the font/tower/fridge. As a result, it acts like a heat sink and only works well once enough cold beer flows through it to cool the tap body down. This reduction of thermal mass significantly improves the foam that is poured while the tap is cooling down.
Laminar Flow
The Nukashuttle design is the world’s first seamless shuttle. After many months of modelling and testing this new "Nuke" shaped shuttle design has the most fluid dynamic shuttle shape ever manufactured for a forward sealing tap. The streamline "nuke/missile" shape is how this new innovation earned its name "Nukatap". This leap forward in laminar flow means even highly carbonated beers pour like a dream with minimal turbulence and giving you the perfect pour every time.
Most Sanitary Design
The Nukashuttle is the world’s first seamless single-piece design. Traditional taps have a seal that is seated on a stainless-steel body creating small fissures that harbour solids, are potential sites for infection, and are not as ideal for clean in place (CIP). The Nukashuttle is an advanced TPV rubber matrix that been seamlessly formed over a durable PP skeleton. This single-piece design takes away the traditional fissures found in older manufacturing methods.
Long Life Seals
Unlike many other taps that use rubbers that can be degraded with caustic and acid compounds, the Nukatap has been made to suit a wide range of conditions. It's becoming more common to see sour beers/kombucha and other acetic and lactic acid beverages dispensed using draft systems. These acids, in particular, could cause an attack on the sealing compounds resulting in downtime, loss of product and reduced maintenance intervals. The Nukatap solves this problem and is the most chemically resistant tap we have ever manufactured. Unlike some older tap styles that have "metal on metal" rubbing components that can wear over time and have a "raspy feel" the Nukatap has been manufactured with a smooth gliding action that guarantees the longevity of the tap components. The TPV rubber matrix shuttle is also one of the most durable sealing mechanisms that can tolerate large amounts of leverage force from long tap handles that would otherwise traditionally degrade the seals in other tap designs. Other forward sealing designs exist but nothing with the same level of reliability. It’s easy to find other “perl” forward sealing design taps however these taps use a floating o-ring design which by all means is equally as sanitary however the floating o-ring requires the o-ring to move within the tap body to seal correctly. This movement is typically a problem as the tap ages and/or is not serviced regularly. The Nukatap bypasses this seal as the entire Nukashuttle is a single sealing piece.
Tap Handle Angle - 2.5degree Reverse Angle
The Nukataps have been manufactured with a 2.5 degree reverse angle. This allows for a wider range of taps handles to be used, in particular, long and/or heavy handles to work perfectly irrespective of the installation conditions.
Forward Sealing Design
Just like the Intertap and its predecessors, the Nukatap shuts off the flow at the front of the tap which in turn keeps wild yeast and bacteria out of the interior of the tap body.
What does Rear Sealing Design Mean?
Typically most beer taps use a rear sealing design and the beer in the tap drains from the body of the tap with the help from a vent hole drilled at the front of the tap. This drainage hole is a dark and wet cavity and is an ideal place for airborne bacteria and wild yeast to reproduce leaving a foul film that deteriorates the quality of your beer. Every time the faucet is opened contamination can occur.
Compatible with Intertap and Nukatap accessories:
- Stout Spout
- Ball Lock Post Spout
- Growler Spout
From: Kegland

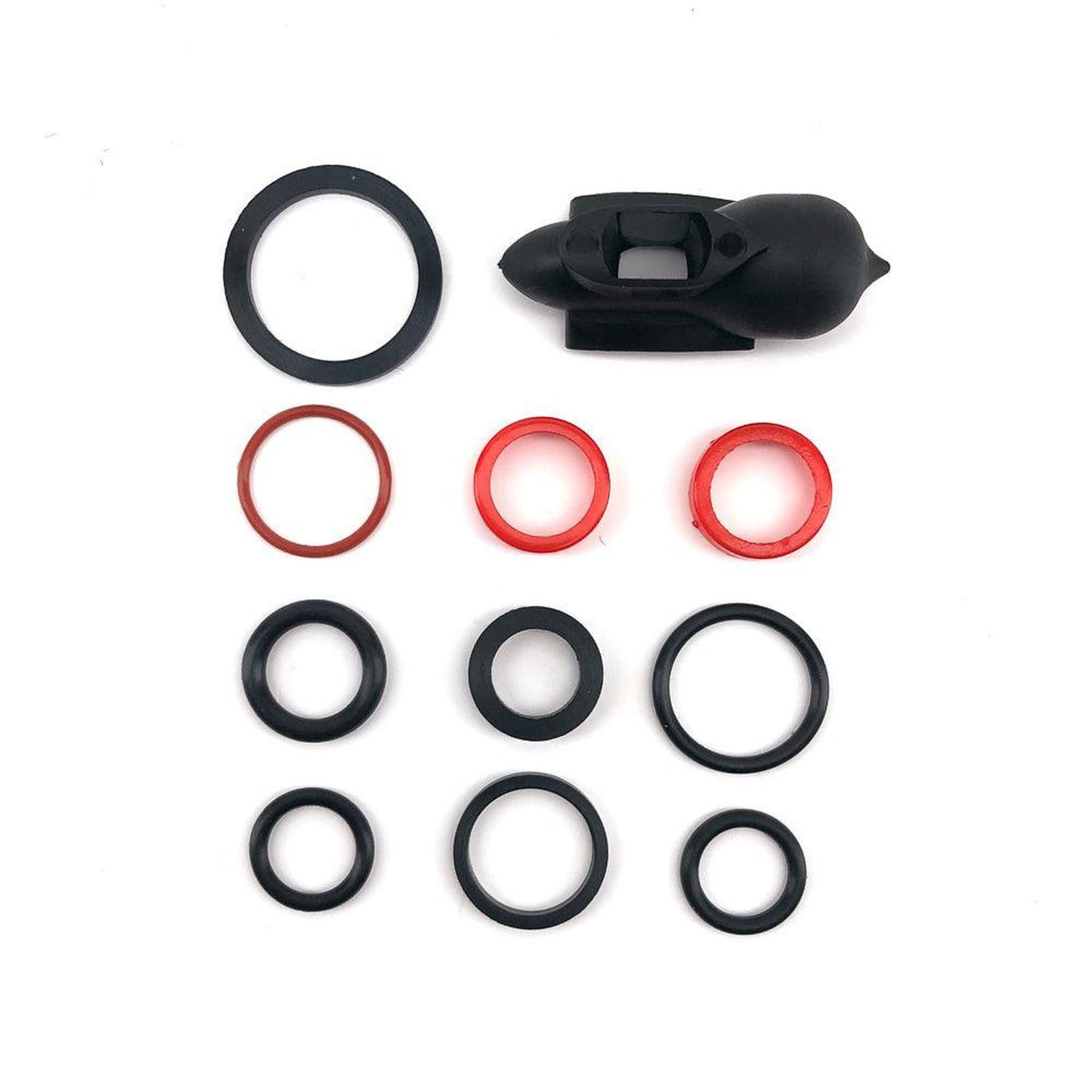

NukaTap - Flow Control Gen3 Seal Kit (Suits NukaTap FC G2)
This pretty handy kit contains all the seals needed for the NukaTap FC Gen2.
If you're still using a Gen1 FC NukaTap, this kit includes all the bits you need to upgrade the tap to the Gen2 mechanism.
The majority of these seals would never normally need to be replaced. But in the event of accidental loss / extreme commercial use, please replace said washers with the addition of food-grade lubricant to ensure their longevity.
If you have not changed your seals before, it's a great idea to take a note of which seal goes where as you remove the old ones!
Includes:
- The Nuke!
- Bonnet Washer
- 2 x Black POK Cup Seal Washers
- Nozzle Washer
- Flow Control Arm Seals
- Flow Control Arm Thread Seals
- Gen2 Flow Control Mechanism
From: Kegland

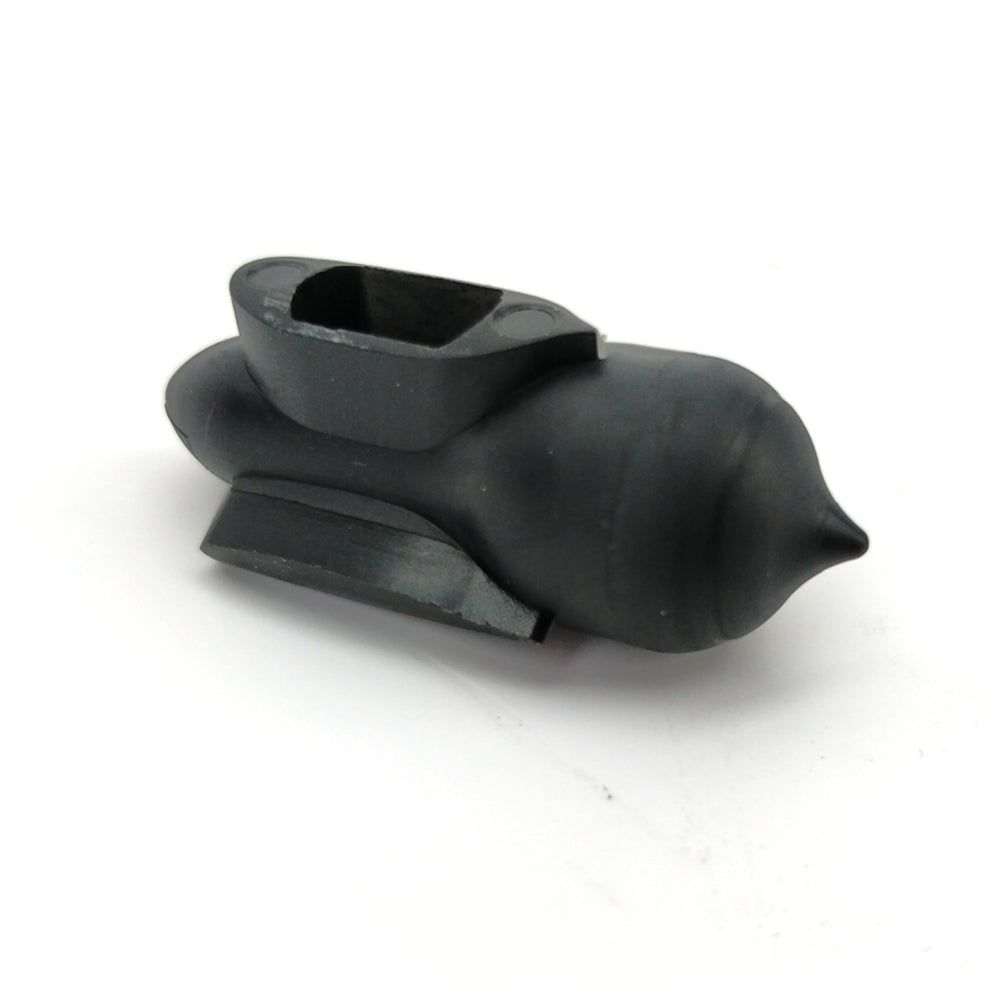

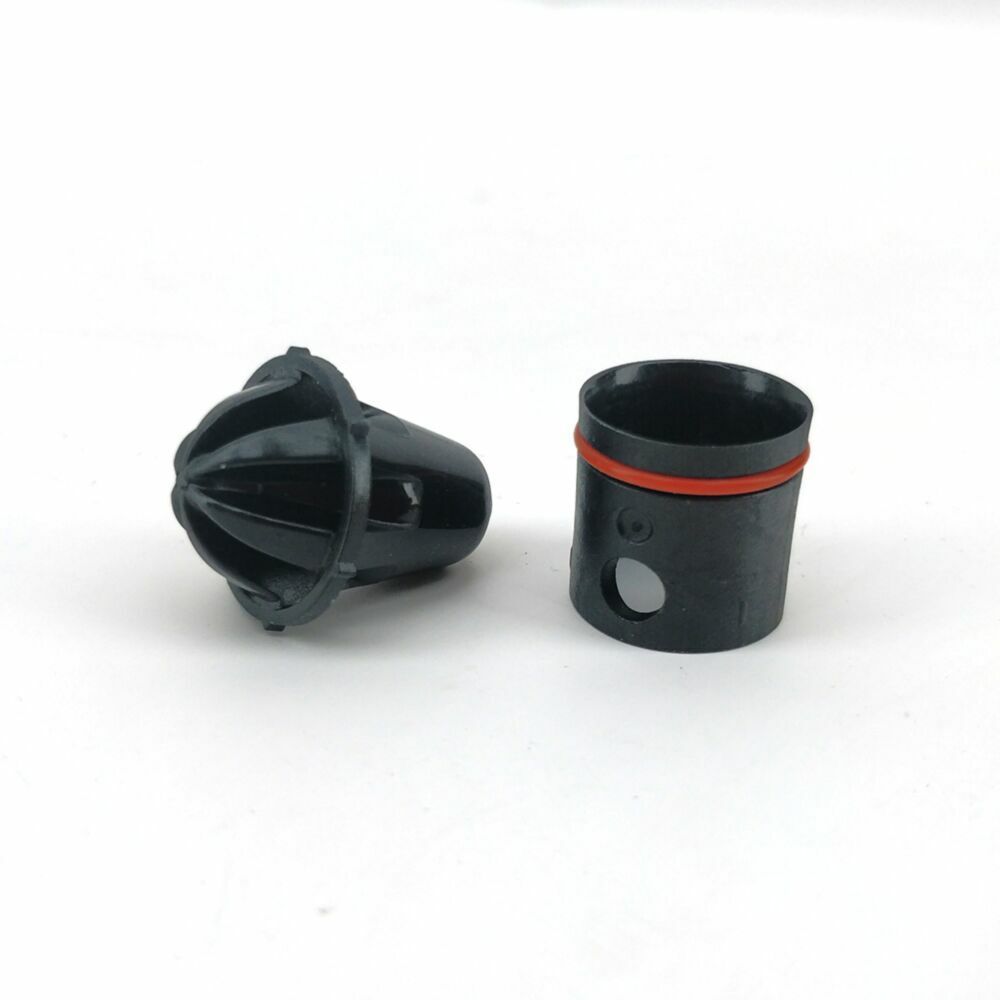

Replacement shuttles for Nukatap - Flow-Control. (Spare Part Item Numbers 11 and 12)

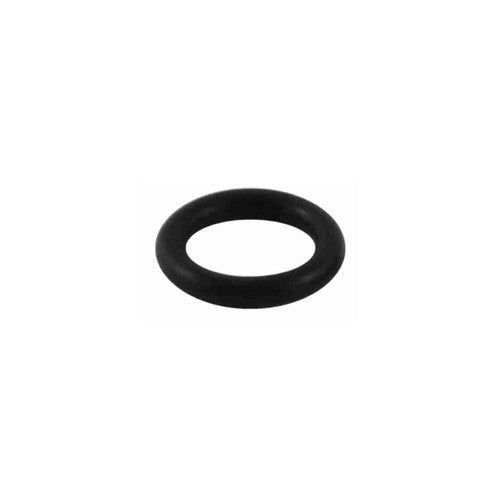

Please note the o-ring is included on part 12 already. A small amount of lubrication may be required.
From: Kegland
Nukatap - the latest in beer dispensing tap technology.
What makes the Nukatap different among the other manufactured styles of taps on the market?
- First Pour Foam Reduction due to reduction in Thermal Mass
- Improved Laminar Flow
- Most Sanitary Forward Sealing Design Design
- Longer Life Seals
- More Versatile Tap Handle Angle
First Pour Foam Reduction
The reduction in thermal mass significantly reduces the first pour foam effect. The tap is often the warmest part of the draft system as it protrudes from the font/tower/fridge. As a result, it acts like a heat sink and only works well once enough cold beer flows through it to cool the tap body down. This reduction of thermal mass significantly improves the foam that is poured while the tap is cooling down.
Laminar Flow
The Nukashuttle design is the world’s first seamless shuttle. After many months of modelling and testing this new "Nuke" shaped shuttle design has the most fluid dynamic shuttle shape ever manufactured for a forward sealing tap. The streamline "nuke/missile" shape is how this new innovation earned its name "Nukatap". This leap forward in laminar flow means even highly carbonated beers pour like a dream with minimal turbulence and giving you the perfect pour every time.
Most Sanitary Design
The Nukashuttle is the world’s first seamless single-piece design. Traditional taps have a seal that is seated on a stainless-steel body creating small fissures that harbour solids, are potential sites for infection, and are not as ideal for clean in place (CIP). The Nukashuttle is an advanced TPV rubber matrix that been seamlessly formed over a durable PP skeleton. This single-piece design takes away the traditional fissures found in older manufacturing methods.
Long Life Seals
Unlike many other taps that use rubbers that can be degraded with caustic and acid compounds, the Nukatap has been made to suit a wide range of conditions. It's becoming more common to see sour beers/kombucha and other acetic and lactic acid beverages dispensed using draft systems. These acids, in particular, could cause an attack on the sealing compounds resulting in downtime, loss of product and reduced maintenance intervals. The Nukatap solves this problem and is the most chemically resistant tap we have ever manufactured. Unlike some older tap styles that have "metal on metal" rubbing components that can wear over time and have a "raspy feel" the Nukatap has been manufactured with a smooth gliding action that guarantees the longevity of the tap components. The TPV rubber matrix shuttle is also one of the most durable sealing mechanisms that can tolerate large amounts of leverage force from long tap handles that would otherwise traditionally degrade the seals in other tap designs.
Other forward sealing designs exist but nothing with the same level of reliability. It’s easy to find other “perl” forward sealing design taps however these taps use a floating o-ring design which by all means is equally as sanitary however the floating o-ring requires the o-ring to move within the tap body to seal correctly. This movement is typically a problem as the tap ages and/or is not serviced regularly. The Nukatap bypasses this seal as the entire Nukashuttle is a single sealing piece.
Tap Handle Angle - 2.5 degree Reverse Angle
The Nukataps have been manufactured with a 2.5 degree reverse angle. This allows for a wider range of taps handles to be used, in particular, long and/or heavy handles to work perfectly irrespective of the installation conditions.
Forward Sealing Design
Just like the Intertap and its predecessors, the Nukatap shuts off the flow at the front of the tap which in turn keeps wild yeast and bacteria out of the interior of the tap body.
What does Rear Sealing Design Mean?
Typically most beer taps use a rear sealing design and the beer in the tap drains from the body of the tap with the help from a vent hole drilled at the front of the tap. This drainage hole is a dark and wet cavity and is an ideal place for airborne bacteria and wild yeast to reproduce leaving a foul film that deteriorates the quality of your beer. Every time the faucet is opened contamination can occur.
Compatible with Intertap and Nukatap accessories:
- Auto-Close Spring
- Stout Spout
- Ball Lock Post Spout
- Growler Spout
From: Kegland
The Growler Filler Spout extension can be used on any of the Nukatap / Intertap beer taps. The spout has a 13mm barb to which you can attach some hose so you can fill your growler from the bottom up to minimise foaming.
Simply un-screw the regular nozzle and screw on the Growler Filler Spout with hose attached and use as you would a growler filler tap.
This product only fits Nukatap / Intertap taps.
This is a handy Intertap spout accessory that can be used for a large range of purposes, including attaching a counter pressure filler gun. This makes keg to keg transfers or cleaning out your beer lines easy.
Simply un-screw the regular nozzle and screw on the Liquid Ball Lock Post.
This product only fits Nukatap / Intertap taps.
Simply un-screw the regular nozzle and screw on the Stout Spout and use as you would a stout tap.
From: Kegland

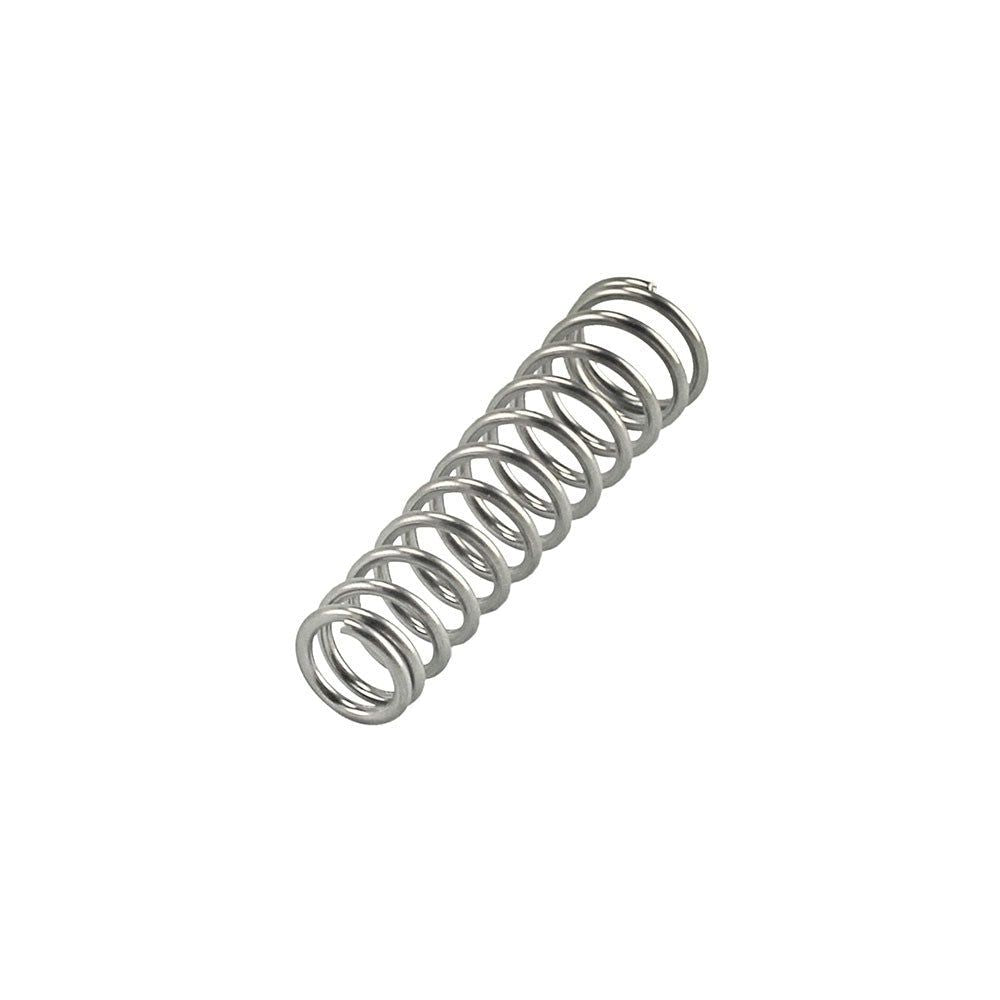

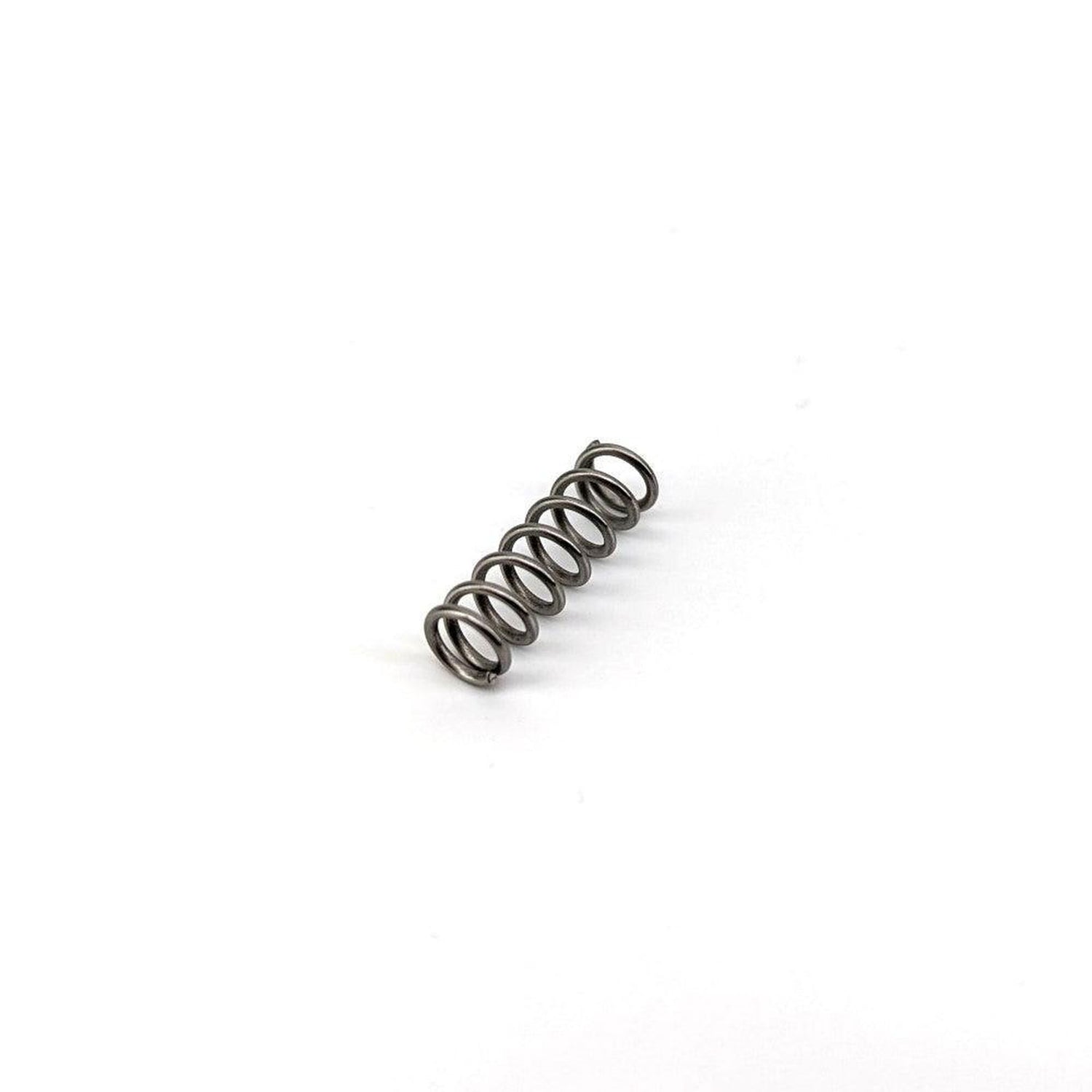

This Nukatap mini & Nukatap FC spring is designed to suit all Nukatap Mini taps and also the Nukatap Flow Control (FC) tap. This custom made 304 grade spring size is designed specifically to ensure your Nukatap stays closed when it should.
Simple let go of the tap handle and the tap will snap shut and prevent accidentally leaving the tap on and emptying the keg onto the floor.
This handy, inexpensive devices suits all Nukatap Mini and Nukatap FC taps and shank combinations.
Note: Nukatap Mini sold separately.
From: Kegland
This duotight 8mm (5/16") adaptor is designed to suit the Nukatap Mini and will allow you to couple your Nukatap mini to a wide range of other 8mm(5/16") duotight fittings or be able to attach to the Duotight Flow Control Ball Lock Disconnect. This particular type of flow control ball lock disconnect includes a "tang" at the top of the push in fitting that couples with this adaptor. The combination of the two fittings prevents the tap spinning around while in use.
Other Parts Sold Separately
Ball Lock Beer Duotight Disconnect - Flow Control
From: Kegland
This bracket is used to mount a Nukatap Mini in either 6.35mm or 8mm to a table or bench. Ideal for impromptu gatherings in the park!
This bracket is compatible with tables that are up to 90mm thick. It can be adjusted to have the wing nut clamp in either direction, simply unscrew the flange piece from the threaded rod, then unscrew, then thread from the opposing side.
Please note: This item does not include the Mini NukaTap or Shank pieces. It is simply the stainless steel bracket.
From: Kegland
Most conventional beer taps are designed with a 10mm diameter nozzle/spout so you can pour pint in just over 10 seconds. This type of flow rate is great for high turnover bars and commercial venues but this high flow rate requirement is not not necessary or desirable for all applications. For compact portable systems, or for home brew draft systems, a slower flow rate is easier to control the flow and further reduces foaming issues due to the low liquid volume stored in the tap body.
This Nukatap mini is also more ideal for pouring smaller doses. For example cocktails where 150-250ml of liquid is dispensed is difficult to control with a high flow rate tap. For portable systems this tap and FC ball lock disconnect assembly is small enough to literally put in your pocket making it ideal for mini keg setups that you want to be portable or that you want to easily fit inside a domestic fridge where space is tight.
Forward Sealing
Forward sealing taps are absolutely the way to go when it comes to beer taps. The issue with rear sealing taps is that beer dries up on the tap piston. This is not sanitary and as more and more beer dries up in these components the tap can almost glue complete shut causing damaged seals or broken handles (this is particularly the case if it's left for some time to dry out with beer inside). These older legacy design still exist probably due to poor education. The forward sealing design do not have this problem and the tap drains out completely with no beer drying up on the mechanical moving parts in the same way. This makes the tap more sanitary and reduced maintenance. In may instances the price is similar so there is no reason to use a poorly designed rear sealing tap. All Nukatap taps are forward sealing.
Laminar Flow
Just like the Nuktap SS and Nukatap FC, the Nukatap Mini has been designed with laminar flow in mind. Laminar flow is critical for a beer tap as it means you will pour the beer with minimal foaming and a substantial reduction in wastage. Think about how many times a beer tap opens and closes in it's lifetime - 1000 or maybe 10,000 times? Laminar flow saves wasted beer in excessive foam and the better laminar flow easily pays for itself in a reduction in lost beer. Extensive modeling has been done on this Nukatap design to improve laminar flow.
Integrated Seals that are Indestructible and more Sanitary
Unlike other designs, the Nukatap Mini body is made from POK making it strong, robust and able to be autoclaved. The seals are also over-molded from Santoprene® making them hard wearing so they will literally last for the lifetime of the tap without the need for replacement. Santoprene® and POK both have excellent resistance to chemicals such as caustic soda, peroxide, phosphoric acid, lactic acid, citric acid, acetic acid, and all common chemicals sold and used in the beverage industry. The seals internally in are over-molded meaning NO fissures or cracks exist for bacteria, crud or yeast to hide.
Superior First Pour Foam Due to Low Thermal Mass and Conductivity
First pour foam is an issue caused by a warm tap body. For most taps to pour well it's important to dispense enough beer to cool the tap body down before the tap will pour well. In addition to this the conductivity of the tab body also makes this worse so insulative materials simply work better than conductive materials. The Nukatap mini not only has very low thermal mass but is also highly insulative being made mostly from Santoprene and POK. The combination of these two factors in conjunction with superior laminar flow makes for the lowest "first pour foam" effect out of any tap ever produced.
Long Shank Alternative (Sold separately in Duotight design)
Most conventional beer taps require a large 22mm hole to be drilled through the wall of your keezer/cooler/wall. Traditional long shanks also generally have a large volume of liquid that sits inside the wall unrefrigerated which is not ideal. This new long shank alternative is designed to suit any wall thickness and greatly reduces the stagnant beer sitting in the shank itself. For walls up to 80mm thick we have provided three screws however if the wall is thicker you can also use 6 small wood screws or something similar and attach three screws from the front and 3 from the back allowing you to go into any wall type.
Another advantage of this new design is the tap will never accidentally rotate. Typically other long shank beer taps rely on the hex nut on the shank to be done up tight enough to prevent rotation but if the wall compresses (often the case with foam walls) the tap is allowed to rotate. This new design has three fixing points making it impossible for the tap to rotate accidentally as the interlocking teeth behind the collet allow you to set the angle and then do up the collet to fix the tap permanently in that position.
Other Accessories (Sold Separately)

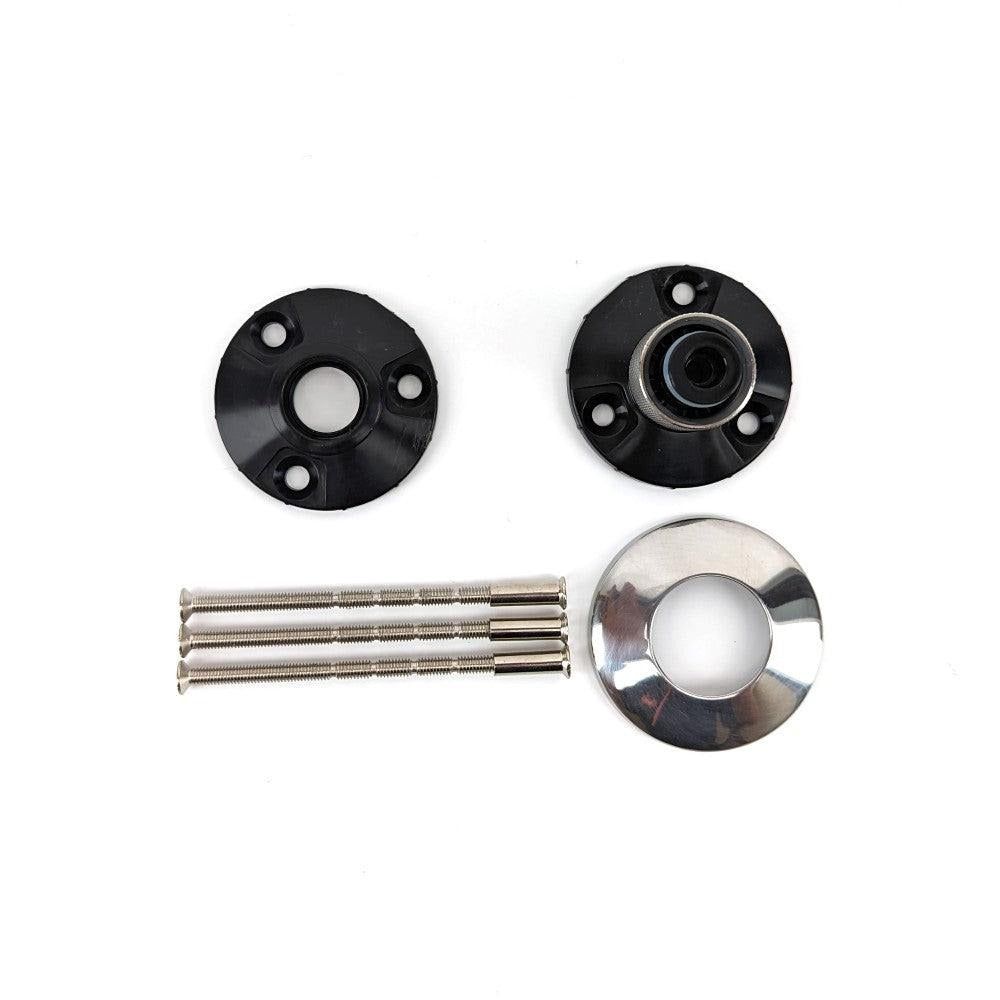

Nukatap Mini - Wall Mount Shank Kit - duotight 8mm (5/16")
Nukatap Mini - Self Closing Tap Spring
Nukatap Mini - duotight adaptor - 8mm (5/16")
Flow Control Ball Lock Disconnect
